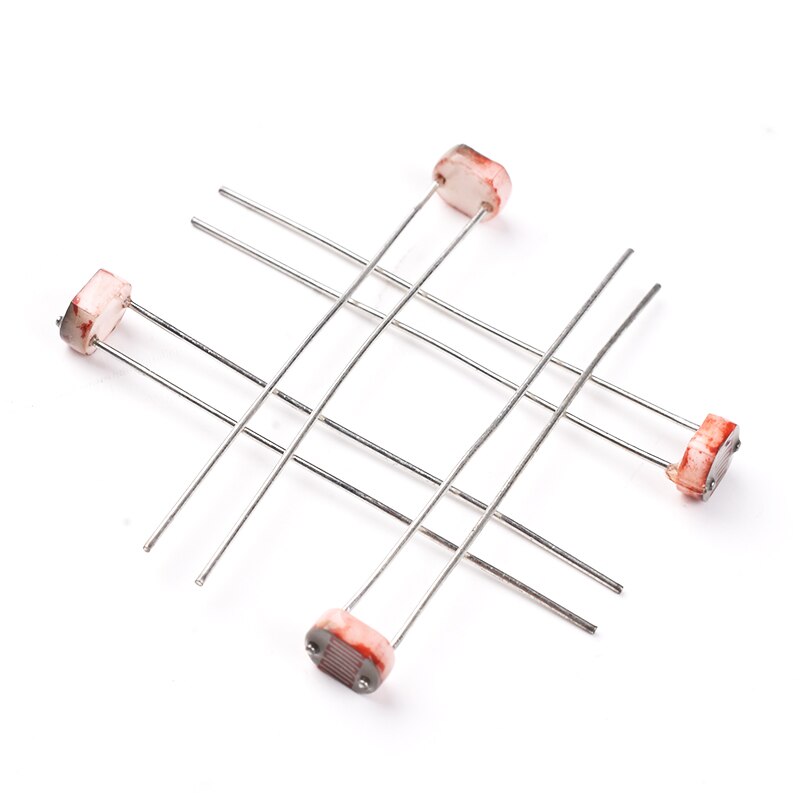

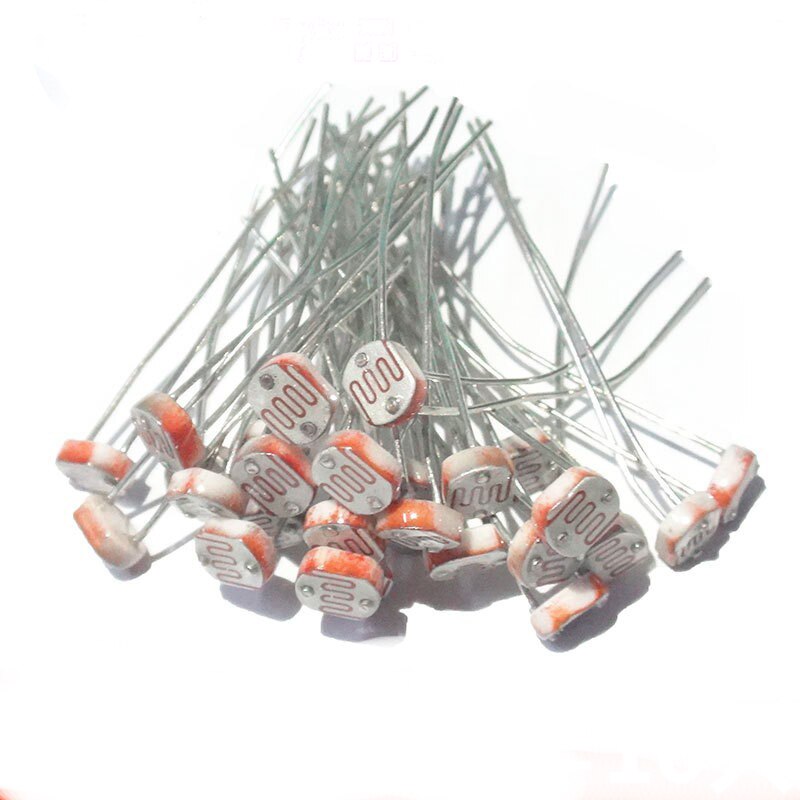

Photoresistor/photoelectric detection sensor
Very sensitive to light. The stronger the light, the lower the resistance. As the light intensity increases, the resistance value decreases rapidly.

Photoresistor is a semiconductor photosensitive device. In addition to its high sensitivity, fast response, good spectral characteristics and r-value consistency, it can also maintain a high degree of stability and reliability under harsh environments with high temperature and humidity.
It can be widely used in cameras, solar garden lights, lawn lights, currency detectors, quartz clocks, music cups, gift boxes, mini night lights, light sound control switches, street light automatic switches and various light control toys, light control lighting, lamps, etc. Automatic switch control. .

Photoresistor 5506/5516/5528/5537/5539/5547/5549  LDR  Photo Light Sensitive Resistor 5mm resistance

Model: 5528
Maximum voltage (V-dc): 150
Maximum power consumption (mW): 100
Ambient temperature (°C): -30— +70
Spectral peak (nm): 540
Bright resistance (10Lux) (KΩ): 10-20
Dark resistance (MΩ): 1
100λ10: 0.6
Response time (ms): Rise: 20
Decline: 30
Illumination resistance characteristics: 3

Model: 5537
Maximum voltage (V-dc): 150
Maximum power consumption (mW): 100
Ambient temperature (°C): -30— +70
Spectral peak (nm): 540
Brightness resistance (10Lux) (KΩ): 20-45
Dark resistance (MΩ): 2
100λ10: 0.7
Response time (ms): Rise: 20
Decline: 30
Illumination resistance characteristics: 4

Model: GL5626
Maximum voltage (V-dc): 150
Maximum power consumption (mW): 100
Ambient temperature (°C): -30— +70
Spectral peak (nm): 560
Diameter: 5MM
Bright resistance (10Lux) (KΩ): 10-20
Dark resistance (MΩ): 2
Response time (ms): Rise: 20
Decline: 30

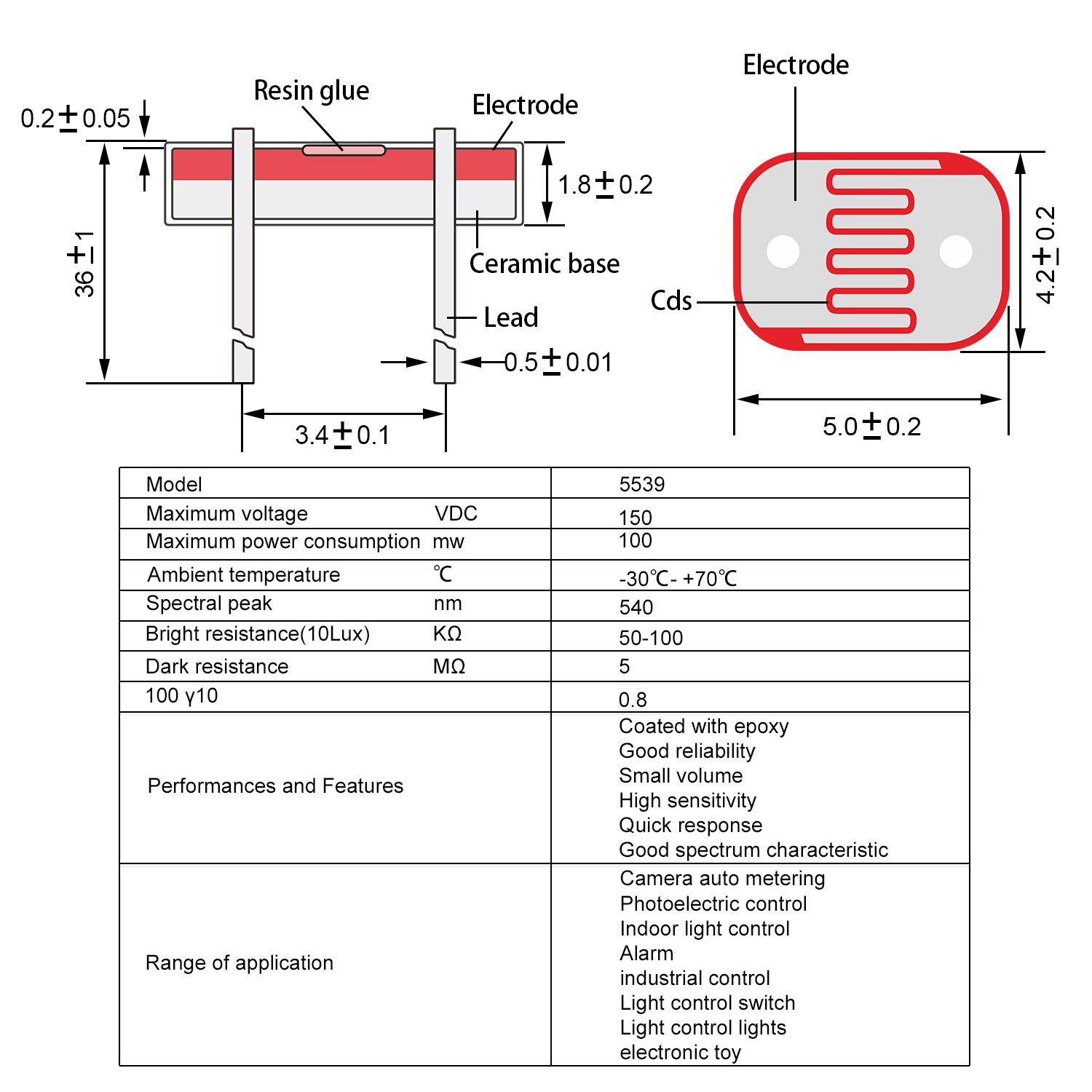

Model: GL5539
Maximum voltage (V-dc): 150
Maximum power consumption (mW): 100
Ambient temperature (°C): -30— +70
Spectral peak (nm): 540
Bright resistance (10Lux) (KΩ): 50-100
Dark resistance (MΩ): 5
100λ10: 0.8
Response time (ms): Rise: 20
Decline: 30
Illumination resistance characteristics: 5

Model: 5516
Maximum voltage (V-dc): 150
Maximum power consumption (mW): 100
Ambient temperature (°C): -30— +70
Spectral peak (nm): 560
Bright resistance (10Lux) (KΩ): 5-10
Dark resistance (MΩ): 0.8
100λ10: 0.6
Response time (ms): Rise: 30
Decline: 30
Illumination resistance characteristics: 2
