Description
- Brand Name: Laser Tree
- Origin: Mainland China
- Model Number: LT-80W
- Effect Output Power: 80W
- Output Optical Power: 10W
- Operating Voltage: 12V
- Operating Current: 3.2A (3A-3.5A)
- Wavelength: 450nm
- Input port: XH2.54-3P socket

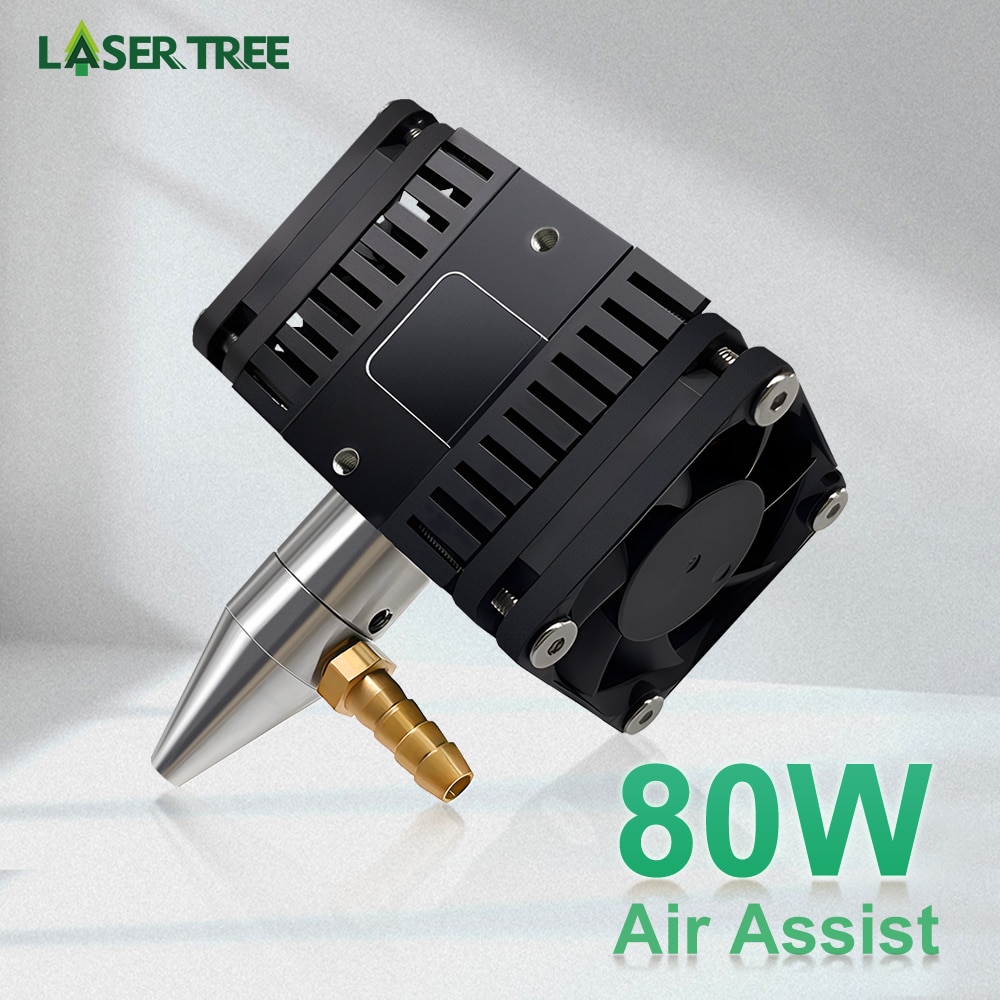

LASER TREE 80W Laser Module with Air Assist 450nm Blue Laser TTL Laser Head for Laser Engraver Wood Cutting DIY Tools
LT-80W-Pro
1. The effect power is 80W, the optical power is 10W, Electric power
is 12V3.2A (3A-3.5A)

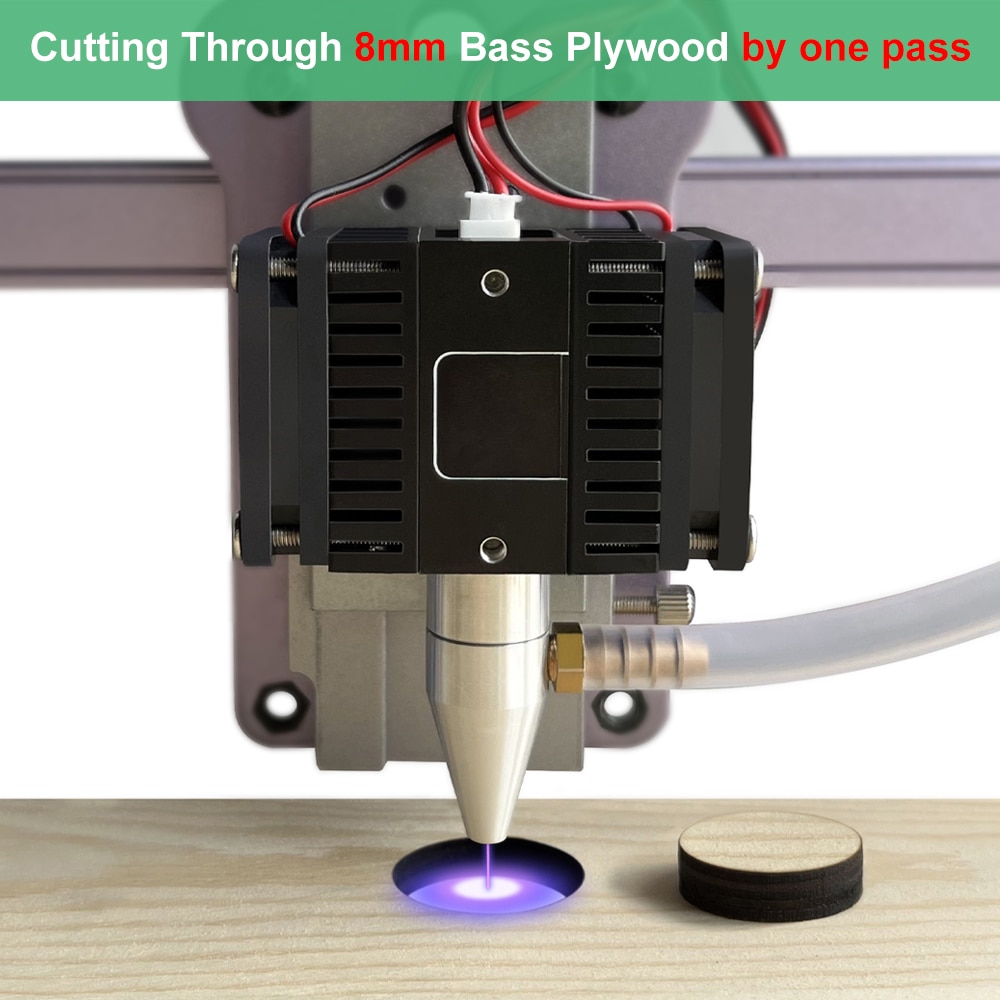

2. Cutting 8mm bass plywood by one pass.
3. With professional air assist.

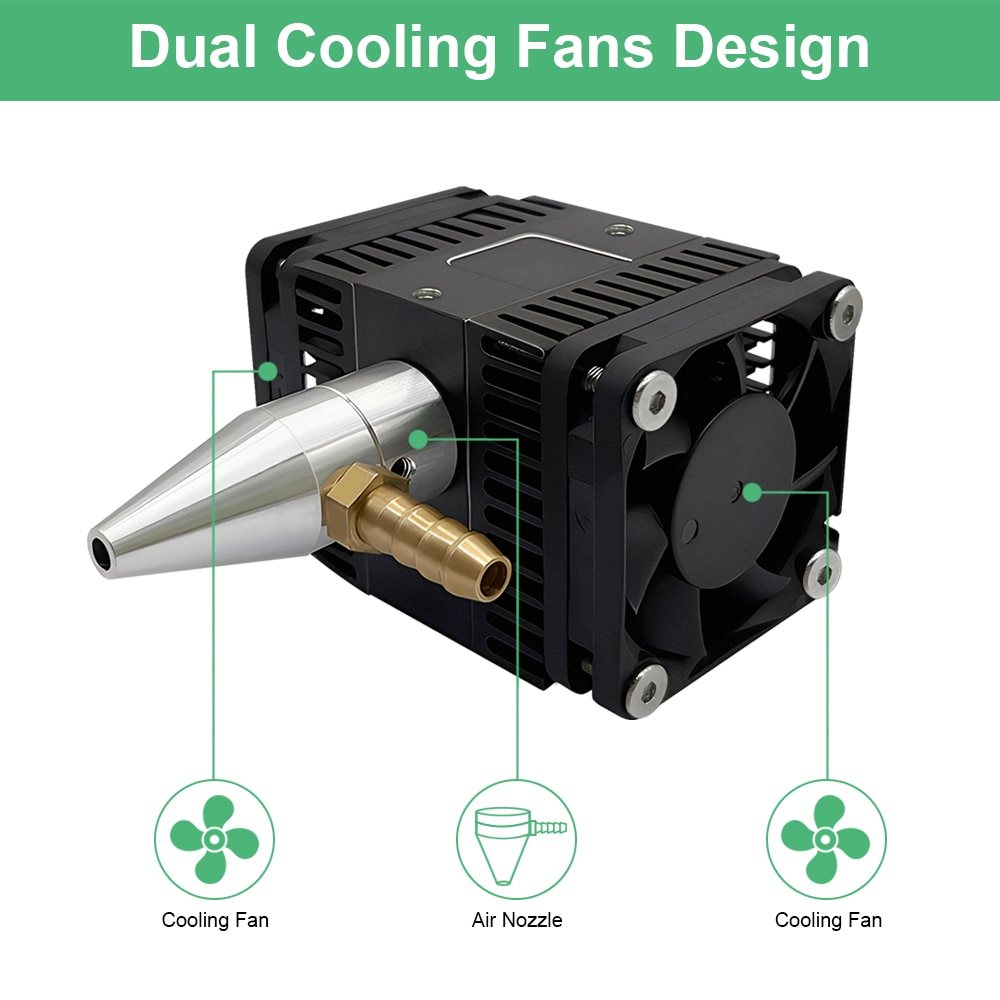

4. Dual cooling fans, excellent heat dissipation design
5. Easy for DIY connection
[Main performance]
a.Directly engrave mirror stainless steel: no need painting black;
b. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 45mm focus length;
c. Remarkable cutting ability: cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s with 45mm foucs length.
[Original diode] Original diode, high quality,20,000 hours lifetime!

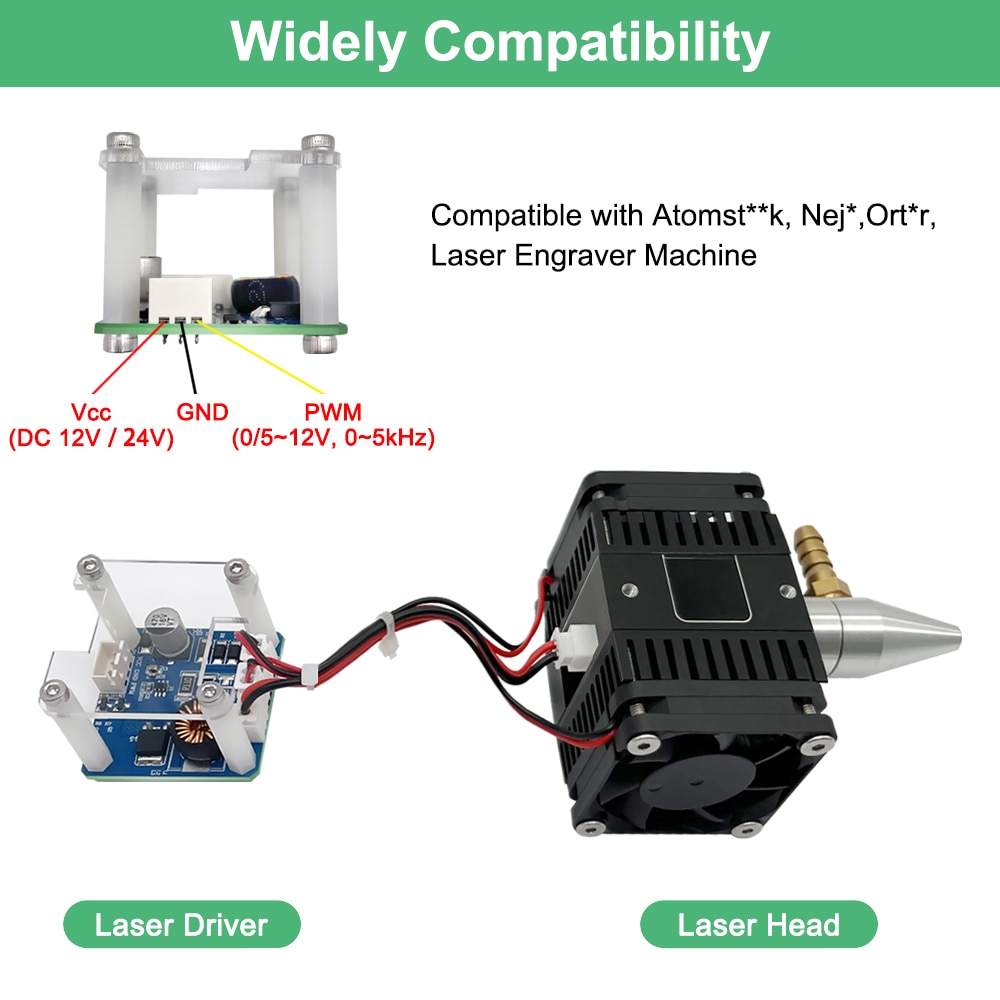

[Easy to use] Wavelength: 450nm, Input: DC 12V 3.2A ,Support 5V PWM modulation, Input port: XH2.54-3P socket ,control line installation method: pluggable.Suitable for DIY engraving machine.
[Applicable materials] Ceramics,Bone,MDF,Coated glass,Black acrylic,Plywood,Brushed stainless steel,Stone,Bamboo,Leather,Rubber,Alumina,Solid wood, etc.
[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.
Feature:
Blue laser module—a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.
Fixed focus laser head, suitable for three-axis engraving machine, easy to install.
Easy to assemble—small, compact, convenient and easy to install.
