Description
- Brand Name: Laser Tree
- Origin: Mainland China
- Model Number: 80W Laser Head with Air Assist
- CNC or Not: CNC
- Condition: New
- Certification: CE
- Type: 80W Powerful Laser Head with Air Assist
- Material: Aluminum alloy
- Effect Output Power: 80W
- Output Optical Power: 10W
- Wavelength: 450nm
- Electric Power: 12V 3.2A(3A-3.5A)
- Focus Length: 45mm
- Modulation: 0/5-12V 0-5kHz TTL/PWM
- Interface: XH2.54-3P socket
- Fan Speed: 10000rpm
- Operating Temperature: 0-60℃
- Cable: 3PIN, 80cm
- Module Size: 60 * 40 * 40mm
- Module weight: 125g
- Application: Engraving/Cutting
- Service: Dropping Shipping Service
- SKU: LT-80W-Pro

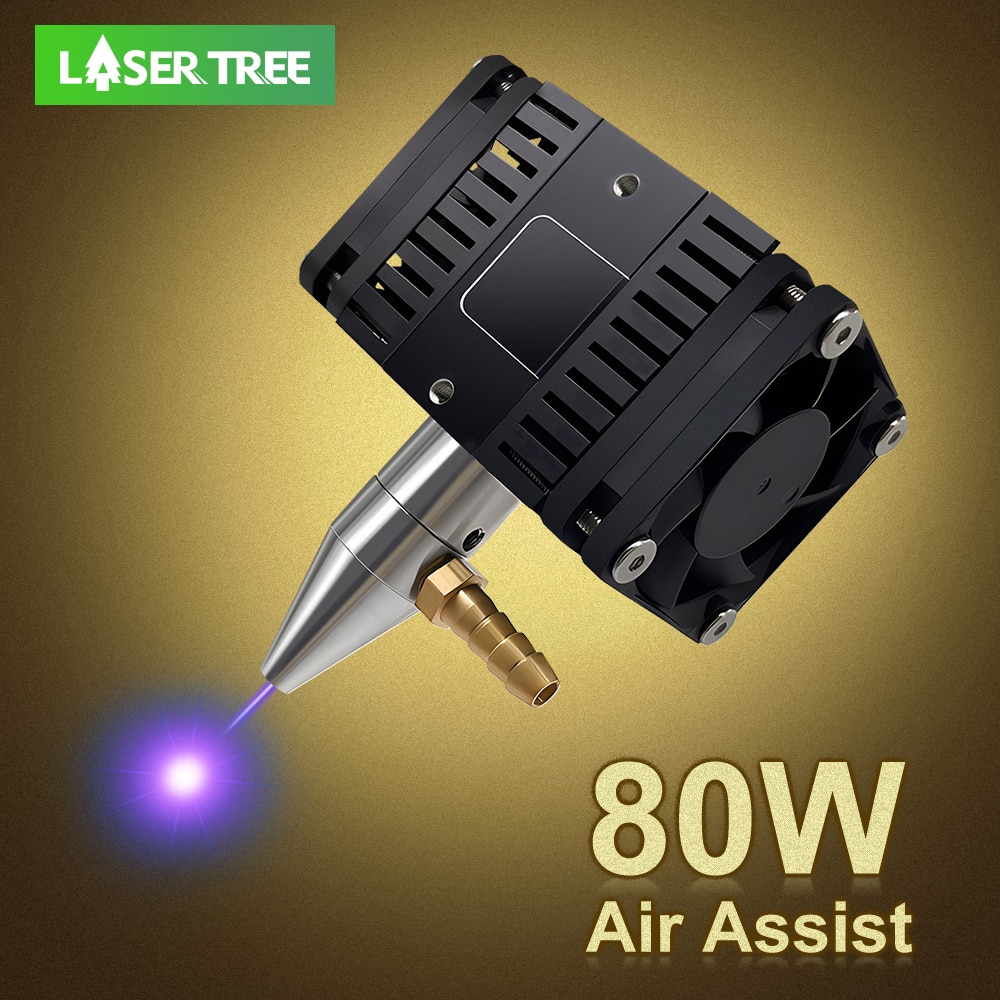

80W Powerful Laser Module with Air Assist Dual Fans
By LASER TREE
Features:
1. 2-beam Compressed Technology: 10W optical power laser module
2. Dual Fans Cooling: Fan speed 10000rpm, good heat dissipation, suitable for long-term work
3. With Air-assist: Blowing through the air nozzle, which improves cutting performance and reduces burn marks
4. 45mm Fixed Focus: Suitable for three-axis engraving machine, easy to install
5. Widely Compatibility: 12V 3.2A laser head, compatible with kinds of laser engraving machines
6. Super fast engraving speed: 304 stainless steel, ultra-fast engraving on stainless steel-30mm/s
7. Remarkable cutting ability: cutting through 8mm plywood and 5mm MDF by one pass at speed of 1.5mm/s
Specification:
Effect output power: 80W
Output optical power: 10W
Material: Aluminum alloy
Light color: blue
Wavelength: 450nm
Spot form: Punctiform, fixed focus
Electric Power: 12V 3.2A(3A-3.5A)
Modulation: support 0/5-12V 0-5kHz TTL/PWM
Interface: XH2.54-3P socket
Module size: 60 * 40 * 40mm
Module weight: 125g
Product List:
1* Laser Module
1* Laser driver
1* Air nozzle
1* 3pin cable
3* Focus fixing plate

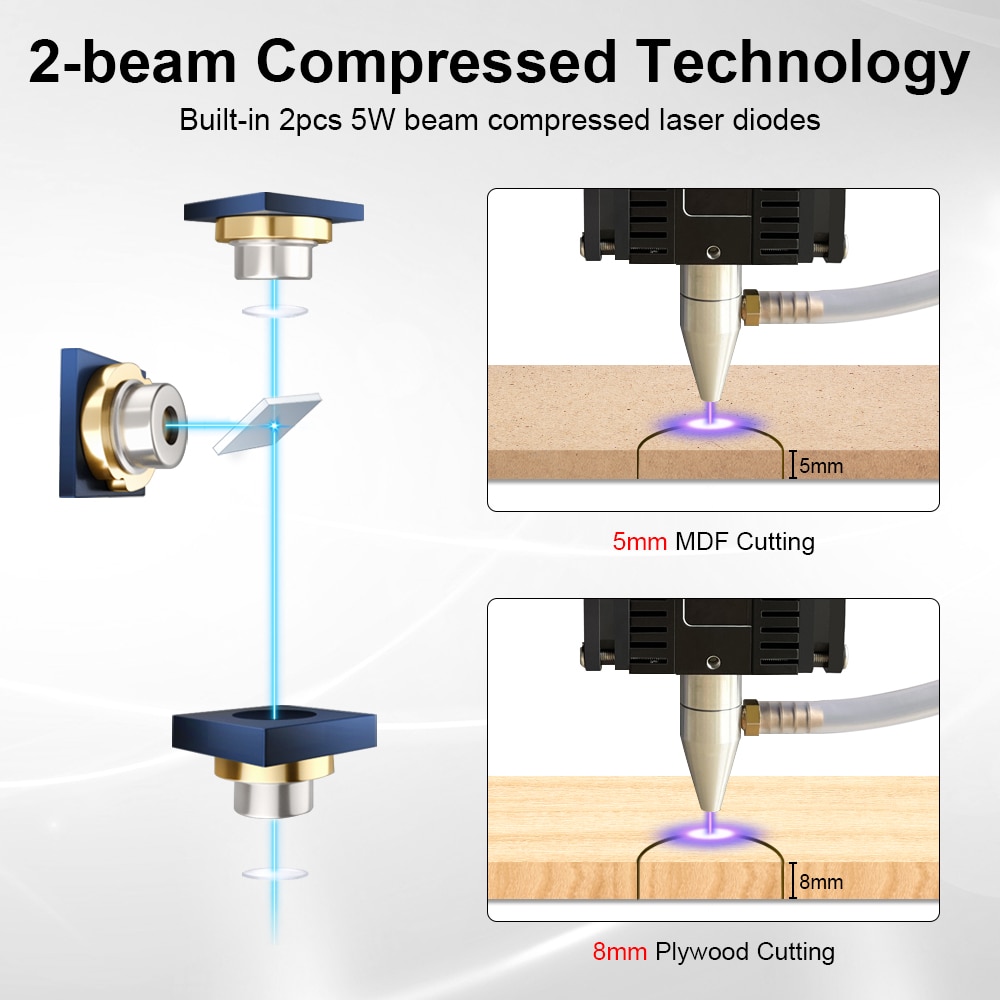

2-beam compressed Technology
Built-in 2pcs 5W beam compressed laser diodes, 10W optical power laser module

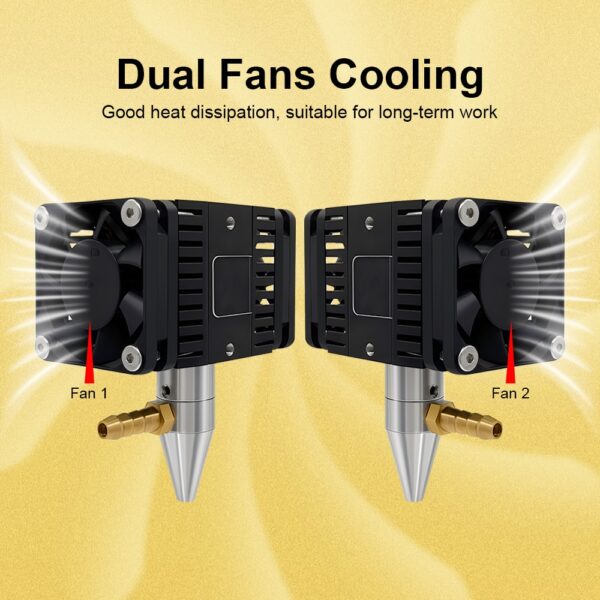

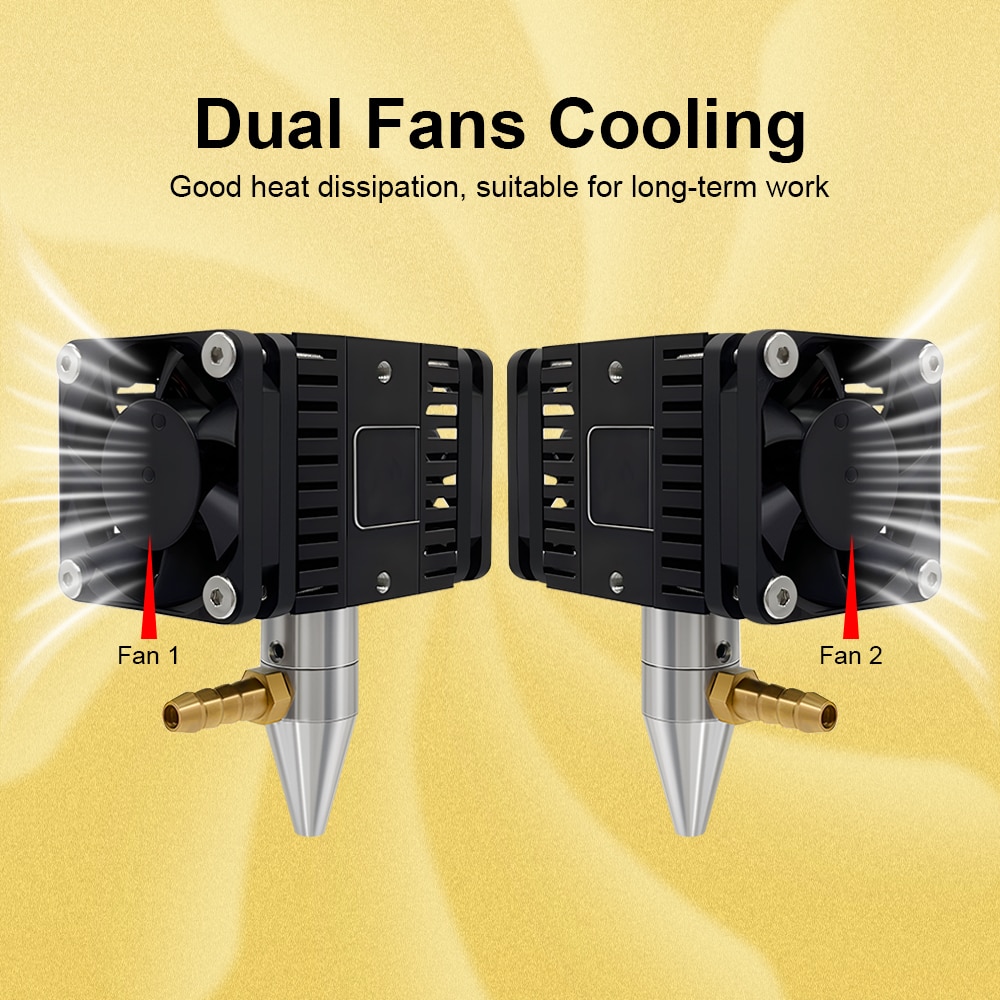

Dual Fans Cooling
Fan speed 10000rpm, good heat dissipation, suitable for long-term work

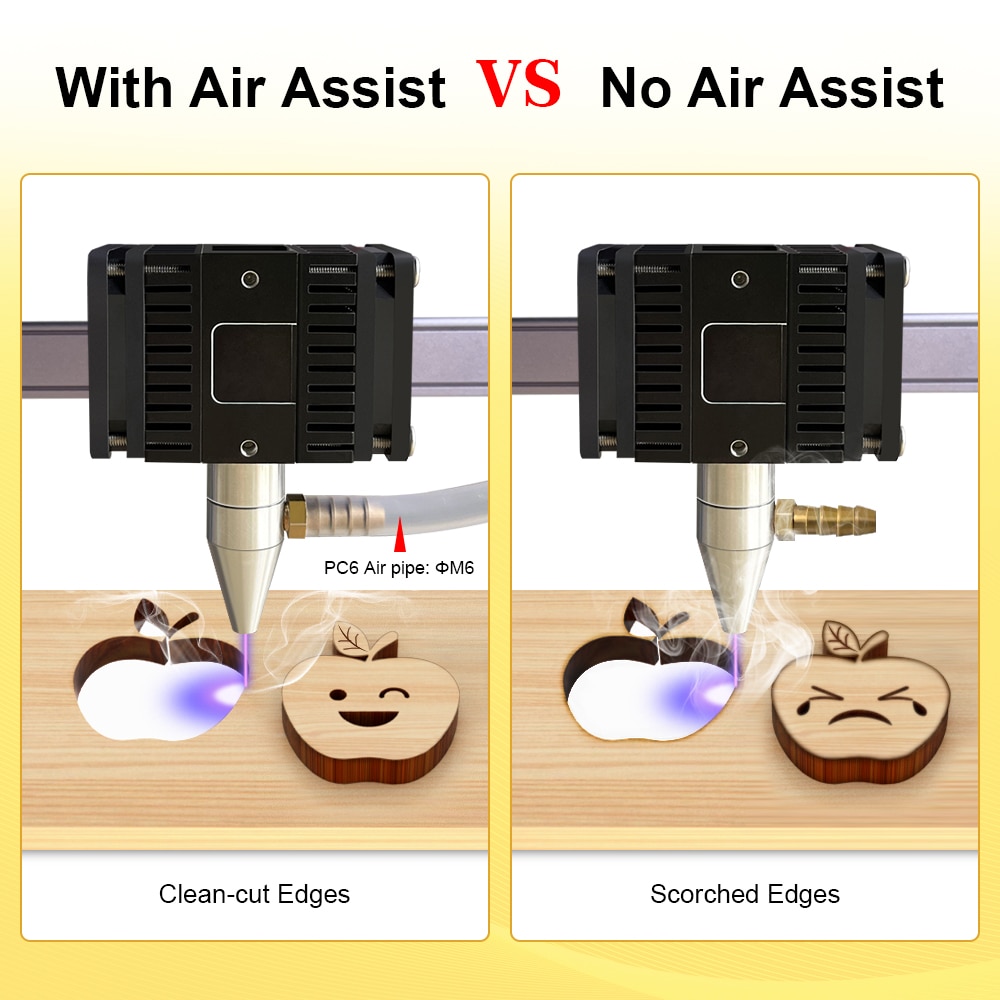

With Air-assist Laser Module
Blowing through the air nozzle, which improves cutting performance and reduces burn marks
Note:
Please ensure that the air pump is turned on before you start cutting. If not, the smoke will contaminate the lens.

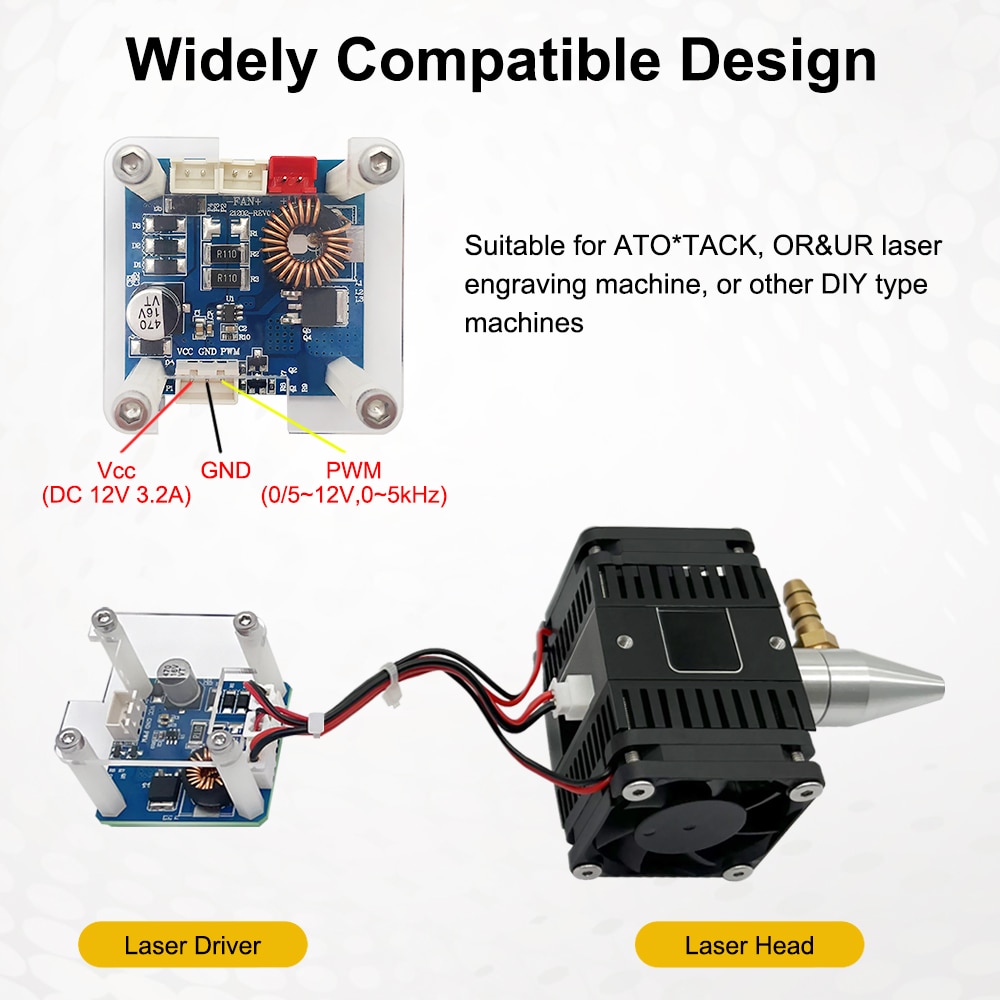

Widely Compatible Design
Suitable for ATO*TACK, OR&UR laser engraving machine, or other DIY type machines
Reference Settings for Cutting
Product Parameters
Air Pump:
Description
The air pump is an essential part of the laser module with air assisted.
It provides a steady high-pressure airflow to blow away smoke and obtain clean-cut edges.
In addition, it can improve the efficiency of laser processing and thus save your time.
Features:
1. High-quality materials: metal nozzle, resisting high temperature
2. Large and steady air output: 27 L/min, blowing away smoke and residue produced during laser processing
3. Super silent: little noise and vibration in operation
4. Small in size: can be placed on desktop
5. Easy installation: can be easily transformed and upgraded
More Creative Display
Various available materials: Ceramics, Bone, MDF, Coated glass, Black acrylic, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc
