Warranty:

All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.

Note:

The models with measuring range 1500M and 3000M have no measuring speed function.

Specification:

Measuring distance/angle/height/horizontal distance/continuous distance measurement : All in one device
Measuring range : 5~3000M
Measurement accuracy : ±1m
Angle measuring range : -60°– 60°
Angle measuring accuracy : ±1°
Laser wavelength : 905 nm( class 1 laser)
Measuring range of speed : 20-300Km/h
Measurement unit : yard (Yd), meter (M)
Field Angle : 7.5°
Magnification : 6X
Lens aperture : 16MM
Objective lens aperture : 22MM
Exit pupil diameter : 3.7MM
Refraction : ±3°

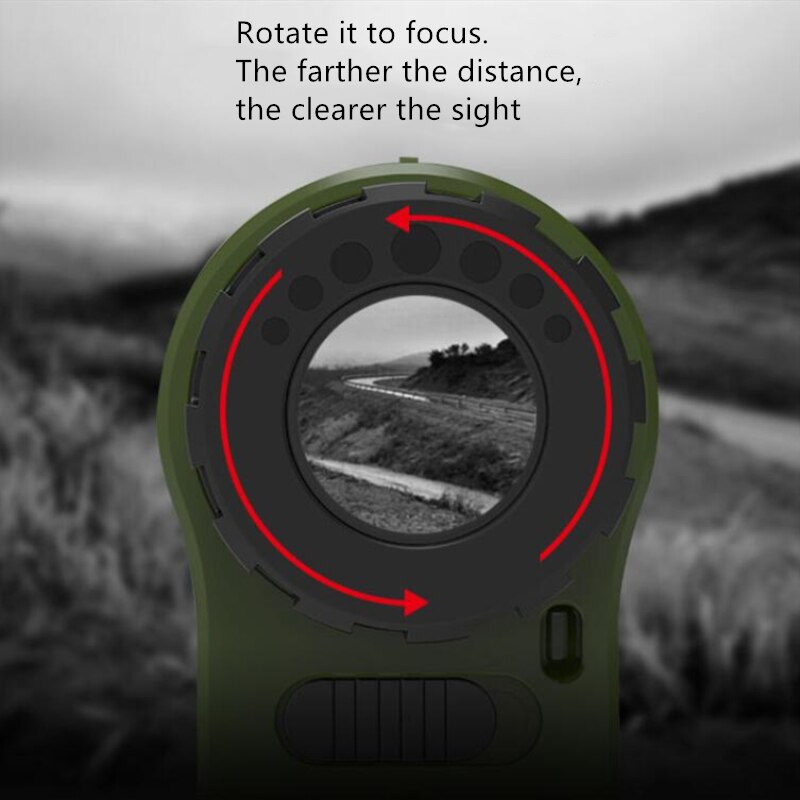

Focusing method : eyepiece manual focusing
Vision safety : FDA Class1(CFR21)
Jolt : Yes
Dust and water splash : IP65
Charging method: Micro USB universal charging interface
Battery specification: 3.7V/1000mAh
Battery life: 800 times of charging and discharging (30000 times after being fully charged)
Working temperature : —10°C~50°C
Weight : 168g
Dimensions : 118mm*75mm*40mm
Device color : Green

Function brief:

This is a function enhanced model for surveying, with function of Ranging /Angle /Vertical distance /Speedmeasuring.
Mode Description:
1) Into the M1 mode, short press the power button after targeting, the angle will be displayed on the top of the screen and the slant distance displayed on the bottom.(as figure 1)
2) Into the M2 mode, short press the power button after targeting, the horizontal distance will be displayed on the top of the screen and the slant distance displayed on the bottom.(as figure 2)
3) Into the M3 mode, short press the power button after targeting, the vertical height will be displayed
on the top of the screen and the slant distance displayed on the bottom.(as figure 3)
4) Into the M4 mode, short press the power button after targeting the moving object, the speed will be displayed on the screen.(as figure 4)

Package Content:

1 * 600m/1000m/1500m/3000m Laser rangefinder
1 * Portable pouch
1 * Hanging rope
1 * User manual
1 * Retail box
1 * Battery (CR2-3V) (Including battery)
1 * Cleaning cloth(Camera lens)
