Description
Specifications:
Laser Component
For Green laser diode(MW):10-500
For red laser diode(MW) :200
Circuit control: step-down circuit, constant current output
Modulation output: TTL
Size: 31 * 47mm (width * length)
The height of the component is 18mm
Input voltage: DC12V
Fan voltage: DC12V

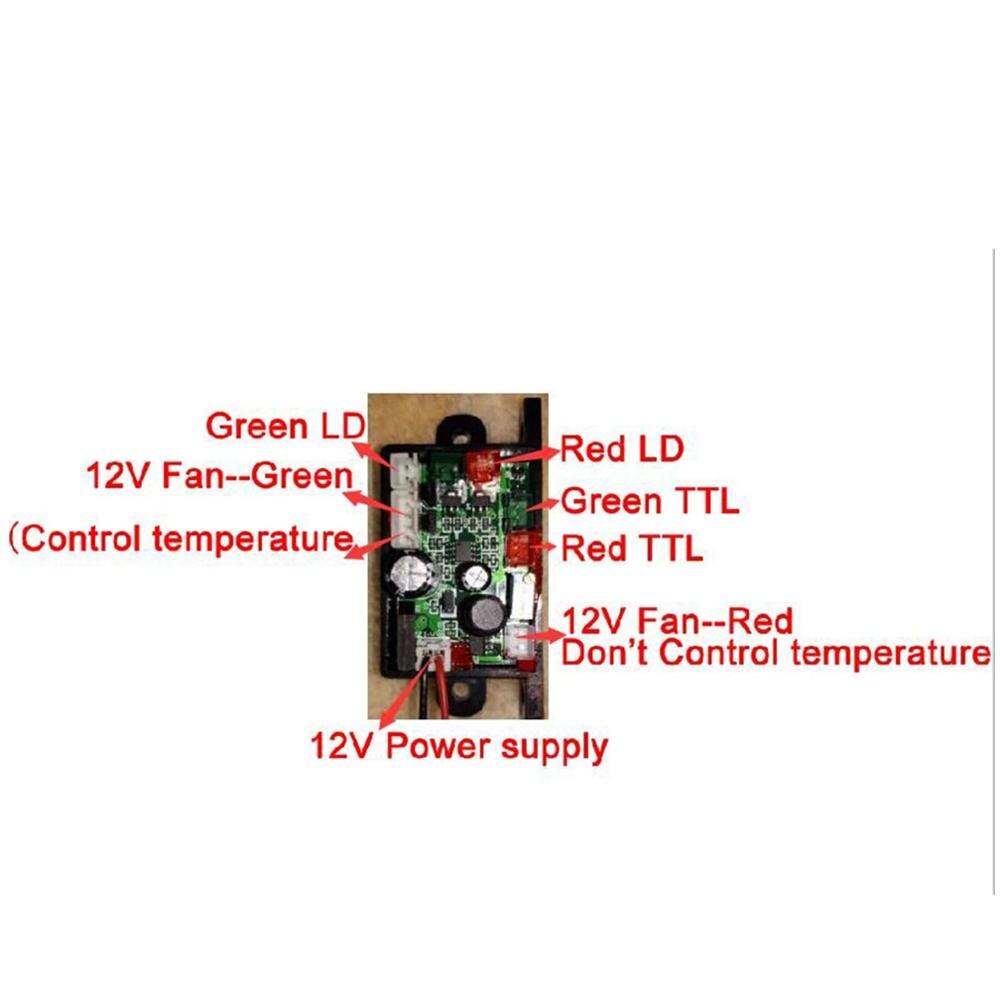

This circuit board can also drive green diode + red diode in the same time,Refer to the wiring diagram
Package:

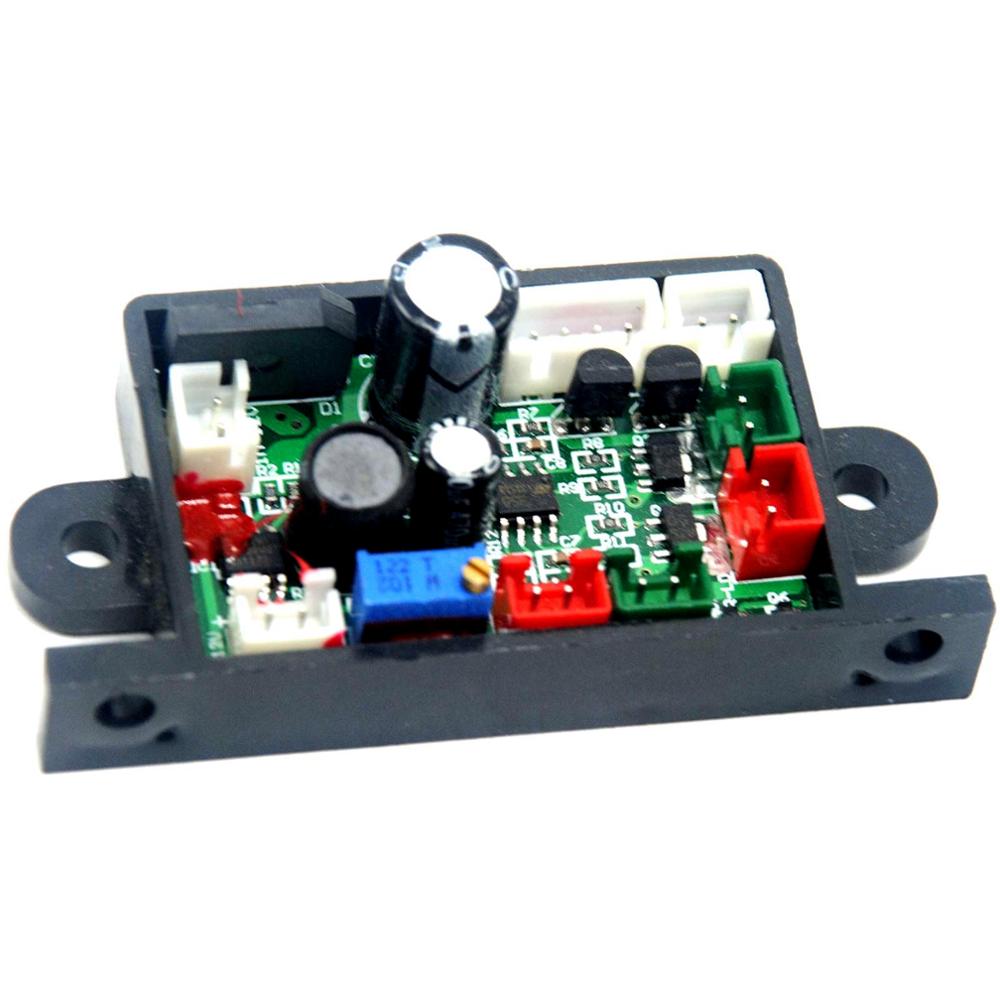

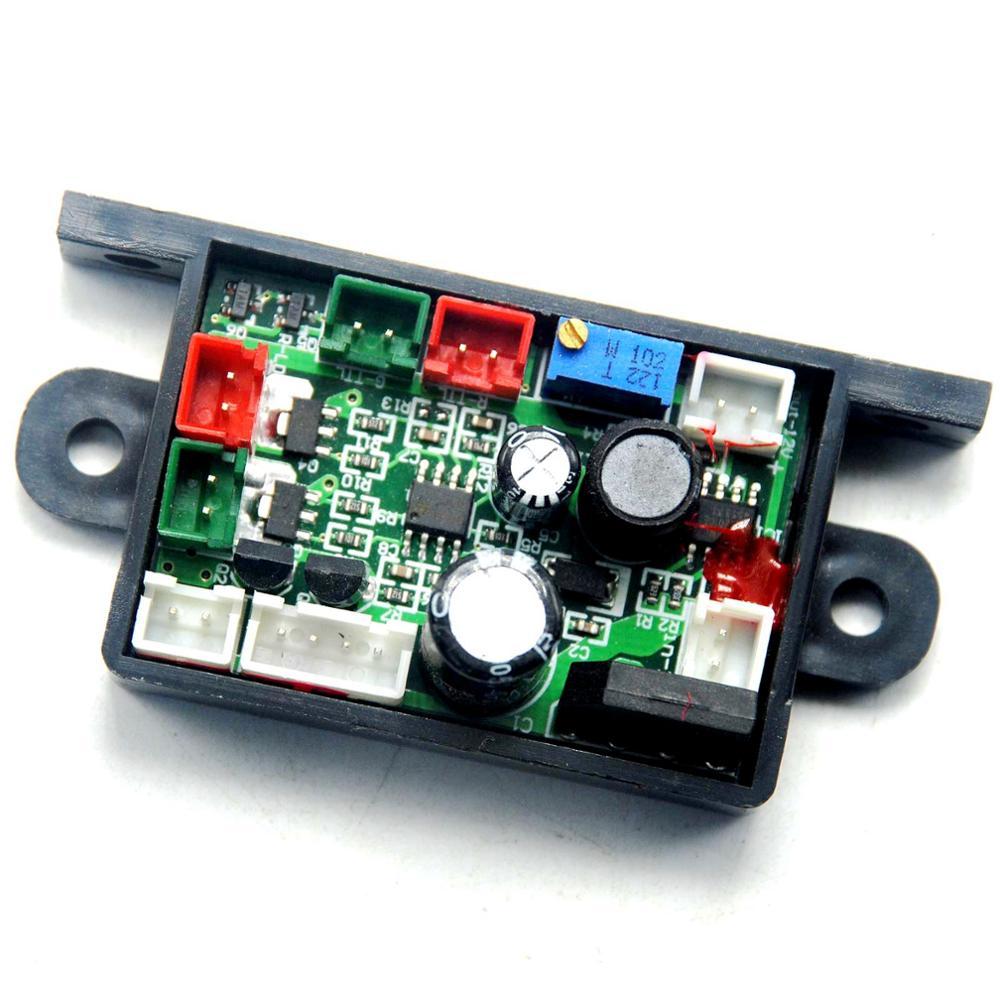

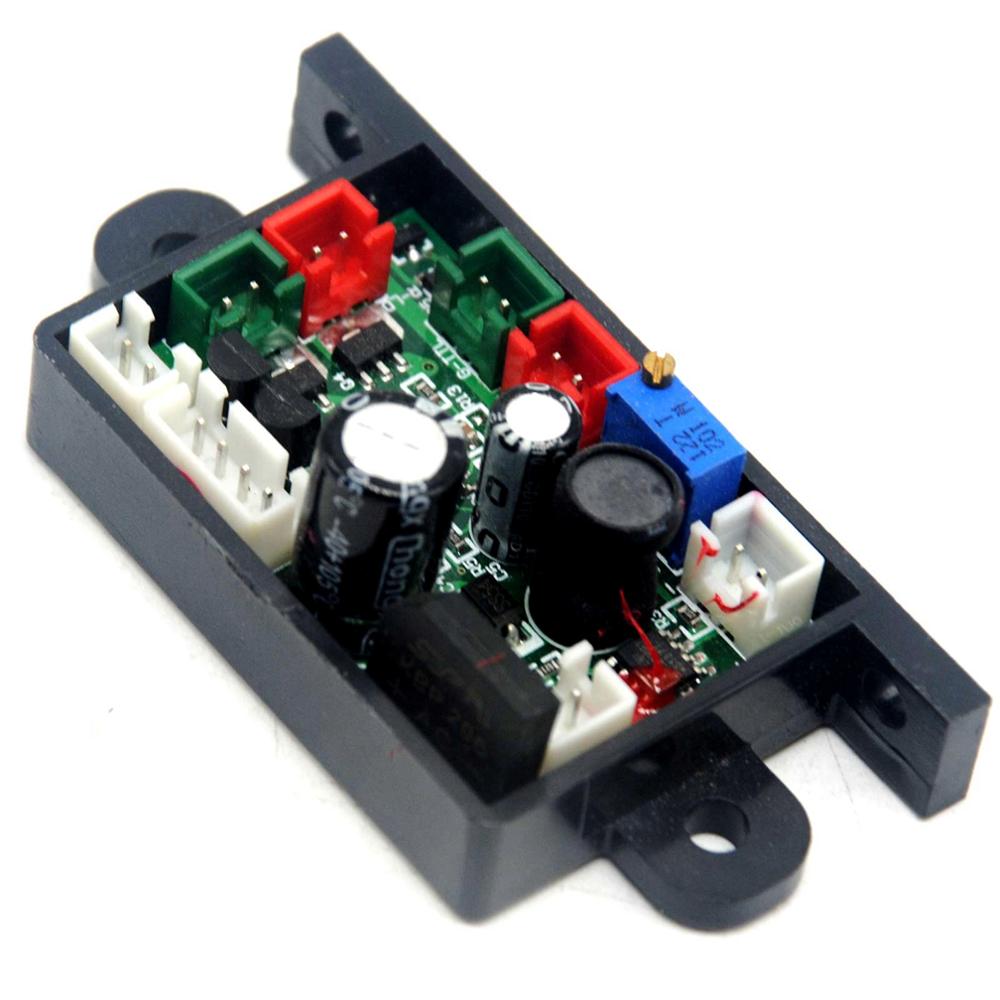

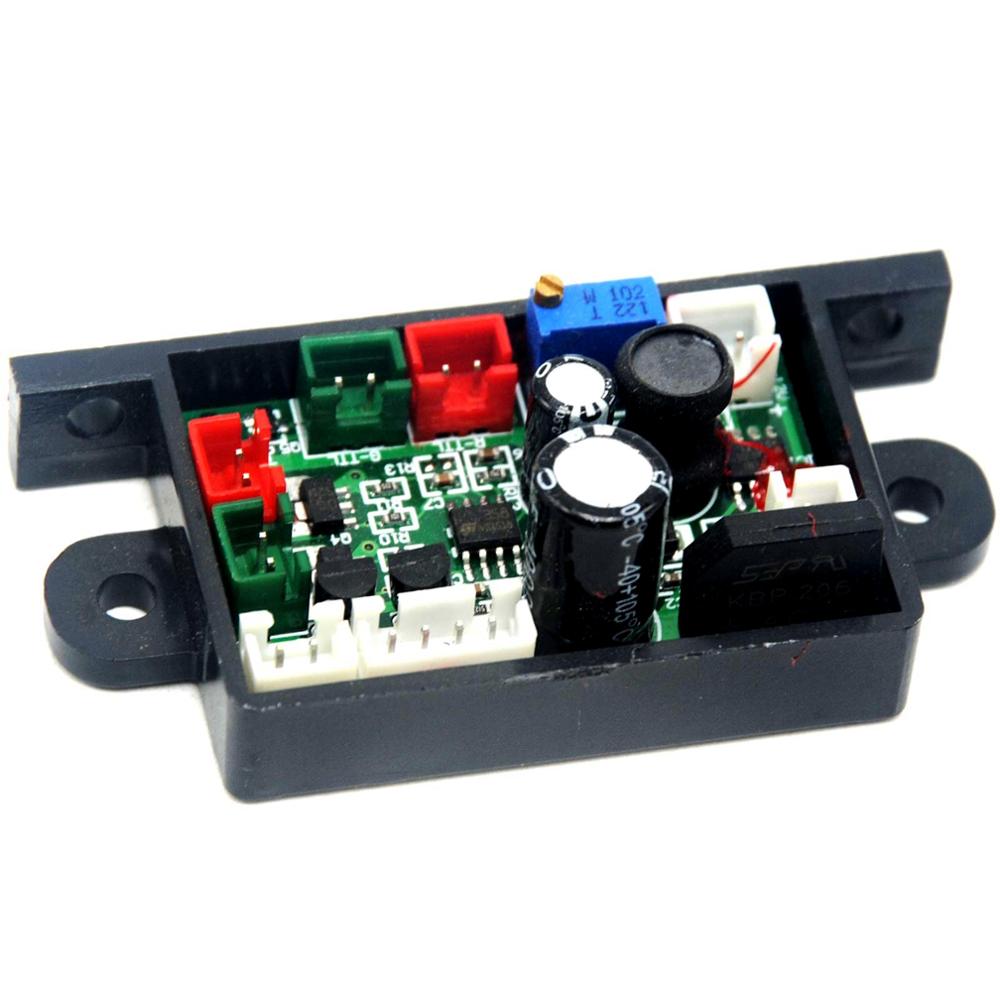

1pc 10-500mW 532nm Green +200mW red 650nm Laser Diode Drive circuit DC12V
