Laser Control System TL-403CB controller for Laser Engraving And Cutting Machine
Download the Manual as following,

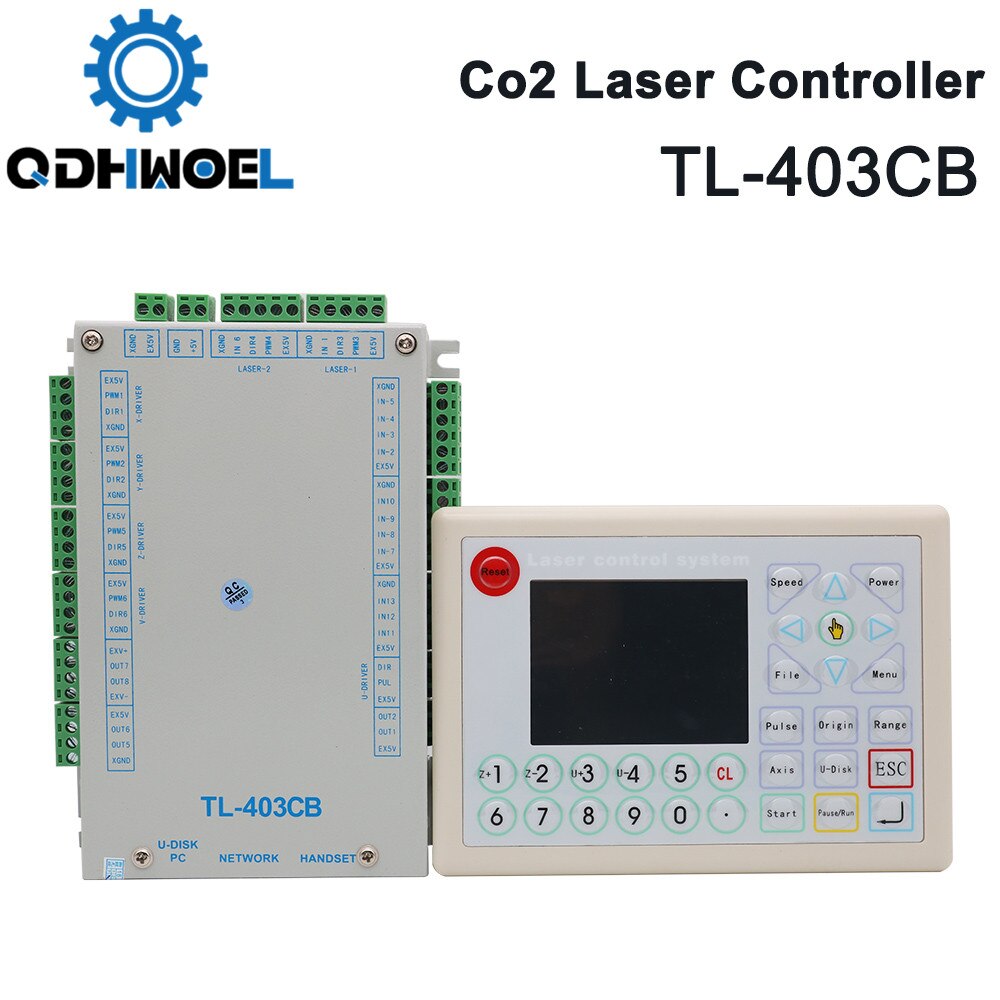

TL-403CB is combined with the outstanding features of TL-302, specially served for all the Laser Engraving Cutting machine manufactures. It’s color display, can directly preview picture and graphics on the LCD display. It also can be managed and operated by internet. The operation mode is more humanization.
Specifications:
Product acessories:

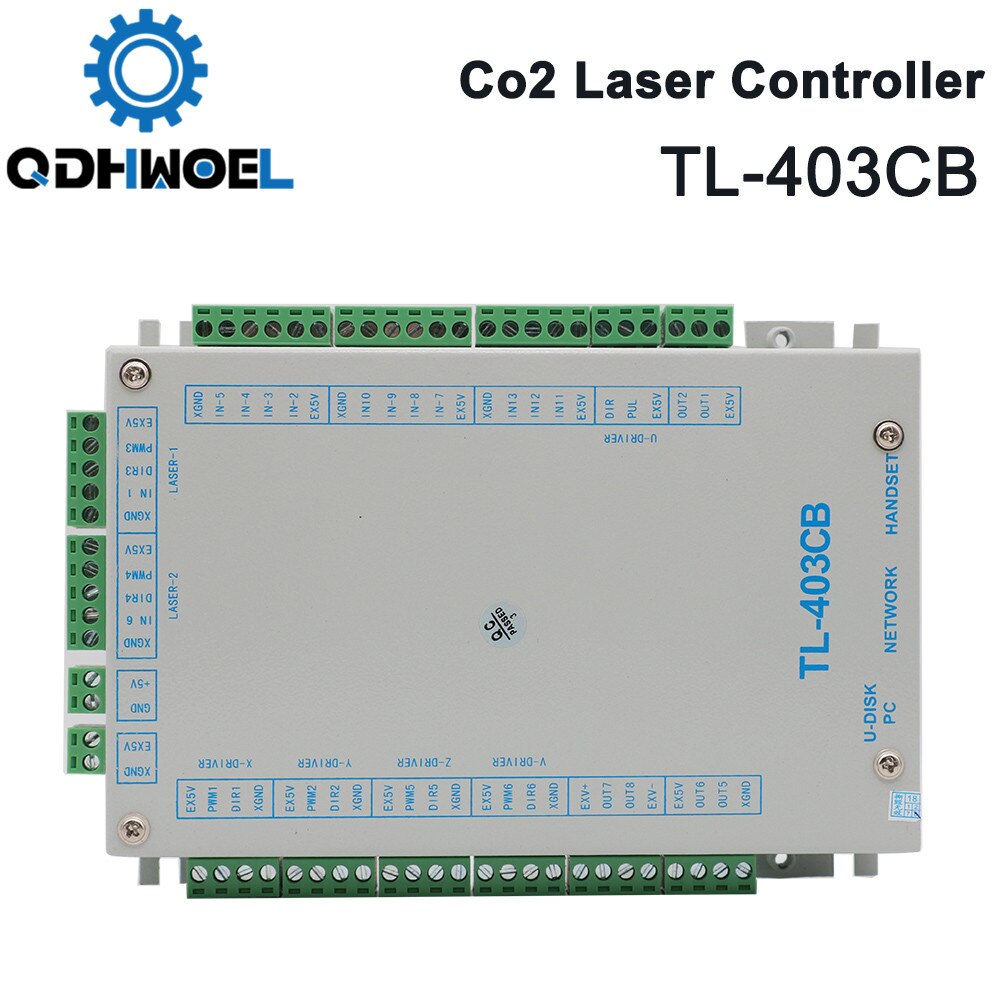

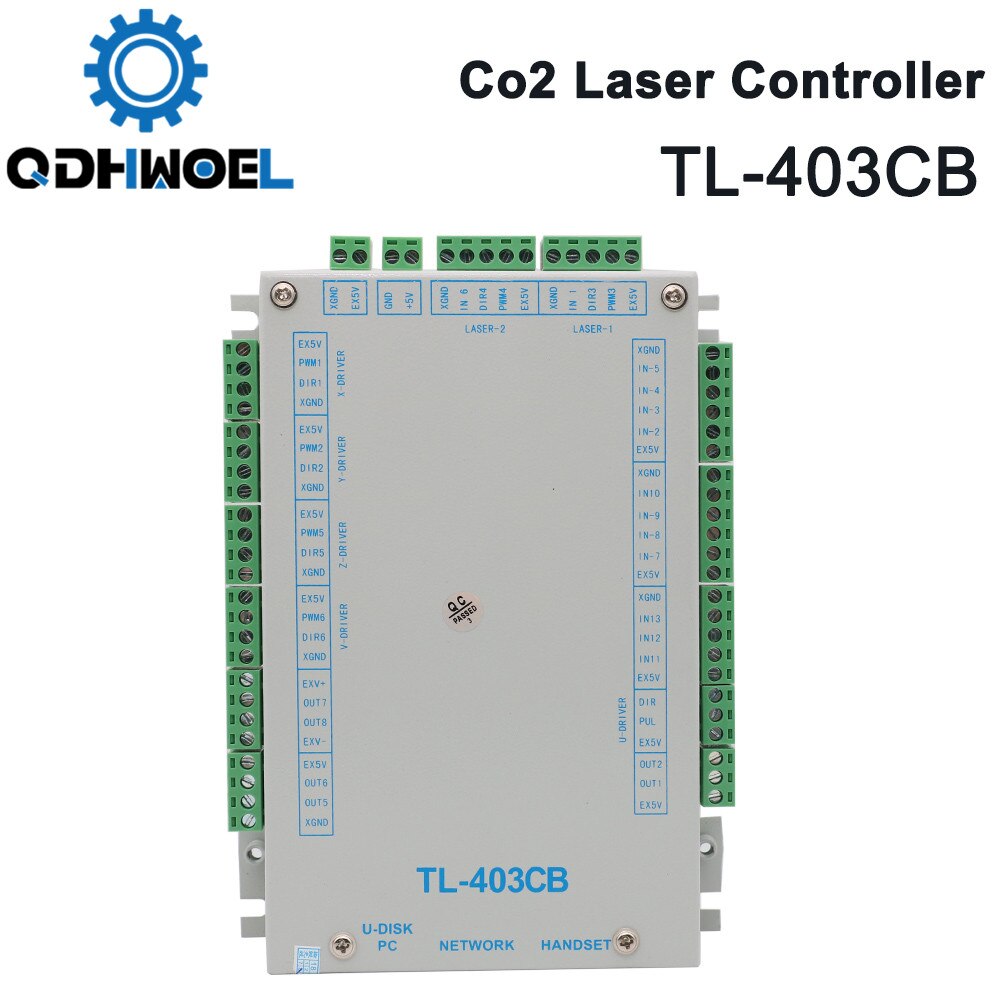

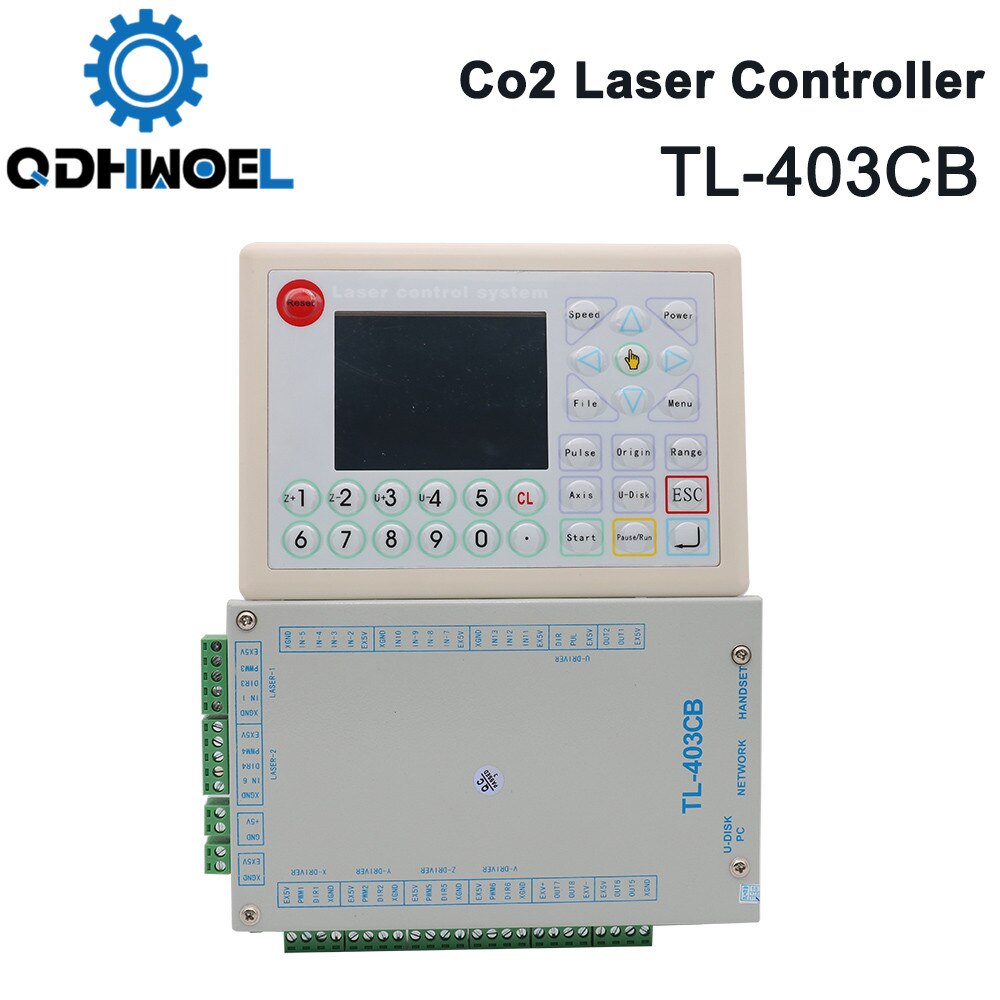

1.TL-403CB controller

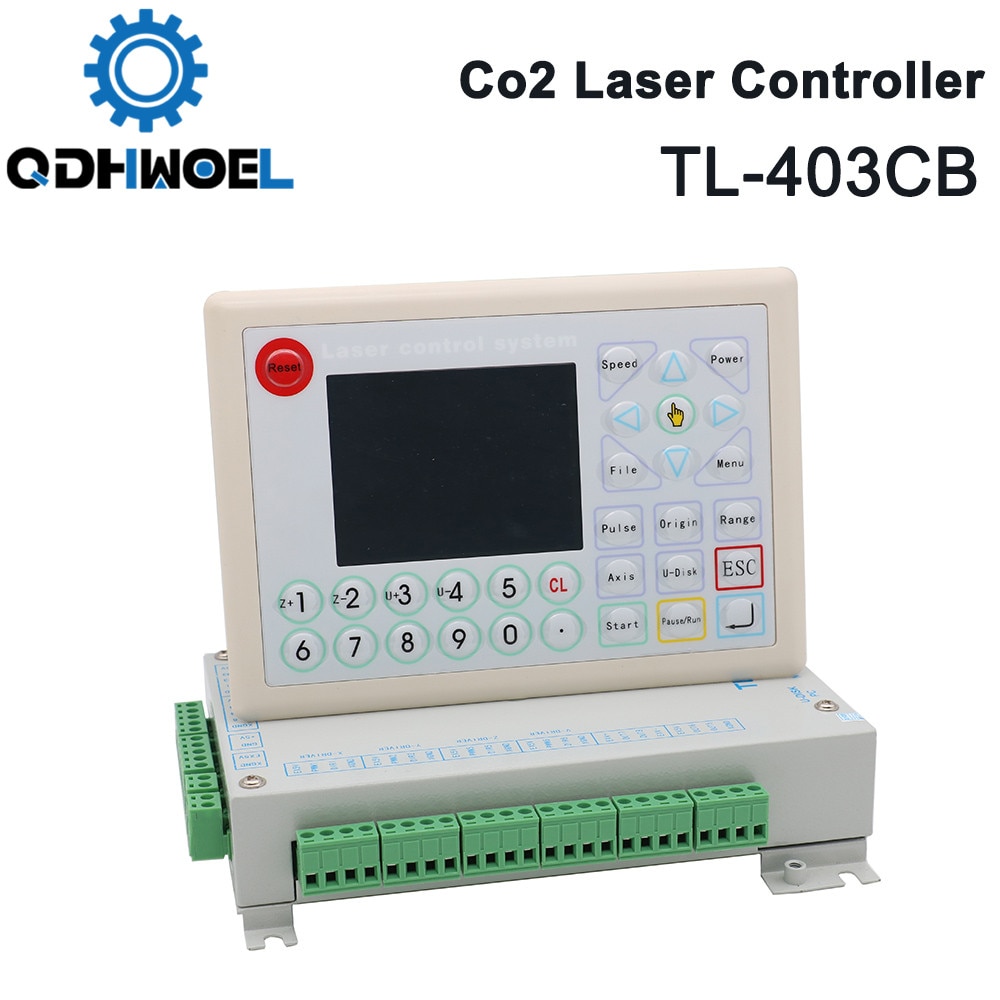

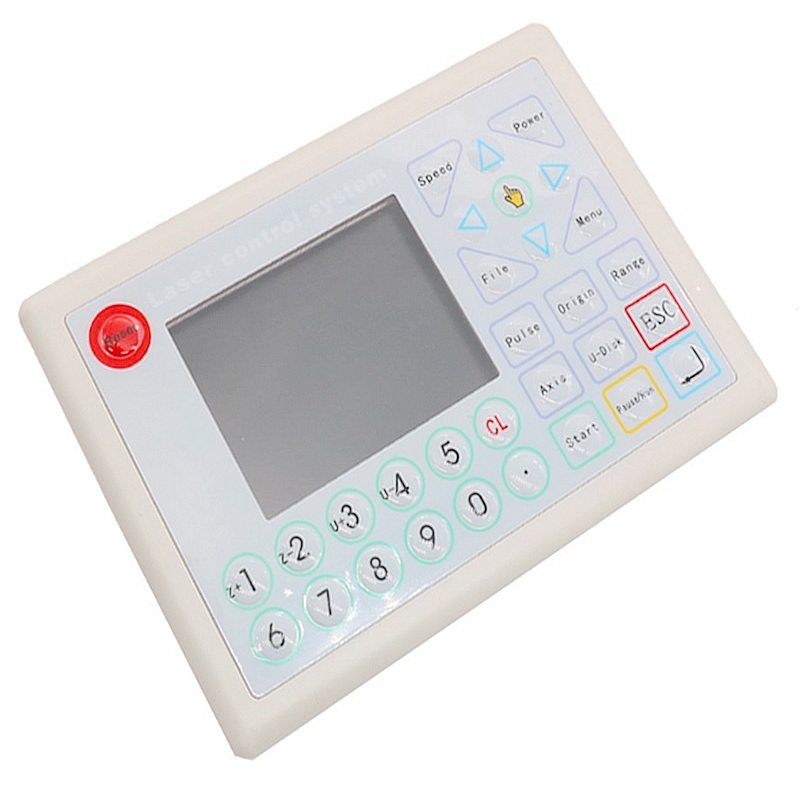

2.TL-403CB panel
3.Square port USB cable* 1, PC extension cable * 1, U disk extension cable * 1, crossover network cable * 1, network extension cable * 1, panel communication cable * 1
4.Stamping parts (sets) * 1
Size:
Controller: 189.5mm*122.0mm
Panel: 149.8mm*99.8mm (front), 127.0mm*90.0mm (rear)
Description:
● Core power supply DC 5V, 3A, peripheral power supply DC 5V, 3A
● Core power supply DC 5V, 3A, peripheral power supply DC 5V, 3A
● Use high-performance 32-bit floating point DSP
● With 3.5″ 320*240 LCD, can preview files and the wrok status
● Supports 5-axis motion control (XYZUV), XY is for laser cutting control, Z is feeding axis, U is lift axis, V is for the second laser cutting head, axis range 0~4294m, accuracy ±0.001mm, pulse frequency up to 166KHz
● Laser control the output voltage 0~5V Adjustable, PWM output 0~100K adjustable from 0 to 100% duty cycle is adjustable
● 6 opto isolated outputs, TTL level, (drive current of 20mA or more, which OUT7, OUT8 external power supply)
● 11 opto-isolated inputs, TTL level
● Support USB2.0 port, U disk reading and writing, support U disk system upgrade
● Support network , PC-communication is more convenient, safe, and reliable
● With 128MB storage, work independently form PC, which is useful for the quantities of engraving and cutting production
● Support double laser head cutting ,support offcut, each laser power is able to be control independently
● Support feeding, lifting, rotating engraving, metal cutting, scale cutting, automatic blowing, automatic focusing, foot switch, cover protect, power-off cutting restoration, system lock, device management
● S-shape acceleration and deceleration and adjustable velocity profile, meet the demand of smooth cutting and high speed working
● Support multiple languages
● Freely distribute the control softwares(such asAutoLaser, CorelDraw embedded software and AutoCAD embedded software) based on Windows( support PLT,BMP,DST, DSB, DXF etc format)
