Product name:  Laser array



Brief introduction

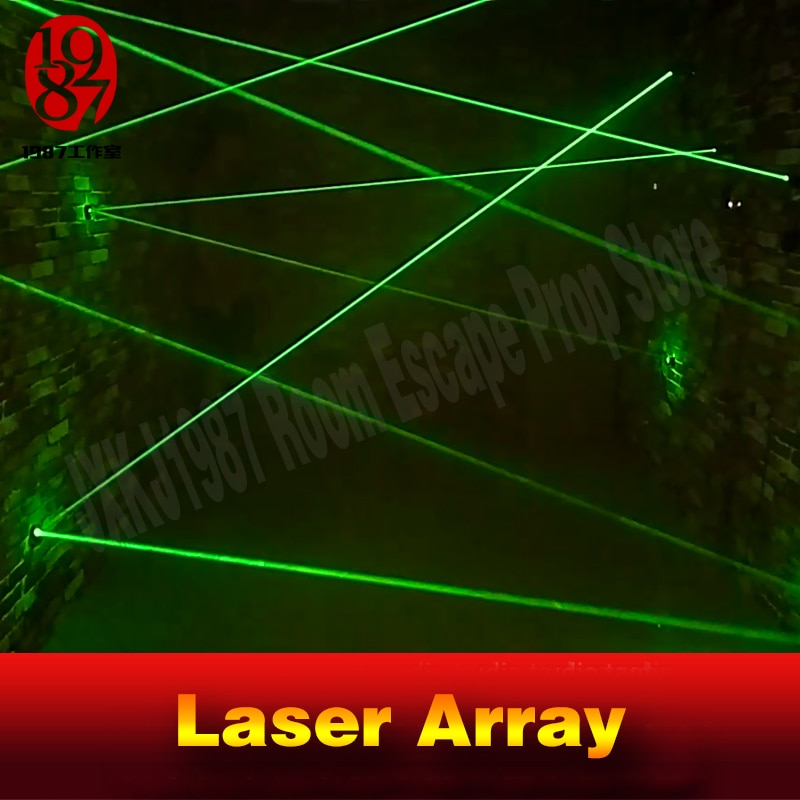

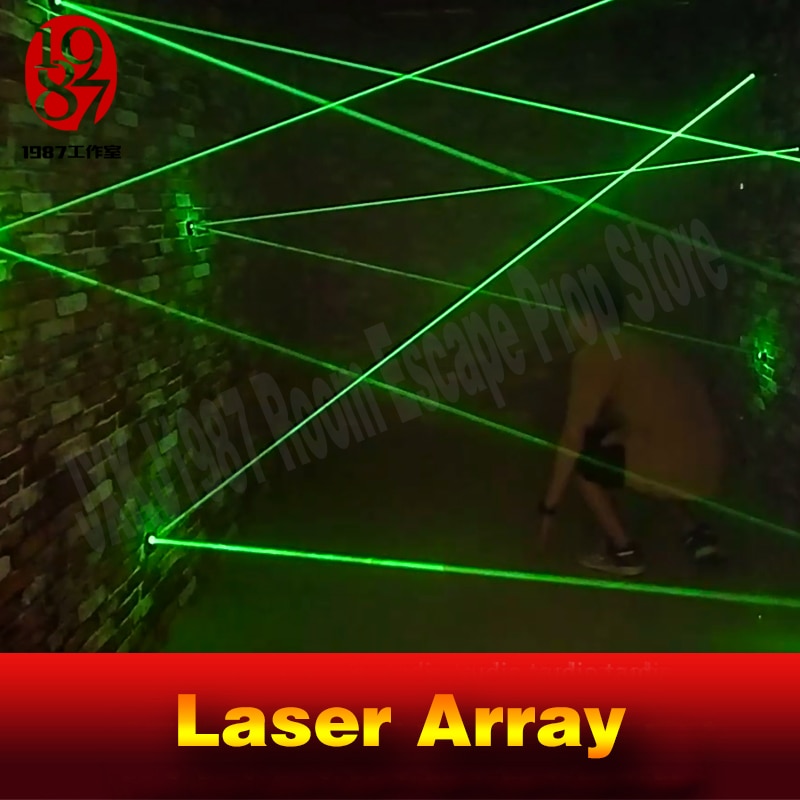

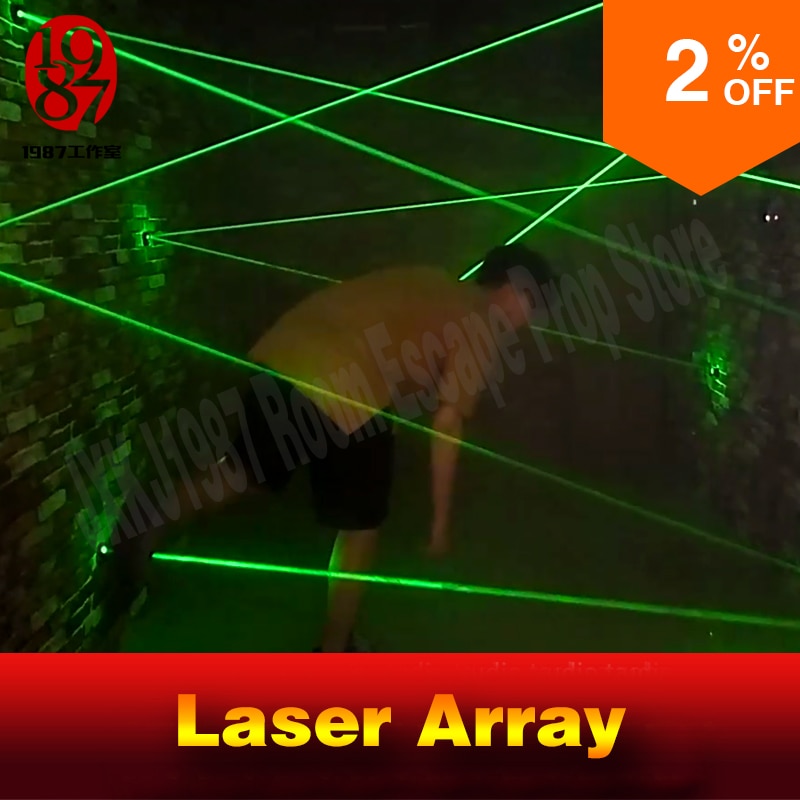

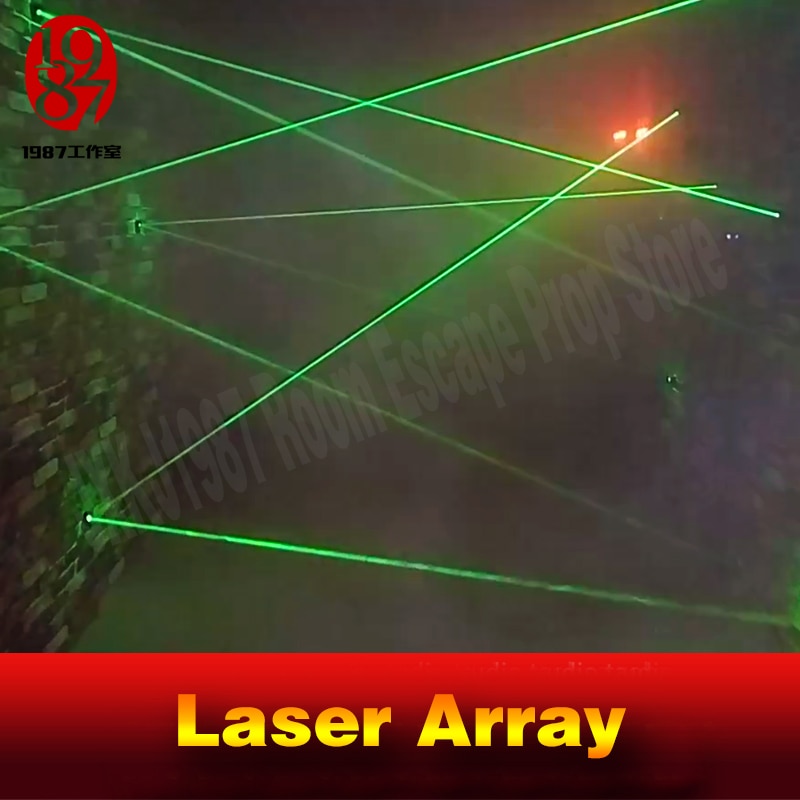

There is a four-laser array in the room (Owner can increase or decrease the quantity of the lasers). Players must across the laser array without touching any of the green lasers and press the green button at the end of this array. Then a door will open for players.





This prop has anti-cheating mechanism. There are three invisible infrared rays in the array. Adventurers should touch all the three infrared rays to prove they really do across this array instead of some cheatings.





Product highlights

1. Support owner to set the quantity of lasers.(3-12)

2. Support owner to revise the audio by TF card inside the controller.

3. Room owner can adjust the reset option.

4. This prop has anti-cheating mechanism. There are three invisible infrared rays in the array. Adventurers should touch all the three infrared rays to prove they really do across this array instead of some cheatings.

Details introduction

1. When get 12v power supply on the controller, but without powering on the transmitters of laser, the system enters standby mode. Then power on the transmitters, the alarm system lights on and let out a warning sound. Then press the red button, the system will be in place.

2. Player will find a four-laser array in the room (Owner can increase or decrease the quantity of the lasers), the electromagnet lock gets closed tightly.

3. When players touch any one of the lasers during the game, there will be alarm audio and alarm light telling them the game has failed, the electromagnet lock is still closed. When they press the green button to open the door, the door can not be opened. They should press the redreset button at the beginning of the array and challenge it again.

4. This prop has anti-cheating mechanism. There are three invisible infrared rays in the array. Adventurers should touch all the three infrared rays to prove they really do across this array instead of some cheatings.

5. When players across the laser array successfully and touch the three infrared rays,the system will play a sound, and press the green button for opening the door, then one lock will release.



How to reset?

There are 3 options to reset. Room owners can set it by revising the file`s name (001.mp3, 002.mp3 or 003.mp3) from folder 04 in TF card. Please refer to the audio configuration in detail.

Manual reset version:

By default, we put the file`s nameas 001.mp3.Keep pressing  the red start button for 5 seconds to reset the prop.

Auto reset version:

Firstly change the file`s nameto 002.mp3. Then this prop will reset in 30 seconds automatically after being triggered successfully.

Repower reset version:

Firstly change the file`s nameto 003.mp3. Power off the prop and then repower it to reset.

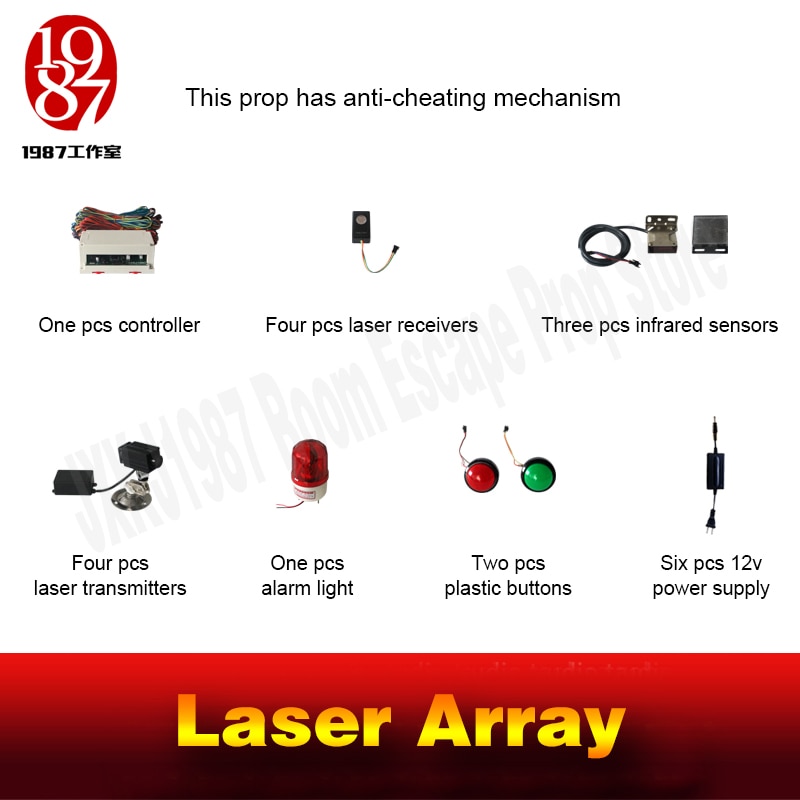

Prop list

One pcs controller

Two pcs plastic buttons (Red button is for resetting the game,green button is for confirming the game and opening the door)

Four pcs laser transmitters

Four pcs laser receivers

Three pcs infrared sensors

One pcs alarm light

Five pcs 12v power supplies

Product highlights

1. Support owner to set the quantity of lasers.

2. Support owner to revise the audio by TF card inside the controller.

3. This prop has anti-cheating mechanism. There are three invisible infrared rays in the array. Adventurers should touch all the three infrared rays to prove they really do across this array instead of some cheatings.

​
