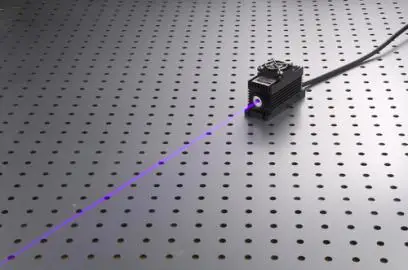

1500mW 450nm Blue Laser Dot Module+TTL/Analog 0-30KHZ+TEC Cooling+85-265V



FEATURES

TEC cooled
Longlife operation

Analog/TTL modulation

Collimated straight beam
High efficiency
High reliability

APPLICATIONS

Laser show

Display

Laser Alignment

Scanning Biochemistry

Material Inspection Lidar



Specifications

Model No.	LSR445
Wavelength	450 nm
Spatial Mode	Near TEM00
Output Power	1500mW
Operation Mode	CW or Modulation
Beam Size	4mm
Beam Divergence(full angle)	1mrad
Power Stability	<3% per 4 hrs
Temperature Stabilizing	TEC
Warm Up Time	<1 minute
MTTF	10,000 hrs
Laser head dimensions	LSR-ML: 100(L)x34(W)x45(H)mm3
Power Supply	A. OEM type LSR-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input
	B. Lab type LSR-PS-II: 104(W)x128(D)x89(H)mm3  85~265V 50/60Hz input
	C. Lab Adjustable type LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input
Modulation	0~30khz Analog or TTL

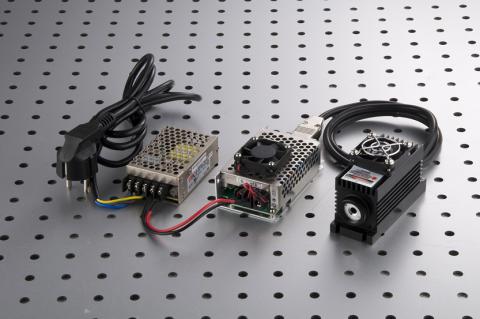

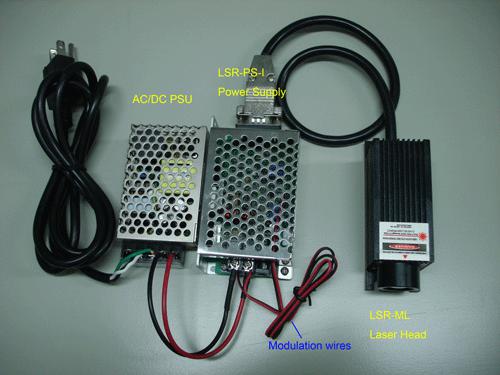

A. OEM type power supply LSR-PS-I+5V PSU

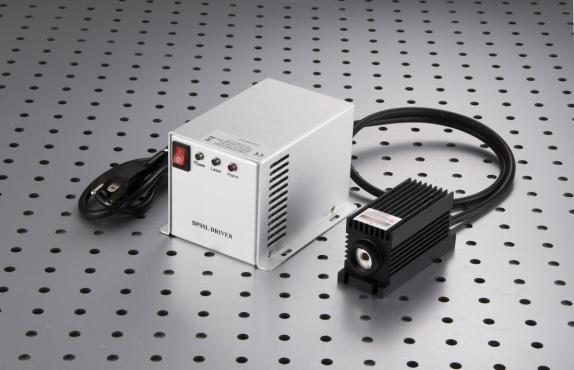

B. Lab type power supply LSR-PS-II

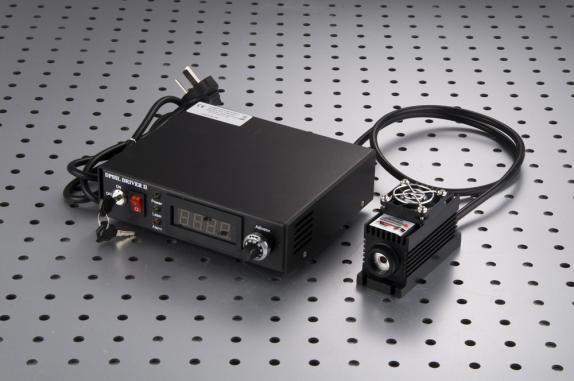

C. Lab Adjustable power supply LSR-PS-IIS
