Description
Specification:
| Specification | |
| Model | LA03-2500 |
| Heatsink Material | Aircraft aluminum |
| Output Power | 2500mW(2.5W) |
| Wavelength | 445nm(blue laser) |
| Voltage | DC 12V |
| Current | 2A |
| Power Port | DC 5.5*2.1 |
| Beam Shape | Dot (Focusable) |
| Life Time | >10,000 hours |
| Working Temperature | -40~75℃ |
| Can Engrave | MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/ |
| Plywood/Foam Paper/Anodized Aluminum | |
| Can Not Engrave | Metal/Glass/Ceramics/PCB/Reflective Material/ |
| Transparent Material | |
Features:

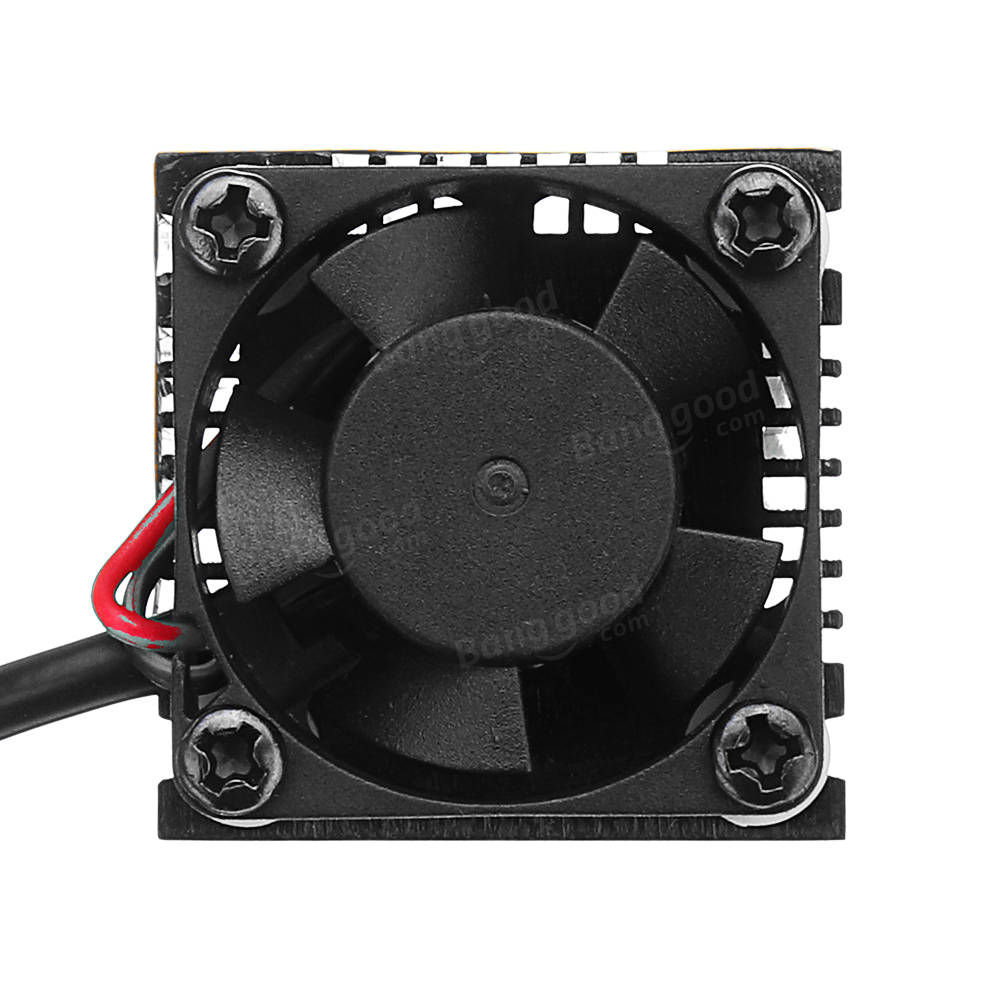

1. Aircraft aluminum heatsink with cooling fan ensure long working time continuously
2. Equipped with constant-current driver board to ensure stable output optical power
3. Low heat and no external driver board needed,easy to use
4. Suitable for industrial laser engraving machine equipment usage
Note (Please pay attention):
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. The warranty period of laser module is one month. If you have any quality problem (Except individual situation like using the laser module more than 30 minutes per time and casue the damage), please feel free to ask our customer service for help.
3. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
4. Any quality problem about the module, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thanks for your understanding.
5. This laser module is compatible with our EleksMaker machine. You can use a DC TO 2 PIN connector to do it. (Can not adjust laser intention.)

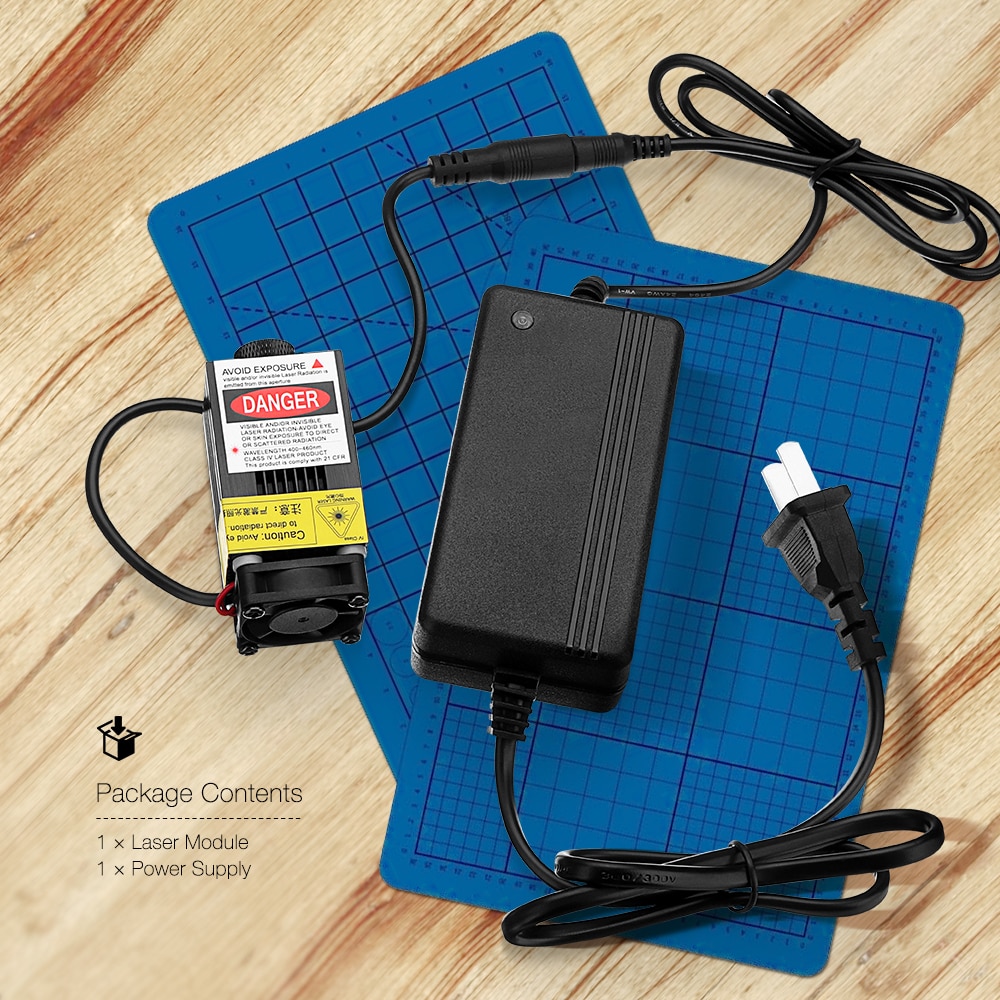

Package Included:
1 x 2500mW Laser Module
1 x Power Adapter
1 x Plug Adapter (Accoding to Your Country)
