Main Feature:

1. Use DB25 socket to output laser control signal, and directly connect with pulsed fiber laser through 25-pin cable.

2. The galvanometer control signal is a digital signal, which can be directly connected to the internationally used digital galvanometer.

3. On-the-fly marking: Rotary encoder can be connected to detect the speed of the assembly line in real time to ensure high-speed marking effect.

4. Support single machine multi-card working mode. One computer can control 8 sets of LMCFIBER marking control cards in parallel.

8 sets of control cards can process different contents. [Note: Need computer USB channel support]

5. Expansion axis (stepping motor/servo motor) output: it can output the direction/pulse signal of two channels to control the stepping motor (or

Servo motor), can be used for rotating shaft or splicing.

6. 16 universal input digital signals (TTL compatible). IN0~IN13, XORG0 (IN14), YORG0 (IN15).

Among them, IN0~IN3 are designated as the laser status input signals introduced by CON2 (LaserST0~LaserST3).

7. 8 universal output digital signals (TTL compatible). Out0-7 are output from the CON5 socket. Among them, Out0~Out3

It is TTL output; Out4-7 can be set to OC or TTL output through jumpers.

8. LaserErr signal, output when the laser status is wrong, it is OC output and can be connected to a relay.

9. ReMark (buffer content repeated marking) signal: used for the same marking content, requiring high-speed marking. (in case

The marking content contains variable text, or the marking content is too large and cannot be saved in the board. It must be connected to the universal input

Into the signal. )

10. Compatible with USB2.0.

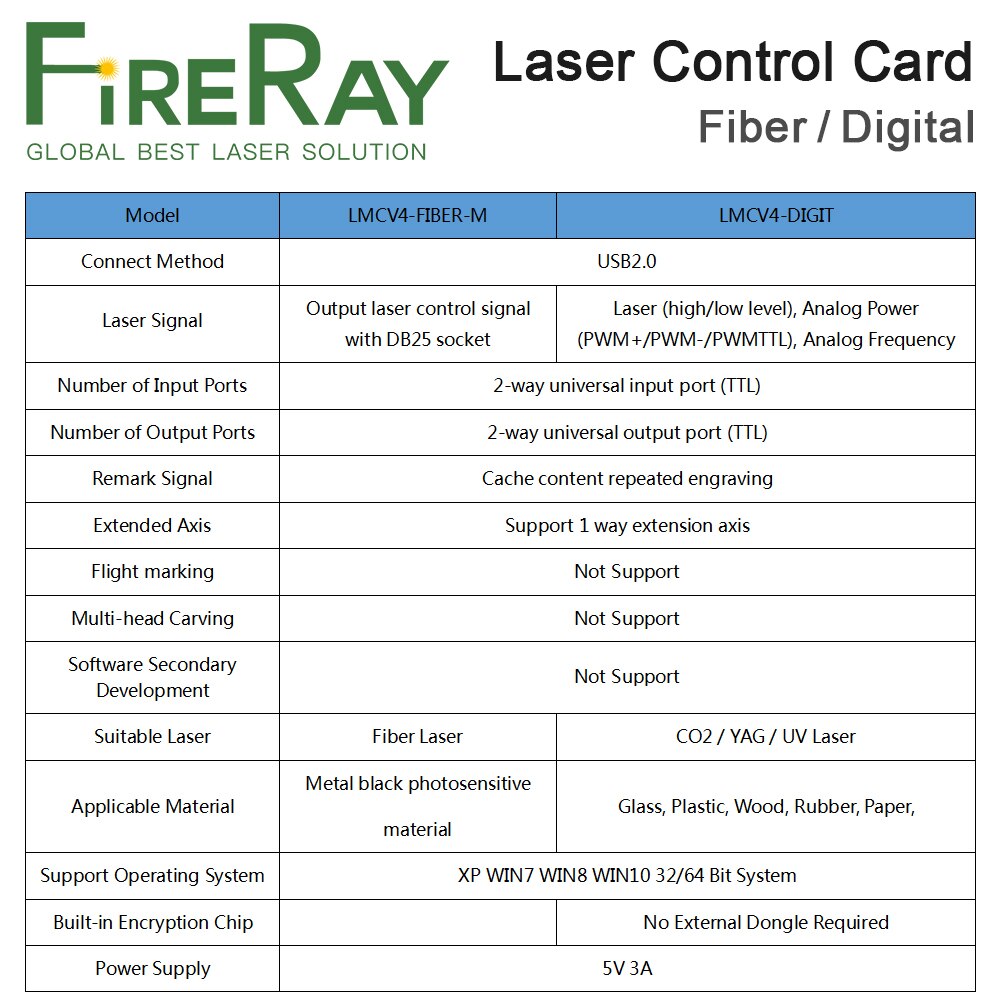

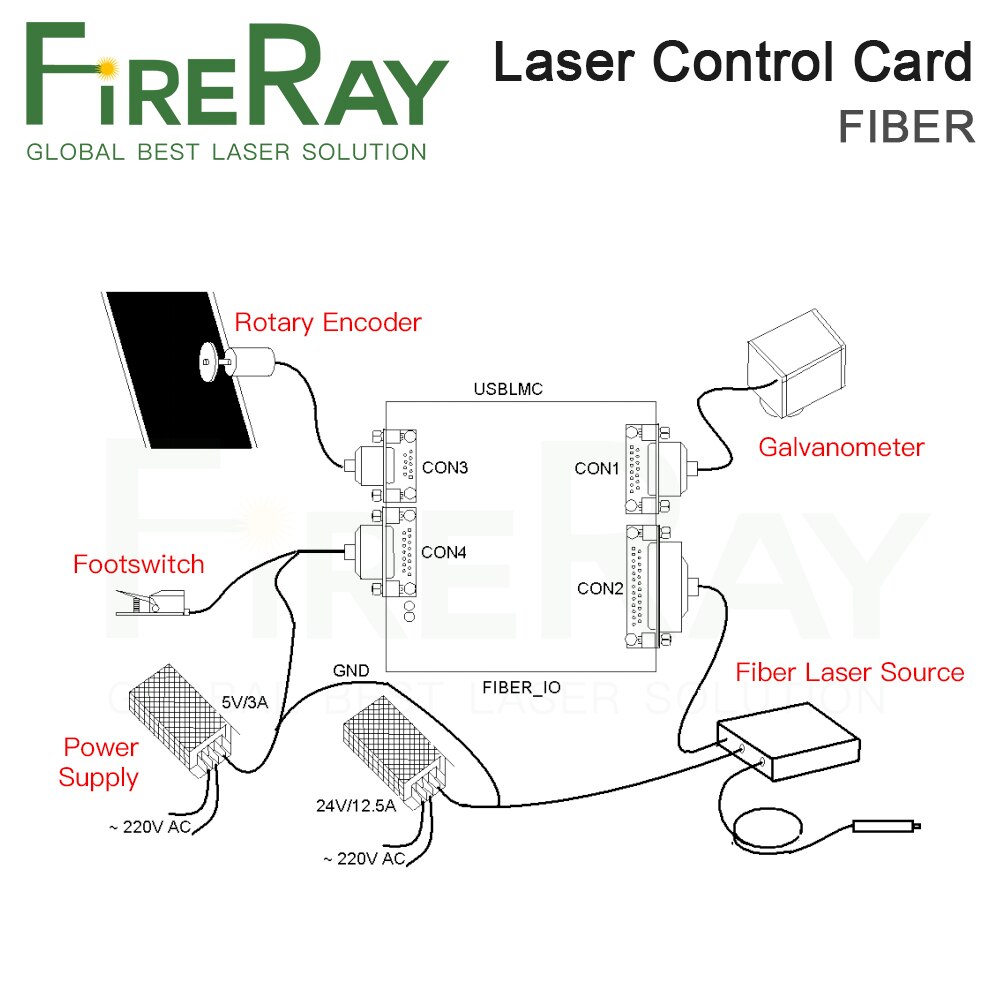

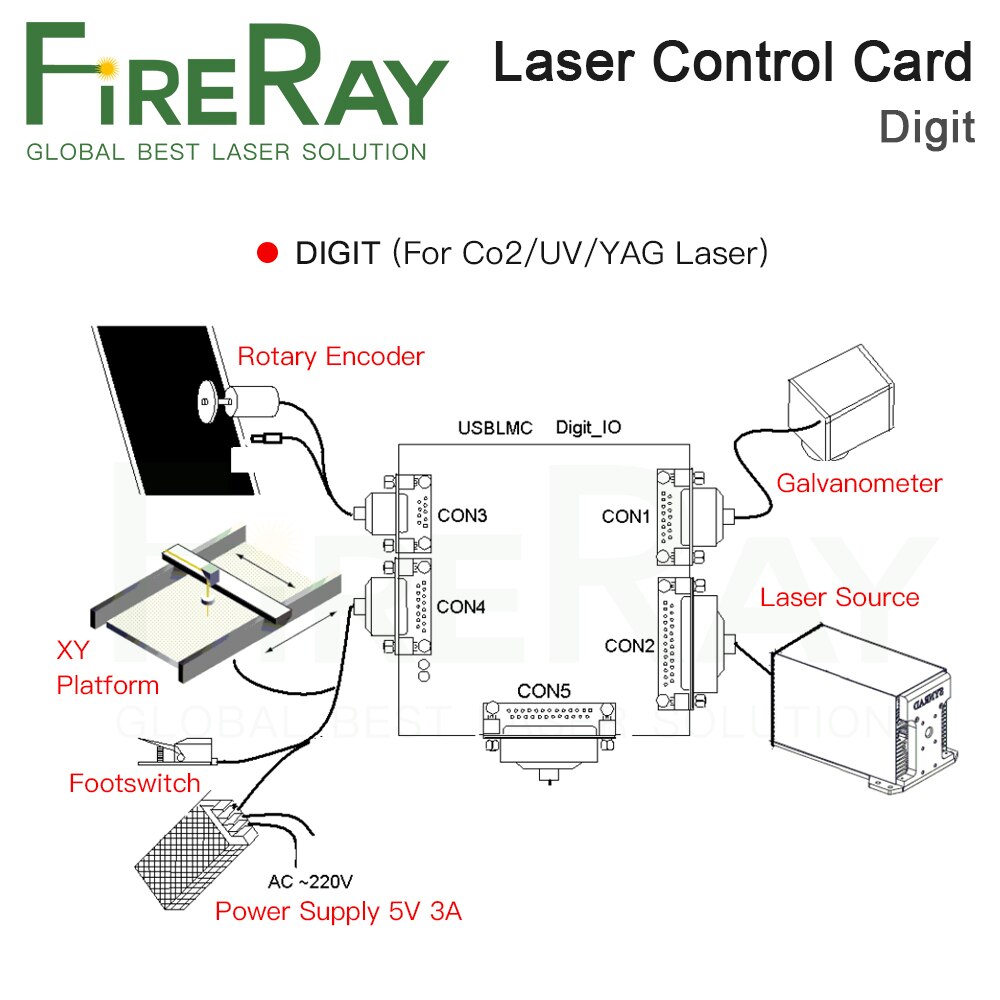

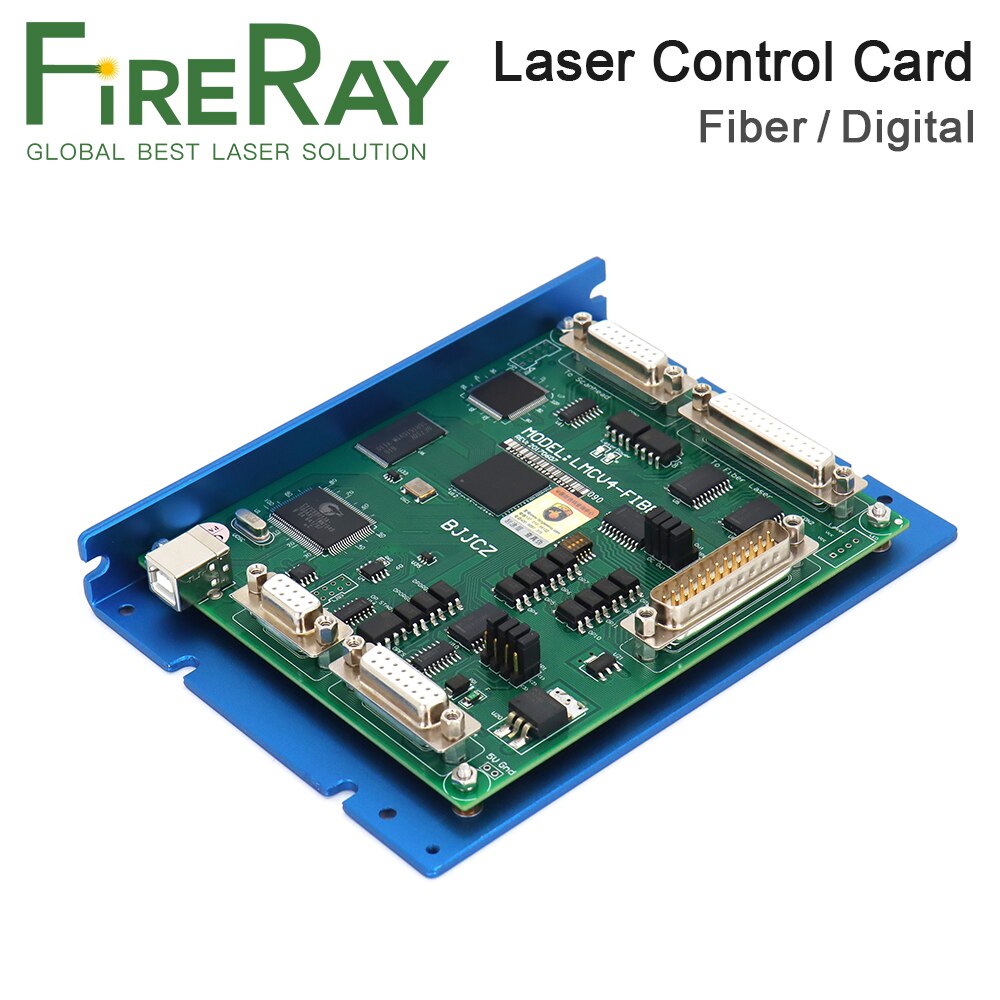

CON1: Galvanometer (SCANHEAD) control interface, DB15 socket

CON2: DB25 control interface of IPG YLP series laser;

CON3: Mark on fly interface, used to connect the encoder, DB9 socket;

CON4: IO interface, used to connect power supply and expansion axis control signal, DB15 socket.

CON5: IO interface, used to input and output digital signals, DB25 socket
