JIABAIDA Hardware BMS

Product Description:
1.Supportable battery type
Number of strings : 3-32S
Batteries : 3.7V Li-ion/3.2V Lifepo4
Voltage : 12V 24V 36V 48V 60V 72V
Current : 30A 35A 40A 45A 50A 60A 80A 100A 120A 150A 200A
2.No communication function
3. Balance Wire are Free, UART and RS485 need bought seperately.
4.Email consultation : Jenny1998202105@163.com
Main function description:
Over-charge protection / Over-discharge protection / Over-current protection / Temperature protection / Short circuit protection / Balance function
Advantages:
1.Intelligent and powerful MOS, imported IC, integrated solution.
2.Equipped with temperature sensor, preserved control switch.
3.Factory sales, the more the quantity, the lower the price.
4.Support customization (the size of PCB / the material and length of balance wires and output line / the replacement of Aluminum shell material / change parameters / increase function of data storage … )

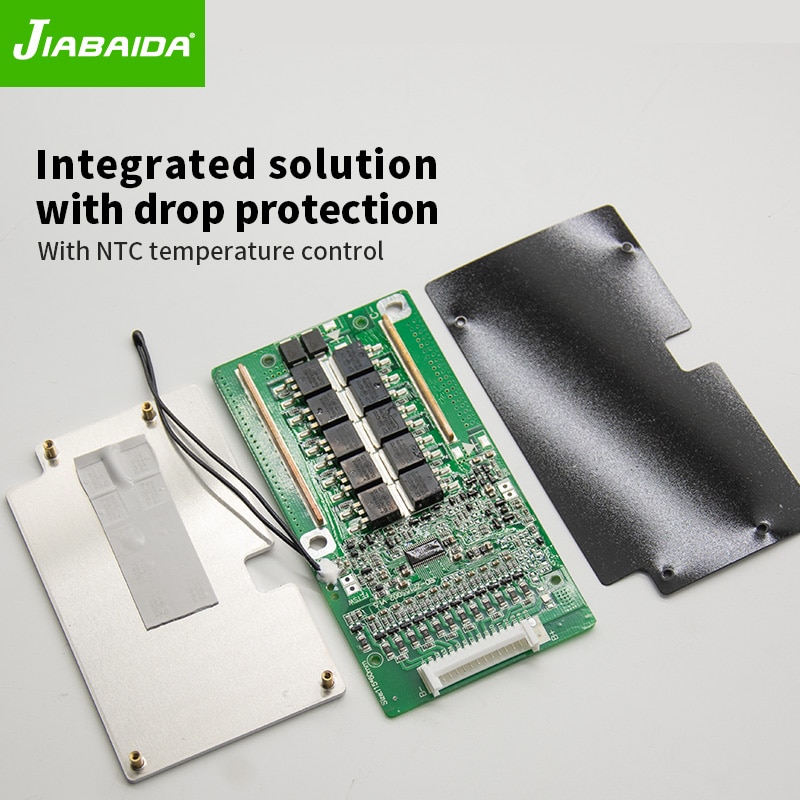

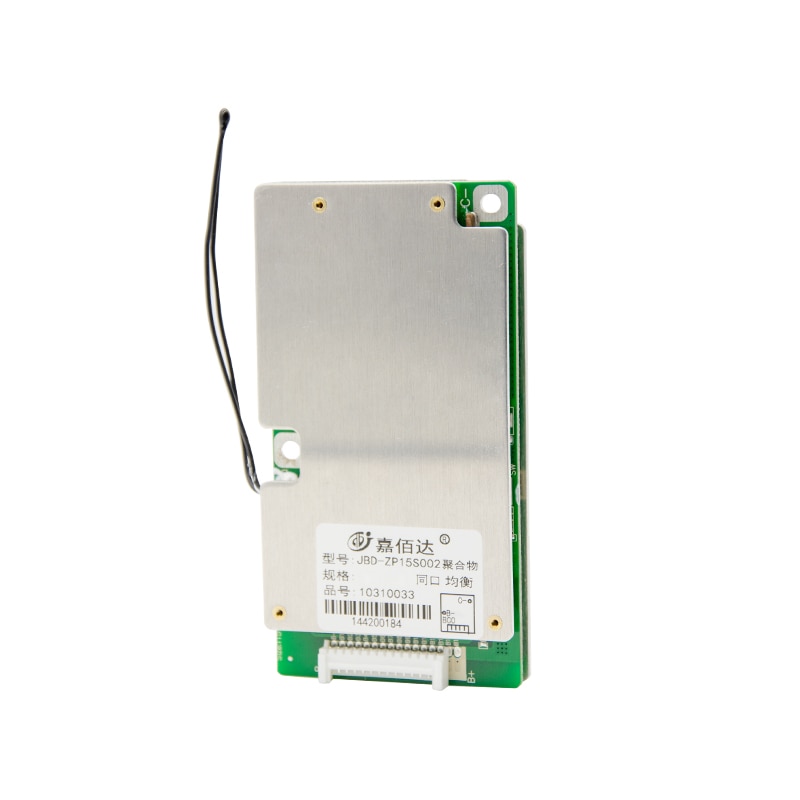

JIABAIDA BMS-ZP15S002

JBD-ZP15S002 is a protection board solution designed by Dongguan Jiabaida Electronic Technology Co., Ltd. for 13, 14, 15 series battery packs of electric bicycles, electric motorcycles and other products; it can be applied to lithium batteries with different chemical properties, such as Lithium ion, lithium polymer, lithium iron phosphate, etc. The protection board has strong loading capacity, and the maximum continuous discharge current can reach 60A.
● 13,14,15 section integrated protection scheme
● Various protection functions for charging and discharging
● Hardware discharge overcurrent, short circuit protection function processing

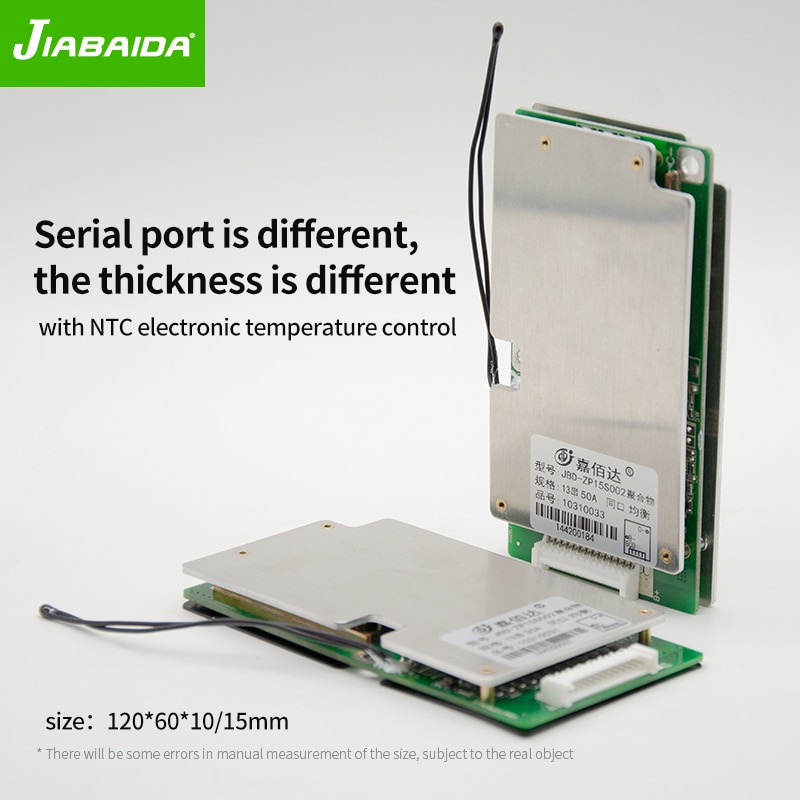

● Reserve temperature protection function
● Reserve weak current switch function
● Very low quiescent current consumption
● Charge and discharge disconnection protection
● Equalization function
