Description

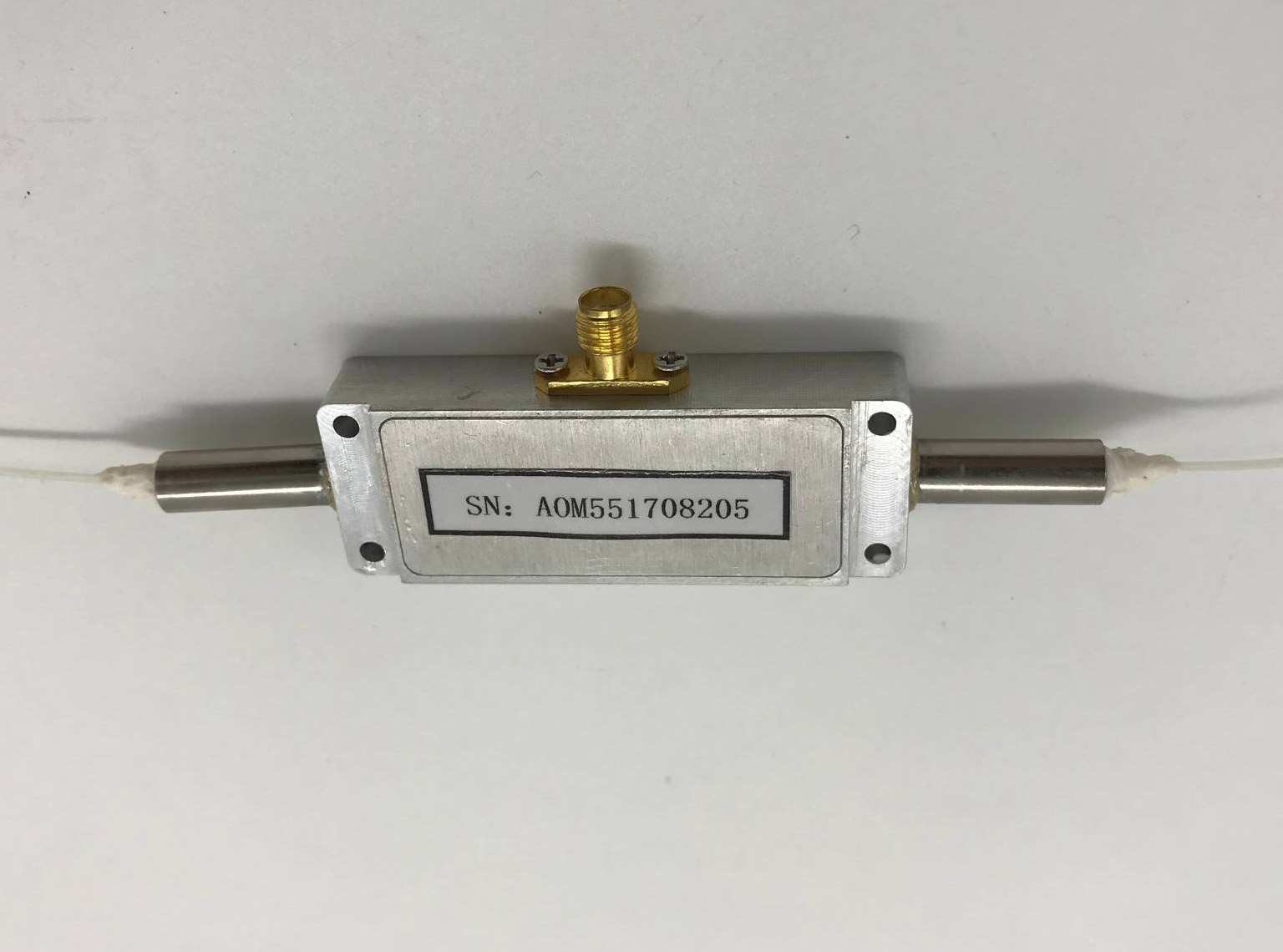

IQ Modulator Calibrator Fiber Coupling acousto-optic modulator 1550nm 80MHz for Calibration

Low insertion loss
Compact
Stable performance
Custom Configuration

Material: TeO2
Wavelength: 1550 nm
Average optical power: 1W
Peak (pulse) optical power: 1kW
Ultrasound sound speed: 4200m / s
Insertion loss: 1.5 2.5 dB
Extinction ratio: 50 dB
Return loss: 40 dB
Rise time: 50 ns
Frequency: 80 MHz
Frequency shift: +/- 80 MHz
RF power: 2.5W
Voltage standing wave ratio: 1.2: 1
Input impedance: 50 Ω
Device Interface: SMA
Fiber Type: PM / SM
Fiber length: 1.5 m
Optical Interface: FC / PC / APC
Operating temperature: -20 ~ +60 ℃
Storage temperature: -30 ~ +70 ℃
