Infrared Positioning Lamp For Cutting Bed Red Line Laser Red Light Straight Line Positioning Lamp set

Product parameters
Core electrical appliances: Mitsubishi
Wavelength: 648nm
Output power: 50mW
Supply voltage: 5V
Working current: 80mA
Spot mode: a word line
Optical part: glass focus + glass column mirror
Product material: aviation aluminum
Working temperature: plus or minus 50 degrees Celsius
Working life: 8000 hours

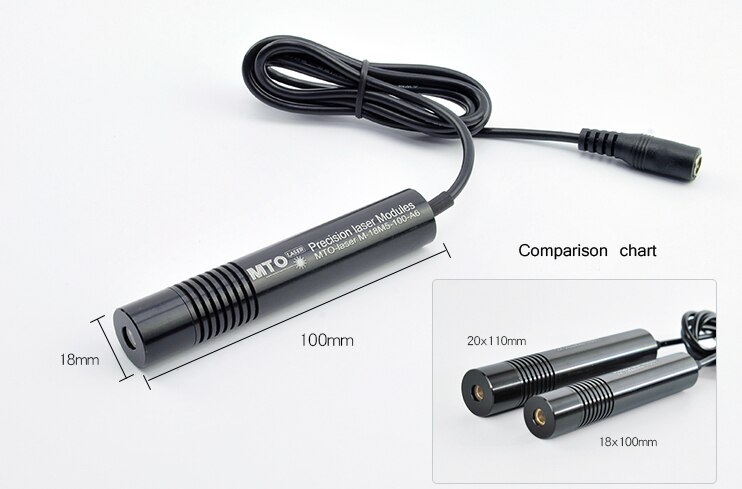

Dimensions: 18mm * 100mm (not adjustable)
Best working distance: 0-3meters
Output band: visible light
Weight: laser 0.08kg / bracket 0.13kg / power supply 0.13kg

Best use distance:
50mW word line cross line indoor use within 3 meters (can be used for a long time)
100mW word line cross line indoor use within 5 meters (can be used for a long time)
150mW word line cross line indoor use within 8 meters (can be used for a long time)
200mW word line cross line Indoor use within 10 meters (can be used for a long time)
Remarks: The choice of power is not as big as possible. Choose according to your actual working distance and light intensity!

Laser structure:
The laser adopts the imported diode, which is small in size, clear in light, large in exit angle and high in straightness.
