Description
Specifications:
Host size: length 65mm * width 33mm * height 33mm
Circuit size: length 45mm * width 34mm
Output wavelength: 445nm ~ 450nm
Output power: <4W
Spot mode: Dot
Spot size: adjustable focus
Diode Model:NDB7875
Refrigeration method: aluminum heat dissipation
Modulation frequency: Modifiable
Job features: continuous work
Surface treatment: black
Shell material: aluminum
Circuit control: constant current
Reverse protection: with automatic identification of positive and negative
Operating voltage: DC = 12V
Working current: I <4A
Warm-up time: none
Operating temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃

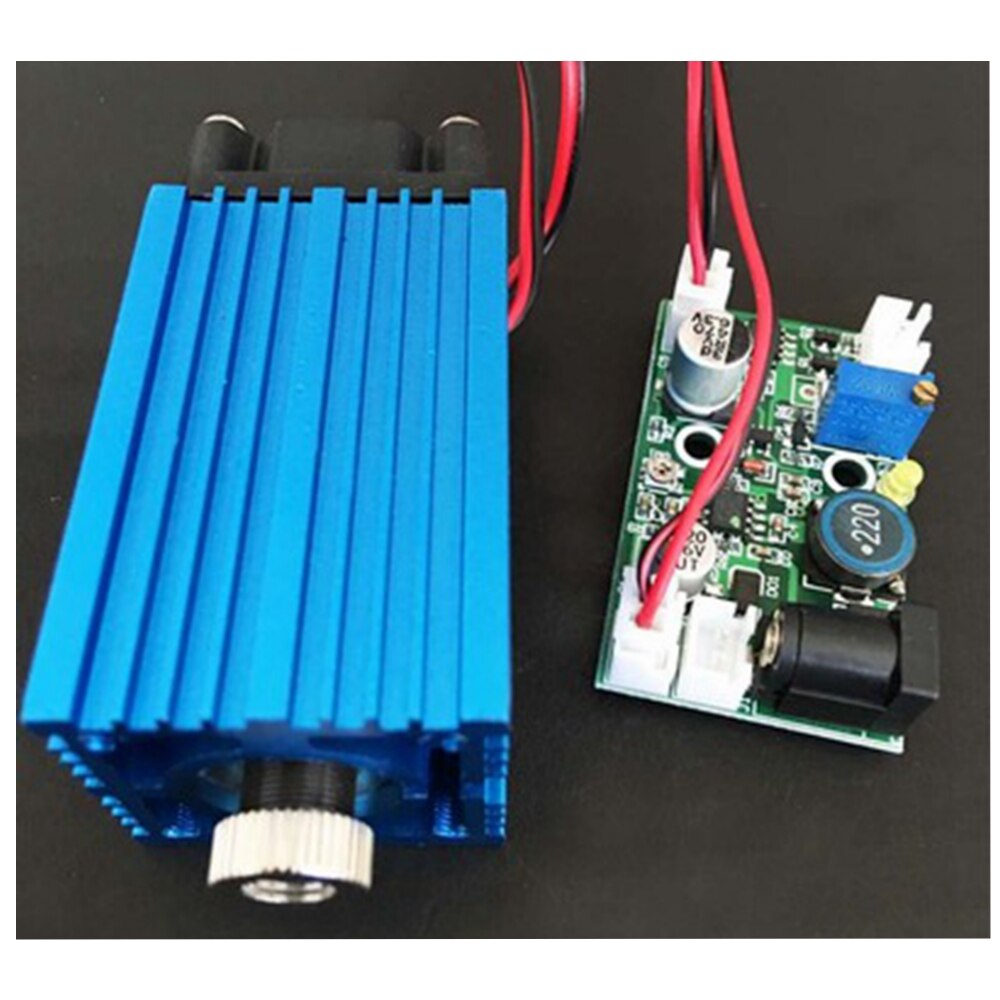

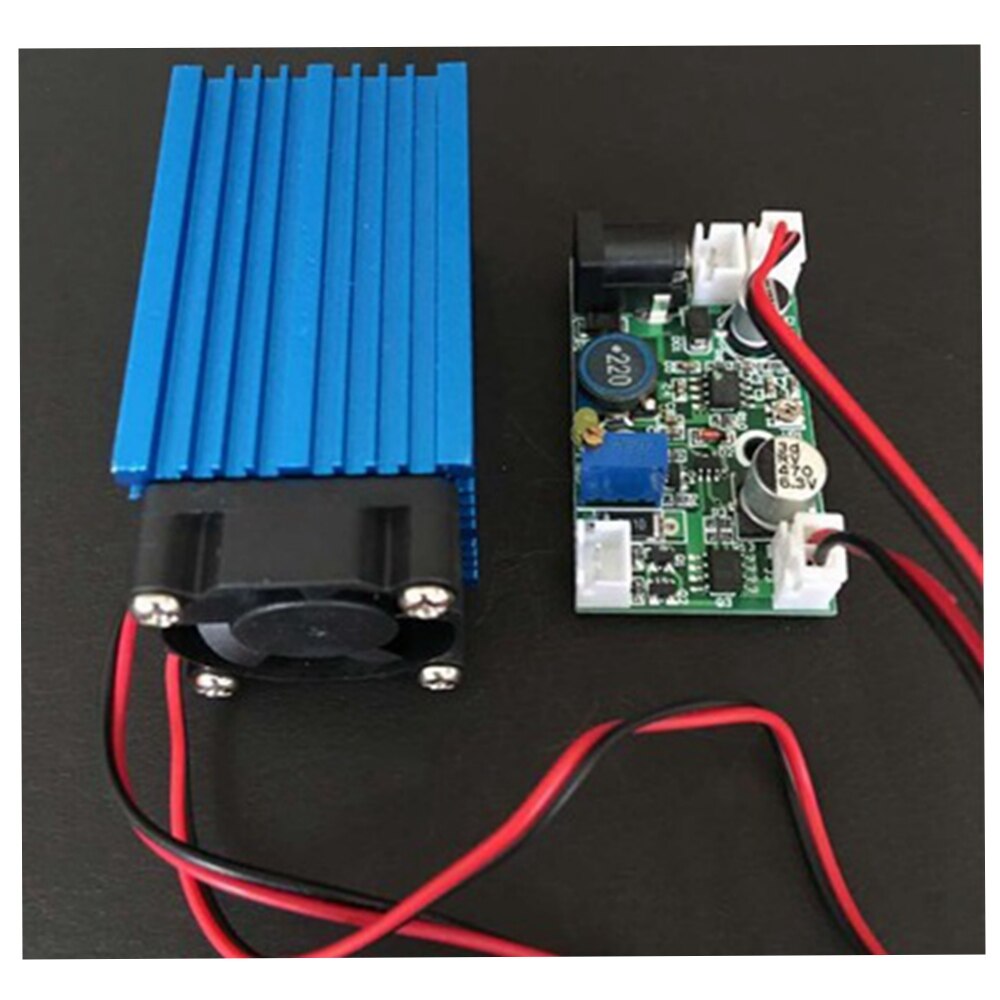

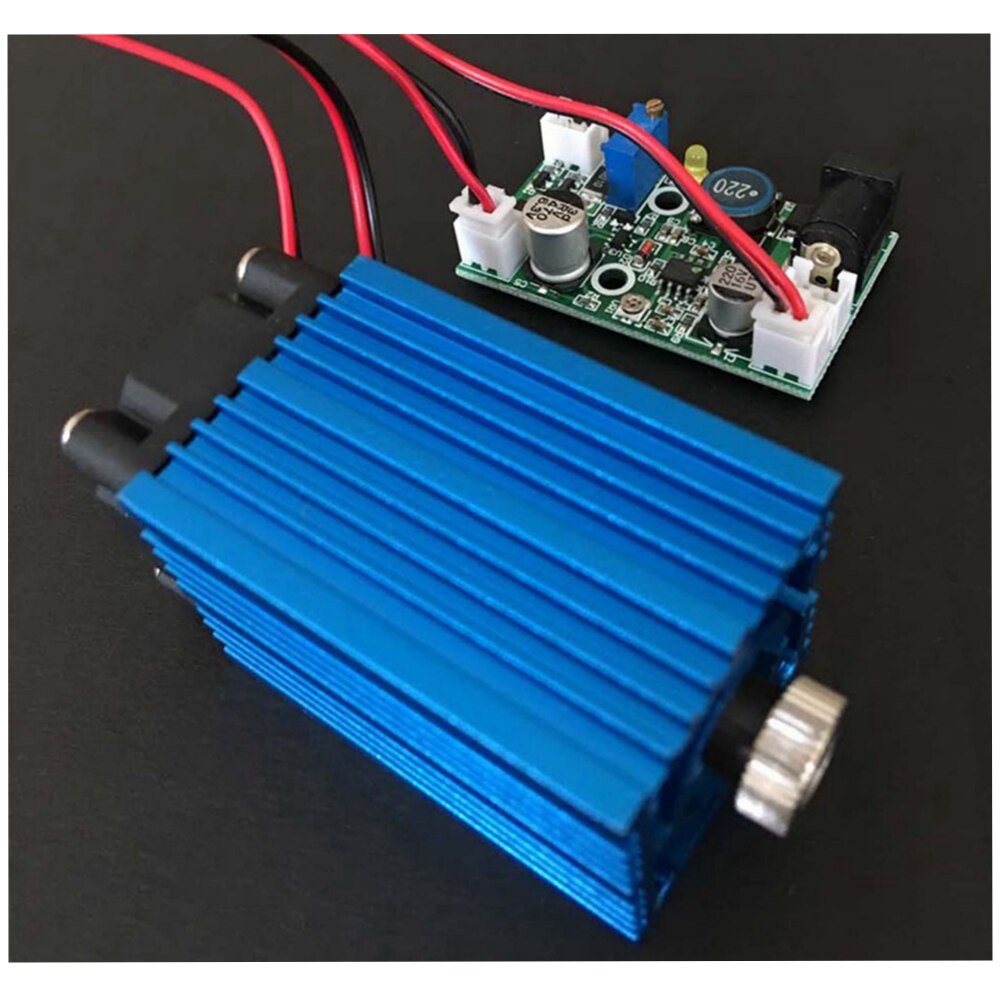

Structural features: laser tube + lens + cooling shell
Note: The power supply is external
Product Usage:
For DIY engraving machine, it can engrave and cut paper, leather, wood, etc.
Iron and stainless steel cannot be carved
Special note:
The input voltage of 12V, overpressure will lead to instant damage to the circuit and module.
Reminder:
Due to product batch problems, the appearance of the driver board will be slightly different, which will not affect the use.
There are two types of module shells: blue and black, shipped randomly.
Package:
1 x Industry High Power 445nm 450nm 4000mw 4W Adjustable Blue Laser Diode Dot Module 12V TTL
1pc 12V Adapter
