Description
Detailed Description of Laser Diode
|
Model No. |
LSR445NL |
|
Wavelength |
445±5 nm |
|
Spatial Mode |
TEM00 |
|
Output Power |
4000mW |
|
Operation Mode |
CW or Modulation |
|
Modulation |
0~30khz Analog or TTL(Optional, note to us which one you need, we will ship Analog one as default) |
|
Pointing Stability |
<0.05 mrad |
|
Height |
29mm |
|
Beam Diameter(1/e2) |
5×6 mm |
|
Beam Divergence(full angle) |
1.1×0.7mrad |
|
Power Stability |
<3% over 4 hrs |
|
Cooing Method |
TEC (can work long time ) |
|
Warm Up Time |
<1 minute |
|
MTTF |
10,000 hrs |
|
Working Temp |
20-30 degree |
|
Laser head dimensions |
175(L)x92(W)x60(H)mm3 (fan adds 25mm height) |
|

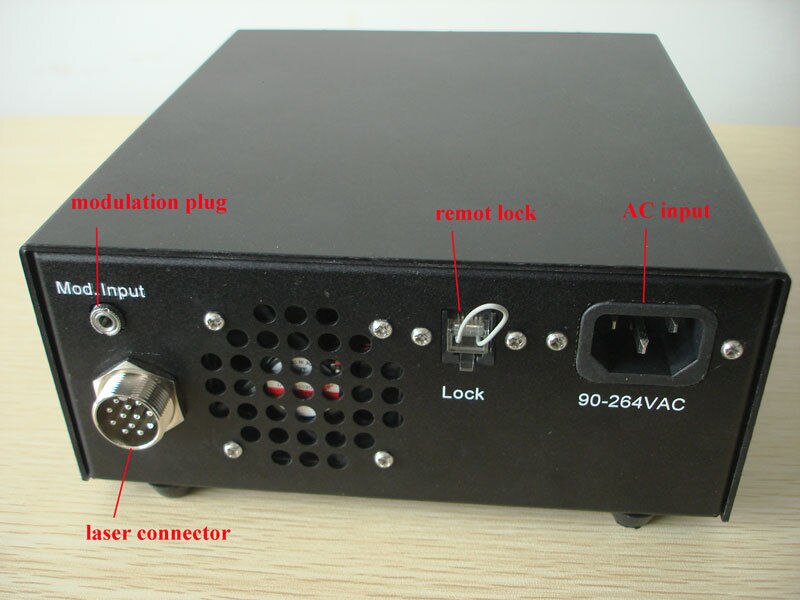

Power Supply (Optional, note to us which one you need) |

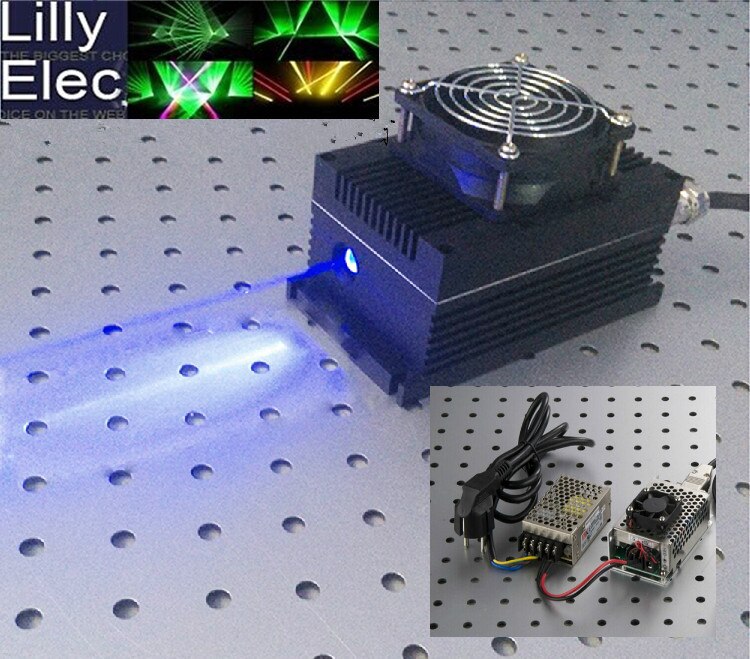

A. OEM type LSR-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input |
|

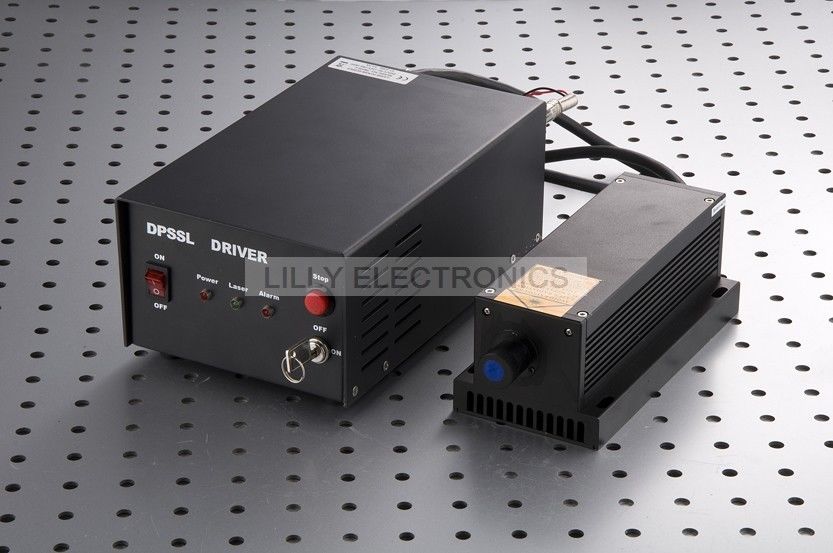

B. Lab type LSR-PS-IIS: 104(W)x128(D)x89(H)mm3 85~265V 50/60Hz input |
|
|

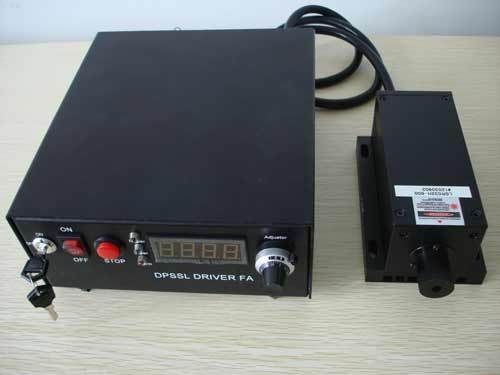

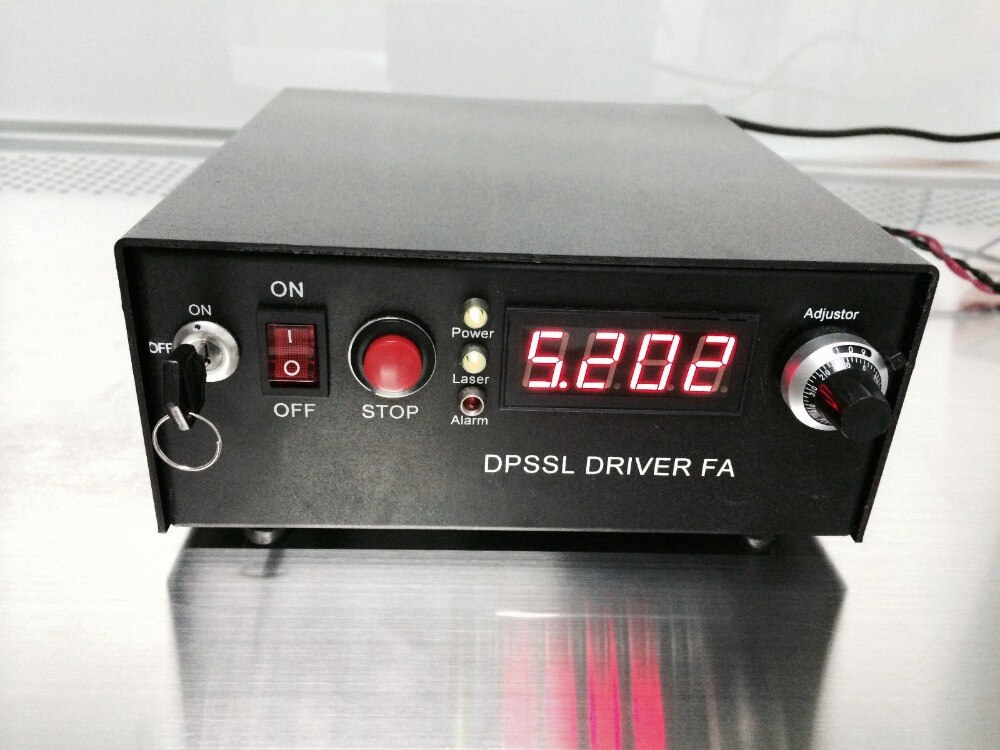

C. Lab Adjustable type LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input Default |
Application:
Laser show
Display
Laser Alignment
Scanning Biochemistry
Material Inspection Lidar
Warranty
1 Year
Note:1.we need about 10days to customize,please have the patience to wait,thank you.
2.There are two kinds of modulation for you to choose,Analog or TTL please leave us a message or we will ship Analog modulation as default.
Pakage:
1 Unit of Industrial Lab 445nm 4000mW 4W Violet Blue Laser Dot Module + TTL/Analog 0-30KHZ + TEC Cooling 24 hours working
