Description

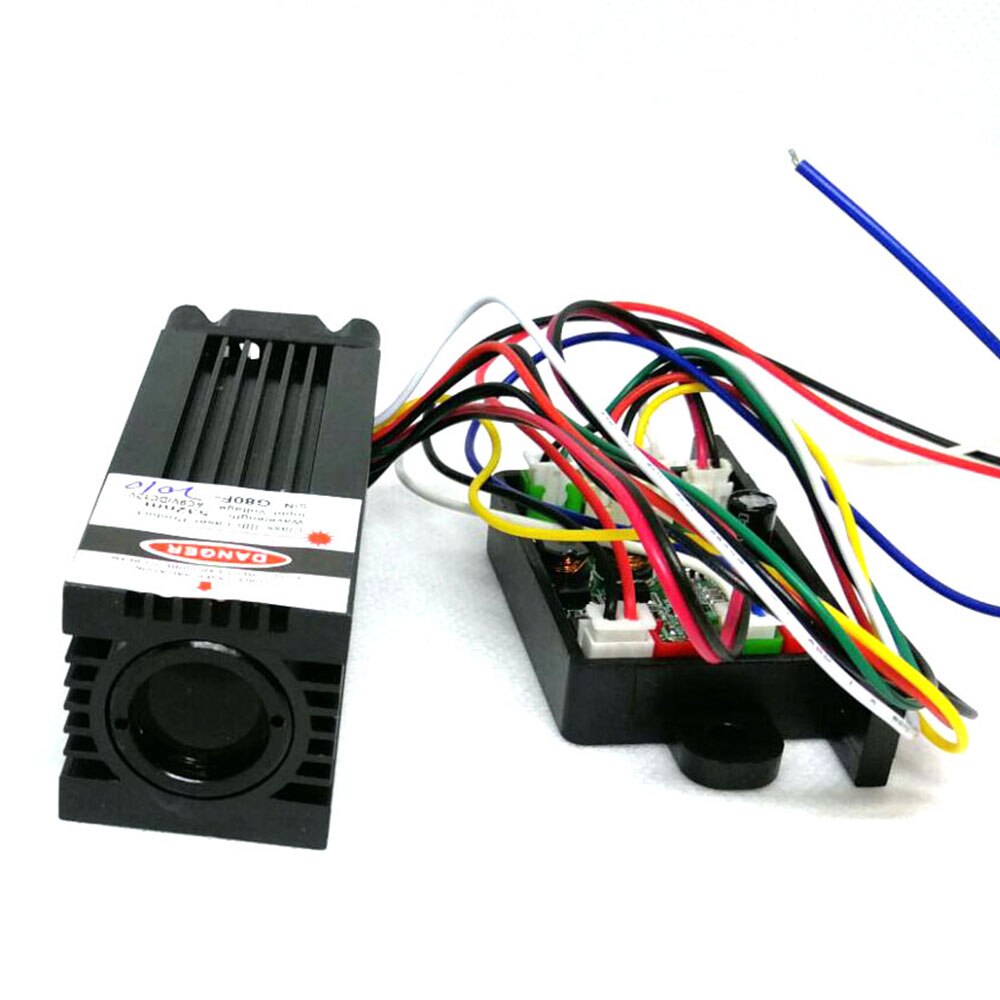

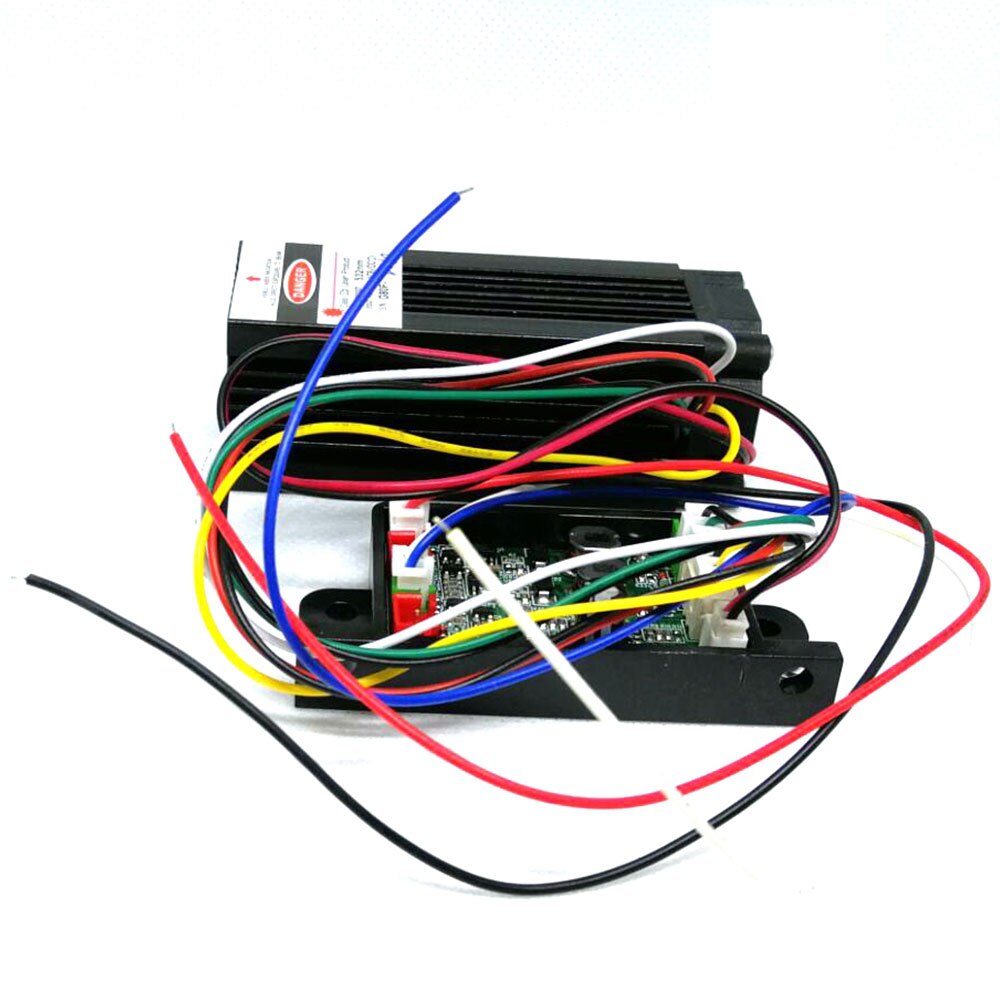

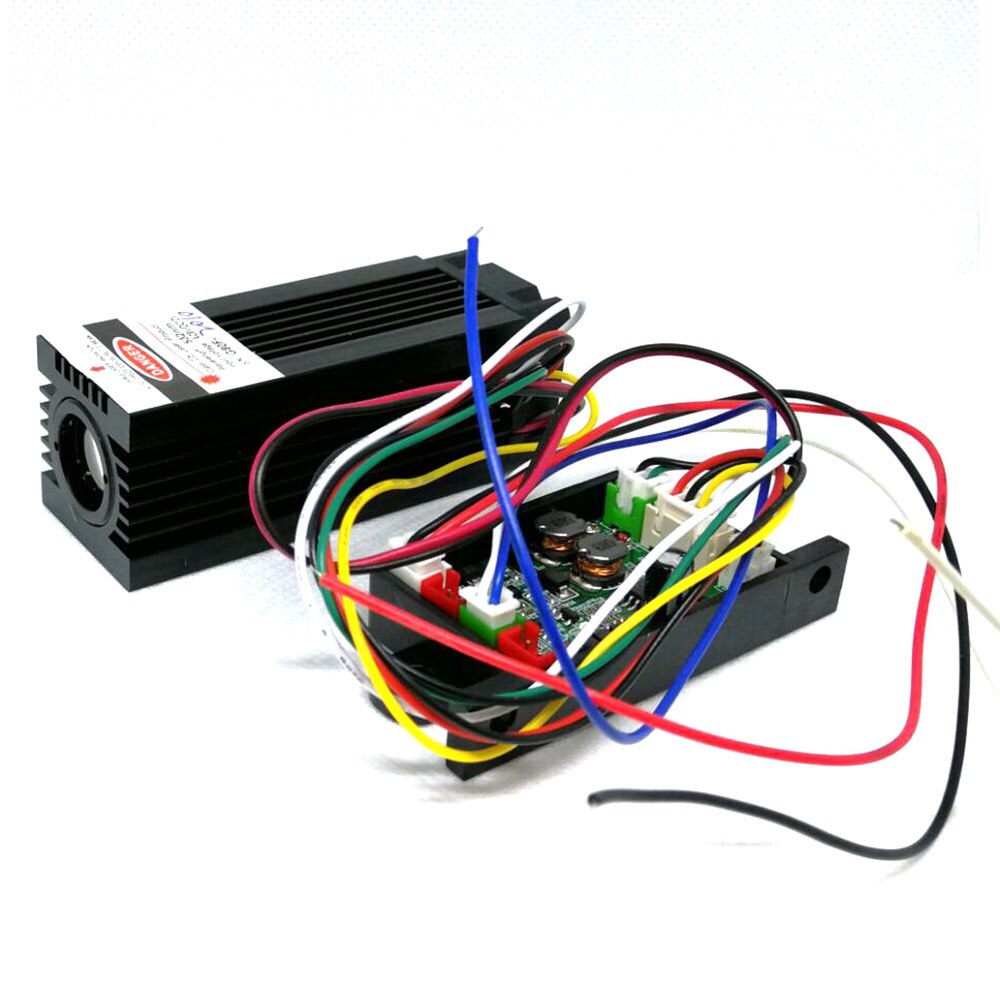

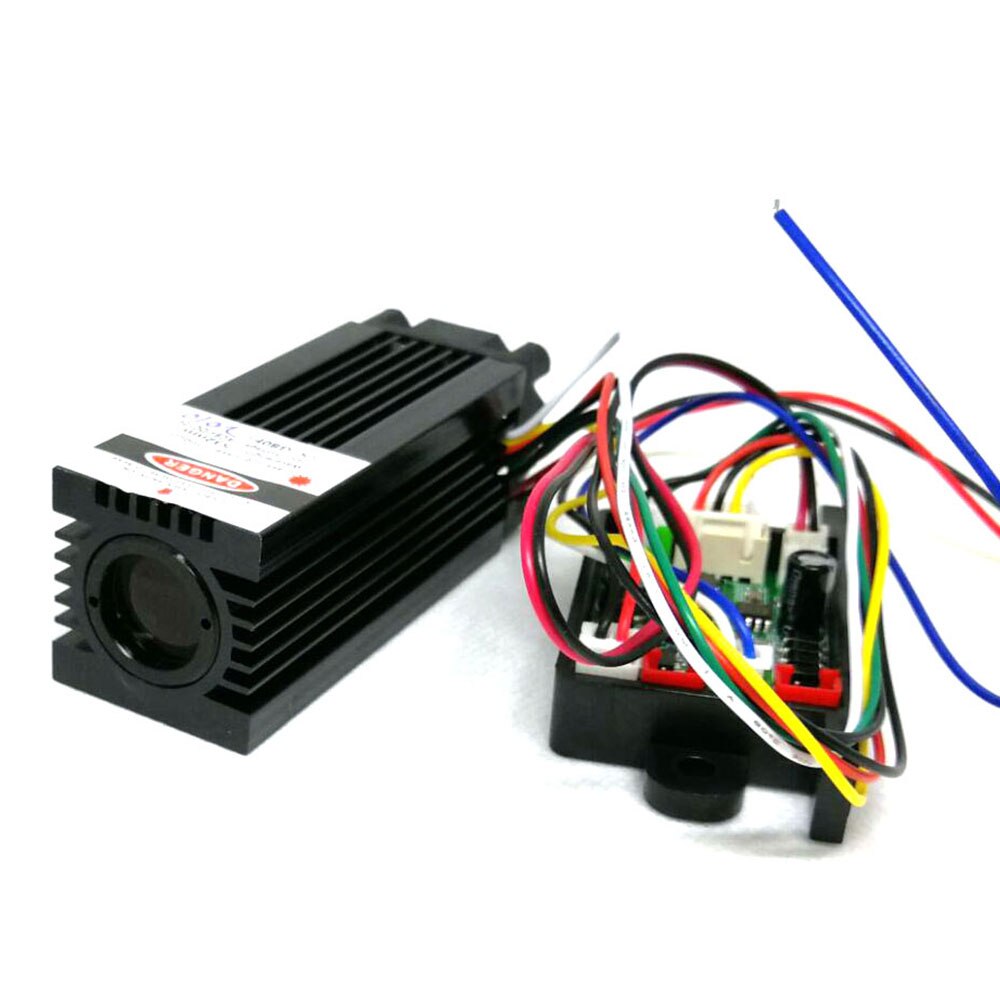

​Industrial 100mW 532nm Green Laser Diode Module Fat Beam LED Lights 12V

Parameters

Wavelength:532nm

Output Power:60mw

Working Voltage:10-12V

Working Current:<500mA

Working Life:3000-5000 Hours

Working Temperature:＋10 ℃~＋30 ℃

Laser Shape:Dot

Divergence:15mm

Beam Diameter:6mm-8mm

Lens:Glass

Dimensions:33*33*80mm



Features

 This Fat beam laser module brings with additional cooling fans, can work for long time.

Please add a 10-12VDC power to this laser module. Please add the power to the “12V+” and “12V-“. If you don’t use TTL(Blonk+,Blonk- in the middle),please just leave them unconnected.

This is a laser module for Laser show. Please take care this is a green laser with fat beam of beam diameter 12-15mm

completely different from normal type of green laser beam of only about 1-2mm

Care Instructions

Please protect the lens and keep it clean and avoid dust

Please avoid direct eye exposure to the laser beam and wear 532nm protection glasses when your operate this laser module.

Package

1pc Industrial 60mW 532nm Green Laser Diode Module Fat Beam LED Lights 12V
