Description

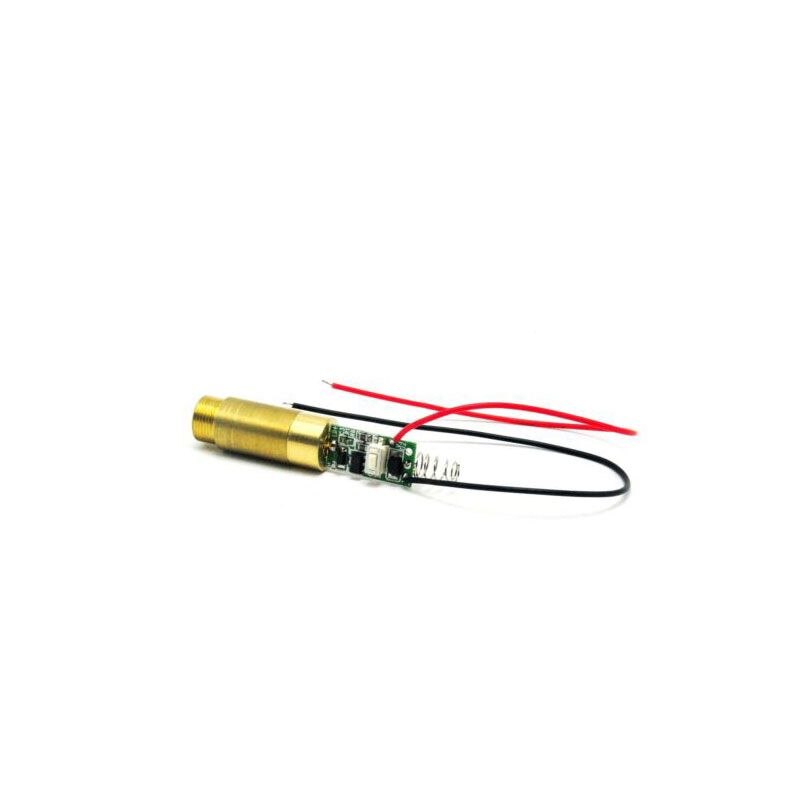

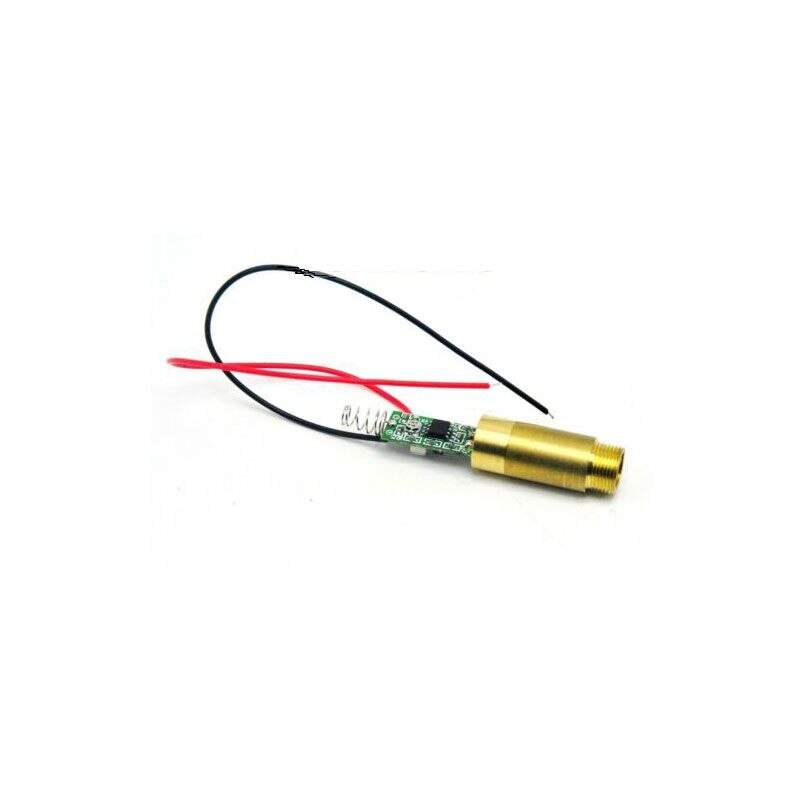

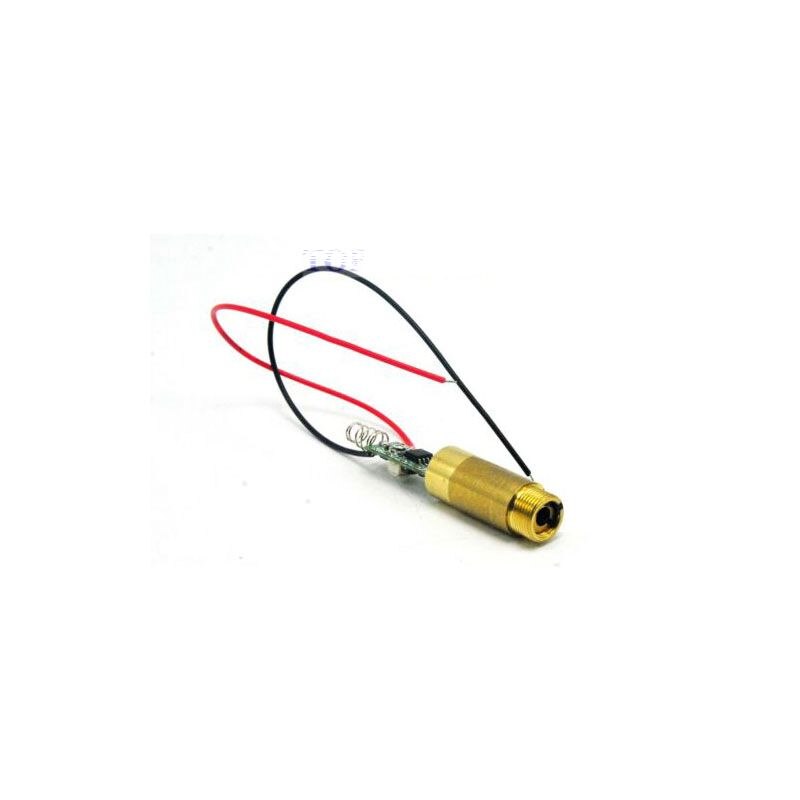

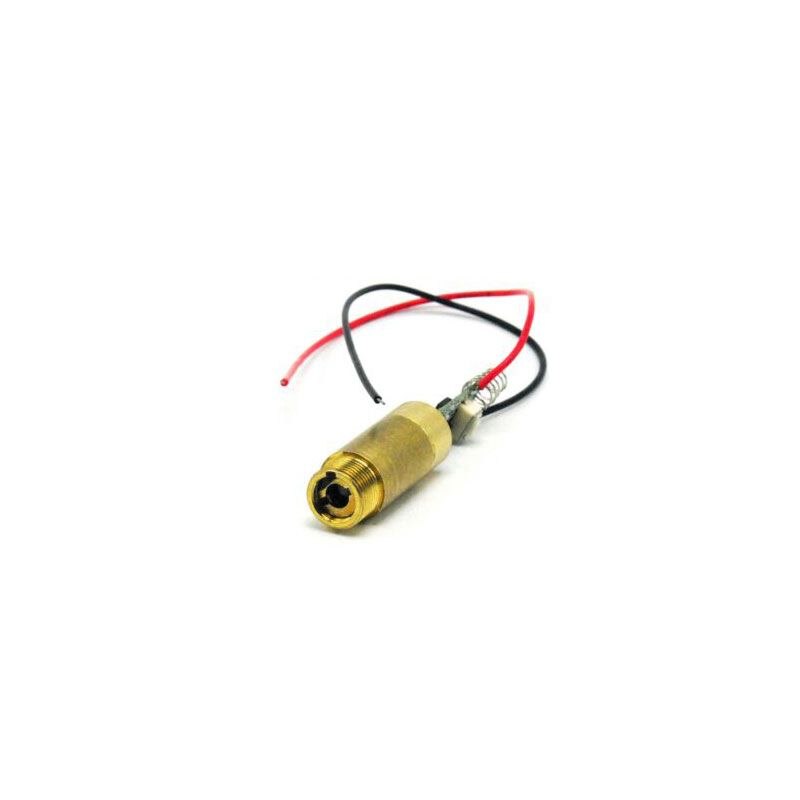

Industrial 532nm 200mW 3.7-4.2V Green Laser Dot Module Diode w/ Driver & Spring

Parameters
Wavelength:532nm
Output Power:200mw
Working Voltage:3.7V-4.2V
Working Current:<750mA
Duty Cycle:45 seconds On;15 seconds OFF
Working Temperature:10 ℃~35 ℃
Laser Shape:DOT
Divergence:<25×25mm at 15m
Material and Color:Brass
Lens:Glass
Dimensions:12*35mm(not include PCB board)

Features
Due to different production batches, the drive plate appearance will be different, but does not affect use effect.
Please avoid direct eye exposure to the laser beam and wear 532nm protection glasses when your operate this laser module.
The modules are tested and the output power are measured by laser power meter before sending out.Please don’t compare the power of this one with a none-measured laser.If you doubt the output, please have the laser you recieved checked by laser power meter. If there is any problem, please feel free to contact us. We will solve the problem asap.

Package
1pc Industrial 532nm 200mW 3.7-4.2V Green Laser Dot Module Diode w/ Driver & Spring
