Industrial 405nm 0.8W 800mW Blue/Violet Laser Dot Module 12V /UV Curing 3D Print

Specification:

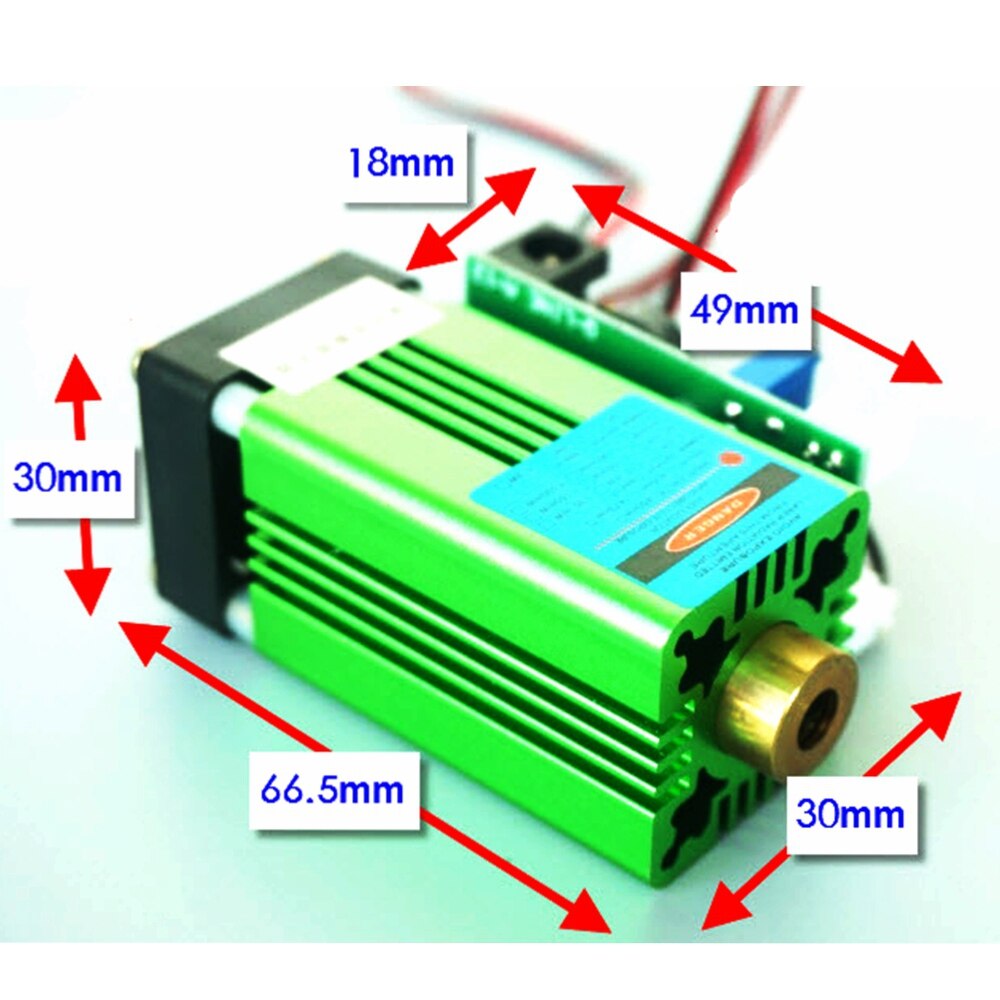

Host size: 69.5mm long * 30mm wide * 30mm high
Power Dimensions: See picture description
Output Wavelength: 405 nm

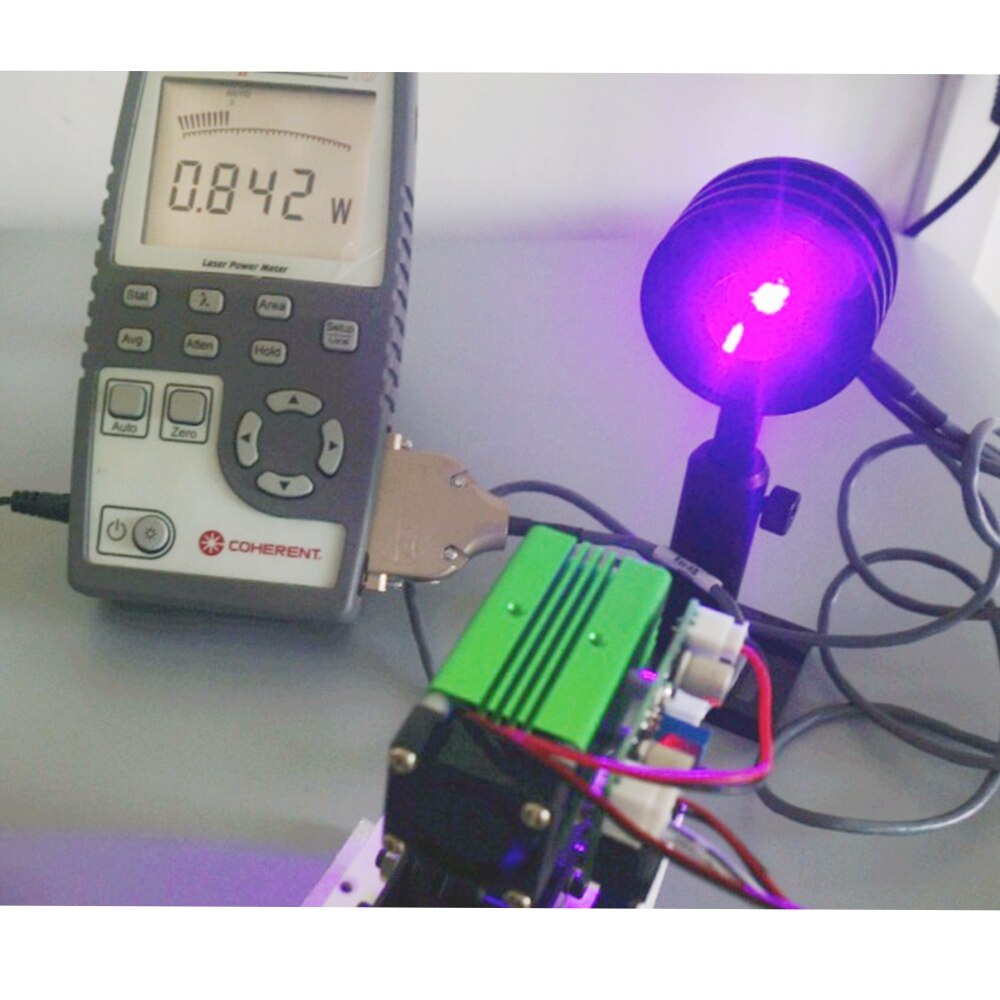

Output power: 800mW
Cooling: air-cooled

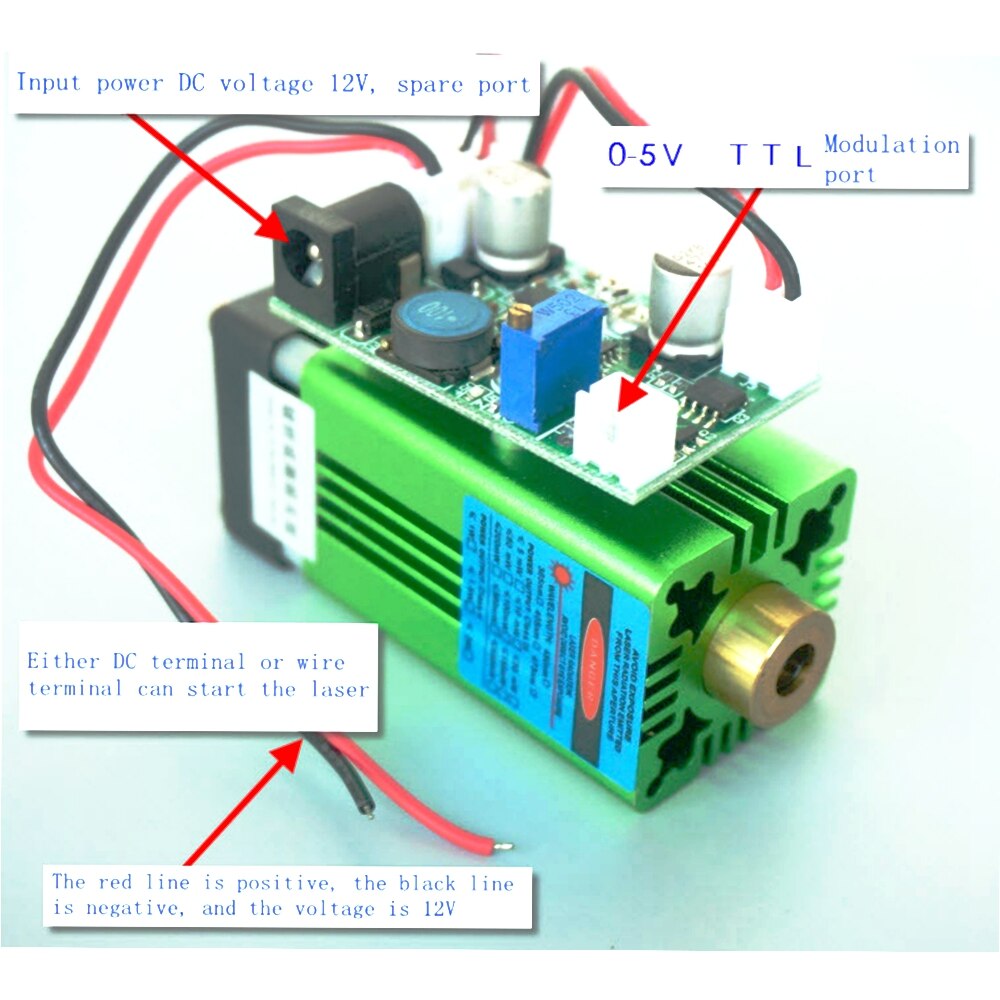

Modulation frequency: TTL 1-20K Hz
Modulation voltage: 0-5V
Working characteristics: continuous work
Surface treatment: green
Shell material: aluminum
Circuit control: constant current
Reverse polarity protection: with positive and negative polarity identification
Working voltage: DC = 12V
Working current: I <760mA
Warm-up time: None
Operating temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃

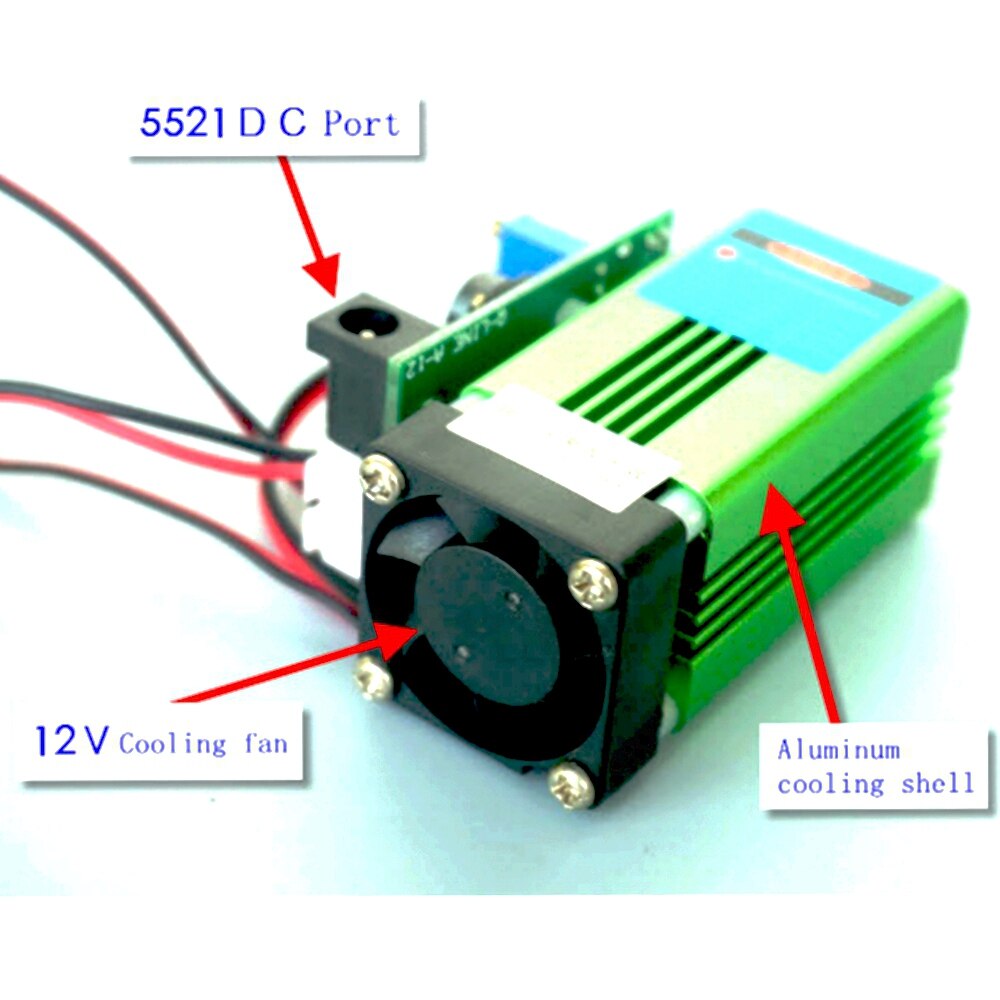

Structural features: laser tube + lens + cooling shell

Note:

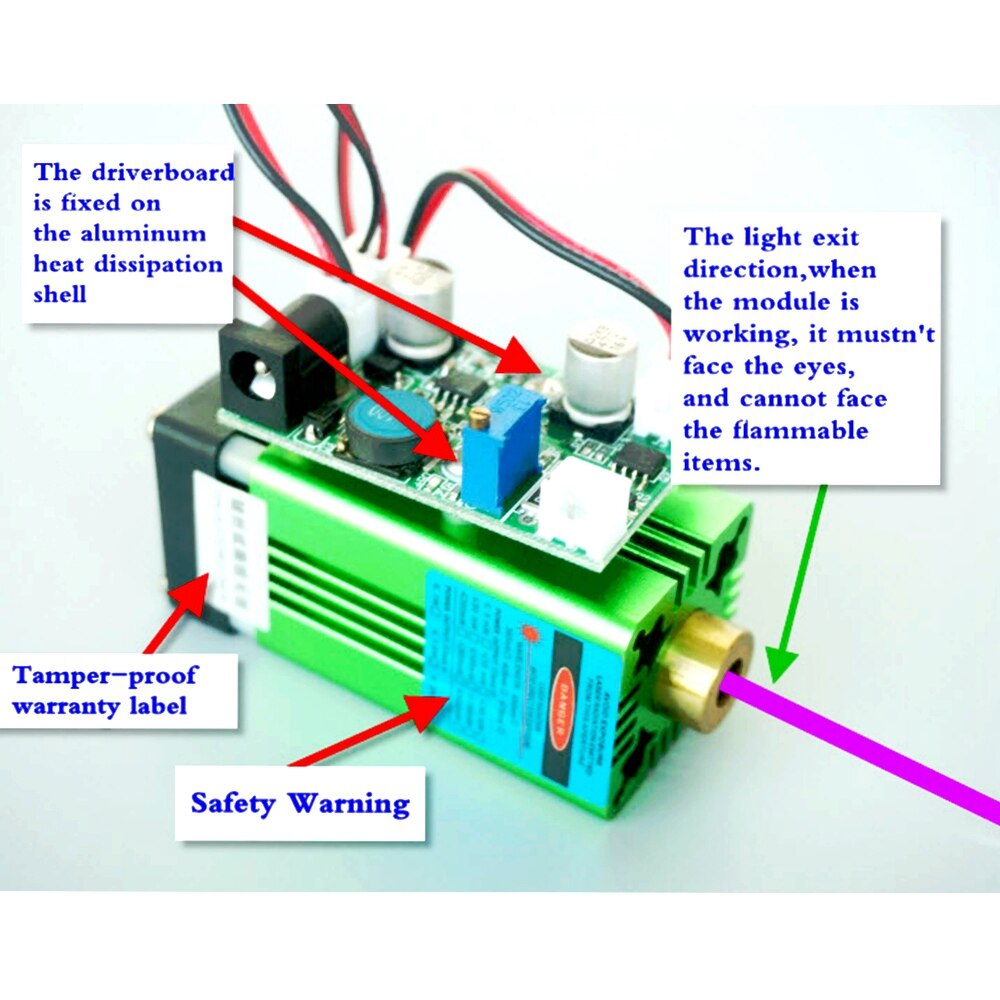

power and laser head for the split, the laser head with a fan cooling.
