Description

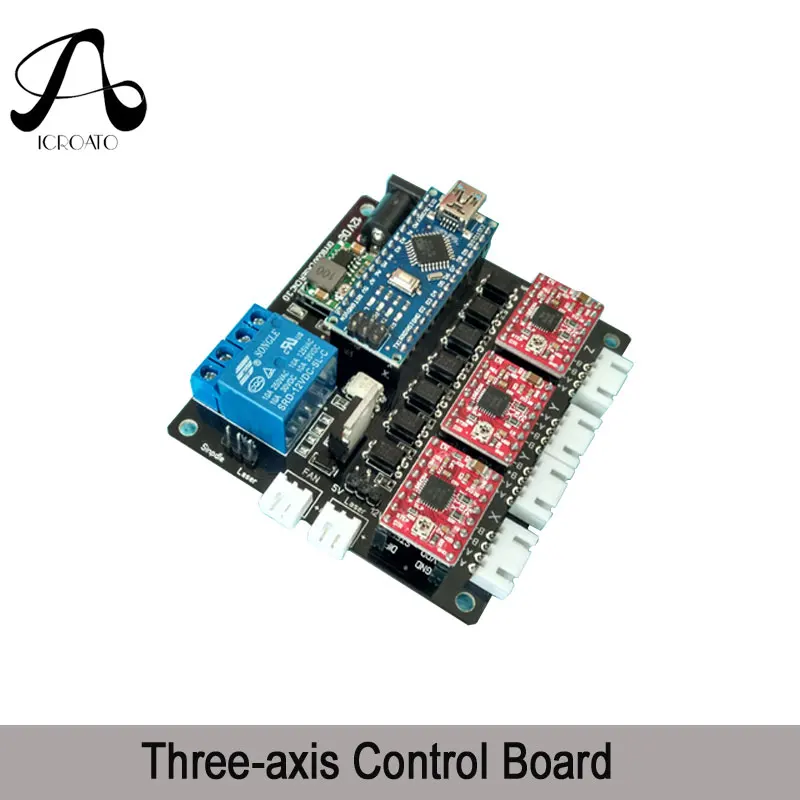

ICROATO GRBL USB Port CNC Engraving Machine Control Board, 3 Axis Control,Laser Engraving Machine Board
Package including:
1pc*USB 3-axis GRBL control panel
1pc*1.5 m custom anti-jamming USB data cable
4pcs*4P plug line
2pcs*2P plug line
Features:
1. All-optical coupling circuit, to ensure stability
2. Can be connected to the spindle motor or laser head
3. Relay, MOS switch
4. High power MOS switch field tube
5. The latest GRBL firmware
6. Dual Y-axis support
Parameter:
Size 7.4 * 7.8cm
Power supply 12V, stepper motor shared with laser, Arduino powered by USB
Applicable 2A current within the ordinary 42 stepper motor (hatchback four lines)
Applicable within 10W, 12V5V laser module
Support 48V, 400W spindle (using onboard relay)
Compatible control software: micro-carving steward, micro-car fast map, GRBL Controller, CNC USB, CNCC, BenBox, micro-master
Compatible design software: AutoCAD, CorelDraw, Artcam, Inskcape
Three-axis control software: 3D real-time preview, simple operation, support relief, flat carving cutting, laser carving and so on.
