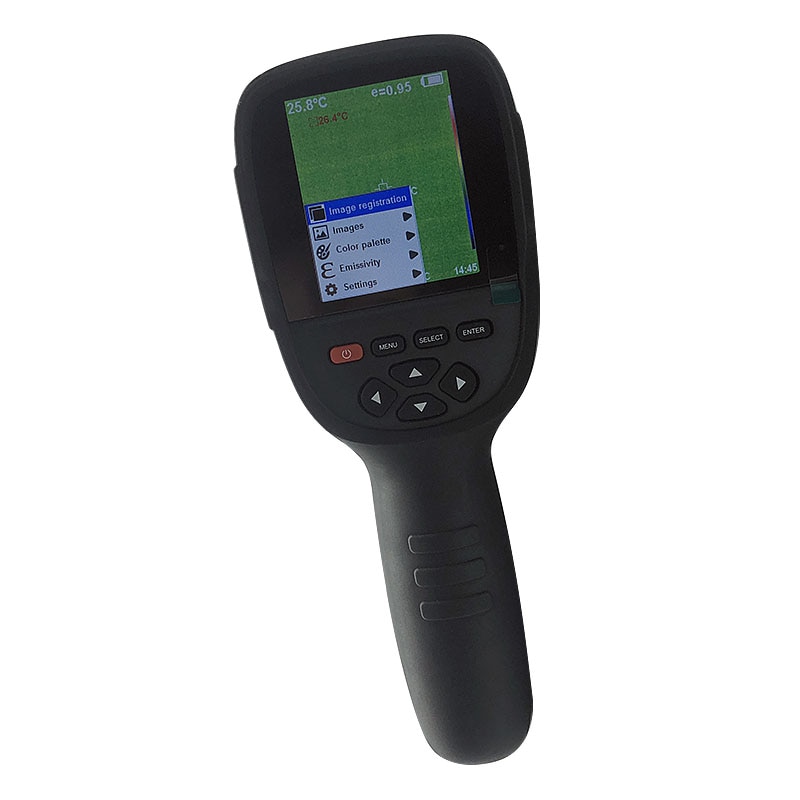

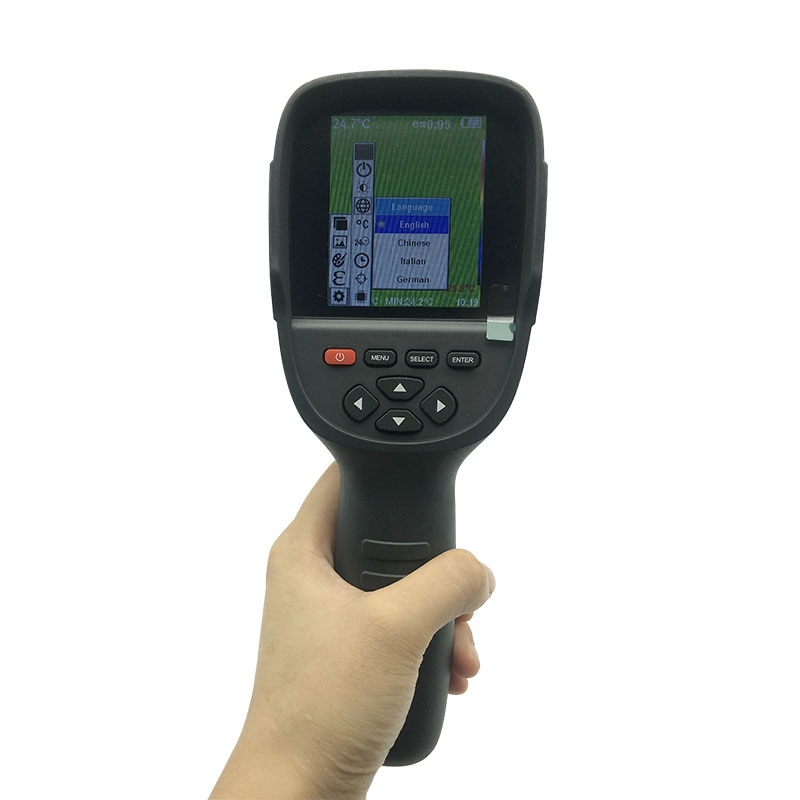

HT-18 Handheld IR Digital Thermal Imager Detector Camera Infrared Temperature Heat with Storage HT-02 HT-02D HT-175

Description

Brand Name: Hti
Theory: Infrared Thermometer
Certification: CE,FCC,RoHS
Origin: Mainland China
Model Number: HT-18/HT-175/HT-02/HT-02D
Max Measuring Temperature: 120°C & Above
Display Type: DIGITAL
Usage: Industrial
Power Type: Charger
Style: Handheld
Display Size: 2.0 – 3.9 Inches
HT-18/HT-175 Power Type: Built-in chargeable 1800 battery
HT-02/HT-02D Power Type: AA Batteres

Lightning Delivery in Stock HT-02D Professional Handheld Thermal Imaging Camera Portable Infrared Imaging Device HT-02

What is the Details of ourHandheld Thermal Imaging Camera HT-02D?
100% brand new and high quality.

FAQ:

Q:What’s the difference between HT-02 and HT-02D?

A: They just enjoy different resolution,HT-02 comes with 60*60,but HT-02D just comes with 32*32,other functions are the same.as well as the model,thanks.

Q: There was a problem with the device. I insert 4re charged batteries, but when turned on the device writes a low level of charge and turns off. I tried both batteries and batteries. batteries recharged, but still writes “low charge” and turns off.

Handheld thermal imaging camera is widely used in archaeological, transport, agriculture and so on. This infrared thermal imager combines the functions of surface temperature and real-time thermal imaging.

Features:

Infrared thermal imager that can blend the visible and infrared images.
Resolution of infrared image/visible image: 3600 pixels/0.3 mega pixels.
This infrared imaging device is professional, precision and efficient.
For car engine overhaul, transformer room line maintenance, air conditioner repair, etc.
Our infrared thermal imager can turn thermal image into visional image, quickly find out the problem area.

Specifications:

Display	2.4 inch full viewing angle high-resolution color screen
Resolution:	32 * 32
Total Pixel	1024 pixels
Resolution of visible image:	0.3 mega pixels.
Temperature range	-20℃ to 300℃(-4℉ to 572℉)
Measuring Accuracy	±2% or ±2℃(±4℉)
FOV/Shortest Focal Length	20× 20/0.5m
Thermal Sensitivity:	0.5℃
Wavelength Range:	8-14μm
Emissivity	0.1-1.0 Adjustable
Image Frequency	6HZ
Focus Mode	Fixed
Palette	Iron red,rainbow,rainbow high contrast,gray scale(white glow) and gray scale(black glow)
Vision Option	5 kinds of full infrared to the full visual, mixing visible and infrared.
Image Storage	SD card(4G)
File Format	bmp
Set Control:	Unit Adjustment/Language/Date Time Format/automatic shut down
Battery Type	4 * 1.5V AA battery (Not Included)
Battery Life	6 Hours
Auto Power-off Time	12 Minutes
Authentication	CE, RoHS
Operating Temperature	-5℃ to 40℃ (23℉ to 104℉)
Storage Temperature	-20℃ to 50℃ (-4℉ to 122℉)
Relative Humidity	10%RH to 80%RH
Item Size	21.2 * 9 * 6.2cm / 8.3 * 3.5 * 2.4in
Item Weight	231.2g / 8.2oz
Package Size	27 * 19 * 11cm / 10.6 * 7.5 * 4.3in
Package Weight	927g / 32.7oz

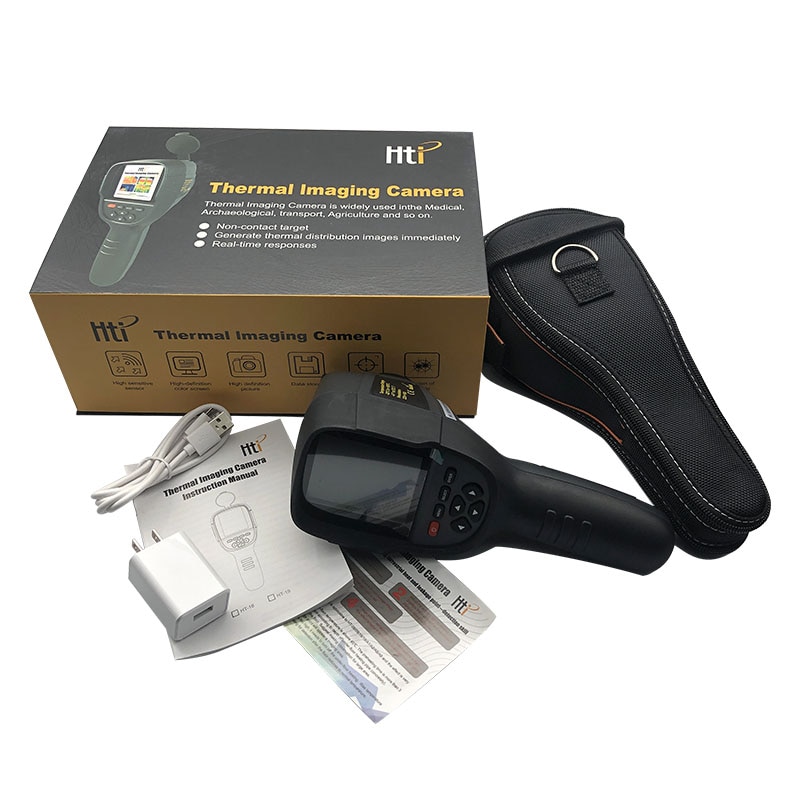

Package Lists	1 * Thermal Infrared Imager 1 * SD Card(4G) 1 * User Manual 1 * Drop Resistance Rope 1 * Protection bag

HT-18 Handheld IR Digital Thermal Imager Detector Camera Infrared

Temperature Heat with storage match Seek/FLIR Thermal

3.2” Infrared Temperature Heat IR Digital Thermal Imager Detector Camera with storage -20~300 Degree 220×160 Resolution

Shining Points:

–3.2” full color screen, allows for detailed showing of infrared generated images;

–220×160 resolution and 0.3 million pixel visible image resolution, high definition of images;

—20~300°/-4°~572° temperature measurement range, 2.5° accuracy for better operation;

–5 kinds of palette for choice: rainbow, iron red, cold color, black & white and white & black;

–automatic setting: 5 mintues/20 minutes/ not power off automatically;

–built-in 4GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking;

–wide application fire-fighting, archaeology, traffic, farming, electronic manufacture and other fields;

–seperate button for specific function, which is quite easy for you to turn it on or off, delete or check pictures;

–mini and portable for 90×105×223mm size and 289g weight, attached pouch allows for more convenient carrying;

–ergonomic handle, which can be used and held comfortably;

Specification:

Display screen: 3.2” full-color screen

Infrared image resolution: 220×160

Visible image resolution: 0.3 million pixel

Thermal sensitivity: 0.07°

Temperature measurement range: -20~300°(-4°~572°)

Measurement precision: ±2.5° or ±2.5%

Wavelength coverage: 8-14um

Field angle/shortest focus length: 27°×35°/0.5m

Emissivity: Adjustable from 0.1 to 10.0

Focus mode: Fixed

Image capture frequency: 8Hz

View option: full infrared and full vision Visible image with 25% step length

Storage medium: built-in 4G

Image format: JPG

Power supply: built-in chargeable 18650 batteries

USB: Micro USB2.0

Automatic power-off time: 5 mintues/20 minutes/ not power off automatically

Size: 90×105×223mm

Weight: 289g

Work temperature: 0° to 50°

Storage temperature: -40° to 80°

Humidity: <85RH

Package Includes:

1 x infrared temperature detector

1 x cable

1 x user manual

1 x carry pouch

1 x carry pouch strap

1 x cardboard package box

HT-175 Digital Infrared Thermal Imaging Camera Hand-held Thermal Imager Resolution 32X32 Infrared Thermometer -20 to 300 Degree

Features:

1. Portable design and simple operation.

2. Could find the problem area quickly.

3. With display screen. Obtains different images and converts it into standard video format and display.

4. Have 2 suitable selection of color palette displays the details of the target objective better.

5. An ideal selection for electrician and maintenance personnel and technicians

Description:

1. Form high resolution image.

2. Available when Batteries are installed

3. Measurement mode: Infrared focal plane temperature measurement

Specifications:

Display screen: 2.0 color screen

Infrared image resolution: 32×32

Pixel: 1024

Measurement range: -20～300℃

Measurement precision: ±2%/±2℃

Wavelength coverage: 8-11.5um

Focusing mode: fixed

Color palette: iron oxide red and white glow

Power supply: built-in chargeable 18650 batteries

Working temperature: 0-50℃

Storage temperature: -20℃～50℃

Size: 165*58*64mm

Package Size: 191*97*76mm

Package included:

1 x Infrared Thermal Camera

1 x Instruction Manual

Note:

Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

There may be slight measurement errors, please understand. Thank you!
