Description
HPL-200P wireless ppfd meter spectrometer
HPL-200 Wireless Lux Light meter,adopt Innovative compact Design,I/V current-voltage conversion and signal processing, data acquisition, preservation and transmission are integrated into it,Miniaturization and Intelligence.

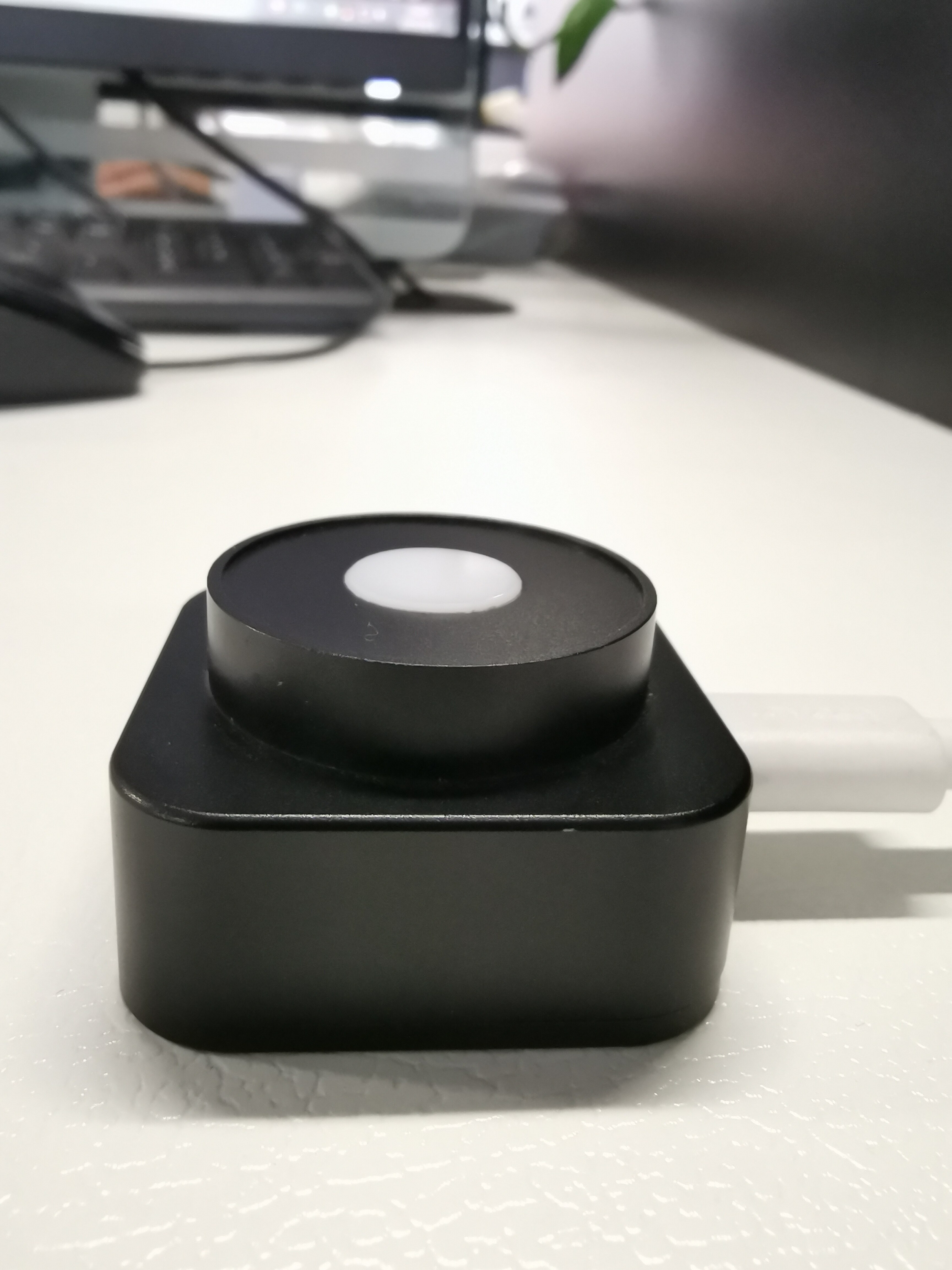

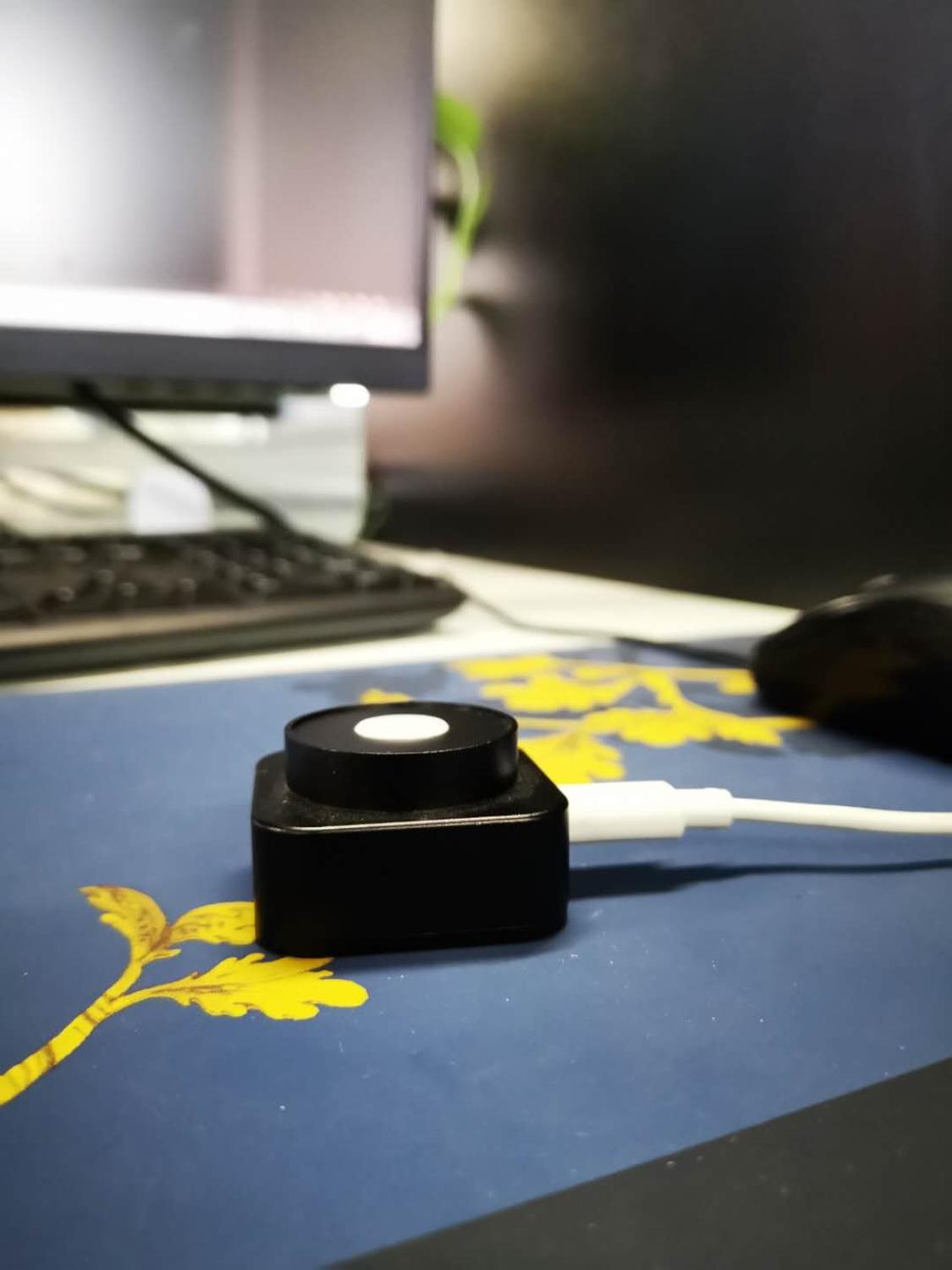

Products Show
Measurement Parameters
| Model | Name | Wavelength Range |
Unit |
Measurement Range | Accuracy | Remark |
| HPL200 | Lux meter | 380-780nm | lx | 0.1-200000 | 5% | Bluetooth,USB |
| HPL200F | Flicker Luxmeter | 380-780nm | lx | 0.1-200000 | 5% | Flicker |
| HPL200PPFD | PPFD meter | 400-700nm | umol/m2/s | 0.01-4000 | 5% | PPFD,umol/m2/s |
|
HPL200PAR |
PAR meter | 400-700nm | uW/cm2 | 0.1-200000 | 5% | PAR uW/cm2 |
| HPL200UV1-254 | UV meter | 230-280nm | uW/cm2 | 0.1-200000 | 8% | 254nm,uW/cm2 |
| HPL200UV2-297 | UV meter | 280-320nm | uW/cm2 | 0.1-200000 | 8% | 365nm,uW/cm2 |
| HPL200UV3-365 | UV meter | 320-400nm | uW/cm2 | 0.1-200000 | 8% | 365nm,uW/cm2 |
Technical
| Resolution | <10 | 0.01 |
Cosine Correction Accuracy |
<4% |
| >10, <10000 | 0.1 | V(λ)error | <6% | |
| >10000 | 1 | Shift error | <±1% | |
| Operate Tem | 0~35°C |
Probe window |
Ø 12mm | |
| Storage Tem | -10~40°C | Size | 38×38 x 22mm | |
| Power supply | Li-On rechargeable | Weight | 50g | |
