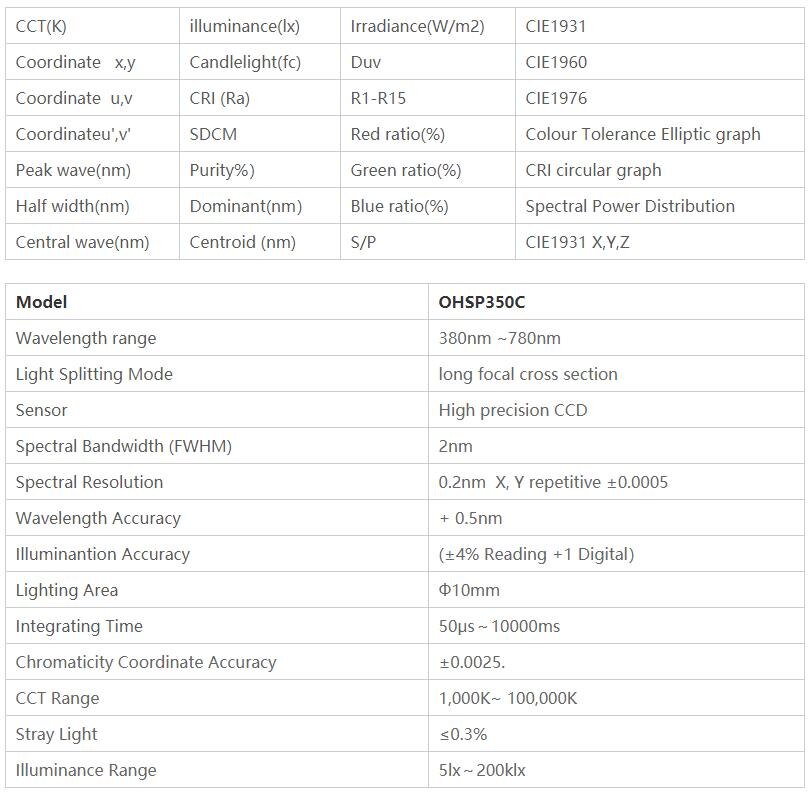

OHSP350C Test Parameters

1. CCT Tc (K) and Blackbody deviation Duv
2. light illumination E (LX), candlelight E (Fc) Spectral irradiance Ee (W/m2)
3. chromaticity coordinates (x, y), (U, V), (U ‘, V’)
4. relative spectral power distribution P (lambda)
5. color index Ra, Ri (i=1 ~ 15)
6. color tolerance SDCM
7. Dominant wavelengths, peak wavelengths
8. Visual ratio of light and shade S/P
9. color purity, red ratio, green ratio, blue ratio, CIE1931 three basic color stimulus value X, Y, Z
10. more functional parameters can be customized

characteristic:

1. Long focal length optical system, 2 nm optical resolution
2. High performance linear CCD sensor 3648 points;
3. Automatic zero and zero compensation technology, boot no manual zero;
4. Electronic shutter technology, the minimum integration time 50 us, measurable stronger light signal;
5. Quick switch machine, a key test, the use of more convenient

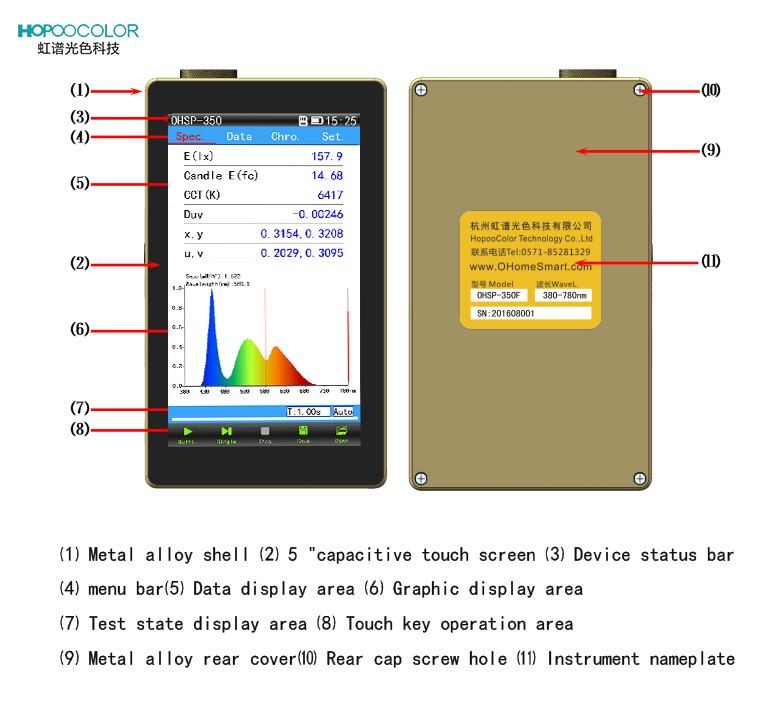

6. 5 inch high-definition IPS screen, capacitive touch screen, display more content;
7. Bring 4000mAh large-capacity lithium battery, 24 hour long test time;
Illumination and radiation measurement
8. CCD with long focal length and wide spectrum, intelligent and portable
9. Automatic zero calibration
10. Low power consumption large capacity battery
11. Wide range of wavelengthscan test various types of light sources
12. SD cardcan save a variety of formats Excel data analysis
13. Be Suitable for different site test
14. A millisecond key switchingmakes it more convenient forusing
