Description

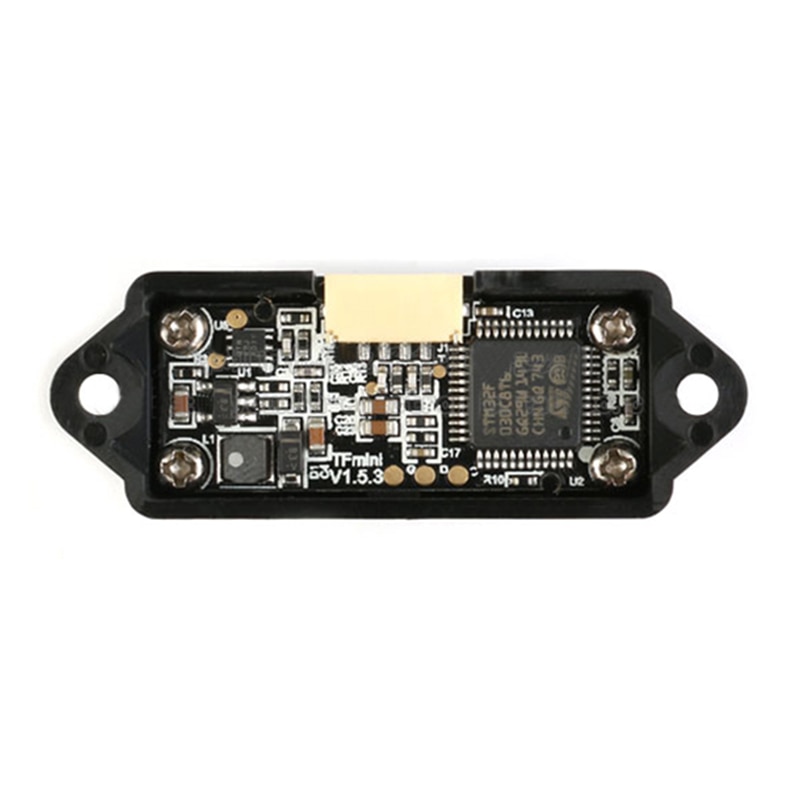

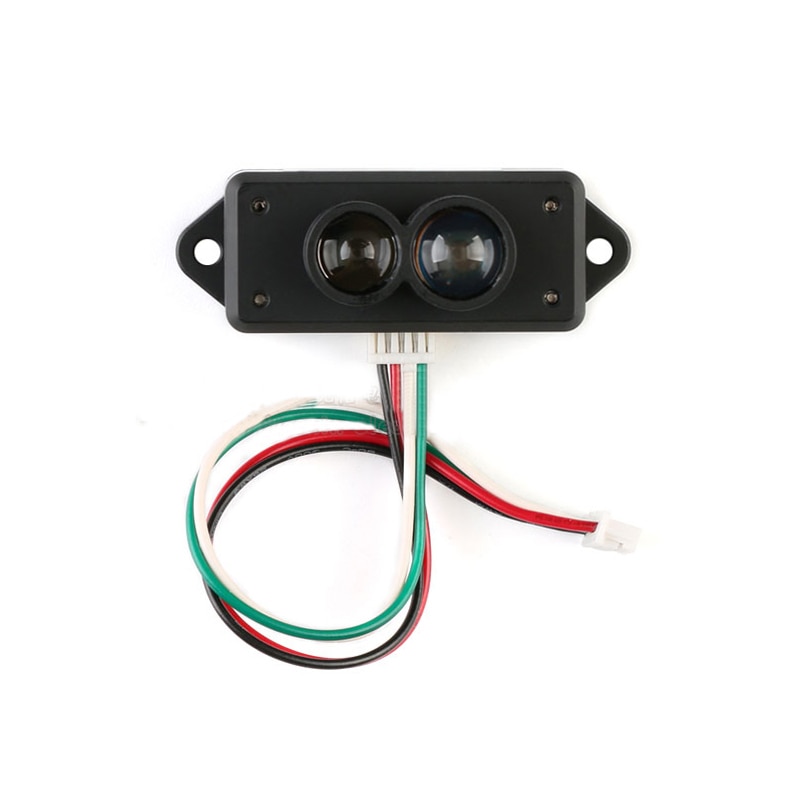

High-precision One-way Laser Range Finder ToF Sensor Module 0.3-12m Serial Port for Arduino Pixhawk Drone
Overview:
TF Mini LiDAR is a one-way laser range finder based on time-of-flight technology (ToF). It consists of special optical and electronic equipment, and integrates an adaptation algorithm for various indoor and outdoor application environments. The radar is small in size but excellent in ranging performance. It can be used as a distance measuring tool to detect the distance of obstacles in front; it can also be used as the eye of the robot to provide distance information for the robot’s safe obstacle avoidance and route selection; in various machine control scenarios, support system automation; because of its volume Small, lightweight and low power consumption, it is also suitable for drone height and terrain tracking.
TF Mini detection range up to 12m, support 100Hz sampling resolution, within 6m accuracy within 4cm; 6~12 meters, accuracy within 6cm, FOV field of view 2.3°, strong anti-interference, can be used under outdoor glare Work, the overall weight is as light as 4.7g.
TF Mini LiDAR uses UART (TTL) communication interface, can be powered by standard 5V, average power consumption of 0.6W, compatible with various controllers.
Note:
Products that detect high-reflectivity objects, such as mirrors and smooth tiles, run the risk of failure.
There is a risk of failure when there is a transparent object, such as glass or water, between the product and the target being measured.
Do not touch the board directly with your hands. Wear an electrostatic wrist strap or anti-static gloves if required.
Application:
Machine control and safety sensors
Robot distance detection
Drone height and terrain follow
Characteristic:
One-way ranging laser radar
Detection distance up to 12 m
Excellent ranging performance and high precision
Refresh rate up to 100HZ Responsive
Small size, low power consumption
Specification:
Voltage range: 4.5V~6V
Communication interface: UART (TTL)
Working range: 0.3m~12m (@ indoor)
10% reflectance range: less than 5m
Average power consumption: 0.6W
Receiving angle: 2.3°
Zui small resolution: 5mm
Refresh rate: 100Hz
Ranging accuracy: 1% (<6m), 2% (6~12m)
Distance measuring unit: mm
Band: 850nm
Size: 42mm × 15mm × 16mm
Working temperature: 0°C~60°C
Storage temperature: -20 ° C ~ 75 ° C
Anti-ambient light: 70Klux
TF Mini LiDAR(12m) * 1
Wiring A * 1
