Description
Specifications:

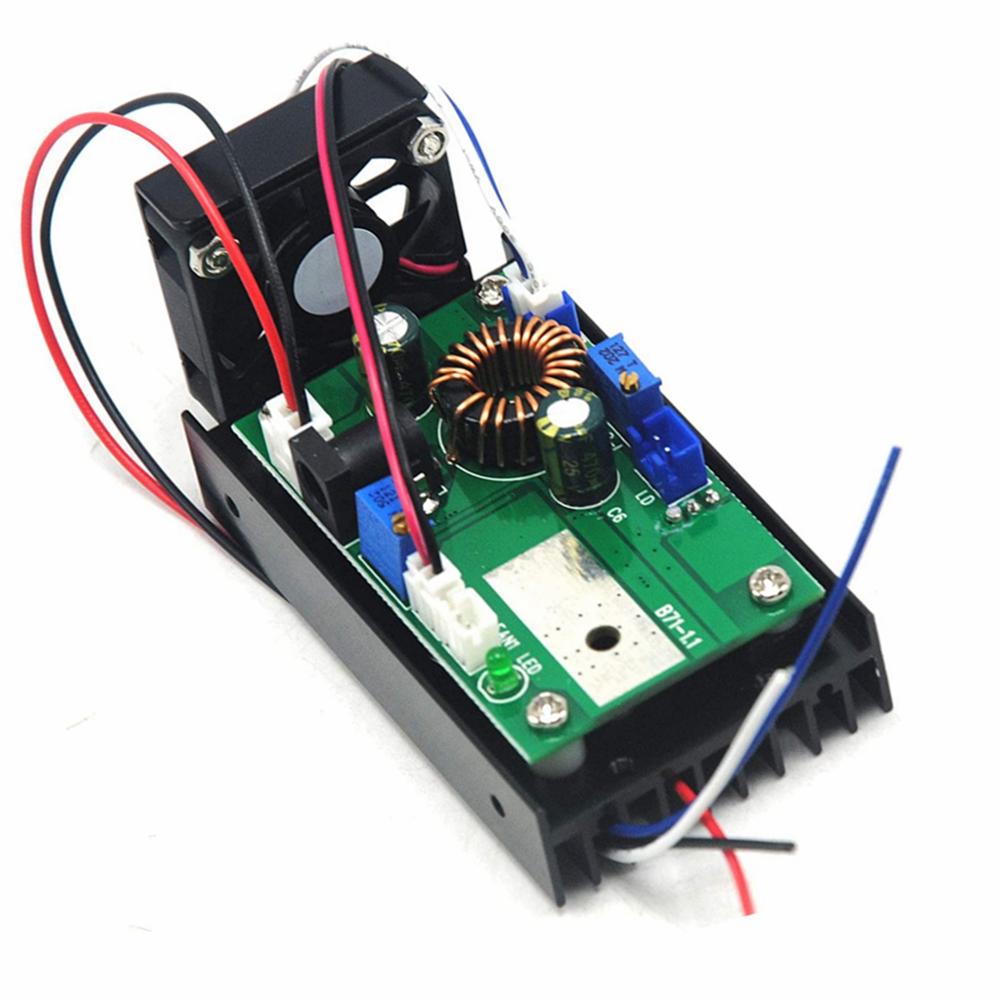

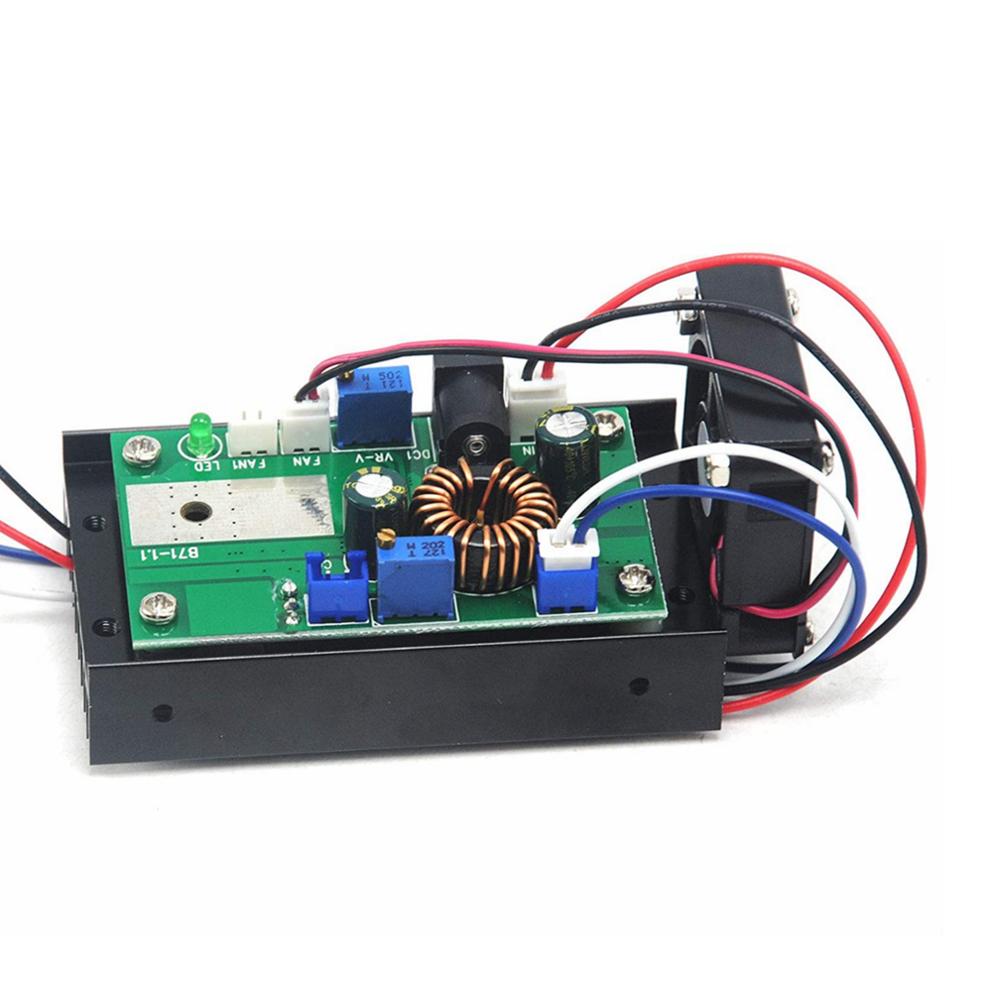

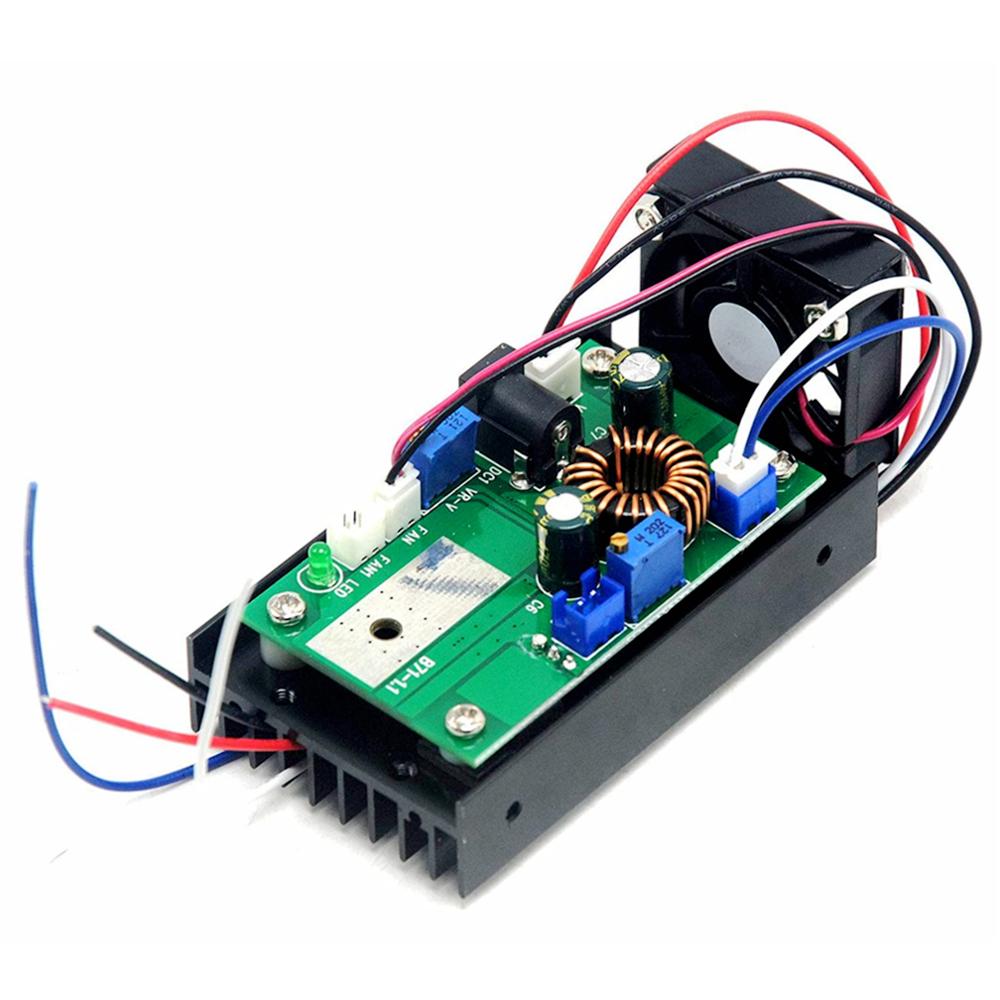

Product model: Blu-ray drive board laser diode drive
Suitable for wavelength (nm): 808 980nm
Input voltage (DC) V: 7.5-12v
Output Current (mA): <1800
Output voltage (V): 4.5-5.5
Product size (mm): 82x46x32 (excluding fans)
Connection mode: red positive black negative (TTL blue + white -)
Working mode: constant power
Note:
Use only blue high power laser tube
This board uses Taiwan’s high efficiency IC, conversion efficiency >90% low heat
Package:

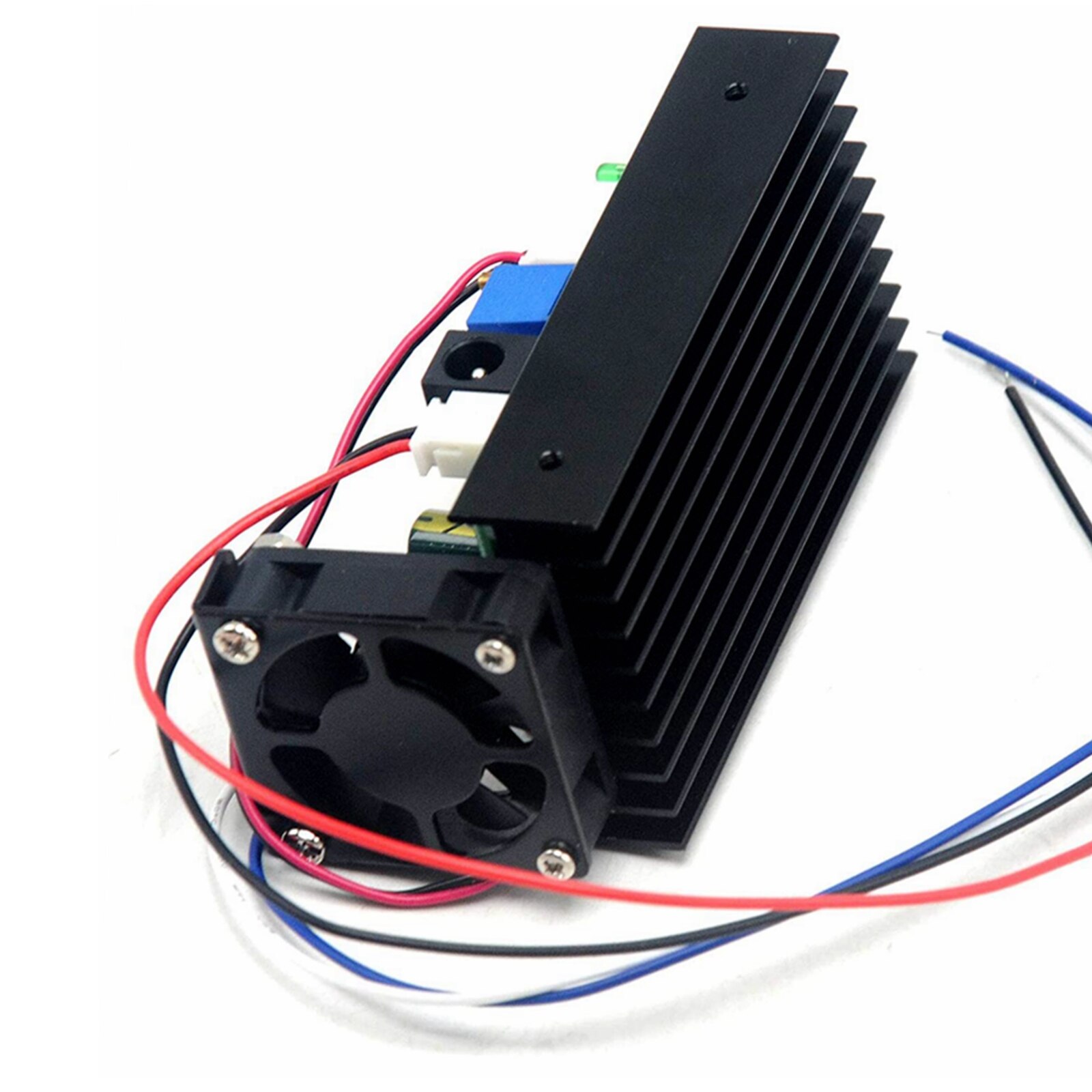

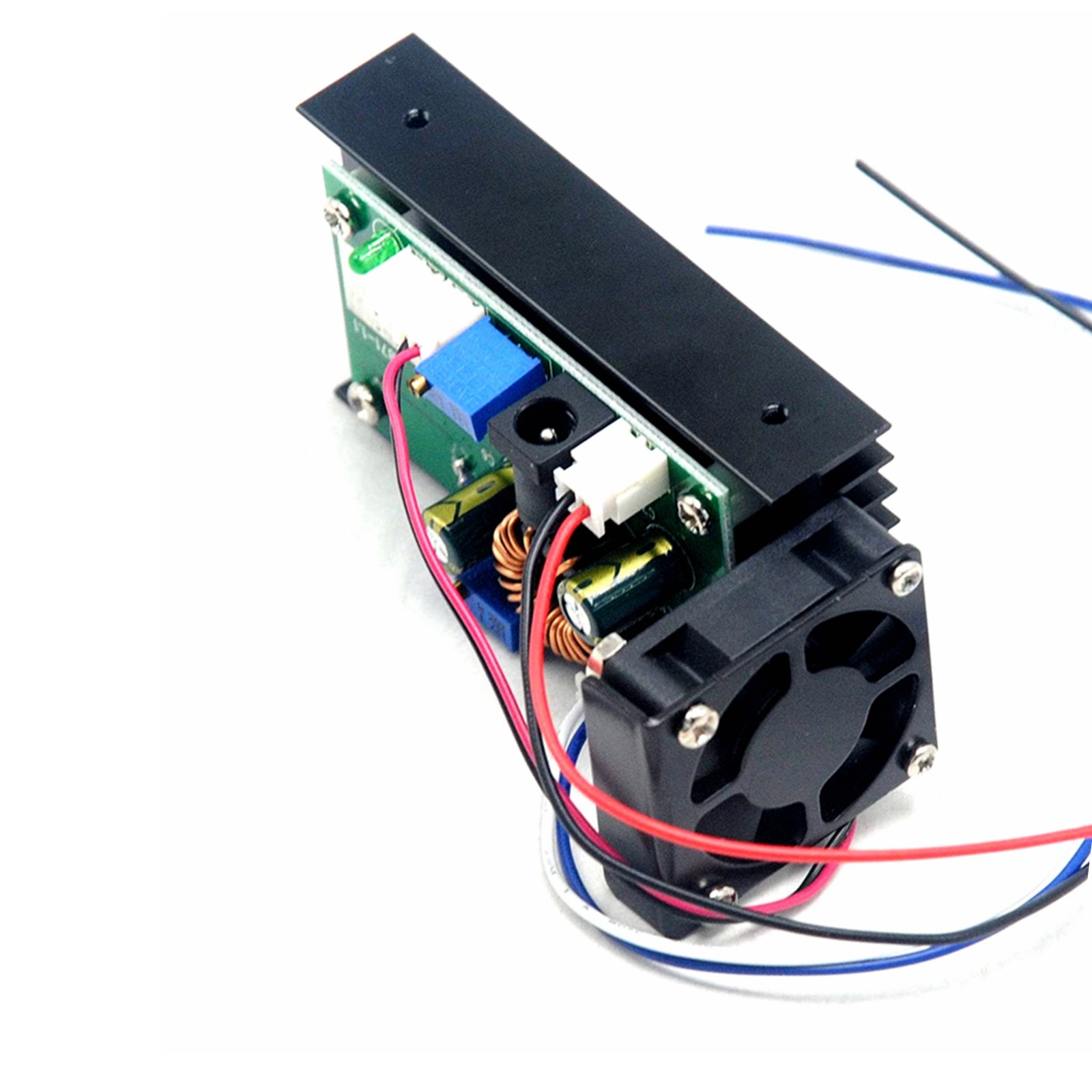

1pc 1 drive board with fan
