Description
Description:
Output Power 800mw
Wavelength 445nm-450nm
Working Voltage 6.7-7.5v
Working Current <900mA
Working Temperature -10 degree C~40 degree C
Laser Shape Dot
Focusable Yes
Material and Color all metal
Duty Cycle 45 seconds on, 15 seconds off
Dimensions φ12x 35mm (Not including circuit board)
Heatsink dimension: φ18x 18mm
Details:
This 445nm-450nm laser module with driver is an industrial electronic component and used for industrial testament, Lab etc. This is a high power laser module with driver for 6.7V-7.5v voltage. Please be careful when you doing some test on it if there is no temperature control device. The laser module is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing
Package:

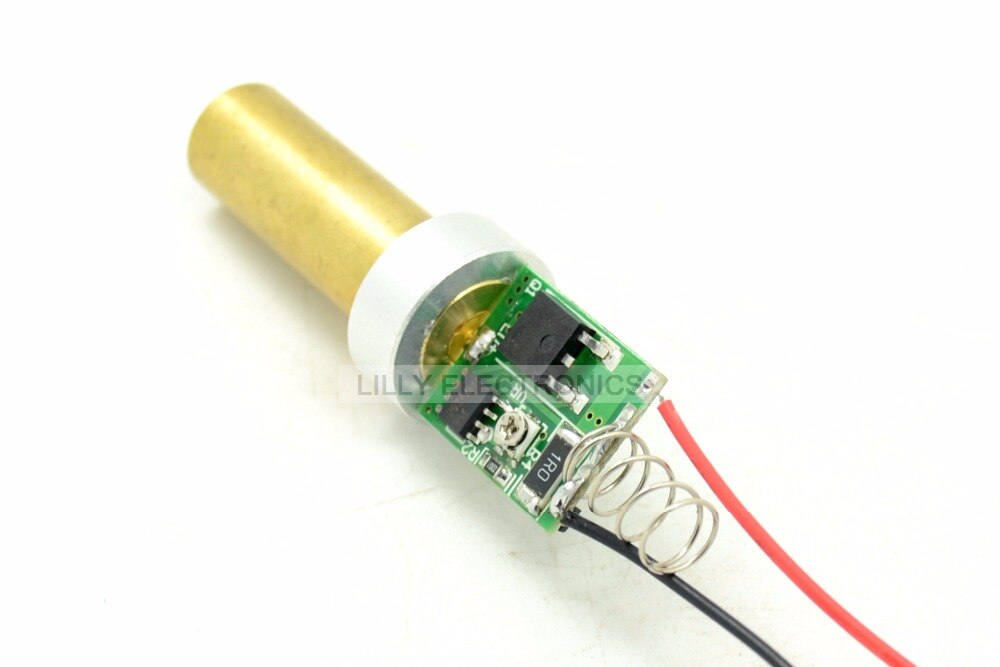

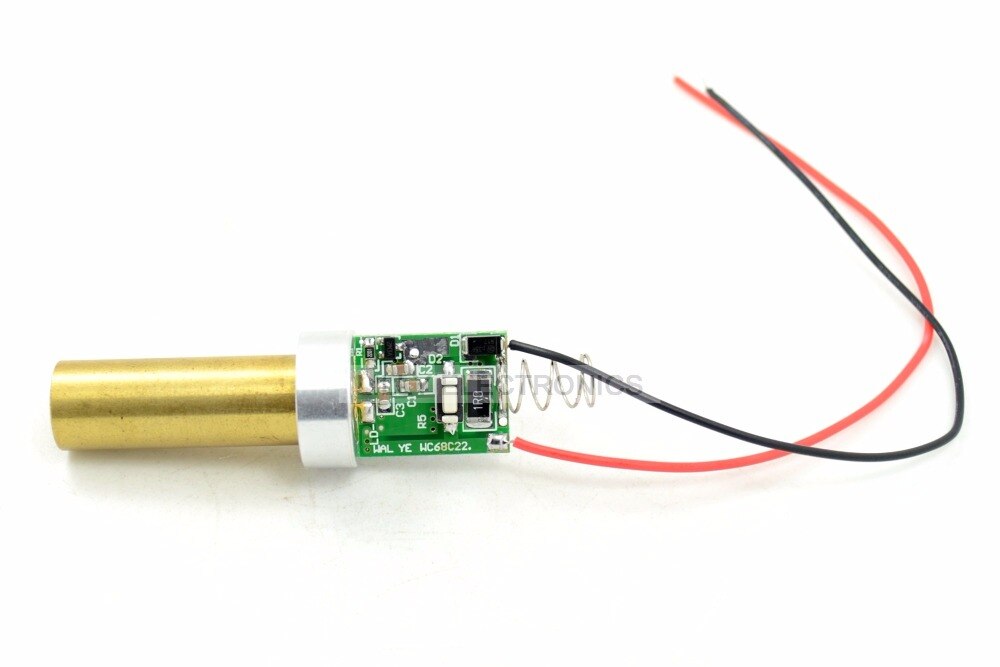

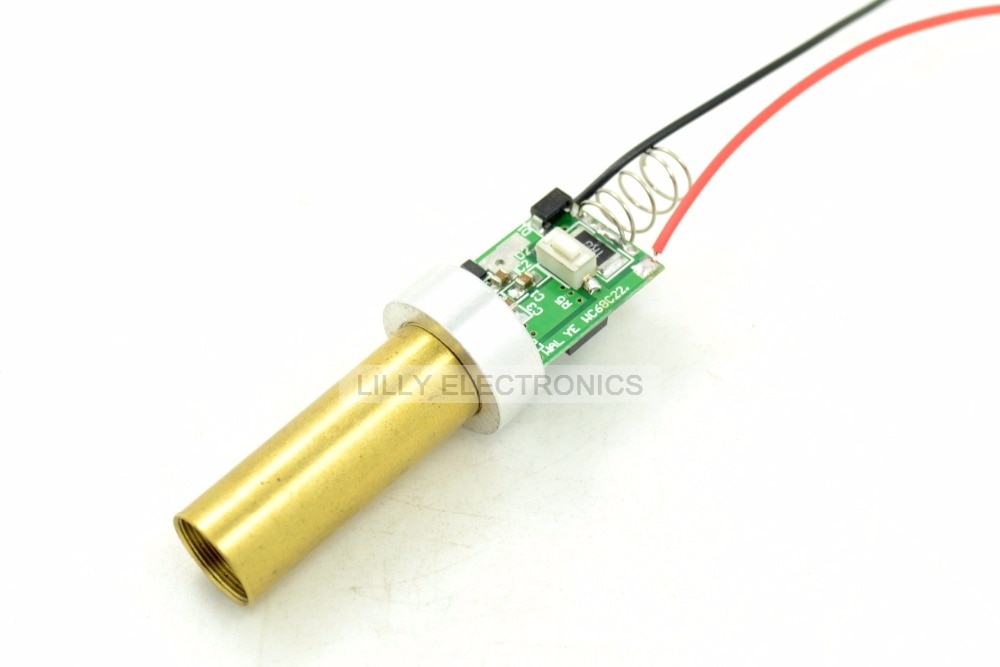

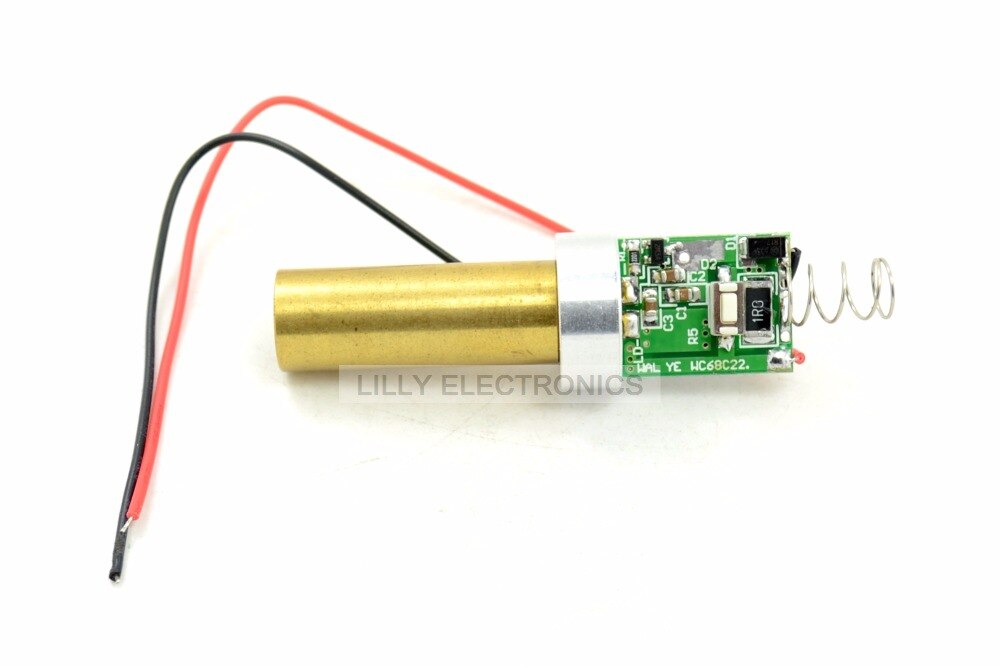

1 x 445nm 450nm 800mw 0.8w Blue Laser Dot Diode Module with Heatsink
