Features
1. DC 12V input voltage
2. Bigger multilayer glass lens
3. Easy to adjust the focus
4. Support TTL modulation
5. The minimum focus is less than 0.2mm
6. Focus range from 15mm to 50mm

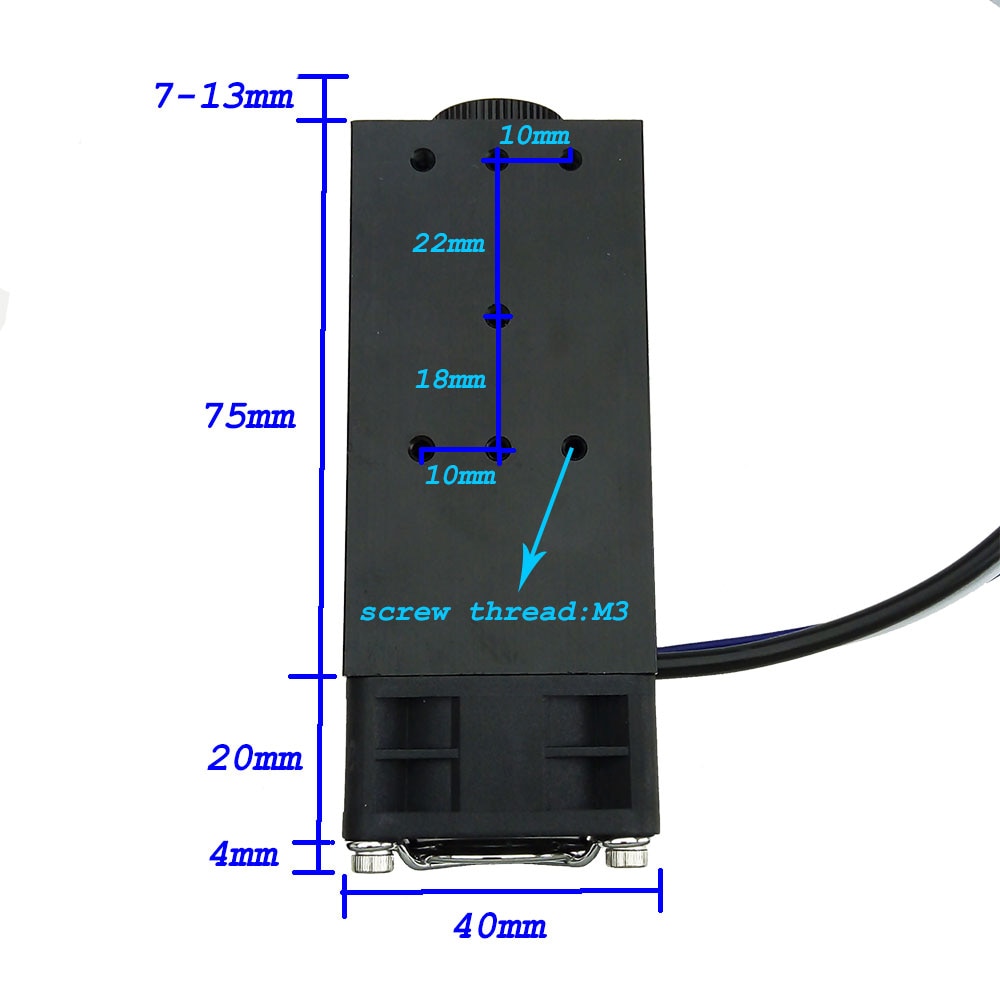

7. With M3 screw holes, easy to install
Specifications
Wavelength: 445nm-450nm
Power: Pulse 10W, Average 5-6W
Focusable: Yes
Beam diameter at exit: ≤ 5mm
Working current: < 4A

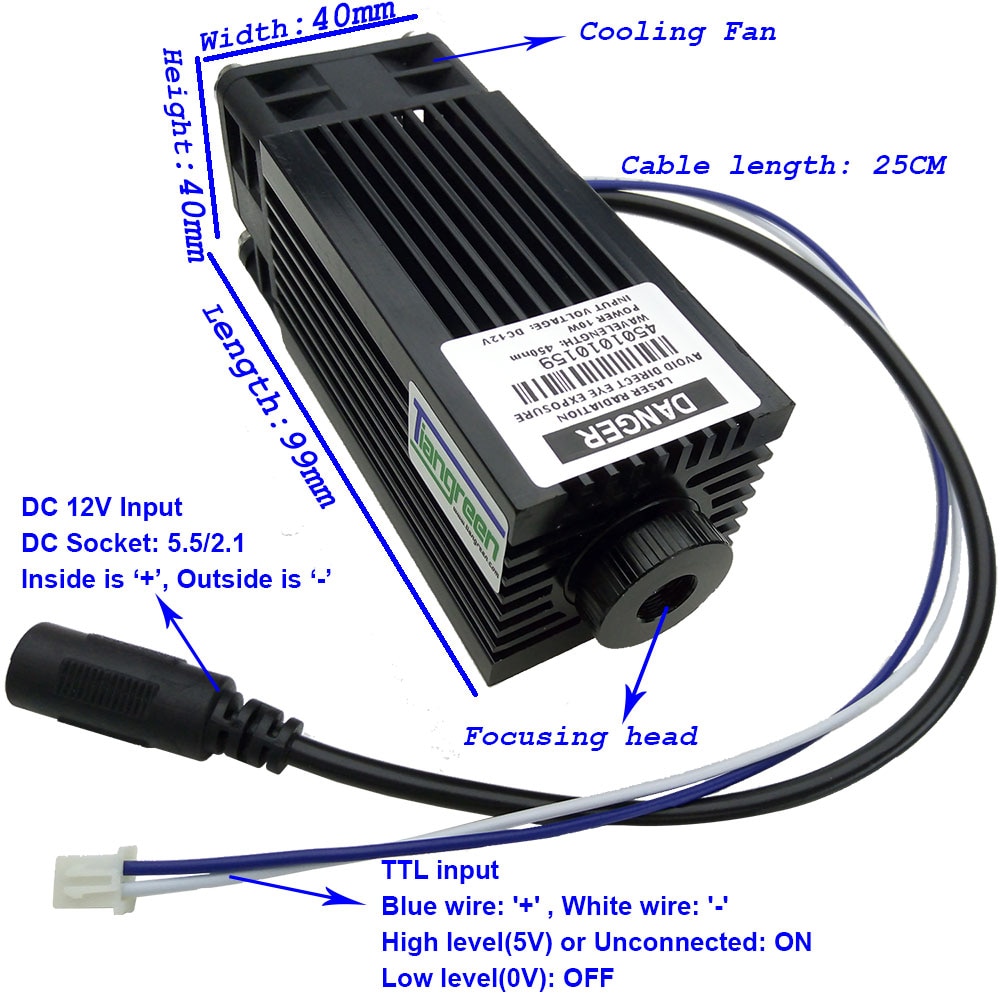

Working Voltage: DC 12V
Operating temperature: -15 degrees to 45 degrees
Focus diameter: ≤Φ0.12 (mm)
Operation mode: TTL modulation
TTL Frequency: 0-20KHz

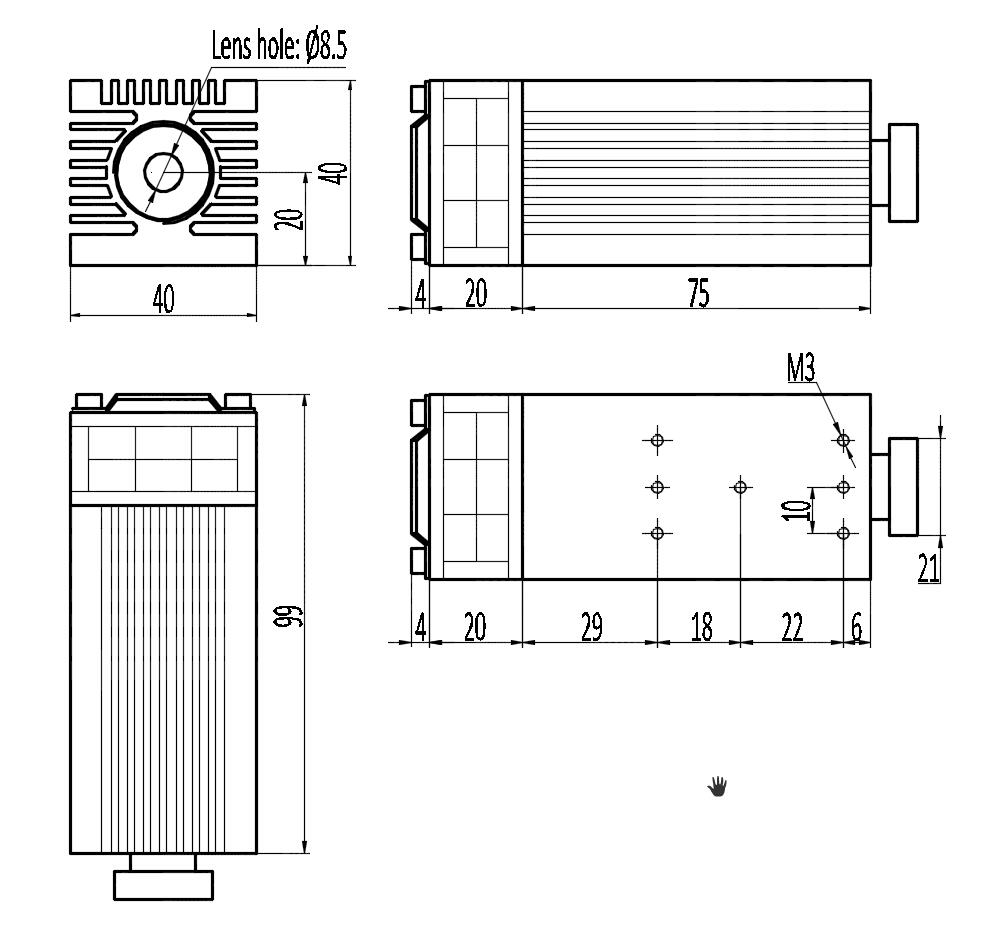

Module Size: 99mm+(7-13mm Lens) x 40mm x 40mm (LxWxH)
Material: hard aluminum + brass
Finish: Black anodized + sandblasting

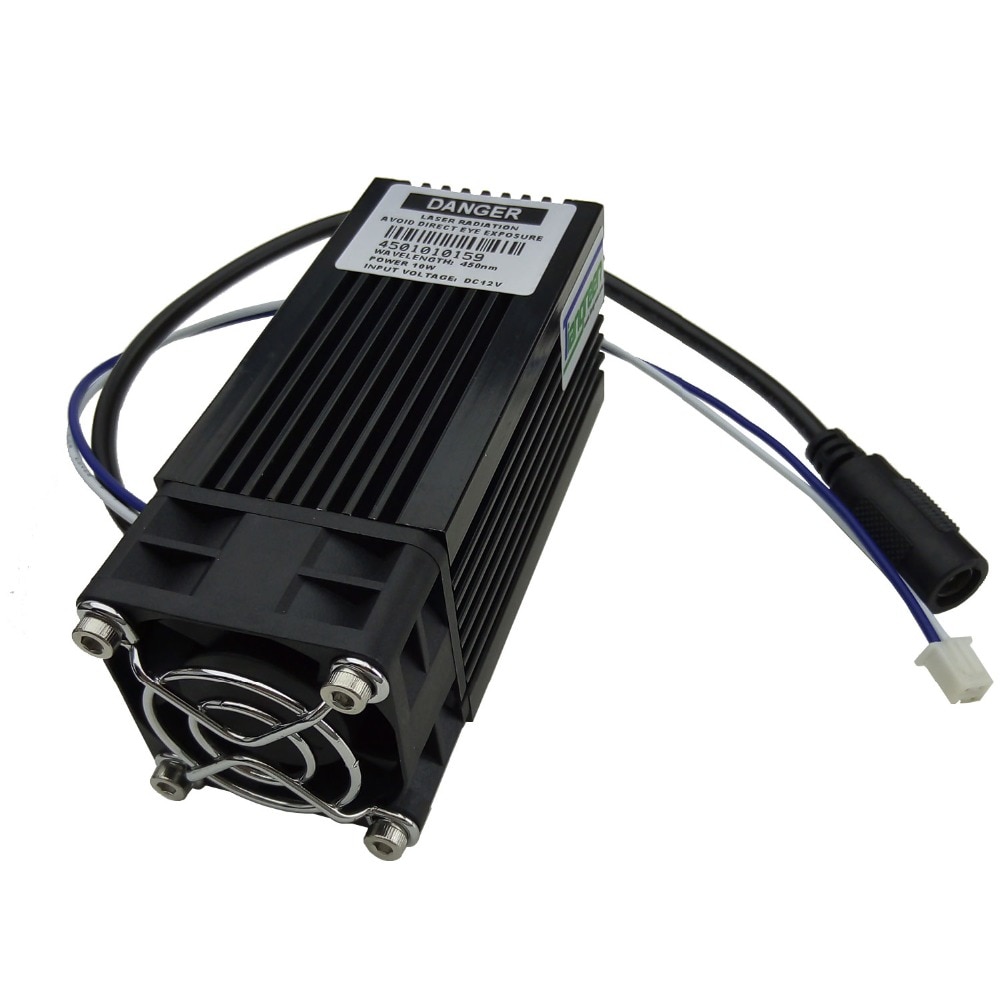

Cooling method: Fan cooling
Can be carved materials: balsa wood, plywood, stainless steel, iron, aluminum, ceramics, stone, wood, bamboo, leather, plastics, etc.
the effect depend on the material color, reflectivity, transparency, density, thermal conductivity, etc.
different materials have different effects. and reflected light reflected from highly reflective materials may cause damage to the module.
for metal, only a very thin line can be produced, the darker the color, the better effect, enhancing the effect may require multiple operations.
Attentions:
1. Voltage Input: DC 12V.
2. Please make sure input voltage polarity is correct and does not exceed 12V, and TTL input signal is correct, otherwise it will burn laser module.
3. Prevent high voltage electrostatic damage.
4. It is recommended to install on a metal plate with good heat dissipation.
5. The light beam can not shoot to anyone or any flammable, otherwise It can result in injury or fire!!!
6. A high proportion reflected beam reflecting to the module itself may cause damage.
Package include: 1 X laser module
