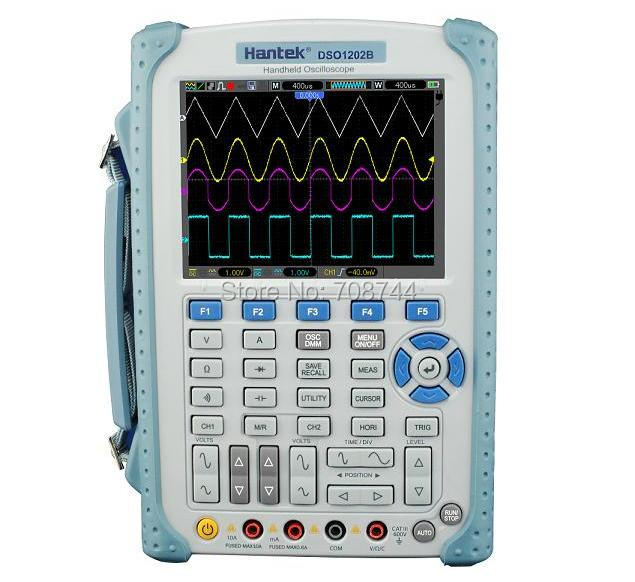

Model

DSO1202B

DSO1102B

DSO1062B

Acquisition

Sample Modes

Real-Time Sample: 1GS/s;

Equivalent Sample: 25GS/s

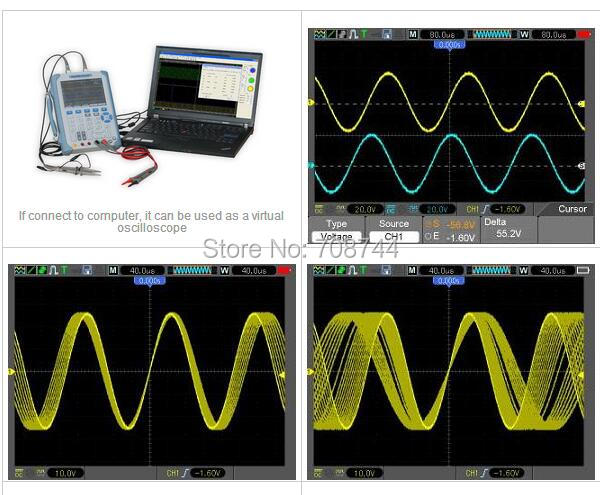

Acquisition Modes

Normal

Normal data only

Peak Detect

High-frequency and randon glith capture

Average

Wavefom Average, selectable 4,8,16,32,64,128

Inputs

Inputs Coupling

AC, DC, GND

Inpits Impendance

1MΩ±2% ‖20pF±3pF

Probe Attenuation

1X, 10X

Supported Probe Attenuation Factor

1X, 10X, 100X, 1000X

Maximum Input Voltage

CAT I and CAT II: 300VRMS (10×), Installation Category;

CAT III: 150VRMS (1×);

Installation Category II: derate at 20dB/decade above 100kHz to 13V peak AC at 3MHz* and above. For non-sinusoidal waveforms, peak value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur.

Horizontal

Sample Rate Range

500MS/s–1GS/s

Waveform Interpolation

(sin x)/x

Record Length

1M

SEC/DIV Range

2ns/div~2000s/div,

4ns/div~2000s/div,

Sample Rate and

Delay Time Accuracy

500ps（at over any ≥1ms time interval)

Position Range

2ns/div to8ns/div;

(-8div×s/div) to 20ms;

4ns/div to 8ns/div; (-8div x s/div) to 40ms;

20ns/div to 80μs /div;(-8div×s/div）to 40ms;

200μs/div to 40s/div; (-8div×s/div）to 400s;

Delta Time Measurement Accuracy

(Full Bandwidth)

Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns);

>16 averages:± (1 sample interval + 100ppm × reading + 0.4ns);

Sample interval = s/div ÷ 200

Vertical

Vertical Resolution

8-bit resolution, all channel sampled simultaneously

Offset Range

2mV/div to 20mV/div, ±400mV;

50mV/div to 200mV/div, ±2V;

500mV/div to 2V/div, ±40V;

5V/div, ±50V

Bandwidth

200MHz

100MHz

60MHz

Rise Time at BNC( typical)

1.8ns

3.5ns

5.8ns

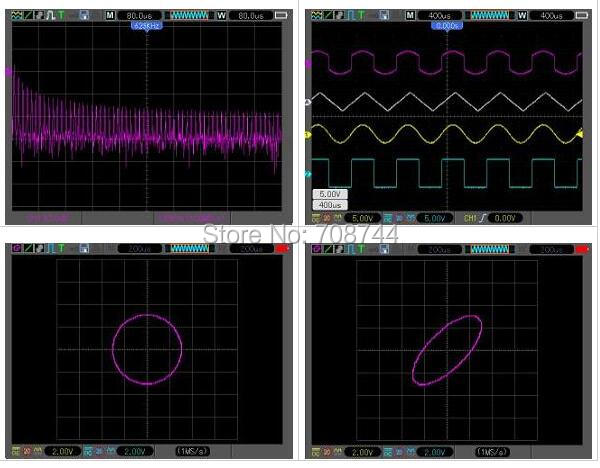

Math

+, -, *, /, FFT

FFT

Windows： Hanning、Flatop、Rectamgular、Bartlett、Blackman; 1024 sample point

Bandwidth Limit

20MHz

Low Frequency Response (-3db)

≤10Hz at BNC

DC Gain Accuracy

±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;

±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div

DC Measurement Accuracy,

Average Acquisition Mode

When vertical displacement is zero, and N ≥16:± (3% × reading + 0.1div + 1mV) only 10mV/div or greater is selected;

When vertical displacement is not zero, and N≥16: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]; Add 2mV for settings from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 5V/div

Volts Measurement Repeatability,

Average Acquisition Mode

Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions

Trigger

Trigger Types

Edge, Video, Pulse, Slope, Over time, Alternative

Trigger Source

CH1, CH2, AC Line

Trigger Modes

Auto, Normal

Coupling Type

DC, AC, Noise Reject, HF Reject, LF Reject

Trigger Sensitivity

(Edge Trigger Type)

DC(CH1,CH2):

1div from DC to 10MHz; 1.5div from 10MHz to 100MHz; 2div from 100MHz to Full;

AC: Attenuates signals below 10Hz ;

HF Reject: Attenuates signals above 80kHz;

LF Reject: Same as the DC-coupled limits for frequencies above 150kHz; attenuates signals below 150kHz

Trigger Level Range

CH1/CH2: ±8 divisions from center of screen;

Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns

CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen;

Set Level to 50%(typical)

Operates with input signals ≥50Hz

Video Trigger

Video Trigger Type

CH1, CH2: Peak-to-peak amplitude of 2 divisions;

Signal Formats and Field Rates, Video Trigger Type

Supports NTSC, PAL and SECAM broadcast systems for any field or any line

Holdoff Range

100ns ~ 10s

Pulse Width Trigger

Pulse Width Trigger Mode

Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse

Pulse Width Trigger Point

Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level.

Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width.

Less than: The trigger point is the trailing edge.

Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width

Pulse Width Range

20ns ~ 10s

Slope Trigger

Slope Trigger Mode

Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope

Slope Trigger Point

Equal: The oscilloscope triggers when the waveform slope is equal to the set slope.

Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope.

Less than: The oscilloscope triggers when the waveform slope is less than the set slope.

Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope.

Time Range

20ns ~ 10s

Overtime Trigger

Over Time Modee

Rising edge or Falling edge

Time Range

20ns ~ 10s

Alternative Trigger

Trigger on CH1

Internal Trigger: Edge, Pulse Width, Video, Slope

Trigger on CH2

Internal Trigger: Edge, Pulse Width, Video, Slope

Trigger Frequency Counter

Readout Resolution

6 digits

Accuracy (typical)

±30ppm (including all frequency reference errors and ±1 count errors)

Frequency Range

AC coupled, from 4Hz minimum to rated bandwidth

Signal Source

Pulse Width or Edge Trigger modes: all available trigger sources

The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed.

Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time.

Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity.

Video Trigger mode: The Frequency Counter does not work.

Measure

Cursor Measurement

Voltage difference between cursors: △V

Time difference between cursors: △T

Reciprocal of △T in Hertz (1/ΔT)

Auto Measuerment

Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS,

General Features

Display

Display Resolution

640 horizontal by 480 vertical pixels

Display Contrast

Adjustable (16 gears) with the progress bar

Probe Compensator Output

Output Voltage( typical)

About 5Vpp into ≥1MΩ load

Frequency(typical)

1kHz

Power Supply

Supply Voltage

AC Input:100-240VACRMS,0.6A MAX,50Hz~60Hz; DC Output:9V,2A

Power Consumption

<30W

Environmental

Temperature

Operating: 32℉ to 122℉ (0℃ to 50℃);

Nonoperating: -40℉ to 159.8℉ (-40℃ to +71℃)

Cooling Method

Convection

Humidity

+104℉ or below (+40℃ or below): ≤90% relative humidity;

106℉ to 122℉ (+41℃ to 50℃): ≤60% relative humidity

Altitude

Operating: Below 3,000m (10,000 feet);

Nonoperaring: Below 15,000m(50,000 feet)

Mechanical

Size

Length 245mm; Width 163mm; Height 52mm

Weight

2.8KG(with Packing); 1.2KG(without Packing)

DMM Mode

Max. Resolution

6000 Counts

DMM Testing Modes

Voltage, Current, Resistance, Capacitance, Diode & Continuity

Max. Input Voltage

AC:600V, DC: 800V

Max. Input Current

AC: 10A, DC:10A

Input Impedance

10MΩ

DMM TrendPlot

1.2M  Point

Range

Resolution

Accuracy

Resolution

DC Voltage

60.00mV

±1%±3 digit

10uV

600.0mV

100uV

6.000V

1mV

60.00V

10mV

600.0V

100mV

800V

1V

AC Voltage

60.00mV

±1%±3 digit

10uV

600.0mV

100uV

6.000V

1mV

60.00V

10mV

600.0V

100mV

DC Current

60.00mA

±1%±5 digit

10uA

600.0mA

±1.5%±5 digit

100uA

6.000A

1mA

10.00A

10mA

AC Current

60.00mA

±1%±5 digit

10uA

600.0mA

±1.5%±5 digit

100uA

6.000A

1mA

10.00A

10mA

Resistance

600Ω

±1%±3 digit

0.1Ω

6.000KΩ

1Ω

60.00KΩ

10Ω

600.0KΩ

1KΩ

6.000MΩ

10KΩ

60.00MΩ

±1%±5 digit

100KΩ

Capacitance

40.00nF

±2%±5 digit

10pF

400.0nF

100pF

4.000uF

1nF

40.00uF

10nF

400.0uF

100nF

Attention: the smallest capacitance value that can be measured in 5nF

Diode

0V~2.0V

ON-OFF test

<10Ω
