FTTH OPM Optical Power Meter TL-510 Fiber Optical Cable Tester SC FC ST Connector -70dBm~+10dBm wholesale
Introduction:

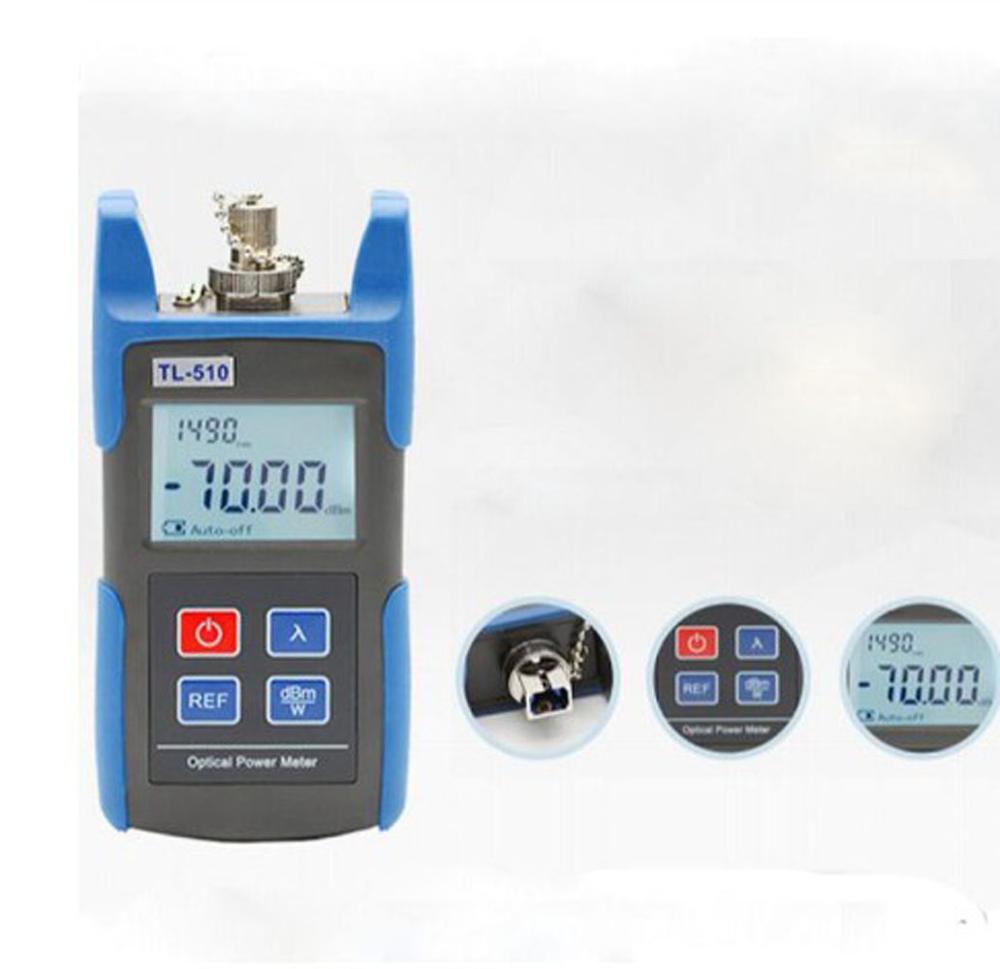

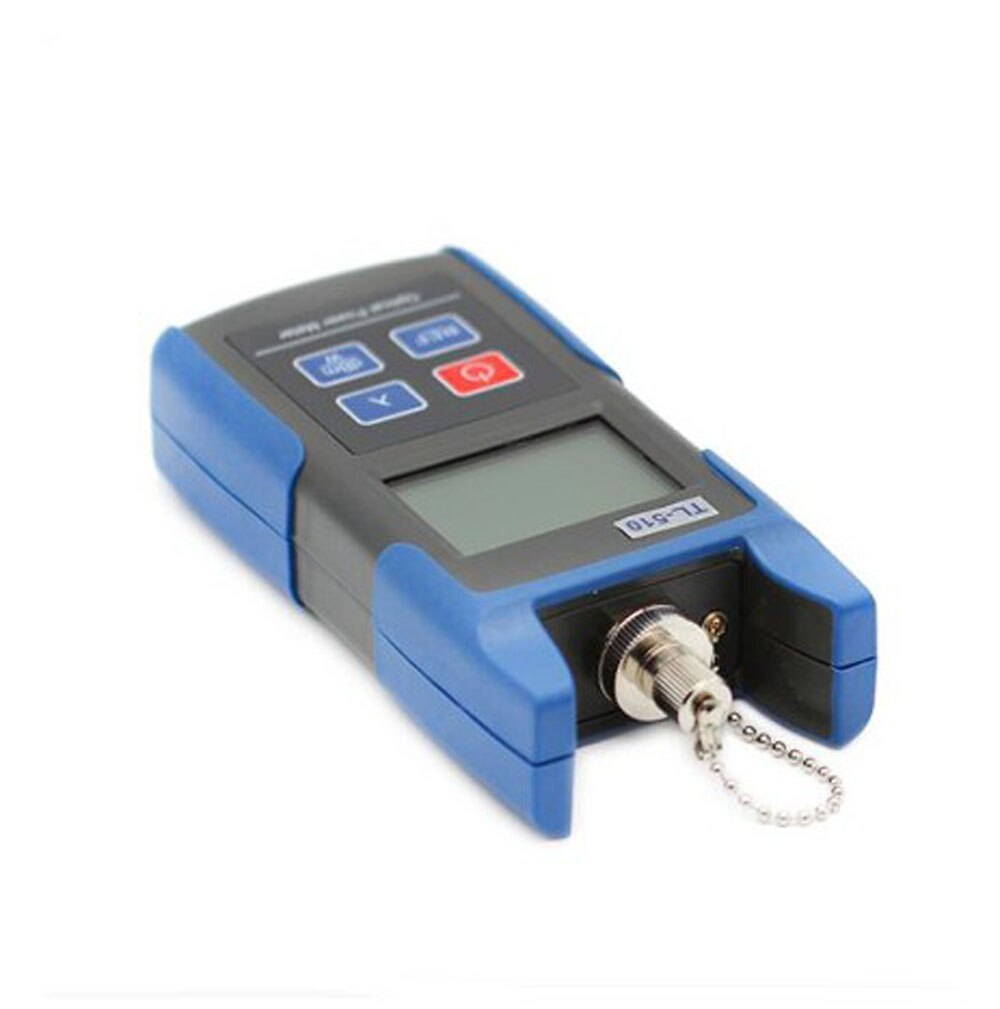

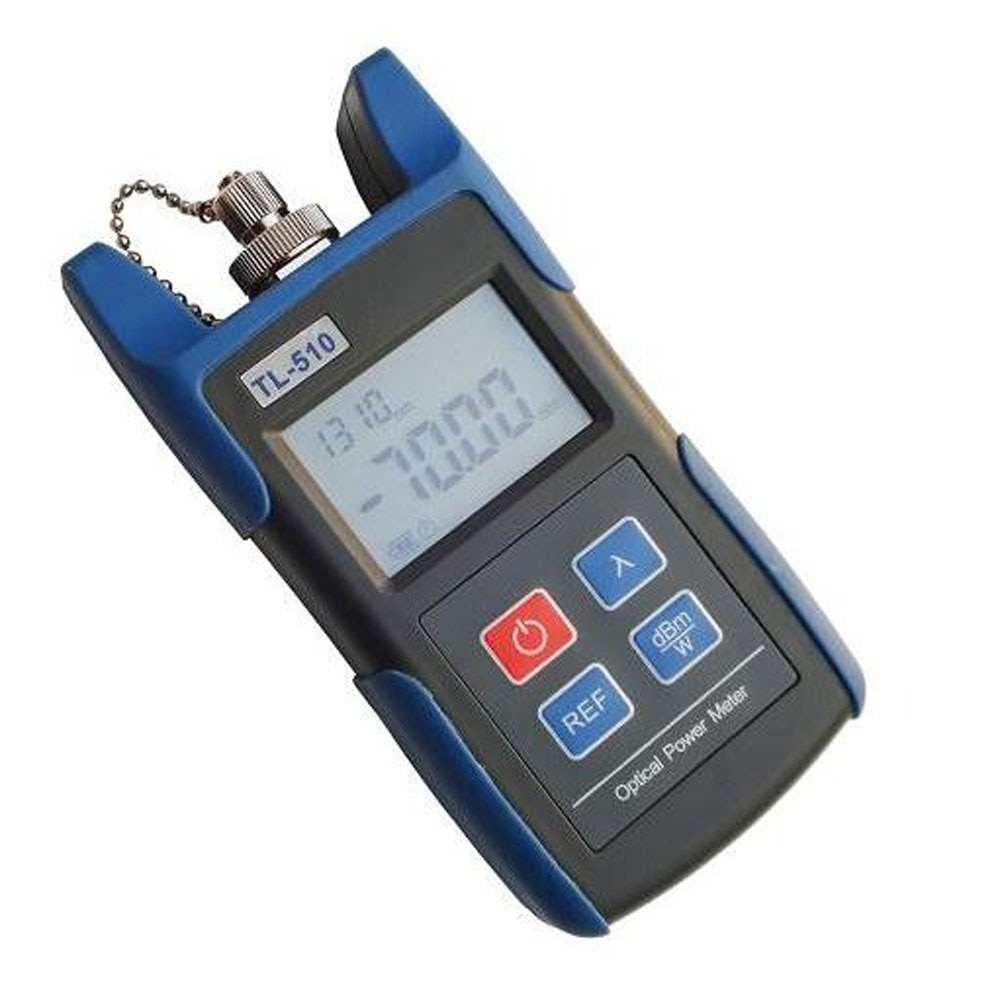

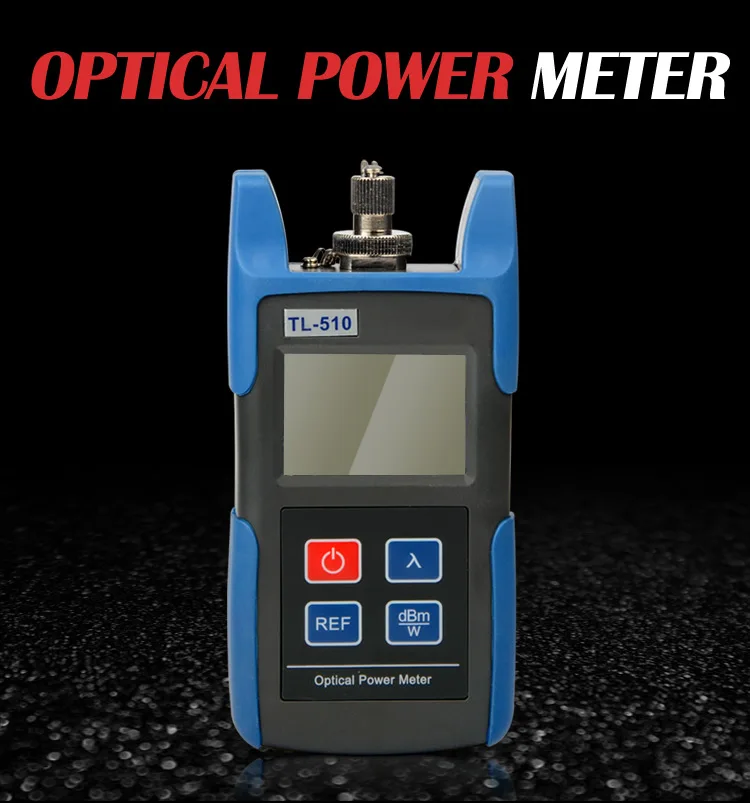

TL510 handheld Mini optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
Feature:
User self calibration function
Comfortable LCD display and optional backlight LCD display supports
night operation
Power measurements in dBm or mw and insertion loss in dB
Low battery consumption, more than 120 hours continual operation time
for three 1.5V alkaline batteries
Optional 10 minutes Auto-off function
Application:
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
Specification:
| Type | TL510A | ||
| Wavelength(nm) | (800nm to 1650nm ) | ||
| Detector | InGaAs | ||
| Measurement Range (dBm) | -70~+10 | ||
| Calibrated Wavelength(nm) | 850,1300,1310,1490,1550,1625(more calibrated wavelength can be optional) | ||
| Resolution(dB) | Linear 0.1% or Non-linear 0.01dBm | ||
| Connector | SC, FC,ST/ Universal 2.5mm adaptor | ||
| Power Supply | 3pcs AAA batteries | ||
| Battery Operating Time | 240 h with 1.5V Battery(3) | ||
| Operating Temperature(oC) | _ 10 ~ +50 | ||
| Storage Temperature(oC) | _ 20 ~ +70 | ||
| Working hours | >120 hours ( without backlight | ||
| Relative Humidity | 90% (+30C ) | ||
| Weight | 160 g | ||

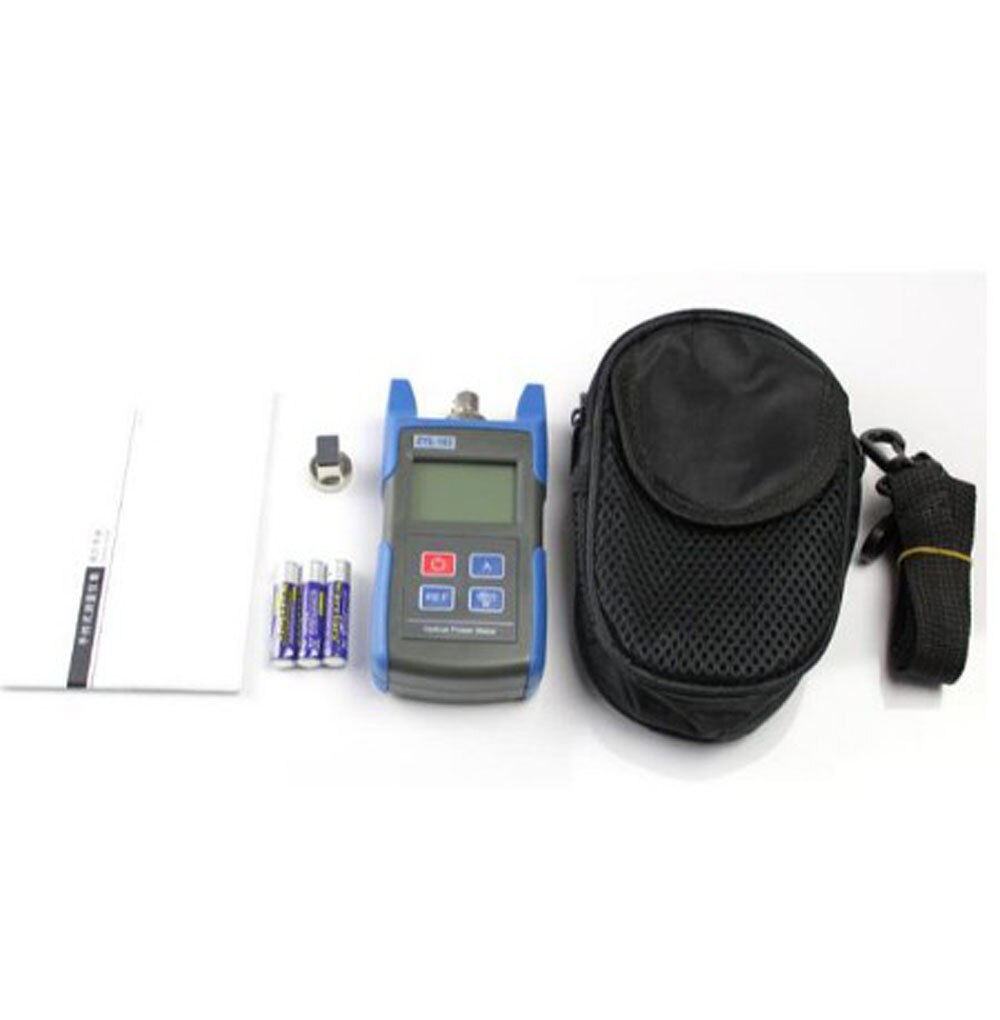

Package list:
1 x TL510 power meter
1 x Carrying case
1 x ST,FC,SC connector
