Description

1 pcs GY-530 VL53L0X Laser Ranging Sensor Time-of-Flight Ranging Distance Time-of-flight Ranging Sensor ASS

Features:

1. Larger measurement range: VL53L0X extends the ToF range to two meters with an accuracy of ± 3%.

2. Faster measurement speed: ranging time is less than 30ms.

3. More energy-saving: The power consumption in normal working mode is only 20mW, and the standby power consumption is only 5μA.

4. Harmless to eyes: The internal laser emits invisible light with a wavelength of 940nm, and will not harm the eyes.

Description:

1. Enhanced immunity to external light sources. The sensor’s digital architecture and automatic compensation function can achieve high ambient light levels.

2. The sensing function of VL53L0X can support a variety of functions, including various innovative user gesture sensing or proximity detection, sweeping robots and other electrical appliances, wall detection, cliff detection, collision detection, sanitary products, such as: faucets, soap dispensers , Dry cell phones and irrigation equipment, other target applications include laptop computer user presence detection or power switch monitors, drones and Internet of Things products.

Specifications:

Color:purple

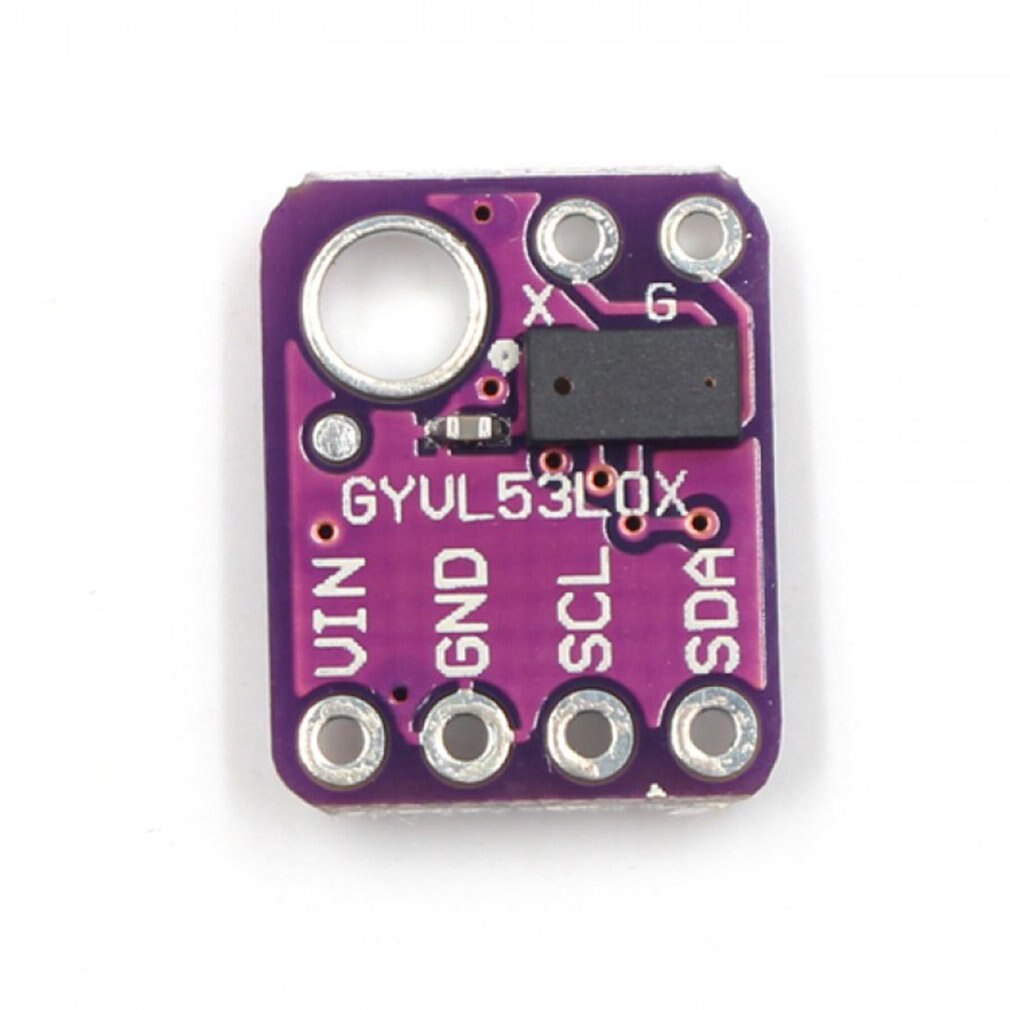

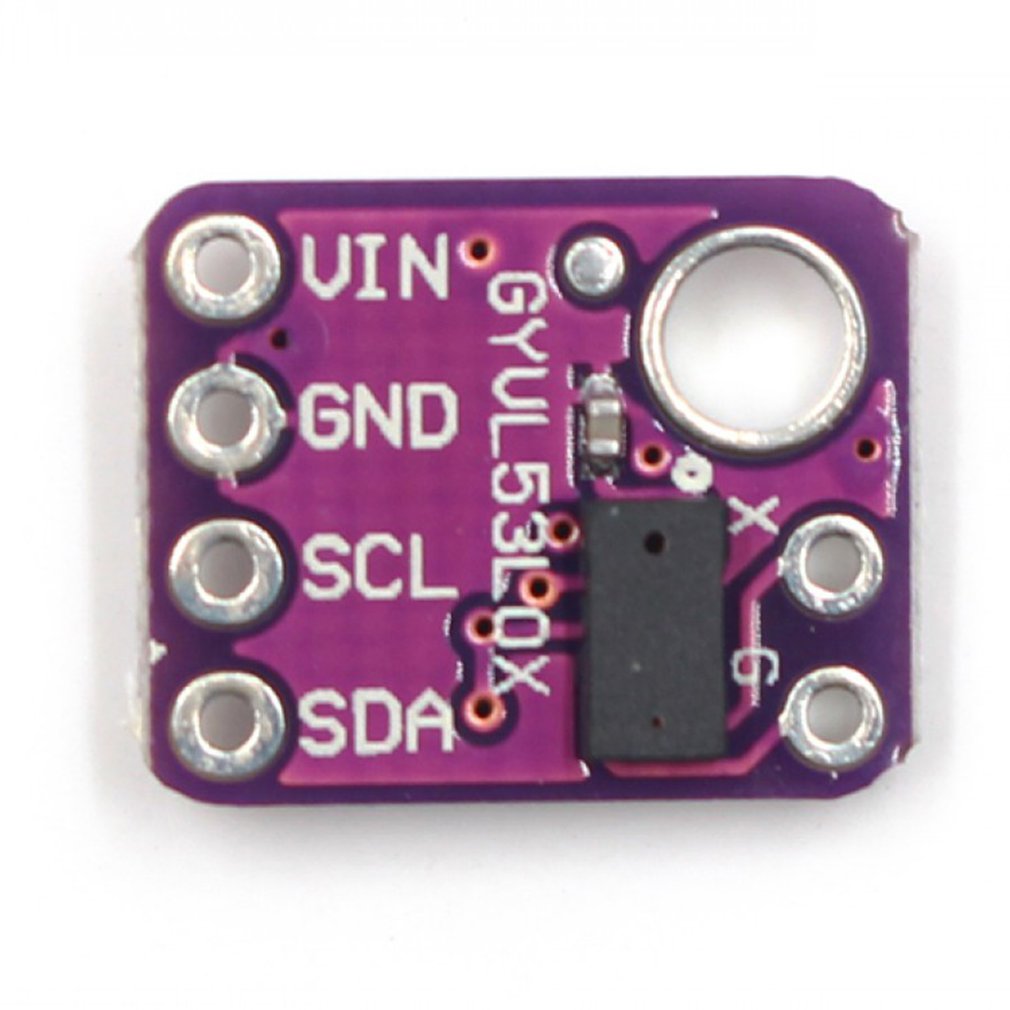

Use chip: VL53L0X

Power supply: 2.8V to 5V

Communication: IIC communication protocol (fully compatible with 3-5 v system)

Module size: 10.5 mm * 13.3 mm

Package Included:

1 * Laser ranging sensor

Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Please allow slight dimension difference due to different manual measurement.
