Description

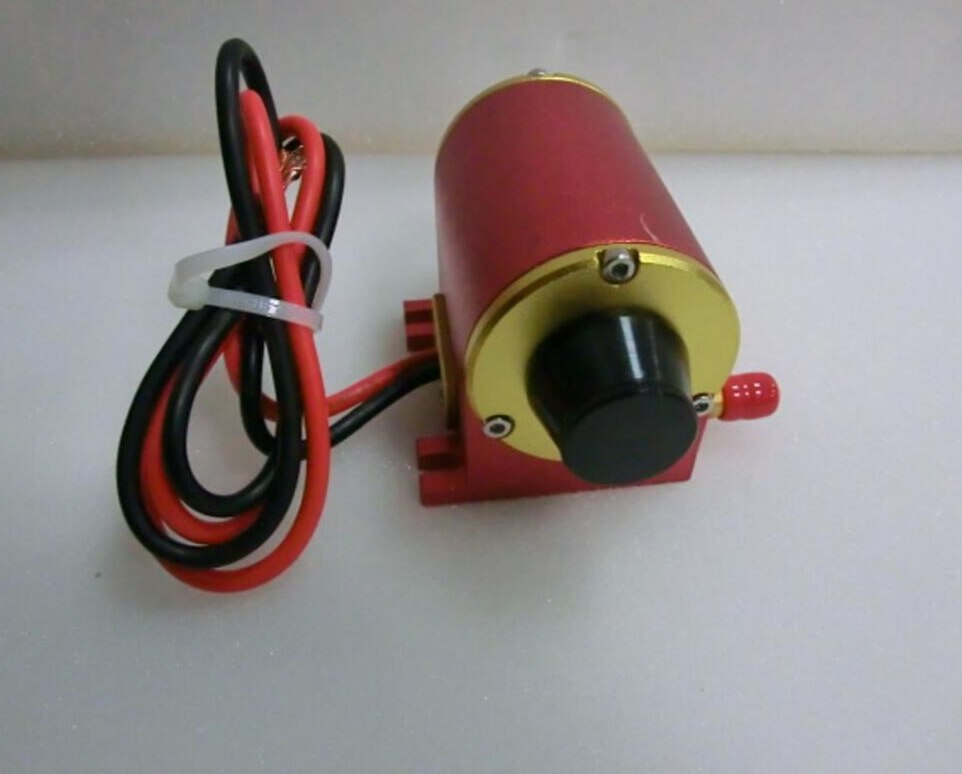

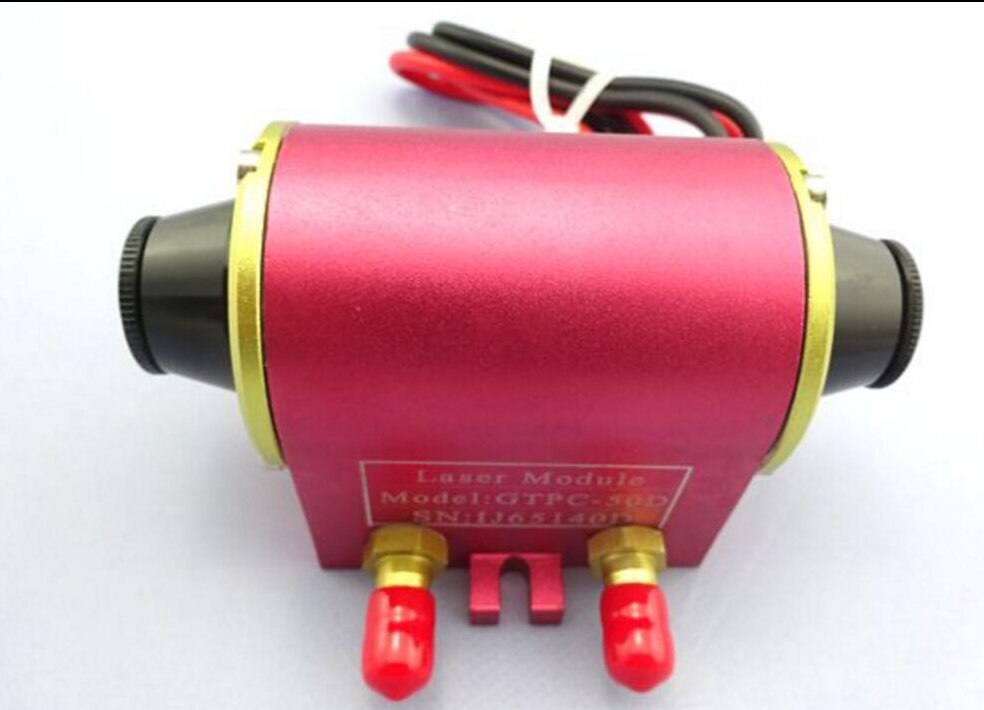

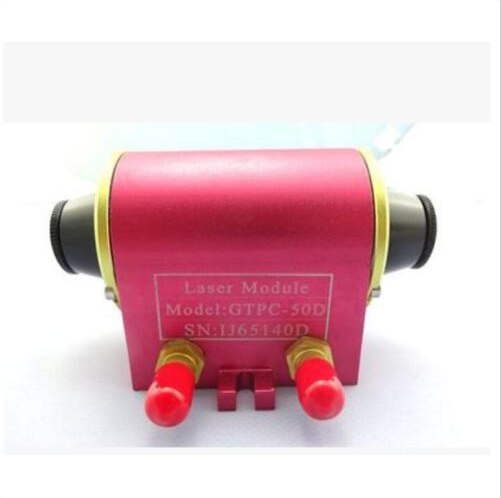

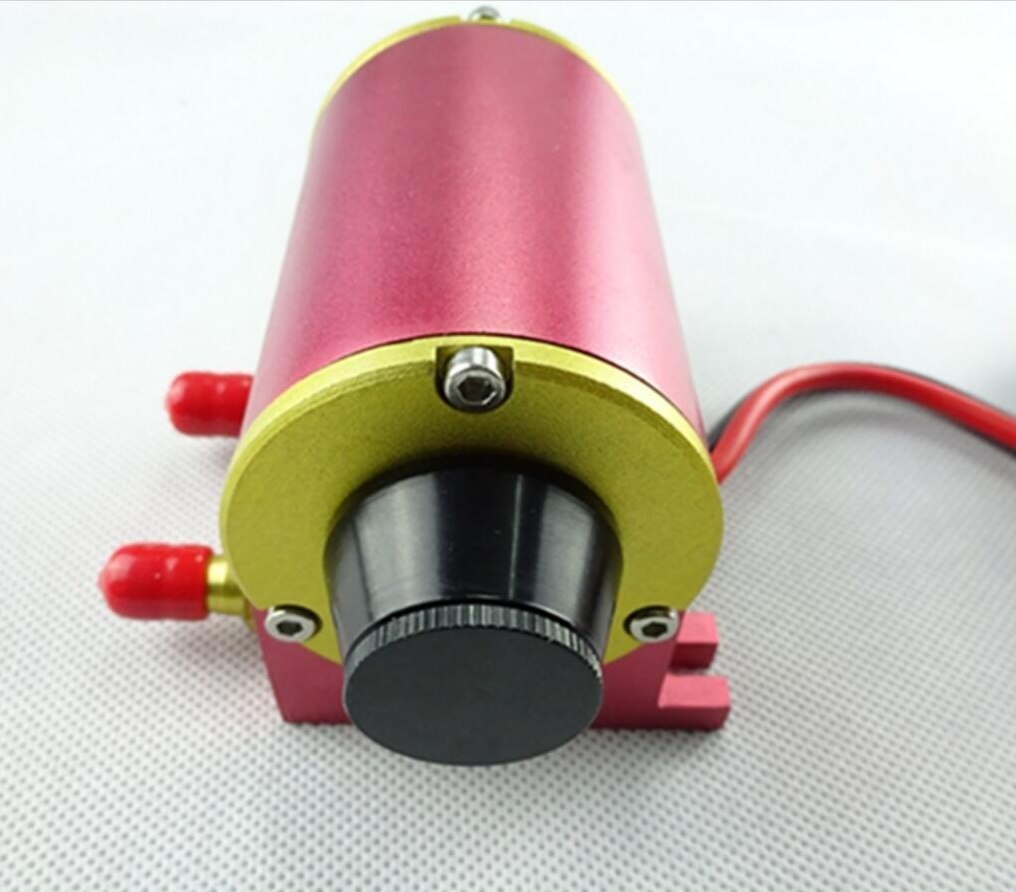

GTPC-50d laser diode pump module 1064nm for YAG laser marking machines
Feature:
1. High Output Power
2.Stable working condition
3.Reliable
4.Efficient
5.Compact
6. Longer lifespan
7.Easy to use
GTPC-50D
SN: XXXX
1. Technical parameters
CW Output Power: 25W
Threshold Current: ~6A
Operating Current: ~29A
Forward Voltage: ≤24V
Center Wavelength: 1064nm
The length of the YAG rod:65mm
The Diameter of the YAG rod:3mm
YAG Terminal: Flat/AR at 1064nm/YAG doped 1%
The cooling water flux: 4-5L/min
Cooling power: >100W
Optimum temperature: 20°C
Temperature Range (Storage): -20°C~ 70°C
