Description
532nm 10mW 20mW 30mW 50mW Green Line Laser Module Dot Point Cross Line Laser Generator Diode Locator for Wood Stone
532nm 10mW 20mw 30mw 50mw Dot Line Cross Green Laser Module Locator for Cutter
Suitable for woord cutting, stone sawmill, construction site, alignment, locating
We also have 10mW 20mW 30mW 50mW laser dot/spot, line generator, cross-hair laser modules for sale at our store.
Feature:
Well made, and stable performance
18mm diameter, 75mm length, big size cylinder housing, longer coutinuous working time than thinner one
Housing made of Aluminum alloy , light and strong
Glass Lens for better light transsimition
Anti-dust, Anti-shock

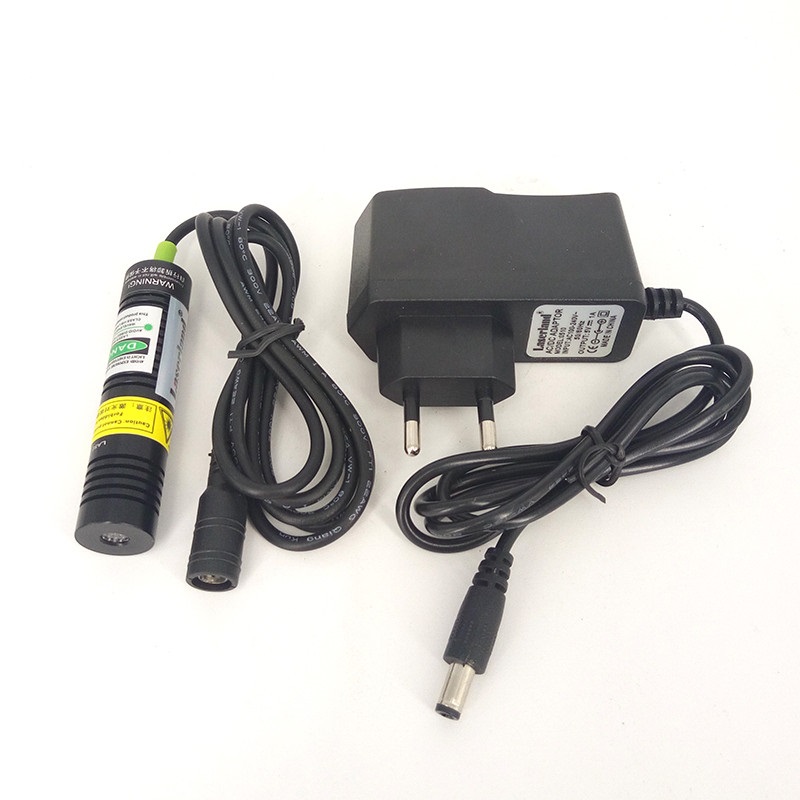

AC-DC universal adapter for easy usage

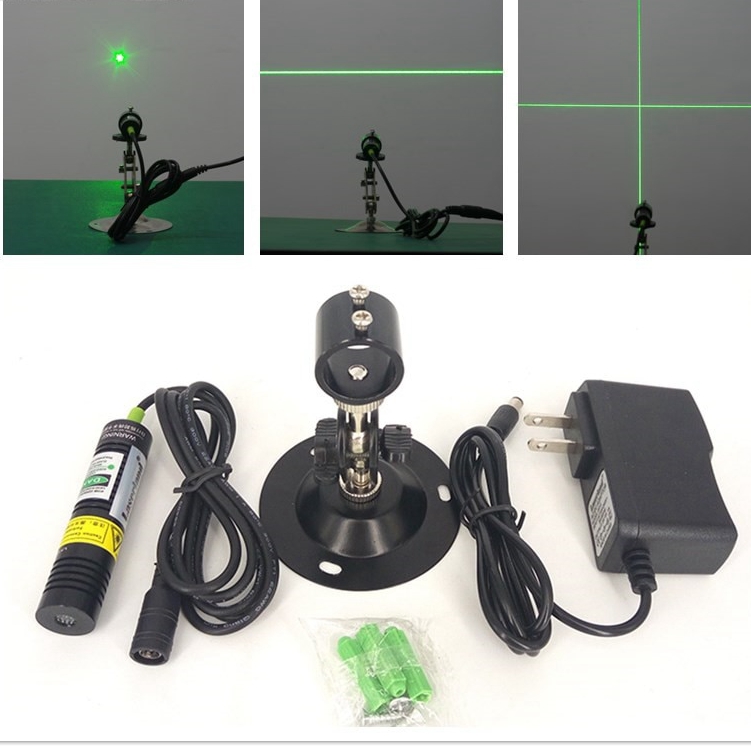

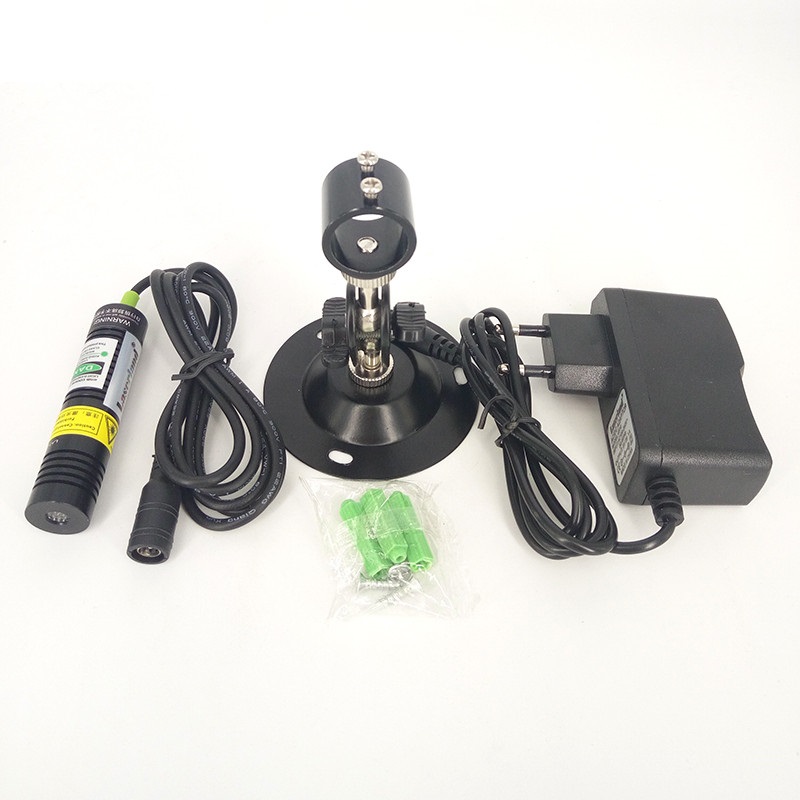

Mount for holding the laser
We have EU and US standard plug and will send the plug according the the buyer’s address.
Specifications:
wavelength 532nm
output 10mW 20mw 30mw 50mw for option
shape: dot (tem00), line, cross for option
lens: k9 glass lens
divergence 0.1-2mrad
bent rate 1mm 5m
working voltage DC 5v
class iiib
working temperature 10-35
storage temperature -40-80
line diameter: 1mm at 1 meter
Duty cycle: 3 hours on, 5 minutes off
size18mm×75mm
