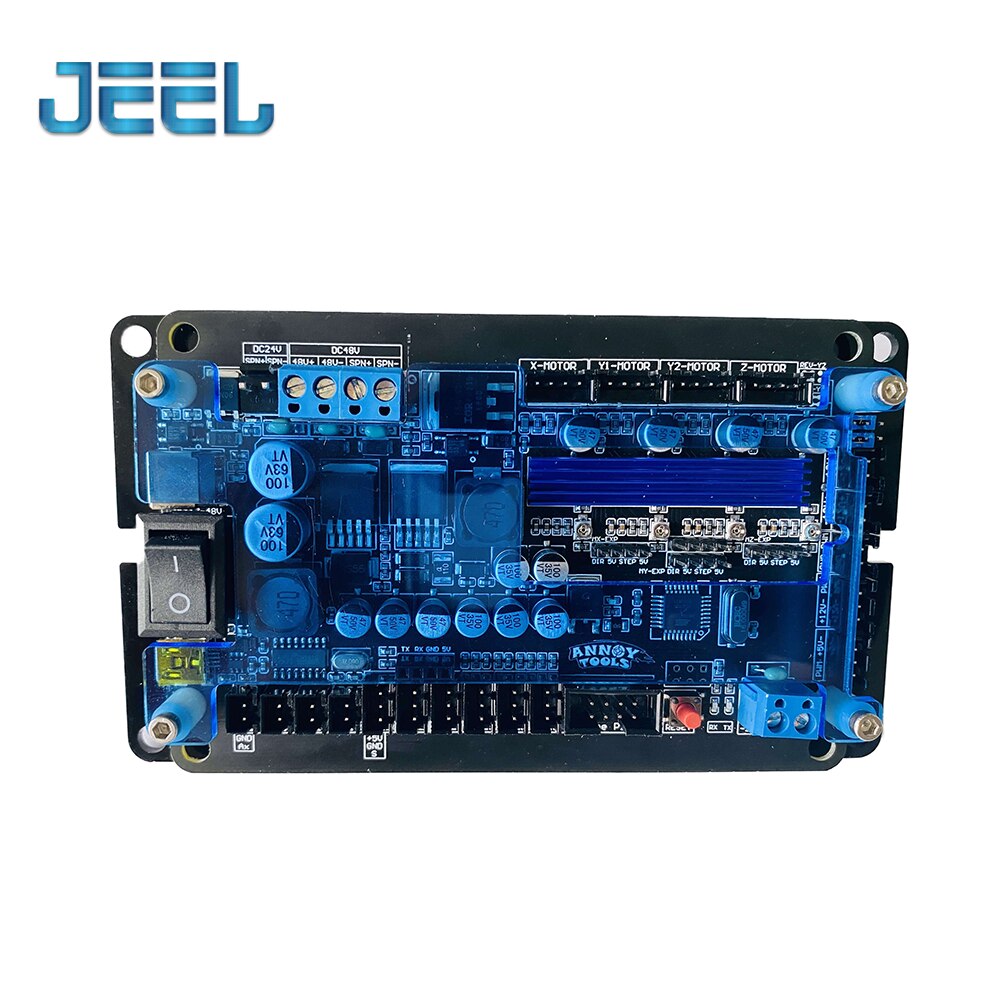

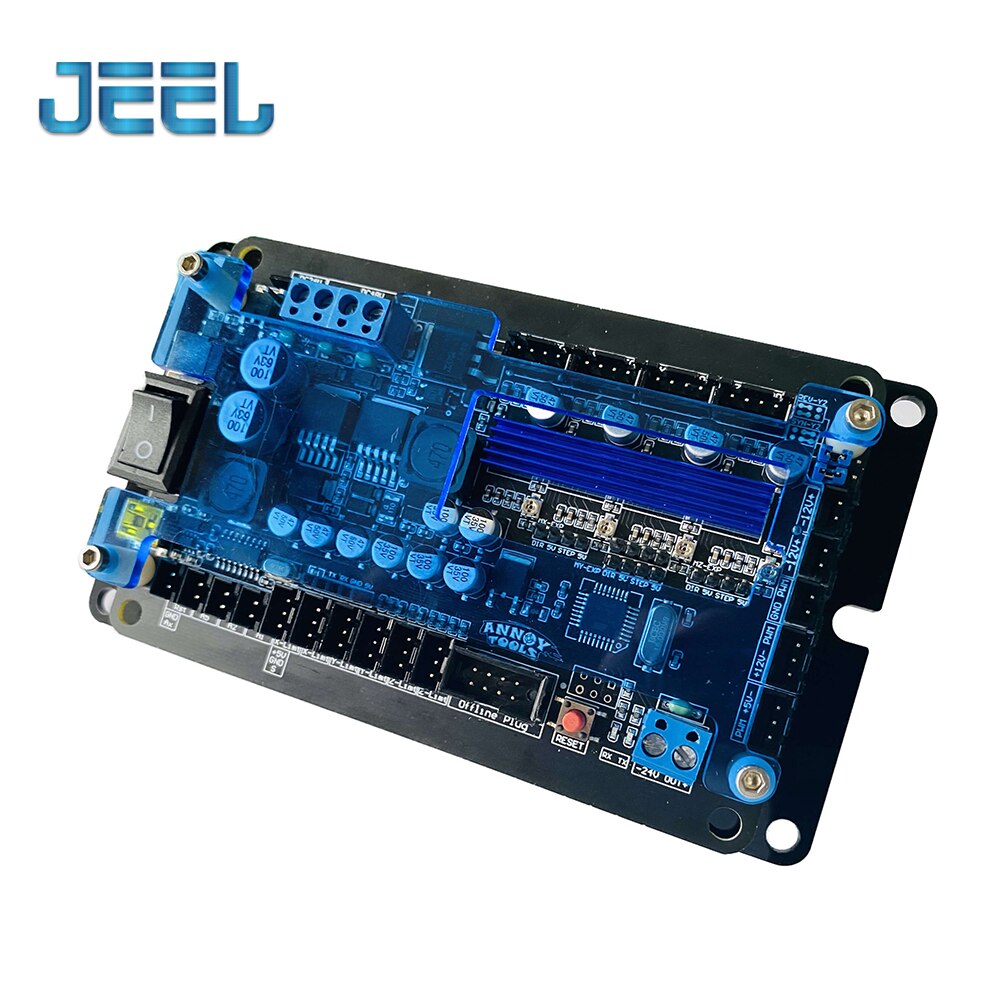

GRBL1.1 3axis Controller Board Stepper Motor Driver Double Y axis USB Driver Support 500W/300W Spindle For CNC Laser Engraver





Power Supply:DC12-48V

Spindle:24V  0-500W

Stepper Motor:X/Y1/Y2/Z

Fan:5V

Connect Laser:2pin/3pin/2pin-2pin

Support:Servo/Offline controller/Limit switch

Connection:USB Cable



Features:

1. The spindle motor and laser cannot be connected at the same time

2. The offline control board and the SUB data cable cannot be connected at the same time

3. Turn on the power after the electrical connection is completed

4. The positive and negative of the input power must not be reversed, and the reverse connection will burn

5. The 48VDC interface cannot be connected to the switching power supply, and the voltage that can be passed through the      DC seat of the control board cannot be greater than 5A

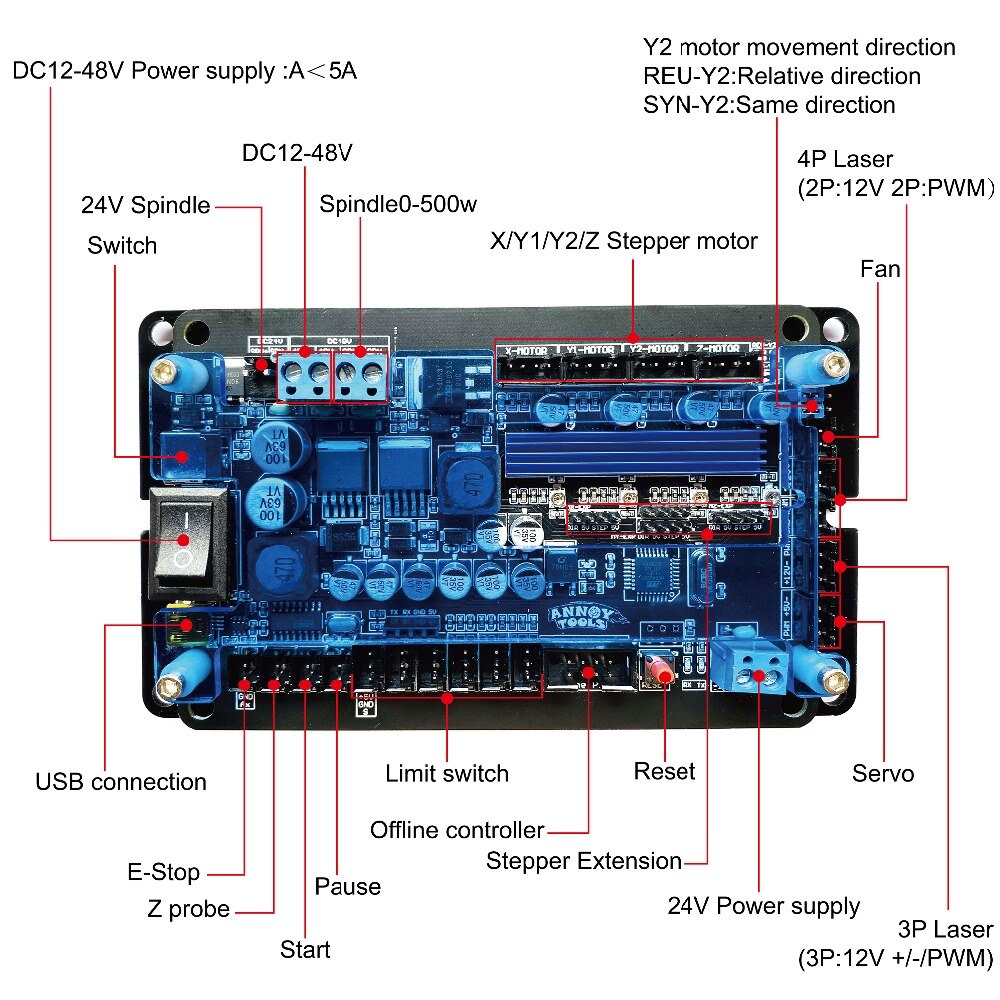

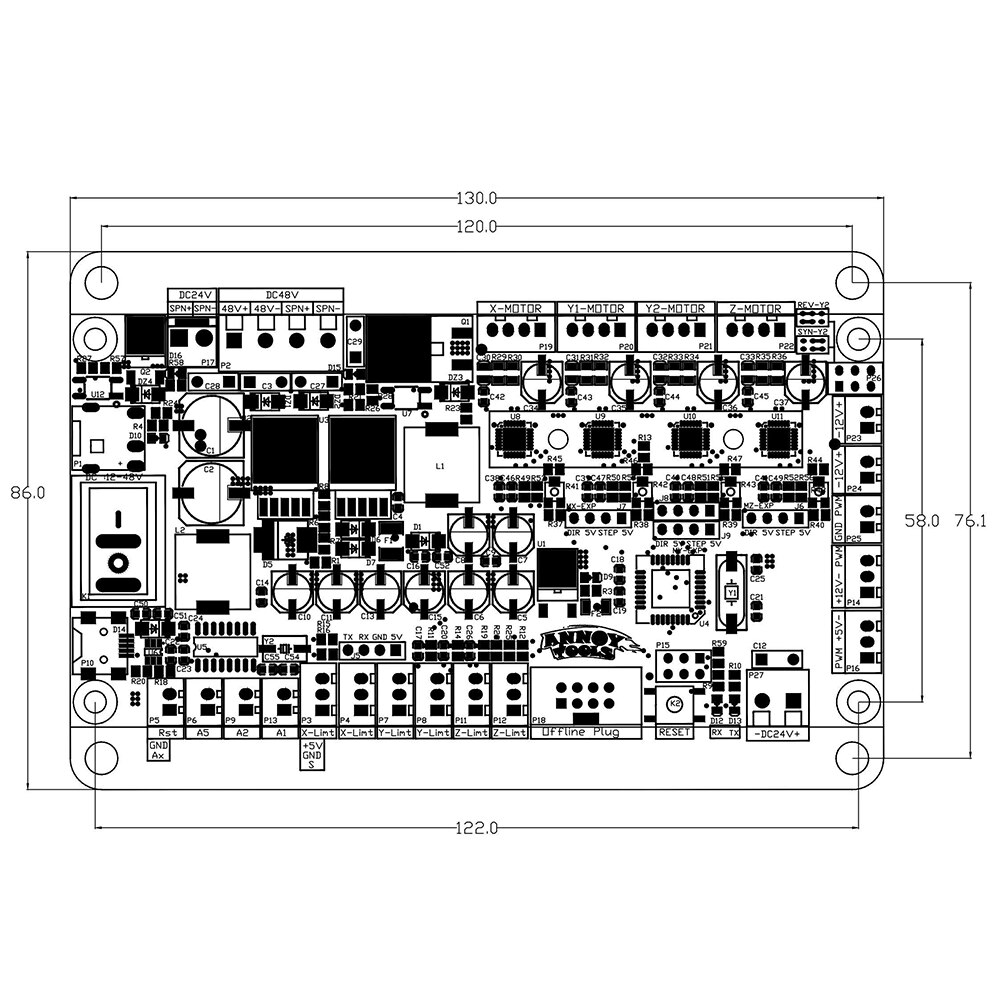

Terminal definition diagram：

Connect Spindle：

Connect Laser:



Install on Machine:
