Description

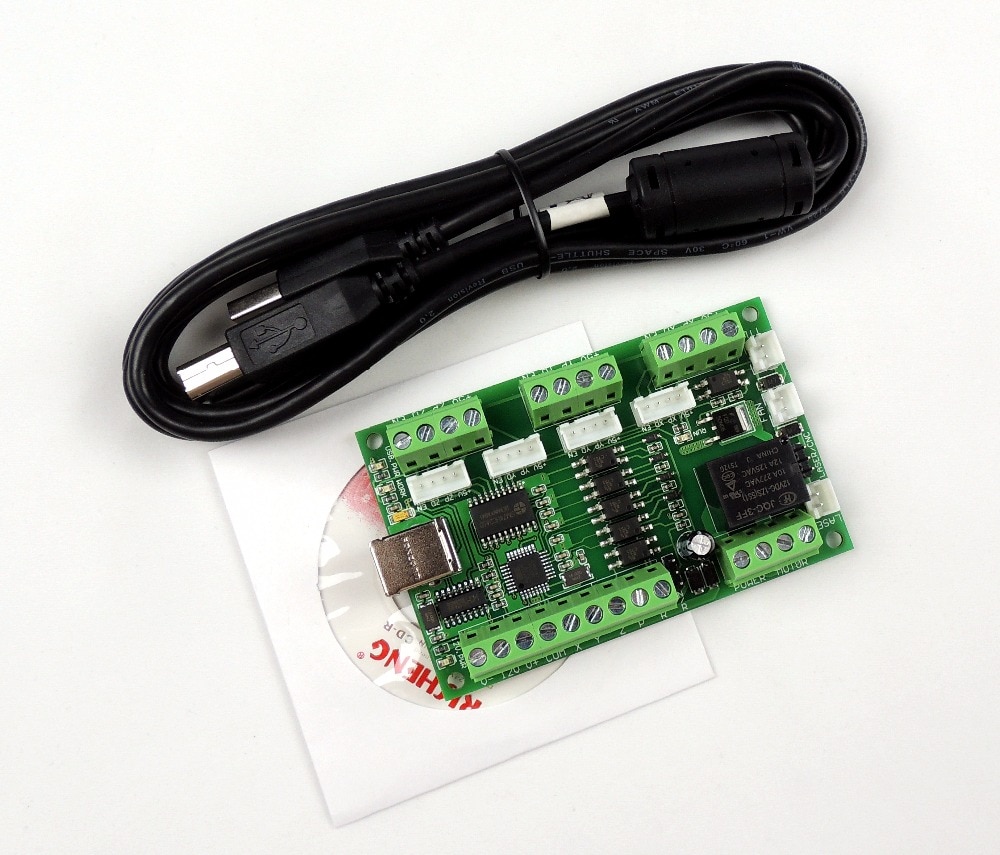

1 x RYC-GRBL-V3 GRBL LASER/CNC Controller
1 x USB Cable
1x CD(Instructions, wiring diagrams, LASER/CNC software, configuration files, etc.)

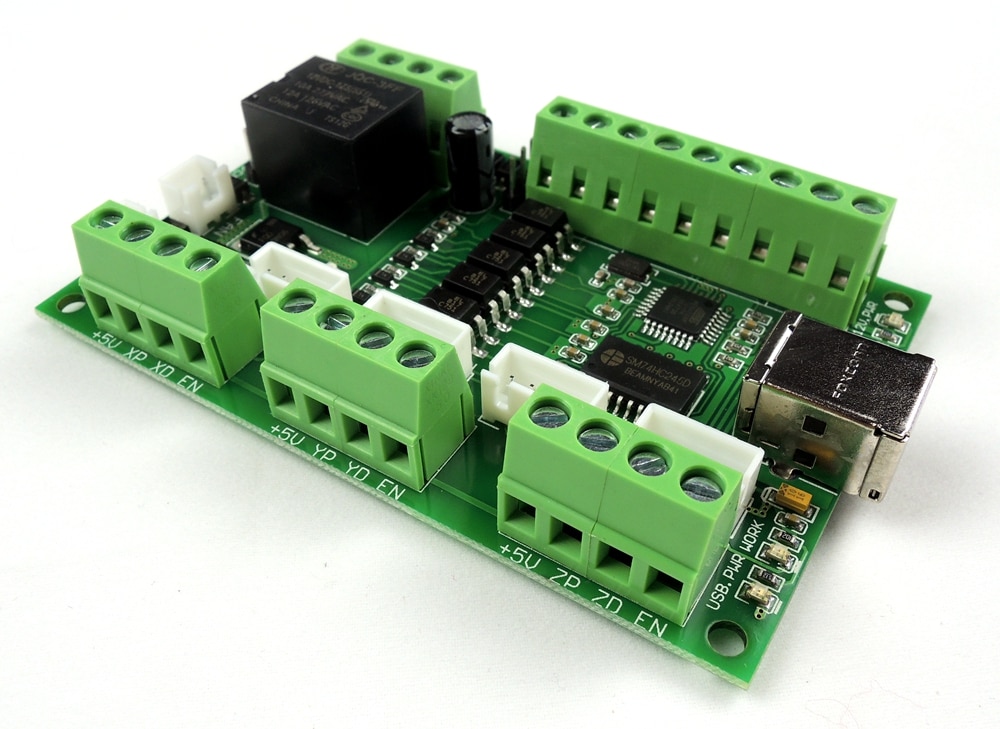

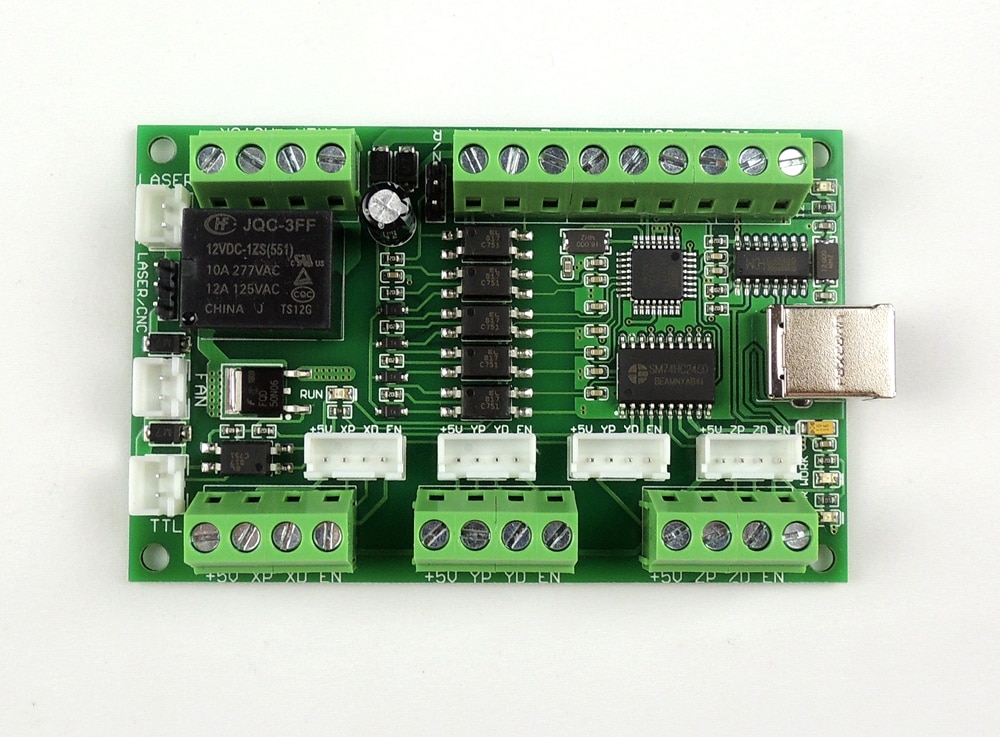

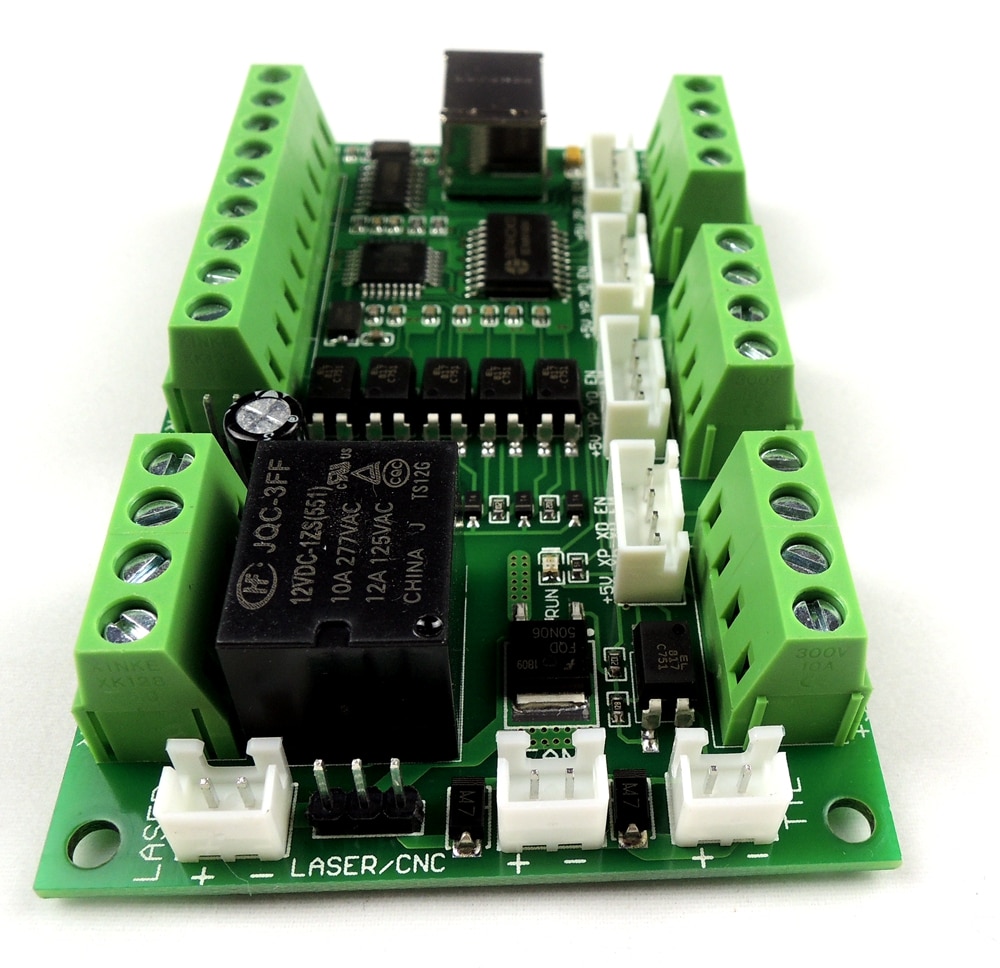

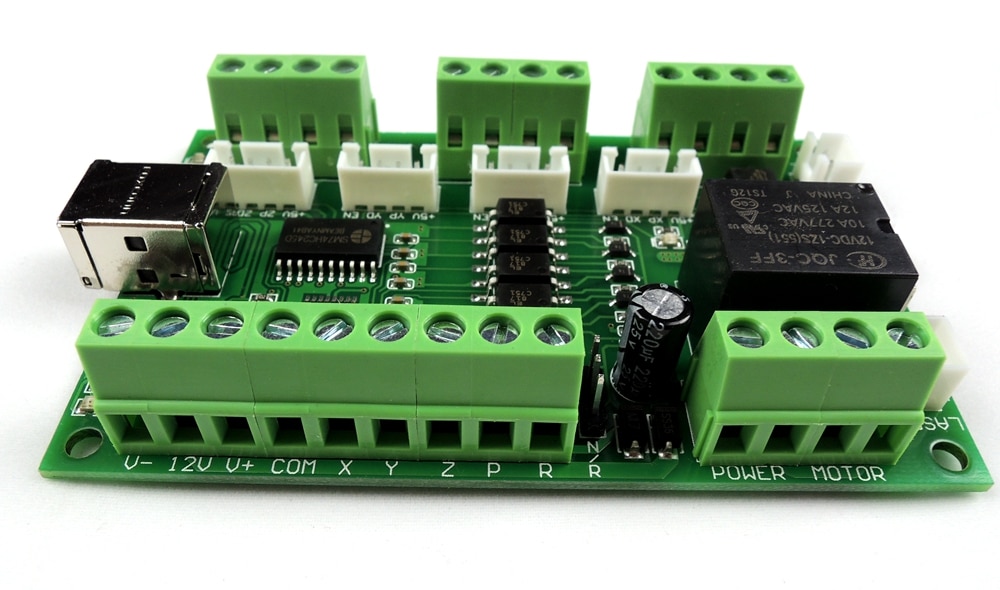

This is a GRBL open source code-based laser,
can be used for Laser Engraving machine, CNC Engraving Machine etc.
can be used for Laser Engraving machine, CNC Engraving Machine etc.
Features:

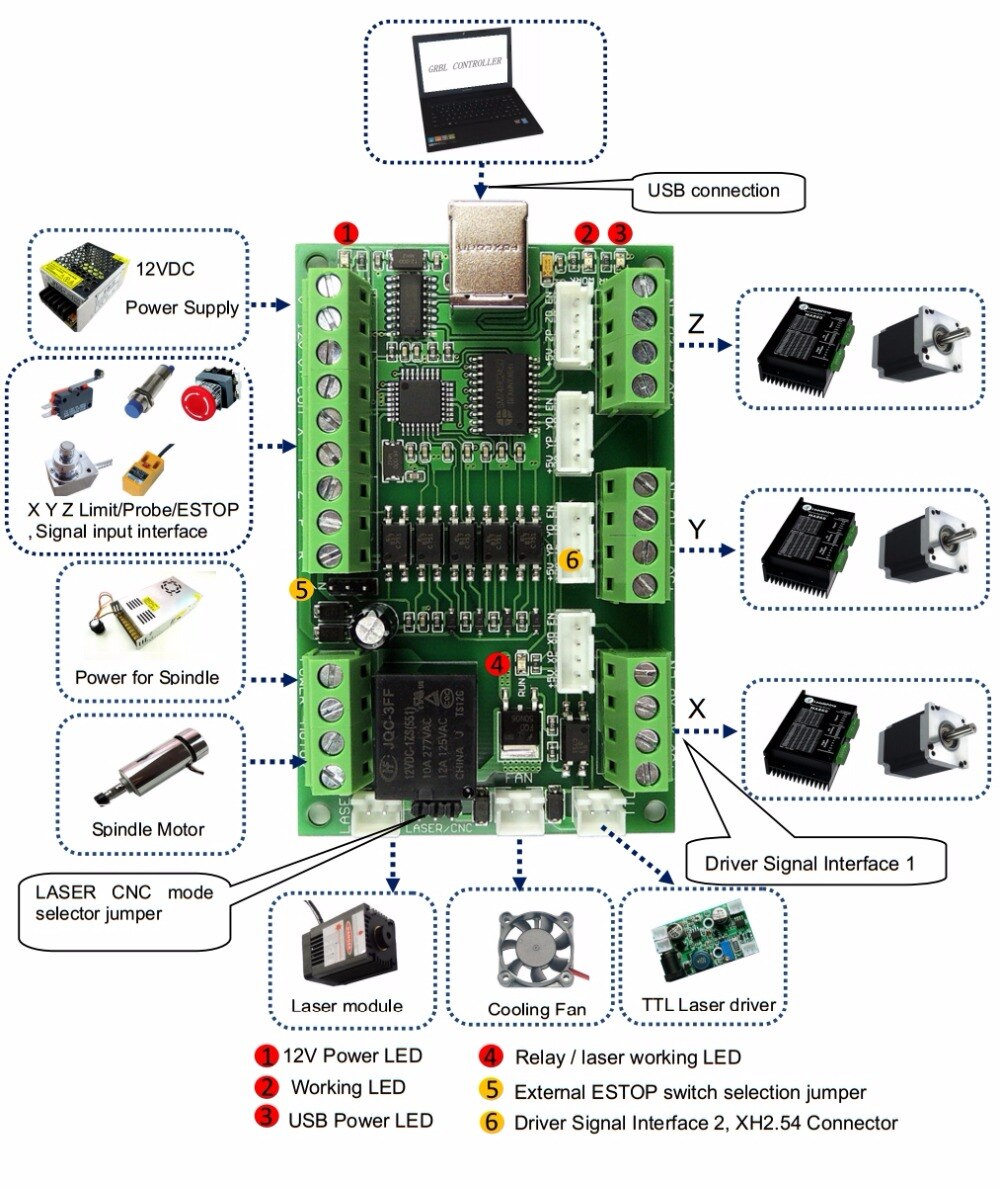

1.Application:use for DIY Engraving machine or Toy laser engraving machine, need external connect stepper motor driver, suitable for users who make large stroke engraving machine.
2.Applicable software: GRBL control, Un Gcode Sender, GRBL controller, or other software that supports GRBL code
3. The maximum pulse frequency of the control board: 30KHZ
4.Communication: USB (USB-CH340).
5.Power supply: voltage: 12V,
6. Applicable to stepper motor driver: as long as the stepper motor driver with direction + pulse signal control can be used.
7.Support stepper motor: Determined by the external connect driver, the stronger of the driver’s capability, the larger motor that can be connected
8.Laser interface: 12V, suitable for 12V laser head
9.Spindle motor interface: the maximum support 400W DC spindle motor.
10.With fan interface and TTL signal output interface (for controlling the laser module with TTL module).
11.Limit interface: X Y Z limit interface, can be connected to NPN photoelectric sensor
12.Probe interface: for Z axis tool zero.
13. Can connect emergency stop switch. In an emergency, the MCU can be reset to stop the machine.

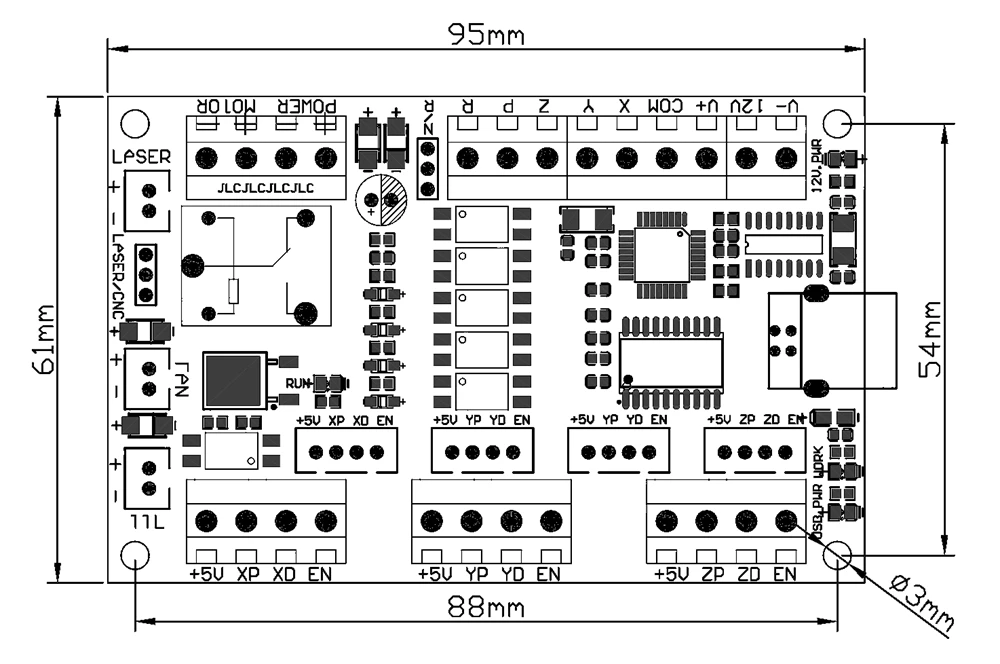

Installation Dimensions:
