Packing list

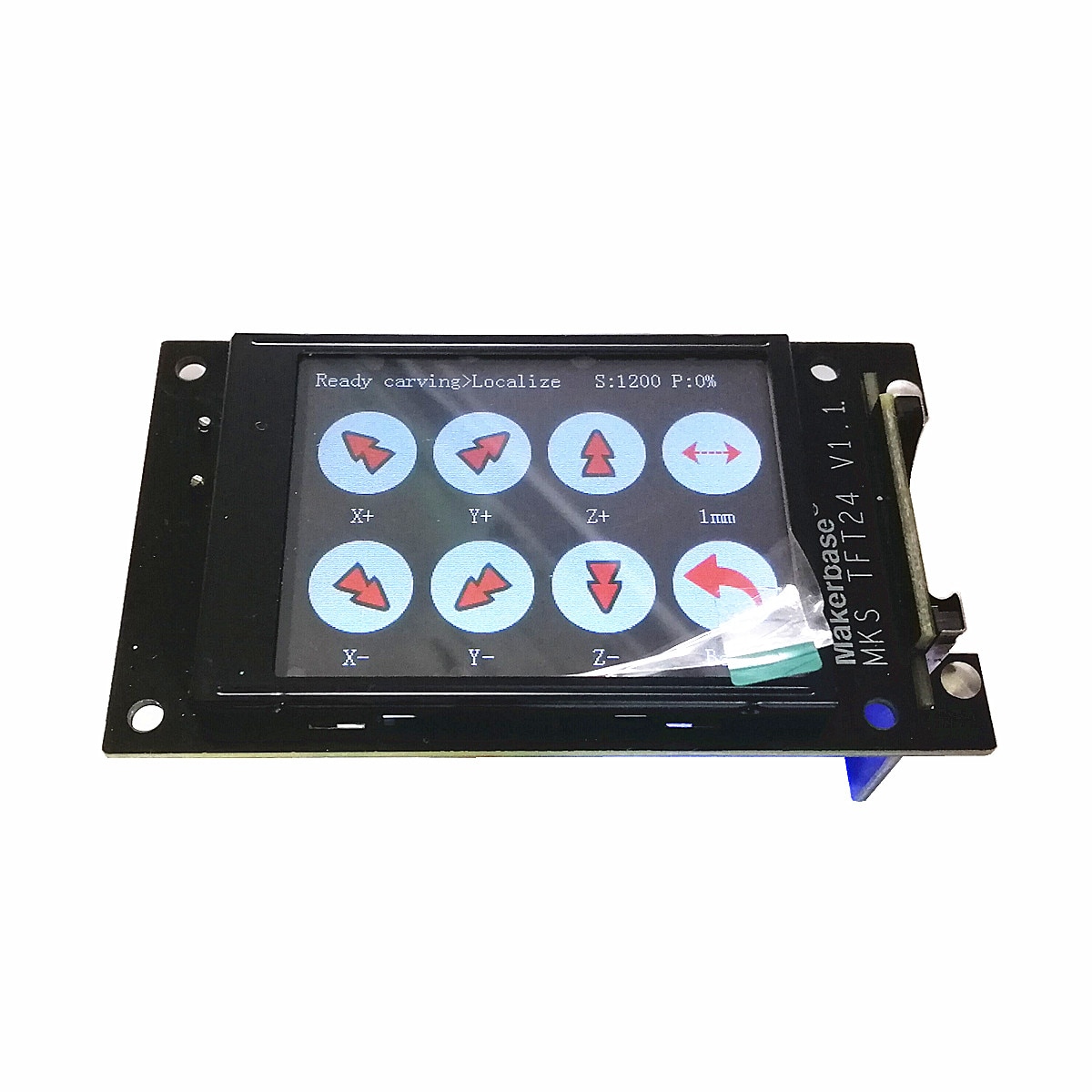

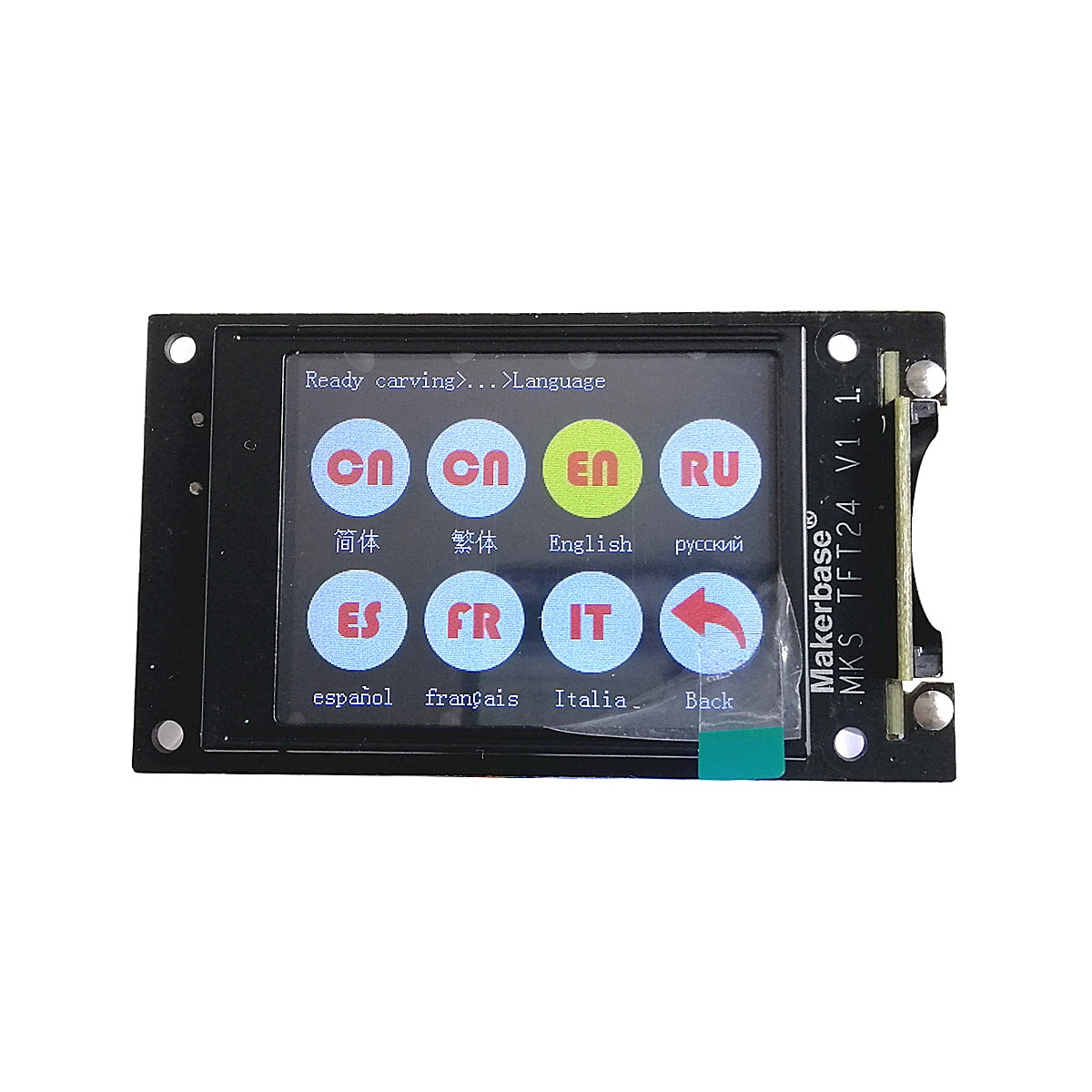

1pcs * MKS TFT24 Display

1pcs * Flat cable



Wiring
Notice The wifi function is only available for 3D printer.





Size





How to Use

1. Install Xloader to PC,upload GRBL firmware to CNC mainboard.
Select baud rate 115200 .

2. MKS TFT24 has  pre-uploaded firmware for 3D printer,

need to upload CNC TFT24 firmware.Select baud rate 115200.

Copy below config to SD card and plug SD card to TFT24 display.

Then put power on,it  will update  automatically.

3. After firmwares upload already,wire MKS TFT24 to Aux-1 of motherboard.

4. Read G-code

   Copy G-code to SD card,plug it to TFT24 display.
