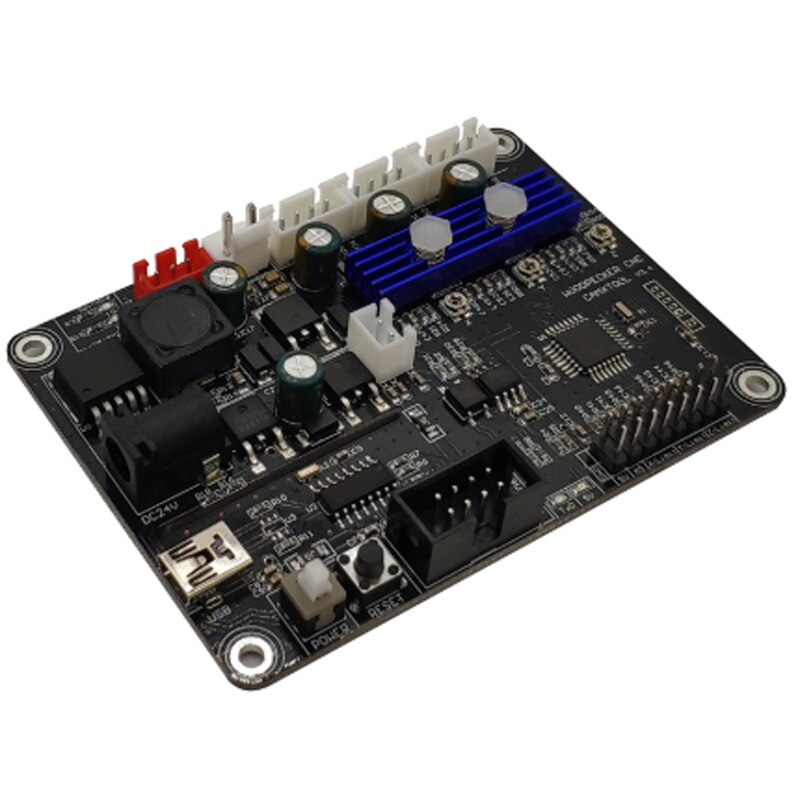

GRBL cnc engraving machine control board , 3 axis control,laser engraving machine board USB port

$23.47

SKU: 4001323326959 Category: Tag:

Description

specification:

Connection method: USB (USB-CH340)

Software: GRBL controller (Candle), laser grbl

Input voltage: (12-36V)

Master chip: atmel 328P (arduino nano)

Stepper motor drive: DVR8825

Spindle drive chip 1: MOSFET (recommended input voltage 12-36V, current 10A)

                           Can be connected to a high power spindle motor or laser head

Spindle drive chip 2: MOSFET (current 2A!!)

                           Can only be connected to the laser head within 2A, the voltage is adjustable from 0-12V

Spindle PWM speed control: Support

Support stepper motor: 12V, current less than 2A, it is recommended to add heat within 1.5A. (Not limited to 42,57 stepper motor)

Laser engraving: support

Power interface: 5.5-2.5mm DC interface
