Description
Product introduction
–New Design in 2019 by DOESBOT
–Board with 1.6MM high-quality A-plate, reliable and stable.
–Provide technical support, easy to get started.
–Input voltage (board power supply): 12V to 24V
Please note the positive and negative poles, make the right connection.
Its not seller’s responsibility if the fault was from this.
–Double y-axis, all-round use,XYZ or XYY.
–Stepper drive setup subdivision.
–Integrated 3 Drv8825 drivers, directly connect to four wire stepper motor.
–Support Laser or Spindle.

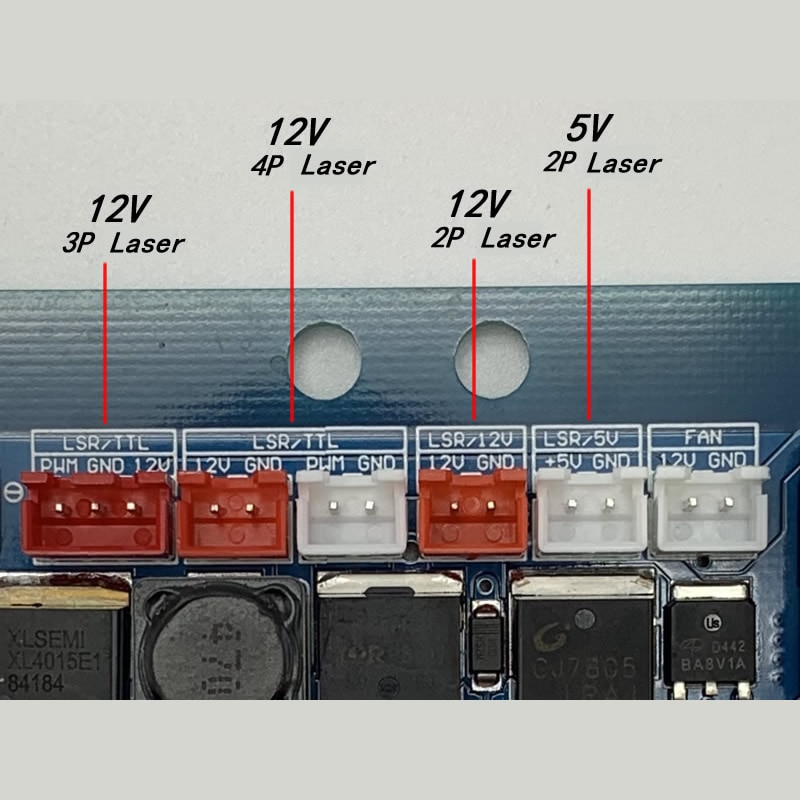

–Support 12V, 5V with TTL and without TTL laser.
–Adjustable driver subdivision.
–Support the xyz limit switch, probe interface.
–Support external Offline Controller(Optional).

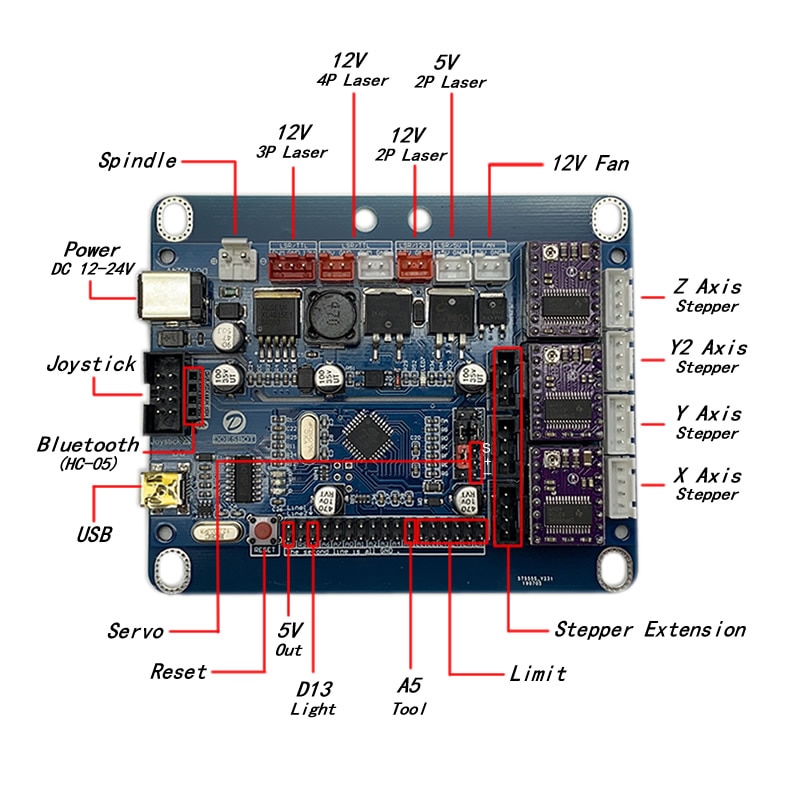

This Control Board is a Arduino uno based 3 Axises Motion control system, can be used for Laser Engraving machine, Drawer Machine, CNC Engraving Machine etc.
Grbl Wiki
https://github.com/gnea/grbl/wiki
Recommended Control Software
https://github.com/Denvi/Candle
Packing list
1*Motherboard
4*TMC2208 Mute Drivers （One of the gifts）
1*Spindle motor line
1*USB data line
