Sale!

GRBL 1.1 OFF-LINE CNC shield control plate motherboard TFT32 CNC display DIY parts cnc laser controller expansion monitor

$41.80

SKU: 4000645379620 Category: Tag:

Description













Name: MKS DLC + TFT32 Display



Packing list

1*MKS DLC

1*TFT32 Display

3*A4988   1*Flat cable   1*USB





12







Wiring







PINOUT

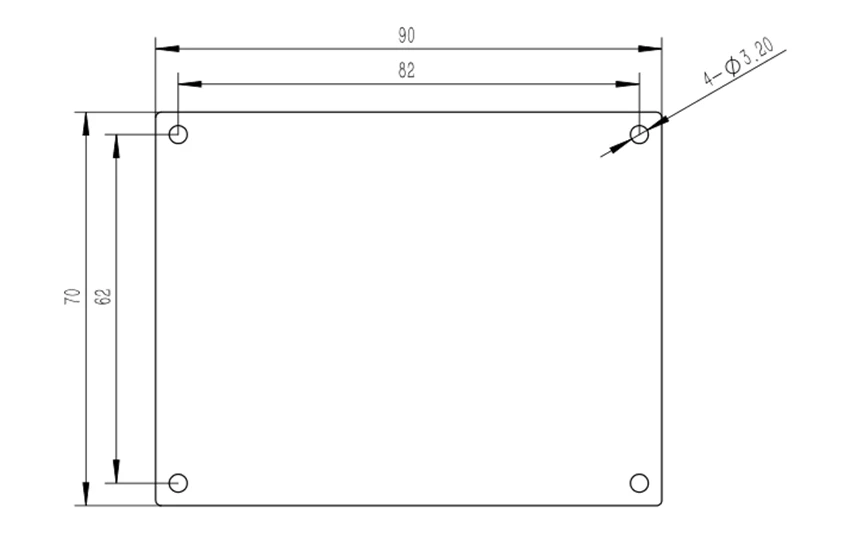

DLC Size Diagram

dlc size_

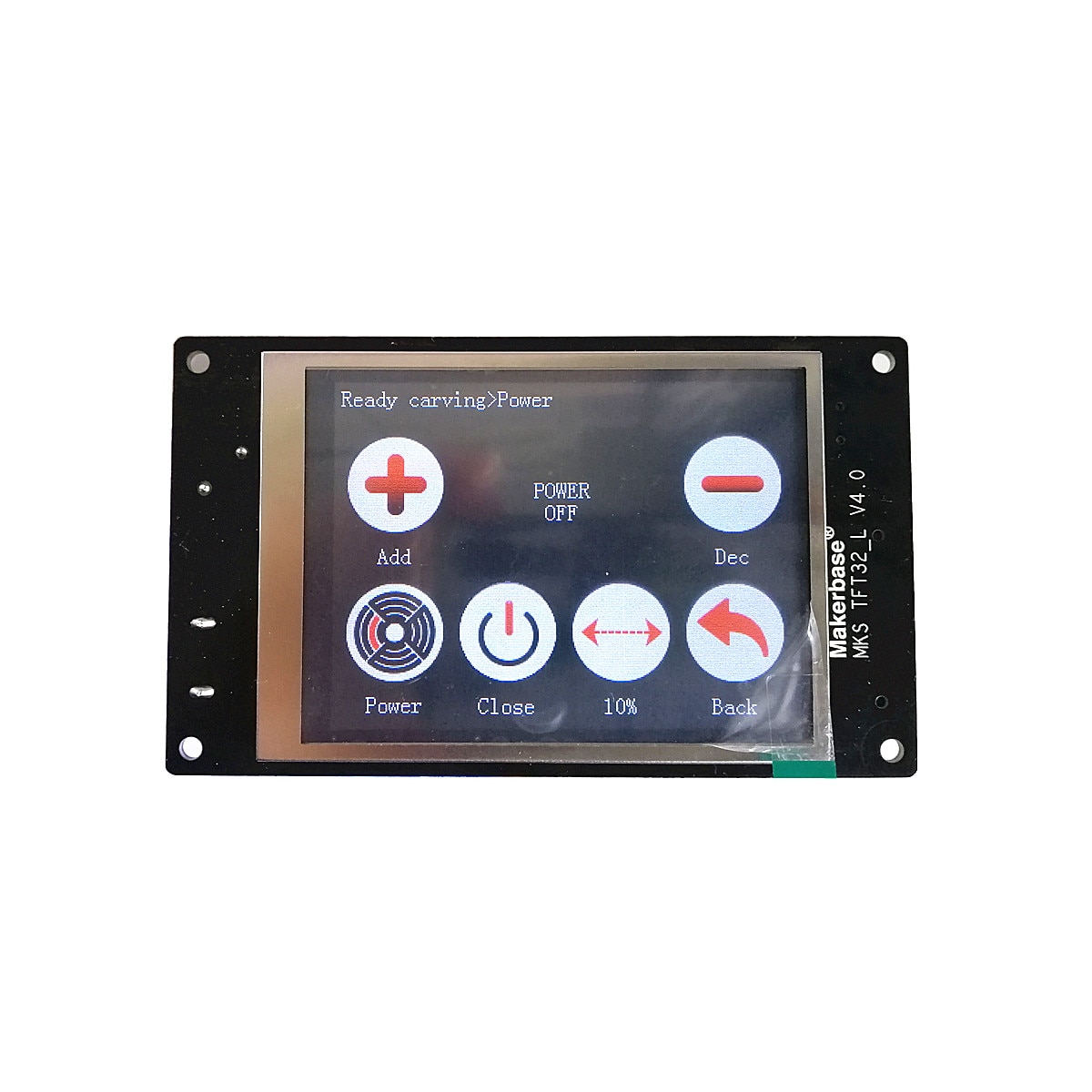

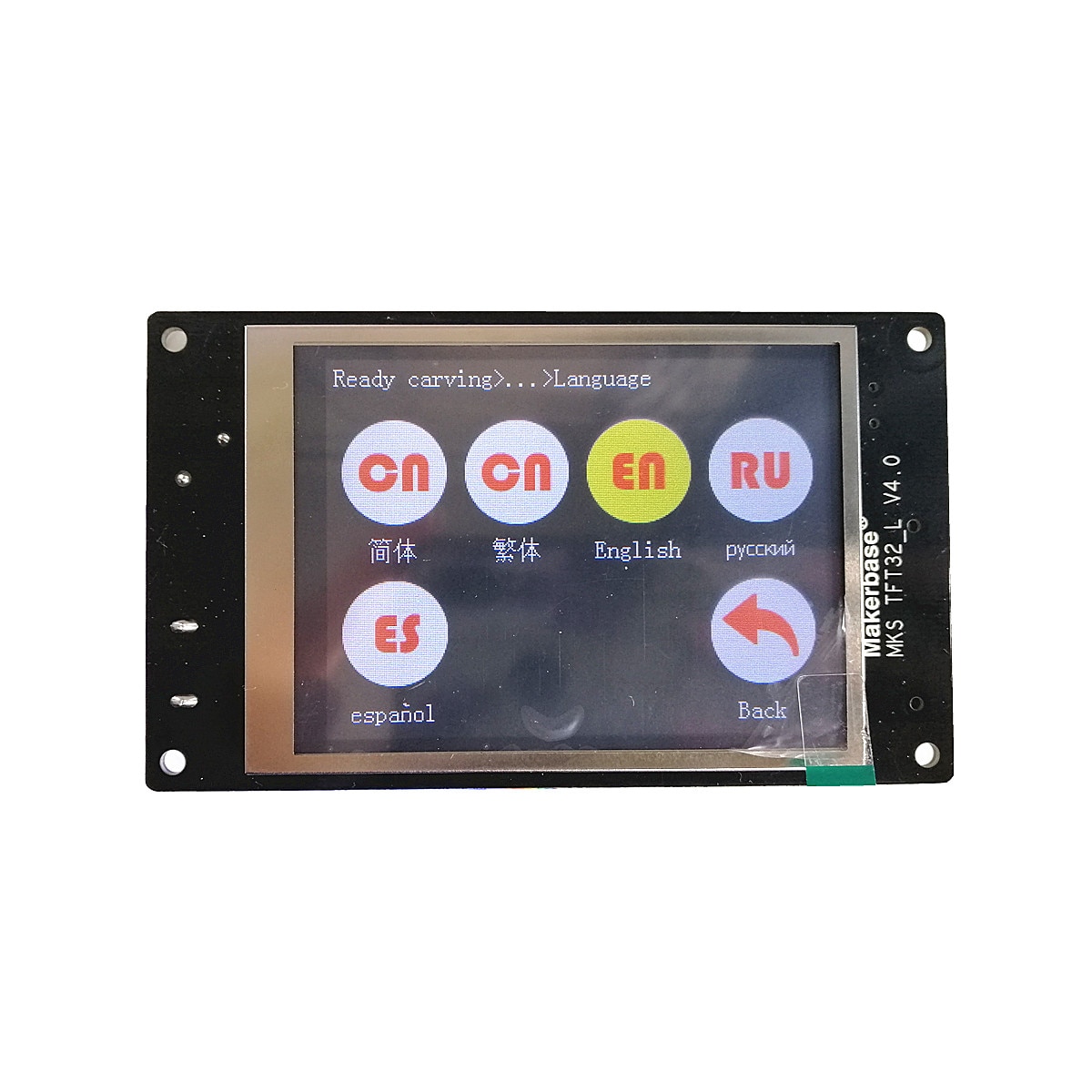

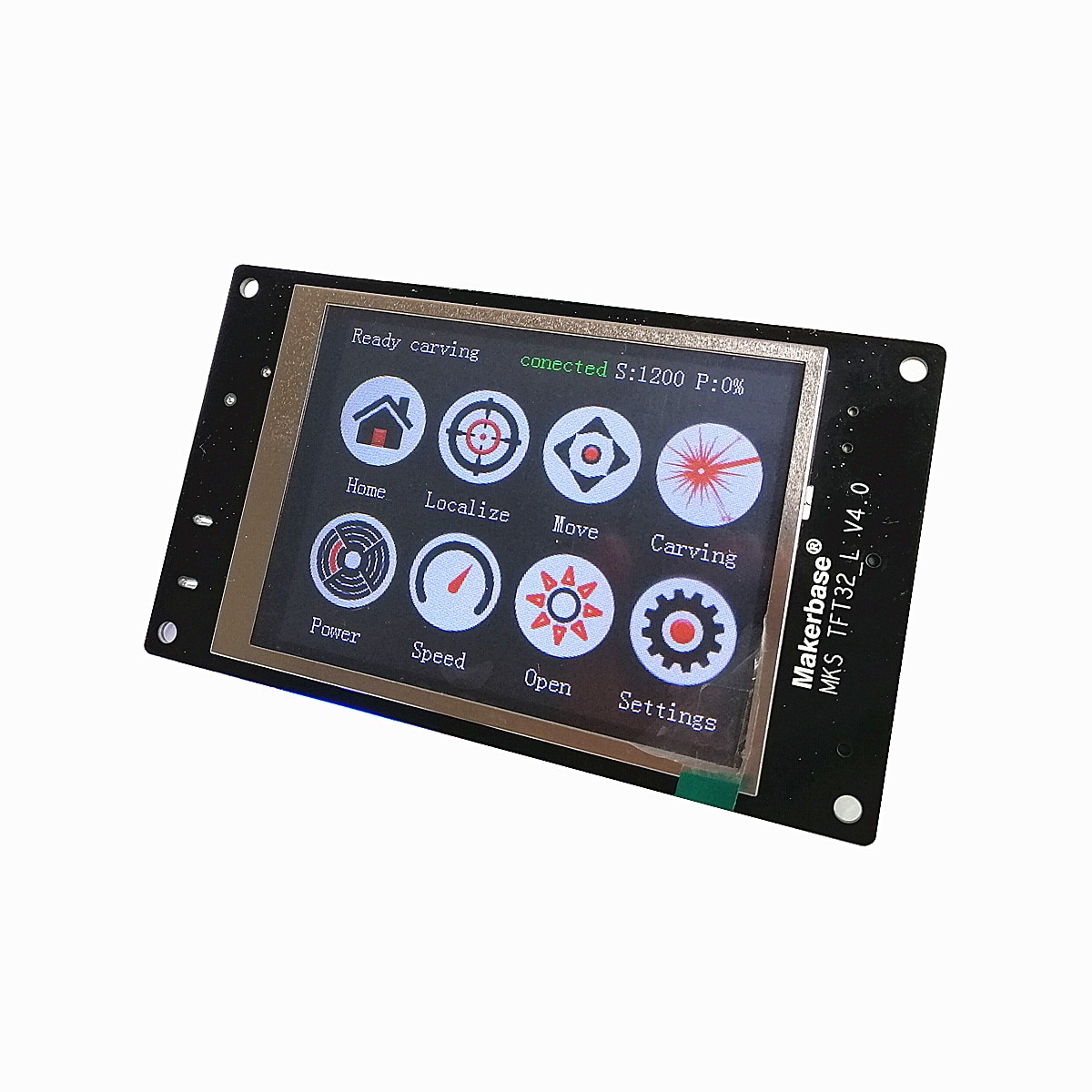

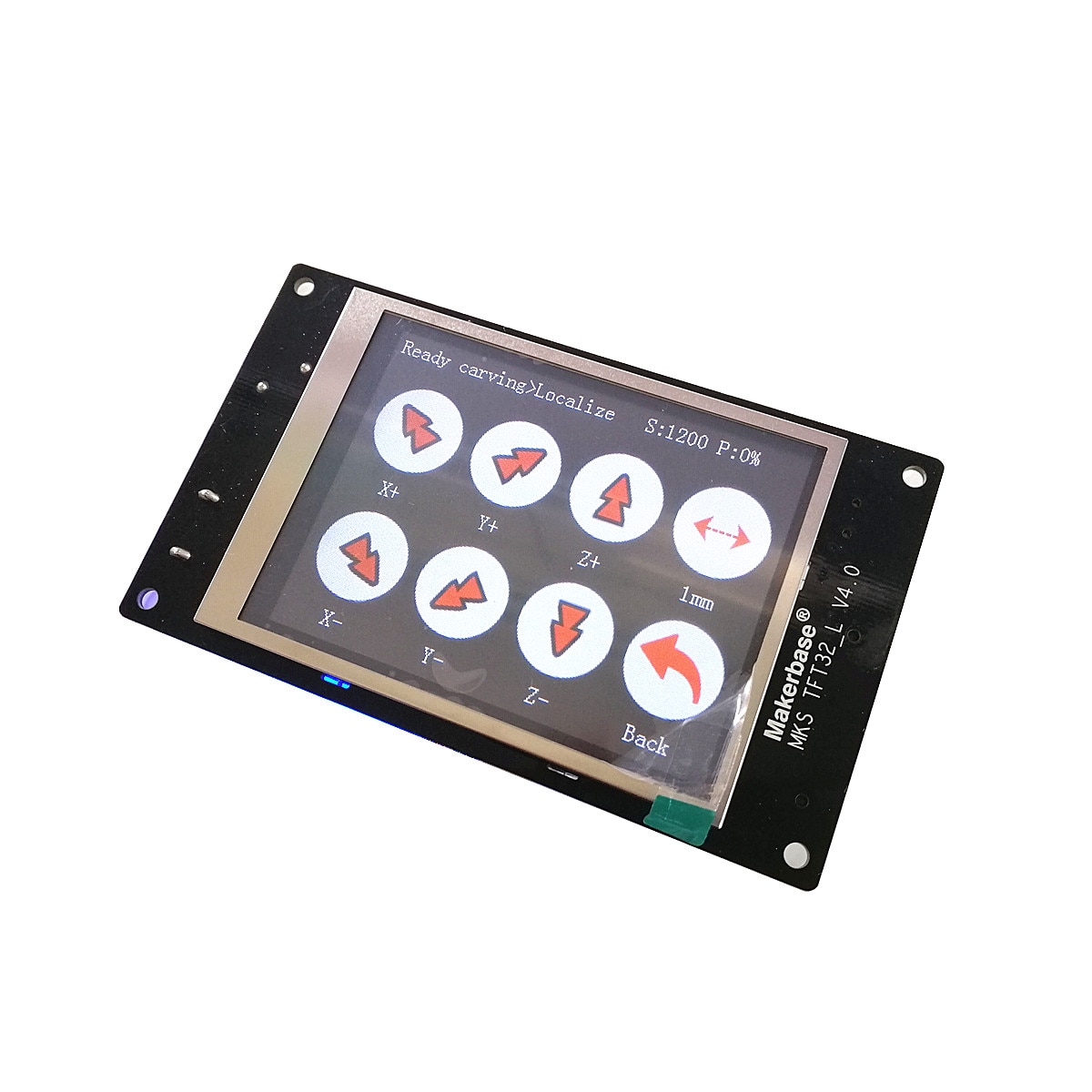

MKS TFT32 Touch Screen



Notice The wifi function is only available for 3D printer.

Wiring







Size





How to Use



1. Install Xloader to PC,upload GRBL firmware to MKS DLC mainboard.
Select baud rate 115200.



Xloader Tips









2. MKS TFT32 has  pre-uploaded firmware for 3D printer,

need to upload CNC TFT32 firmware.  Select baud rate 115200.

Copy config to SD card and plug SD card to TFT32 display.

Then put power on,it  will update  automatically.



3. After firmwares upload already,wire TFT32 to Aux-1 of MKS DLC.



4. Read G-code

   Copy G-code to SD card,plug it to the display.
