Description
- Brand Name: LanYuXuan
- Type: Hand Tool Parts
- Origin: Mainland China
- Model Number: FHO5000-T35F
- Type: OTDR
- Place of Origin: Shanghai, China
- Brand Name: Grandway
- Use: FTTx maintance
- Warranty Time: 15months free warranty
- Network: wifi, GSM, 3G, Wired LAN, None, 4g, GPRS
- Product name: FHO5000-T35F Online testing OTDR
- Dead-zone: 1/4m
- Wavelength: 1310/1550/1625nm
- Dynamic Range: 35/33/33dB
- Built-in VFL(Visual Fault Locater): Yes
- Built-in Laser source: Yes
- Optical Line Map(FLM): Yes
- Size/Weight: 253*168*73.6mm /1.5kg (battery included)
- Battery: Lithium Battery
- Certification: CE RoHs
Hello, my friend, nice to meet you, I’m cici from China！
In order to better answer your questions, please tell me your specific product requirements, I will reply you in time after I see the information, thank you very much！
If you need me to reply you now, you can add my whats.app+86 15674995466, thanks again! wish you a happy life！
Hot sell product
FHO5000 series OTDR
FHO3000 series OTDR
FHP12 Power meter
[Grandway ODN] FTTH 16 cores indoor & outdoor fiber Optical Spliiter Box FTB F2H-FSB-16-A
Grandway F2H-760 FTTH Tools Optical Fusion Splicer 4motors
[Grandway ODN] FTTH 24 cores indoor & outdoor fiber Optical Terminal Box FTB F2H-FTB-24-F
Product Description
Specification

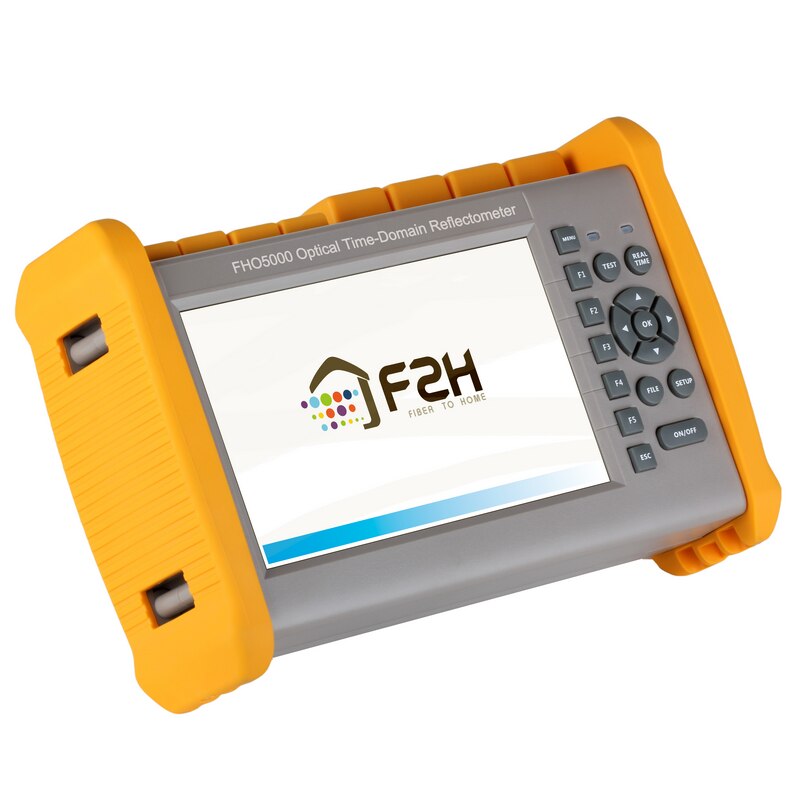

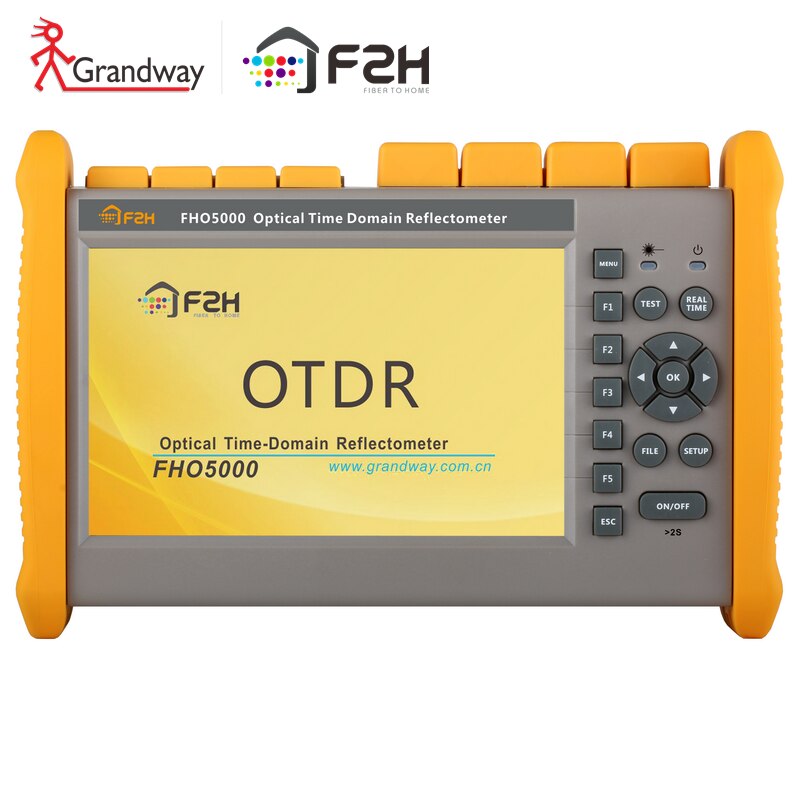

FHO5000 series OTDR is multi functional fiber testing tool.For different optical network test, multiple wavelength combinations
and dynamic ranges are available. Humanized interface and simple operation, it will be a great helper in the fiber network
testing.
Main features:
● Multiple dynamic range and wavelength combinations can be customized
and dynamic ranges are available. Humanized interface and simple operation, it will be a great helper in the fiber network
testing.
Main features:
● Multiple dynamic range and wavelength combinations can be customized
● Support pass through 1×64 splitters
● With online light alarm function
● With online light alarm function
● FLM (Fiber Link Map ) function, icon display fiber events
● Remote control on PC software is available
● Multi languages selection
● Remote control on PC software is available
● Multi languages selection
|
Model Number
|
FHO5000-T35F
|
|
Wavelength
|
1310/1550/1625nm
|
|
Dynamic Range
|
35/33/33dB
|
|
Dead-zone
|
0.8/4m
|
|
Pulse Width
|
SM: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1us, 2us, 5us, 10us, 20us
|
|
MM: 850nm: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1us
1300nm: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1us, 2us |
|
|
Distance range
|
SM: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km
|
|
MM:
850nm：500m，2km，5km，10km
1300nm：500m，2km，5km，10km，20km，40km，80km |
|
|
Sampling Resolution
|
Min 0.05m
|
|
Sampling Points
|
Max 128,000
|
|
Linearity
|
≤0.05dB/dB
|
|
Loss Threshold
|
0.01dB
|
|
Distance Resolution
|
0.01m
|
|
Loss Resolution
|
0.001dB
|
|
IOR
|
1.2000~1.7000
|
|
Distance Accuracy
|
±(1m+test distance×3×10-5+sampling resolution) (excluding IOR uncertainty)
|
|
Memory Capacity
|
80,000 groups curve
|
|
VFL
|
10mW，CW/2Hz
|
|
OPM
|
Calibrated wavelength：850/1300/1310/1490/1550/1625/1650nm
Test range：-60~+5dBm |
|

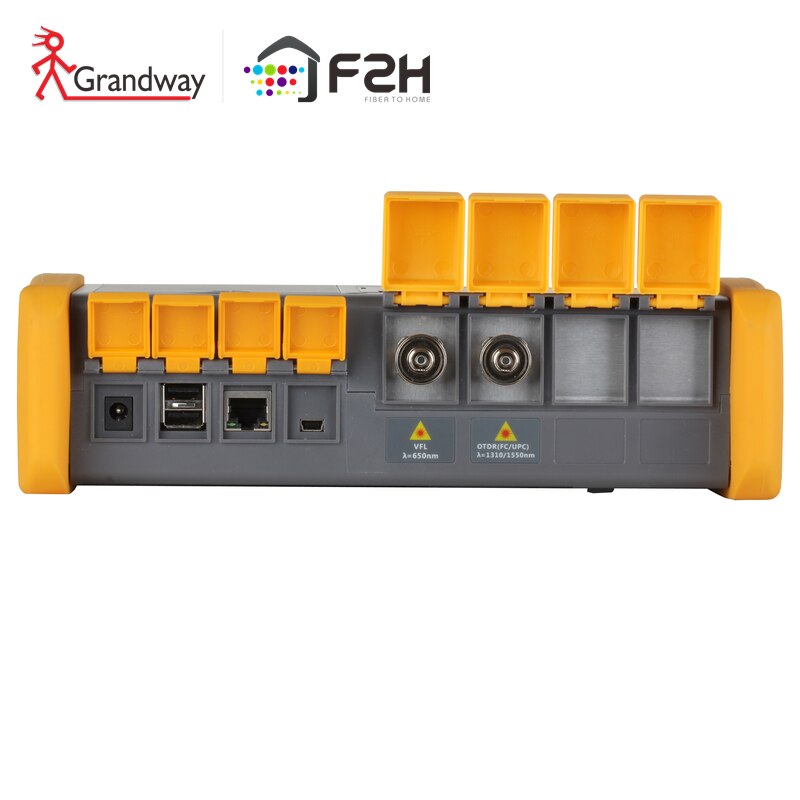

Interface
|
1*RJ-45, 3*USB (Type A×2, Type B×1)
|
|
Display
|
7-inch TFT-LCD (touch screen is optional)
|
|
Battery
|
7.4V/4.4Ah lithium battery (with air traffic certification)
|
|
Humidity
|
≤95% (No-condensation)
|
|
Dimension/Weight
|
253×168×73.5mm / 1.5kg (with battery)
|
|

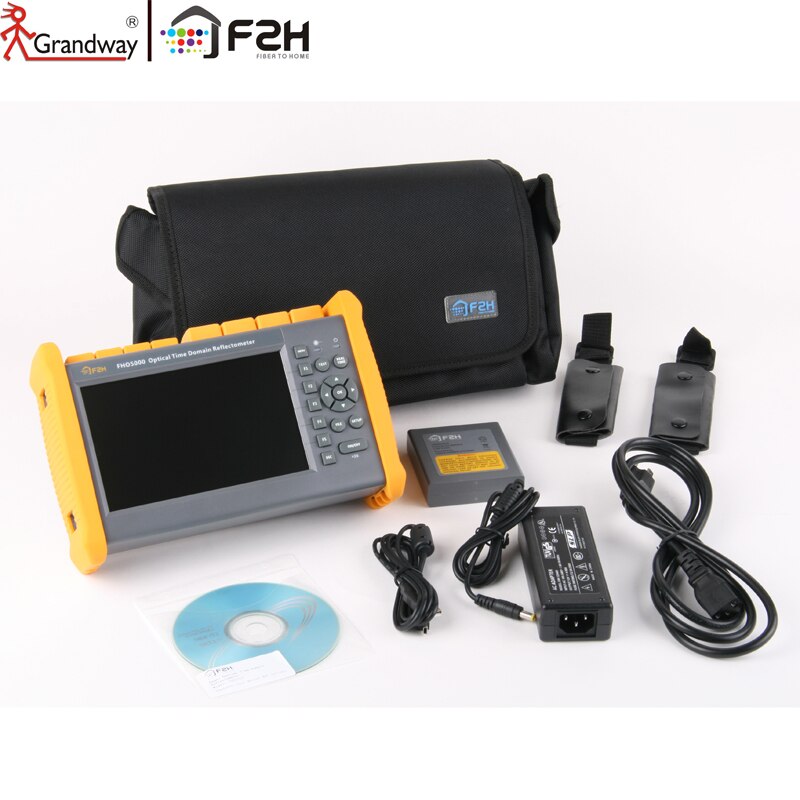

Accessories
|
Power adapter, Charge cord, Lithium battery, FC adapter, USB cable, Quick guide, Test report, CD, Carrying bag, Wrist strap
|
|
Optional
|
SC/LC adapter, Fiber microscope, Launch cable box
|
