Description

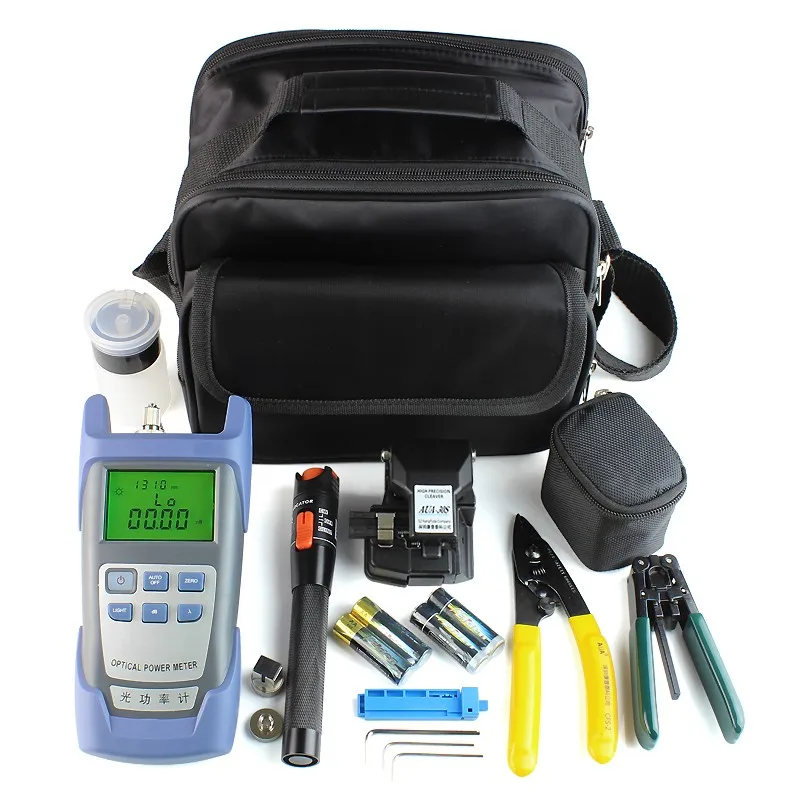

19 in 1 fiber optic FTTH tool kit with HS-30 Fiber Cleaver and optical power meter 10mW Visual Fault Locator Wire Stripper Free Shipping
Product attributes
Set list:

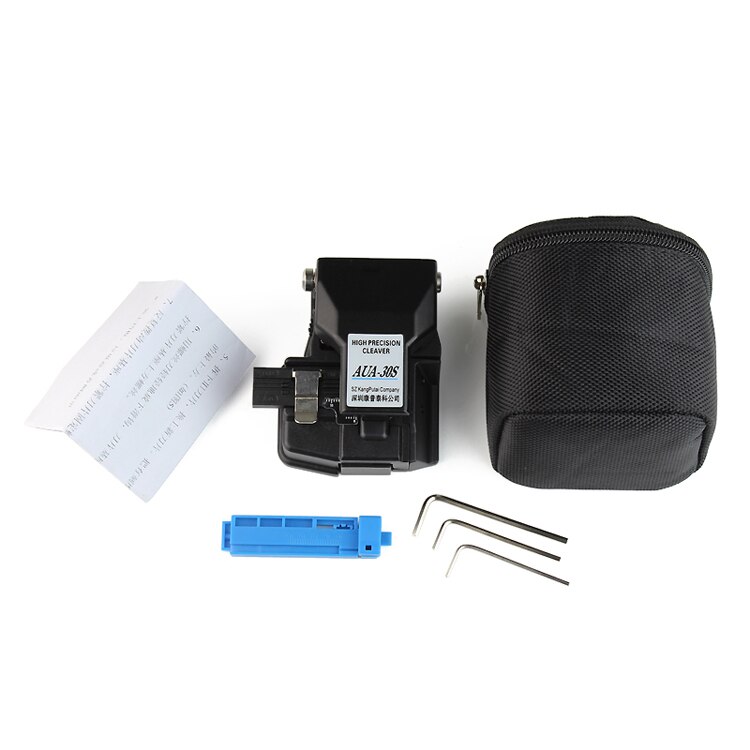

1. HS-30S high precision metal cutter knife back automatically (General purpose hot melt cold!)
2. Hexagon large spatula
3 Allen notes knife
4. Allen minor knife
5. The cutter bags
6. AUA-9 high-precision optical power
7. The optical power adapter sc
8. The optical power fc adapter
10 km 9. The metal shell red pen
10. The red pen bag
11. The red pen lanyard
12. The ceramic tube
13.5 Hao batteries 4
14. Alcohol Bottle
15. Cleaning wipes
16. Combo length guide rail strip
17.AUA Miller clamp

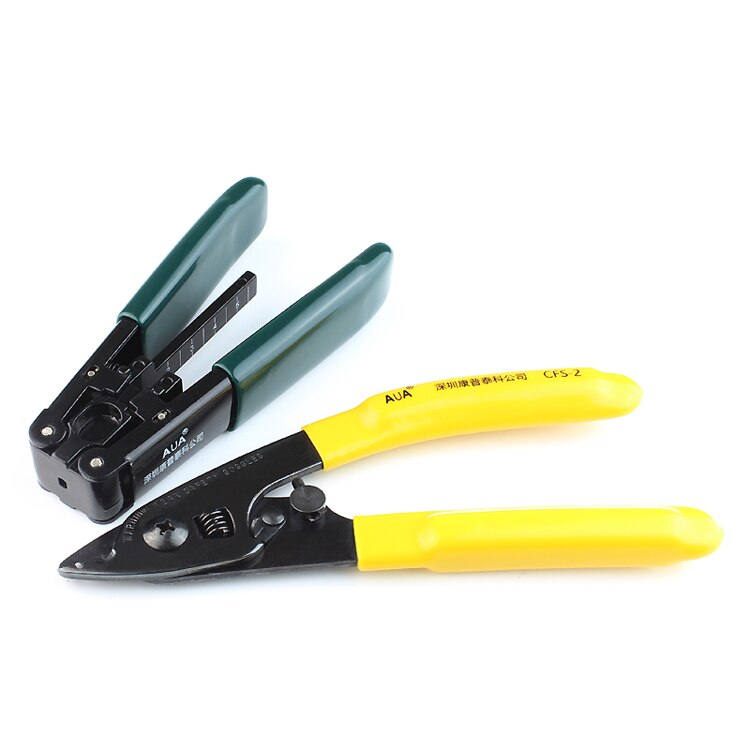

18.AUA covered wire stripping device

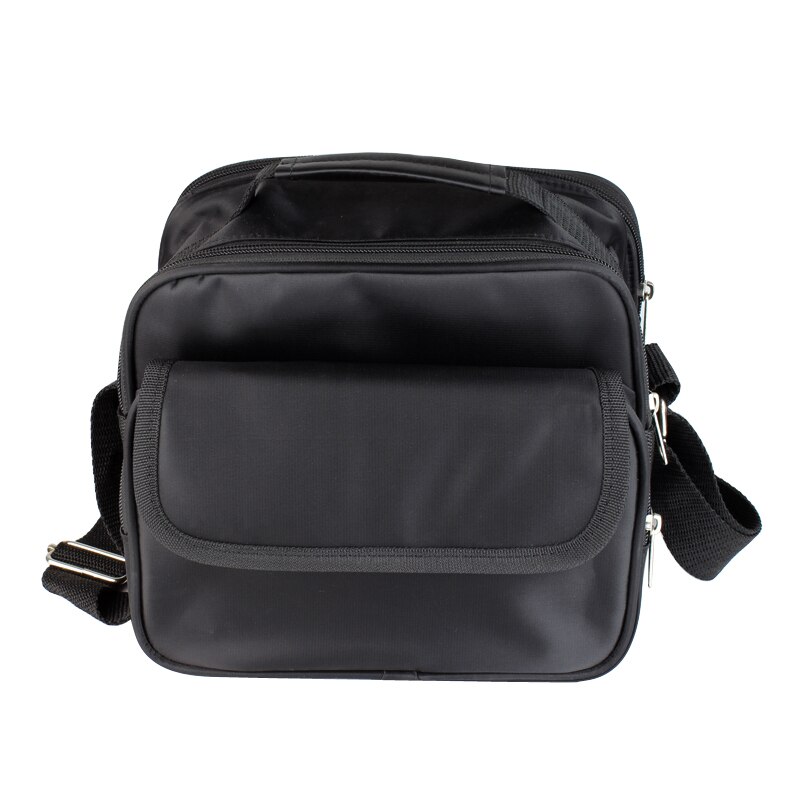

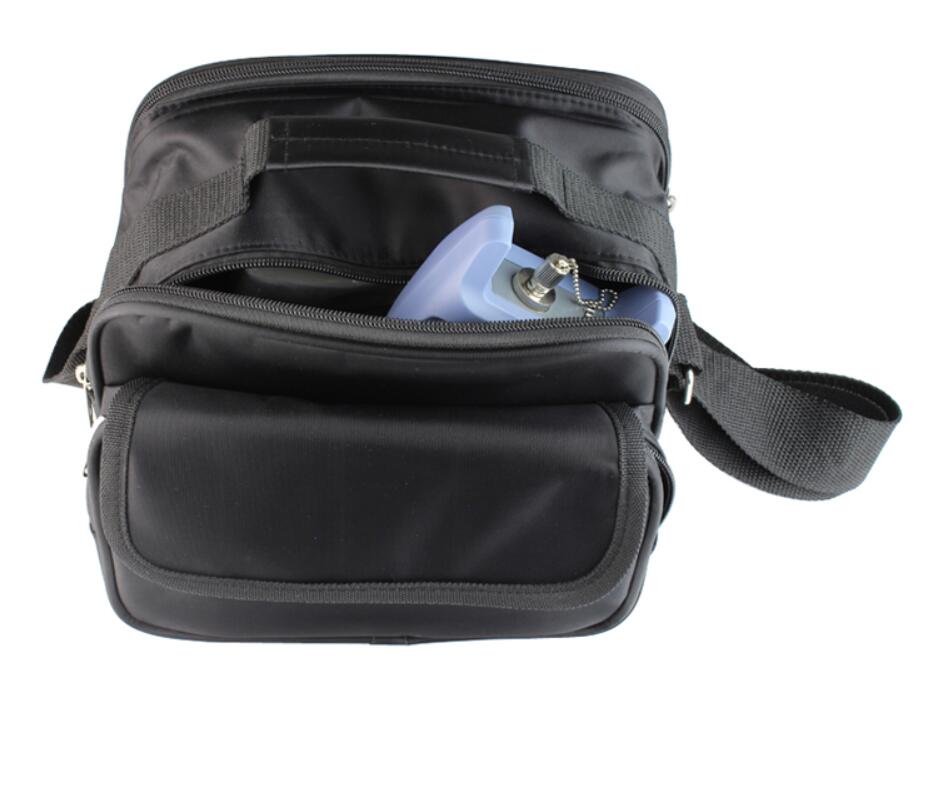

19. Upgrade kits to increase the version with a shoulder strap and handle (size 25X17X19cm)
Red Laser Fiber Optic Cable Tester
1, the technical indicators:
Source wavelength: 650 ± 10nm
Applicable fibers: sm, mm
Single-mode output power: 10 mW
Power supply: two AA batteries
Continuous power working time: ≥ 20 M
Operating temperature: 10-60 (non-condensing)
Storage temperature: -40-85
Body material: aluminum
Dimensions: 170 * 24 mm (excluding interfaces)
Weight: 160 g (without batteries)

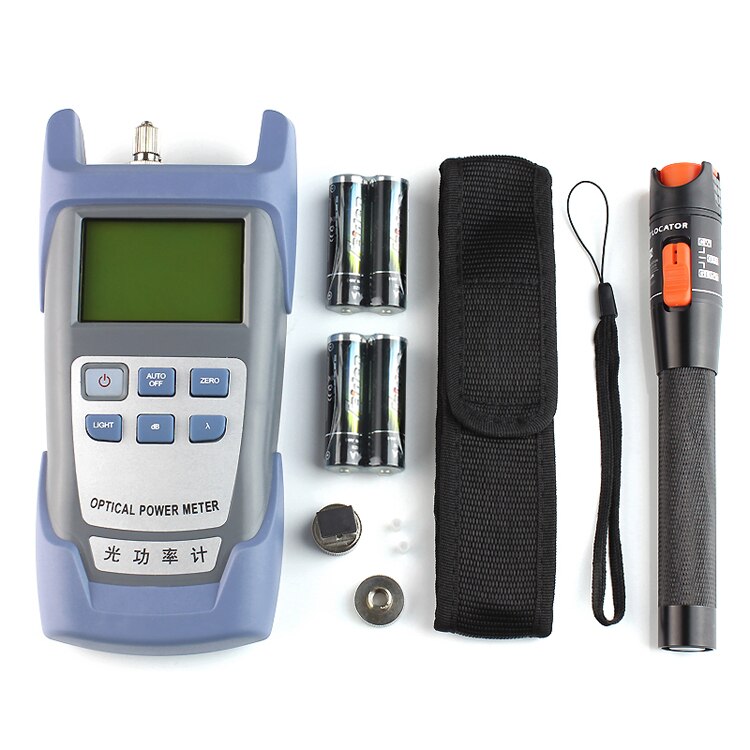

Optical power meter
Type: A, B
Wavelength range: 800-1700
Connector: fc / sc
Probe type: InGaAs
Power measuring range: -70 to + 3, -50 ~ + 26
Uncertainty: ± 5%
Standard wavelength (nm): 850 980, 1300.1310, 1490.1550
Screen resolution: linear display: 0.1% of viewfinder number: 0.01dBm
Operating temperature: -10 ~ + 60
Storage temperature: -25 ~ + 70
Sleep time (min): 10
Battery operating time (h): 240
Dimensions (mm) 172 × 82 × 33
Power: 5 batteries x2
Weight (g): 450 g
2.5mm Universal connector for 1.25mm connectors, FC (male) -lc (female) convertor can be provided on request.
It works on both CW and pulsed
Constant output power
Low Battery Warning
Long battery life (up to 60horas)
Shock-proof and dust-proof design for laser head
Laser case ground design prevents ESD damage
Burning T tests all this ensures reliability
Portable and rugged, easy to use
High reliability
Good performance cleavage
Maximum of 12 fiber Coun
36,000 Cleave by blad
2.Pictures
