Sale!

FTTH Fiber Optic Tool Kit 12pcs/set FC-6S Fiber Cleaver -70~ 3dBm Optical Power Meter 5km Laser pointe

$60.12

SKU: 32827460427 Category:

Description



Package Includes:

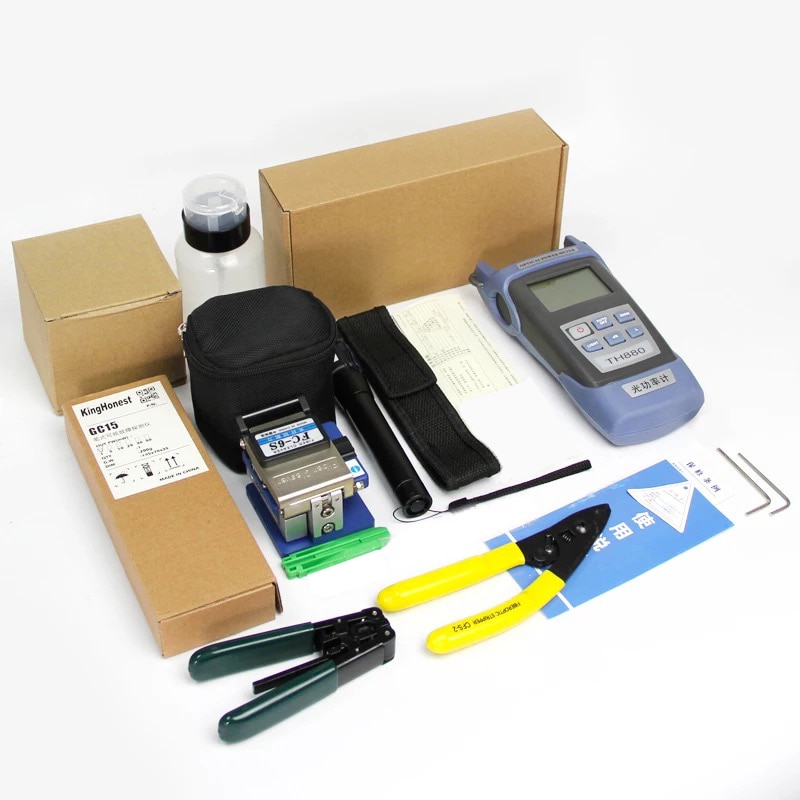

FTTH Tool Kits Accessories List

No.

Quantitypcs

Product

1

1

Carrying Bag of whole kits

2

1

Optical Power Meter

3

1

SC transfer connector for power meter

4

1

Protected Bag for Locator

5

1

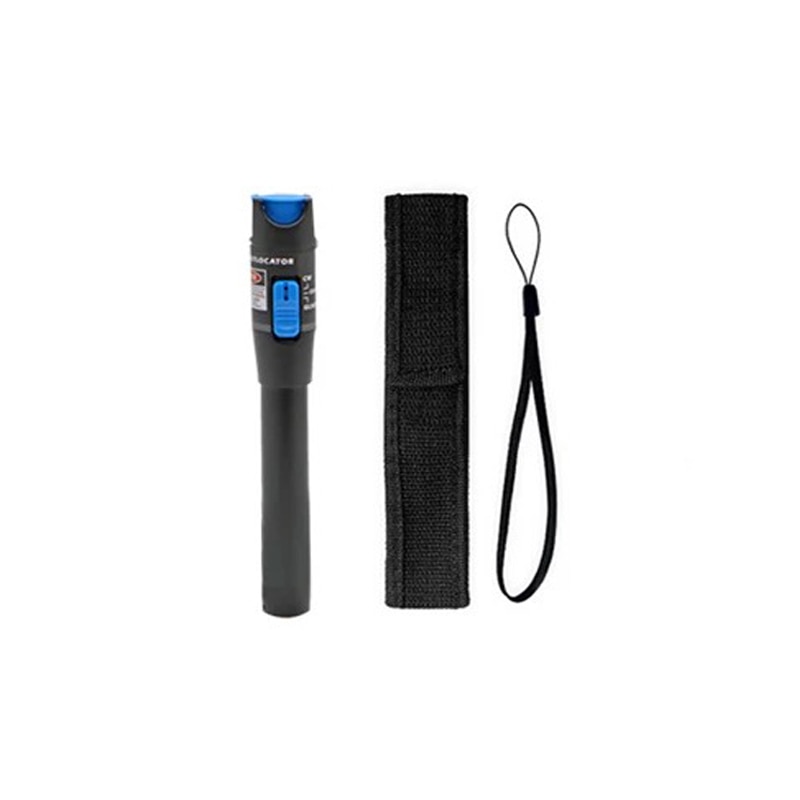

1mw Laser pointer Visual Fault Locator 5km

6

1

Fiber Cleaver FC-6S

7

1

Bag for cleaver

8

1

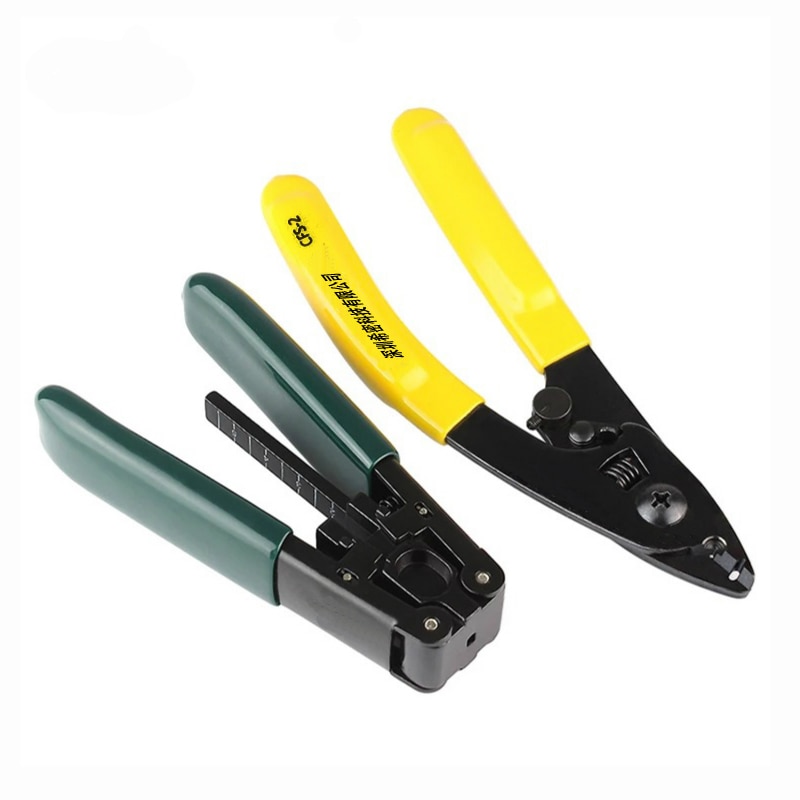

CFS-2 Fiber Optic Cable Stripper

9

1

FTTH Drop Cable Stripper

10

1

Alcohol bottle

11

1

Fixed length rail

12

3

Small Allen Wrench



FTTH Fiber Optic Tool Kit

Visual Fault Locator Specification



Type

Data

Output Power

>1mW 5KM

Wavlength

650nm

2Hz

Yes

Connetor

Universal Connector

Battery

AA2

Storage Temperature

-20—+70

Working Temperature

-10—+60

Laser Type

LD

Weight

178g

Dimensions

168mm27mm

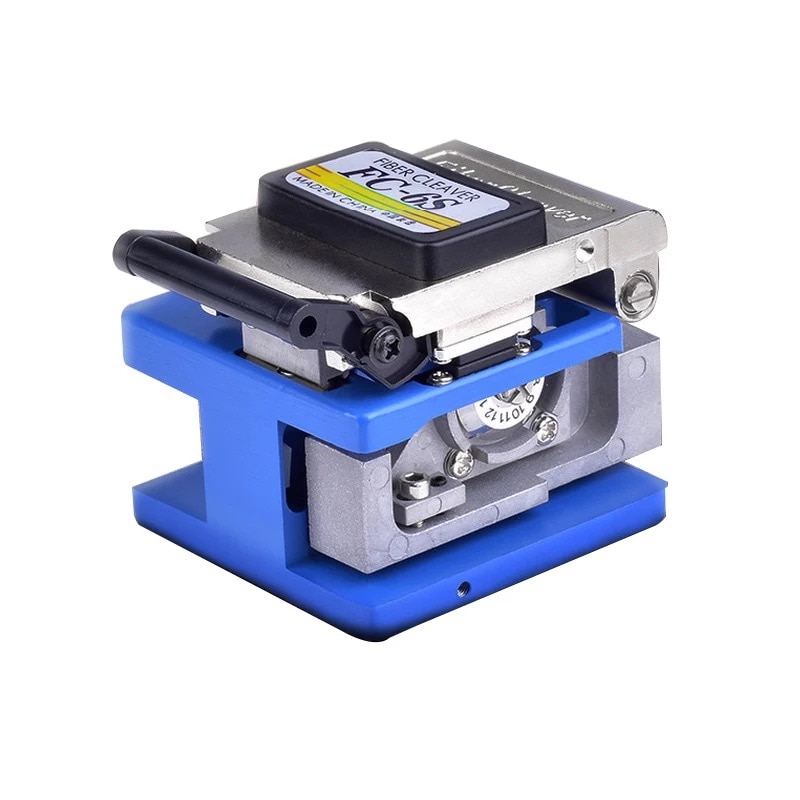

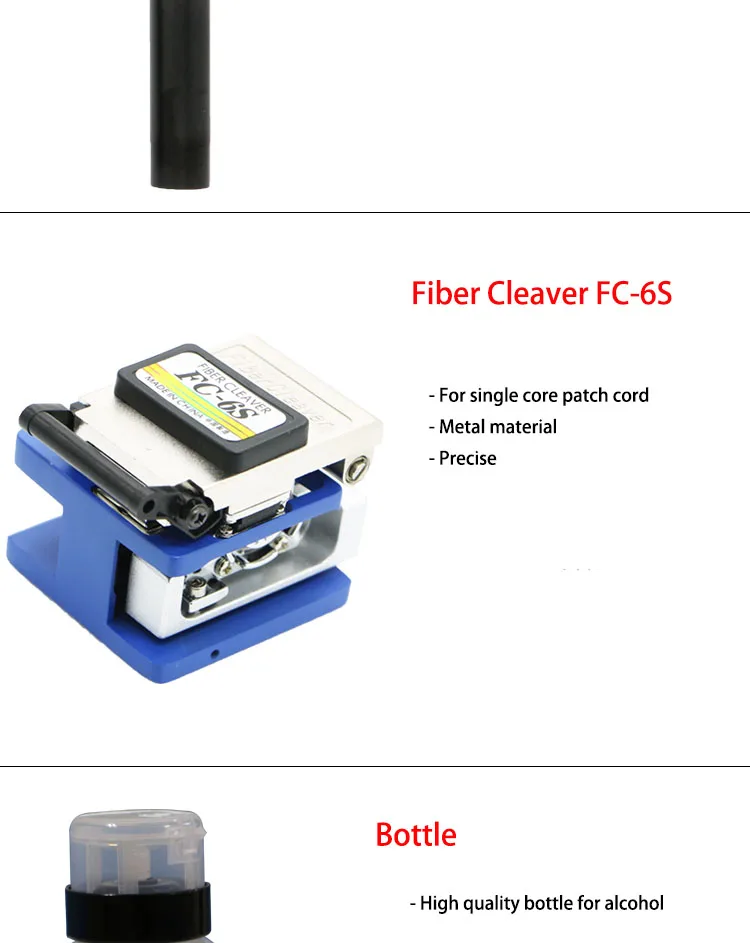

FC-6S Fiber Cleaver



Specification

Model

FC-6S Optical Fiber Cleaver

Applicable fibers

Singlemode

Fiber Diameter

125um

Coating Diameter

250um ~ 900um

Typical Cleave Angle

Within 1 Degrees

Cleave Length

9 – 18mm (Single Fiber – 0.25mm Coating)
10 – 18mm (Single Fiber – 0.9mm Coating)

Blade Life Time

36,000 cleaves (3,000 per blade position)

Cleaver Dimensions

63 x 68x 63mm

Weight

380g
