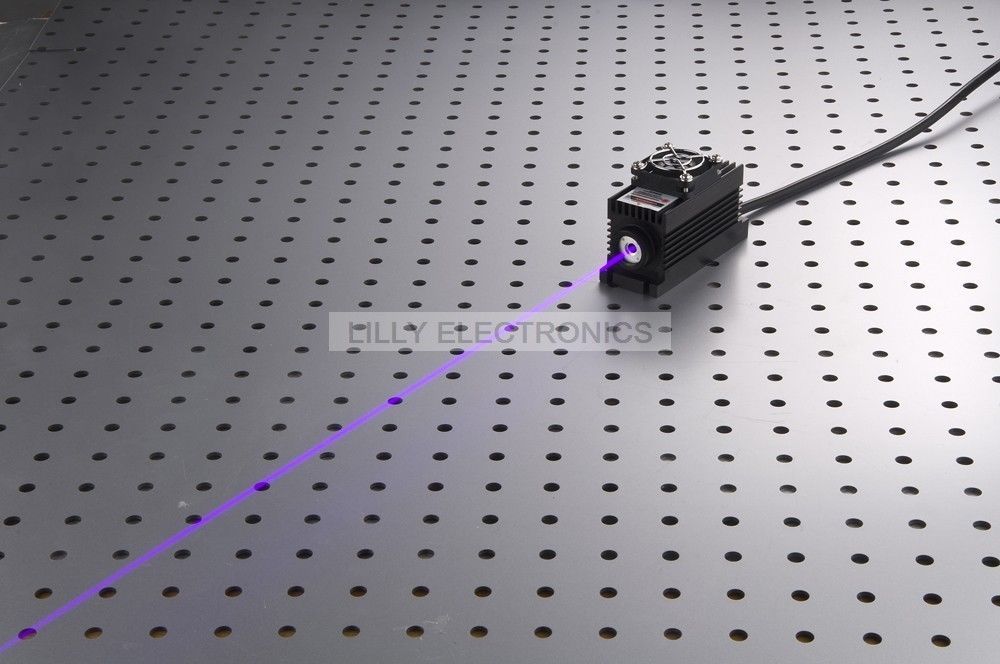

100mW 405nm Violet Laser Dot Module + TTL/Analog 0-30KHZ + TEC Cooling + 85-265V
Specifications:
.
.
| Model No. | LSR405NL |
| Wavelength | 405±5 nm |
| Spatial Mode | TEM00 |
| Output Power | 100mW |
| Operation Mode | CW or Modulation |
| Modulation | 0~30khz Analog or TTL(Optional, note to us which one you need, we will ship Analog one as default) |
| Pointing Stability | <0.05 mrad |
| Height | 25mm |
| Beam Diameter(1/e2) | 4 mm |
| Beam Divergence(full angle) | 0.5 mrad |
| Power Stability | <3% over 4 hrs |
| Cooing Method | TEC (can work long time ) |
| Warm Up Time | <2 minute |
| MTTF | 10,000 hrs |
| Working Temp | 20-30degree |

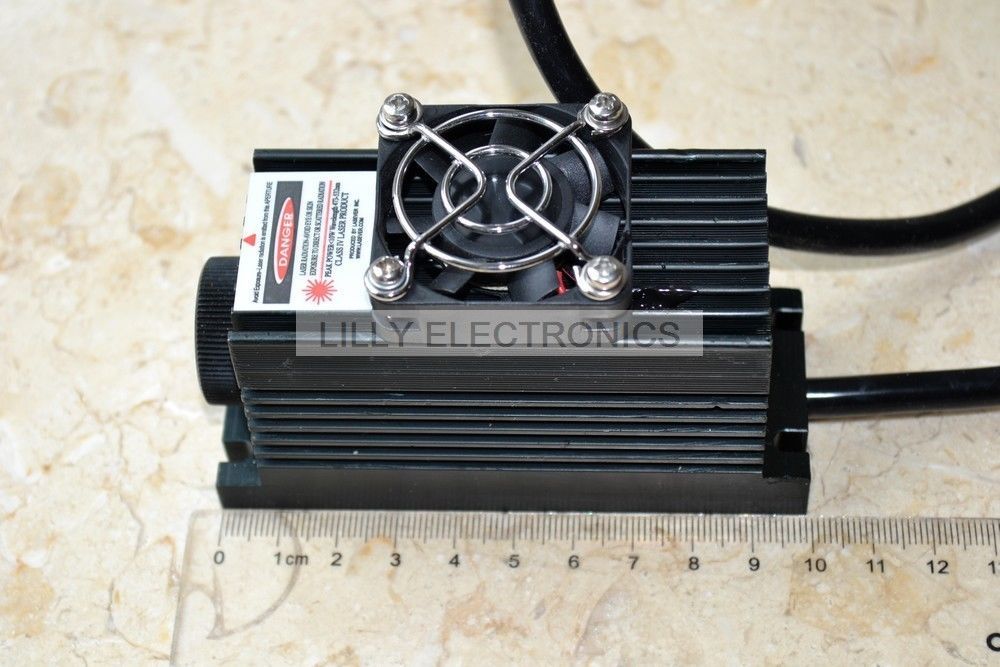

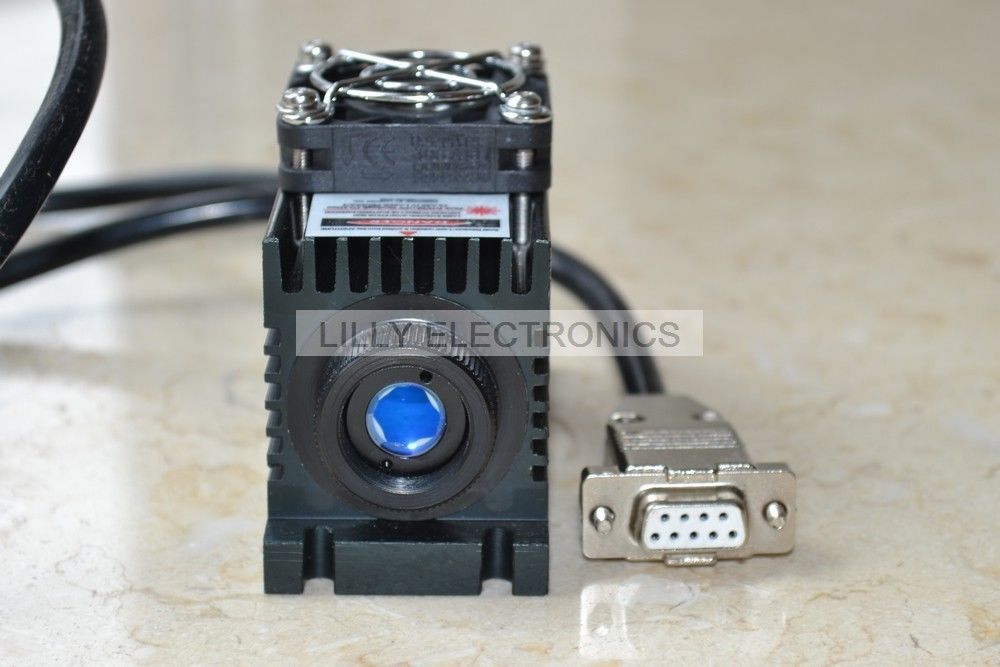

| Laser head dimensions |
100(L)x40(W)x50(H)mm3 (fan adds 15mm height) |

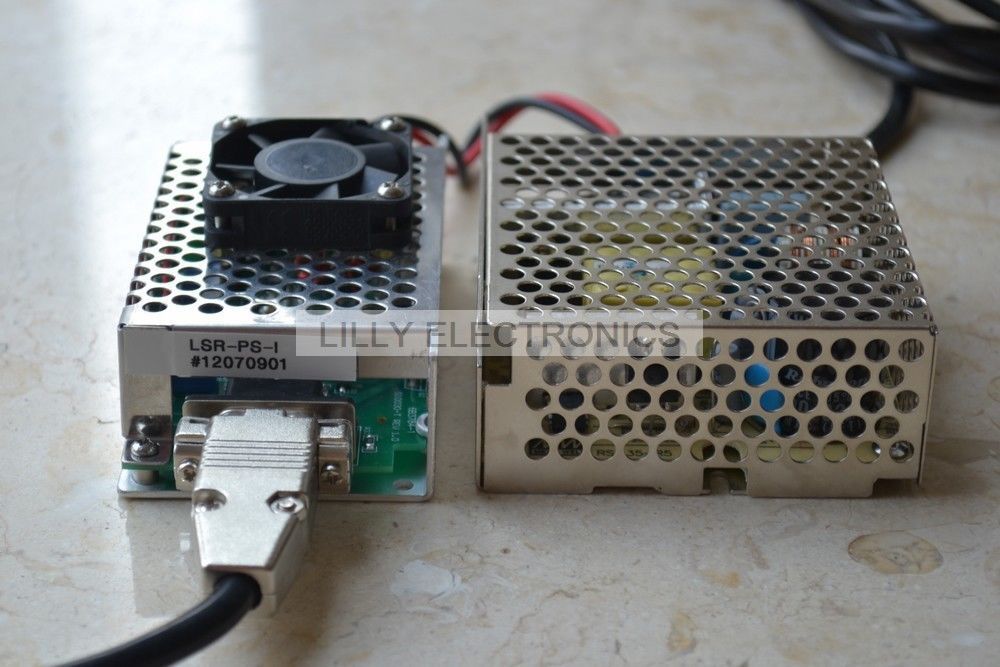

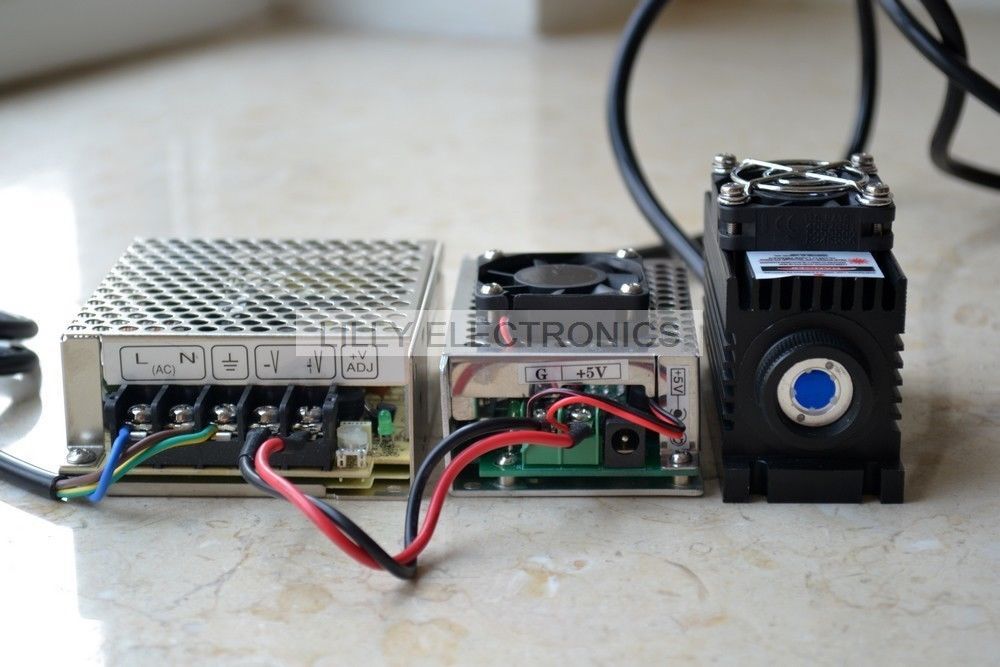

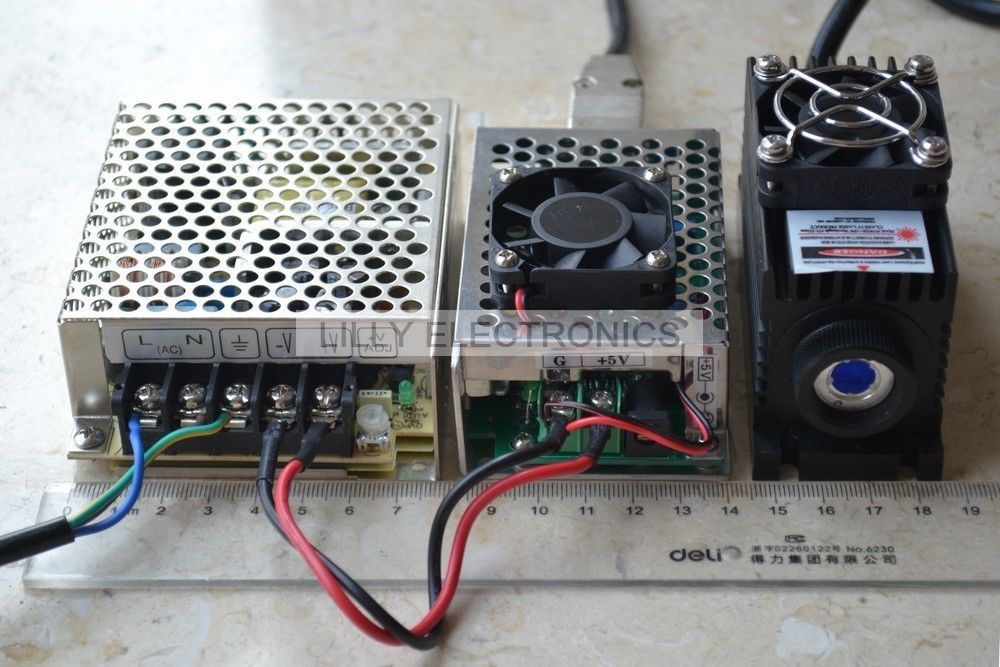

| Power Supply (Optional, note to us which one you need, choose B or C type for addtional cost as below. We will ship Power supply A type as default) | A. OEM type
LSR-PS-I:100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input |
| B. Lab type
LSR-PS-IIS: 104(W)x128(D)x89(H)mm3 85~265V 50/60Hz input |
|
| C. Lab Adjustable type
LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input |
Warranty
1 Year
A. OEM type power supply LSR-PS-I+5V PSU (The power supply type in the bid)
B. Lab type power supply LSR-PS-IIS (For additional cost of $35)
C. Lab Adjustable power supply LSR-PS-II (For additional cost of $60)
Application:
Laser show
Display
Laser Alignment
Scanning Biochemistry
Material Inspection Lidar
Pakage:
1 X 100mW 405nm Violet Laser Dot Module + TTL/Analog 0-30KHZ + TEC Cooling + 85-265V
