Description

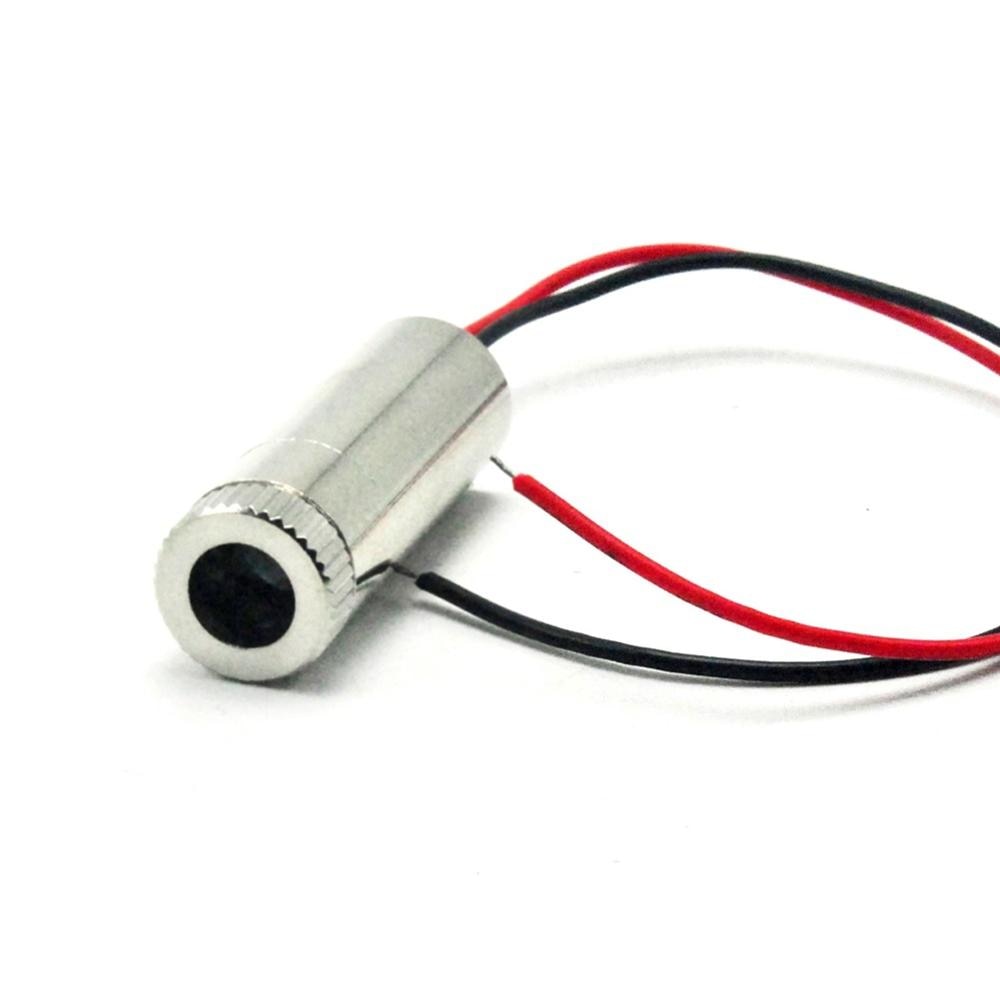

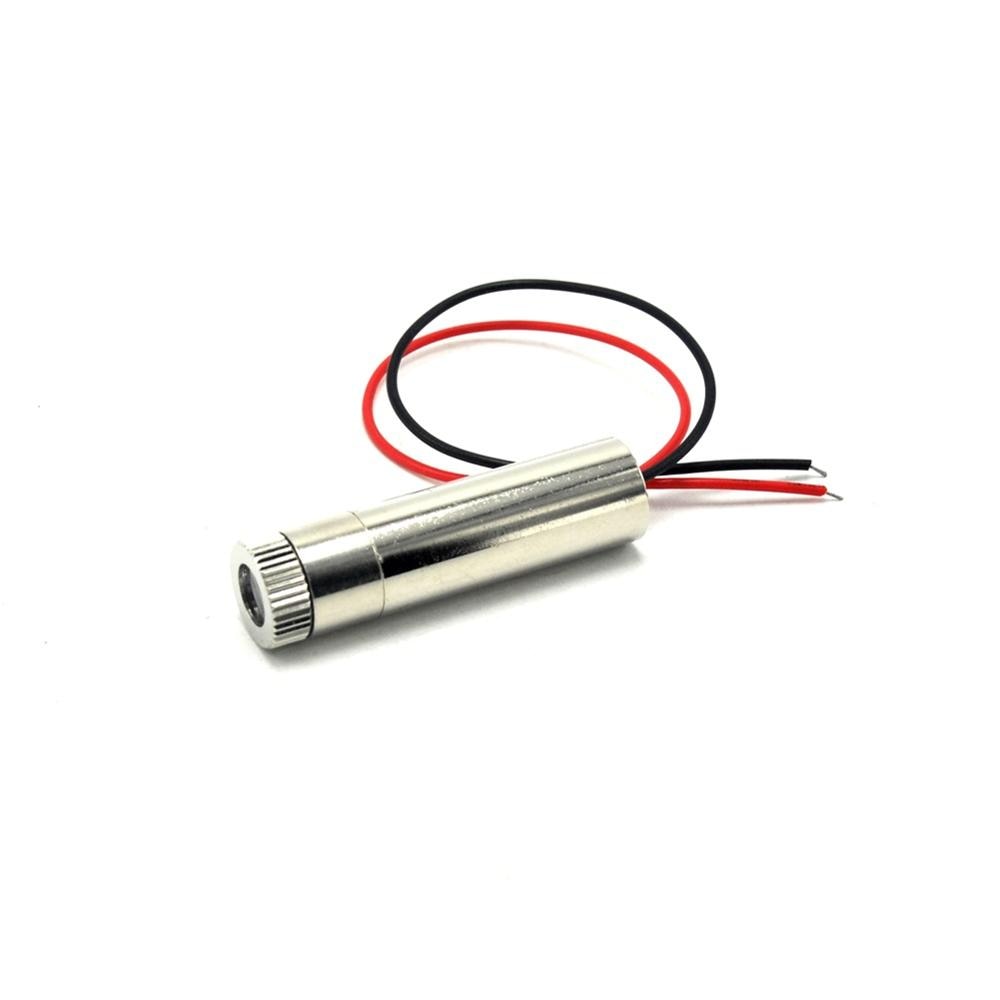

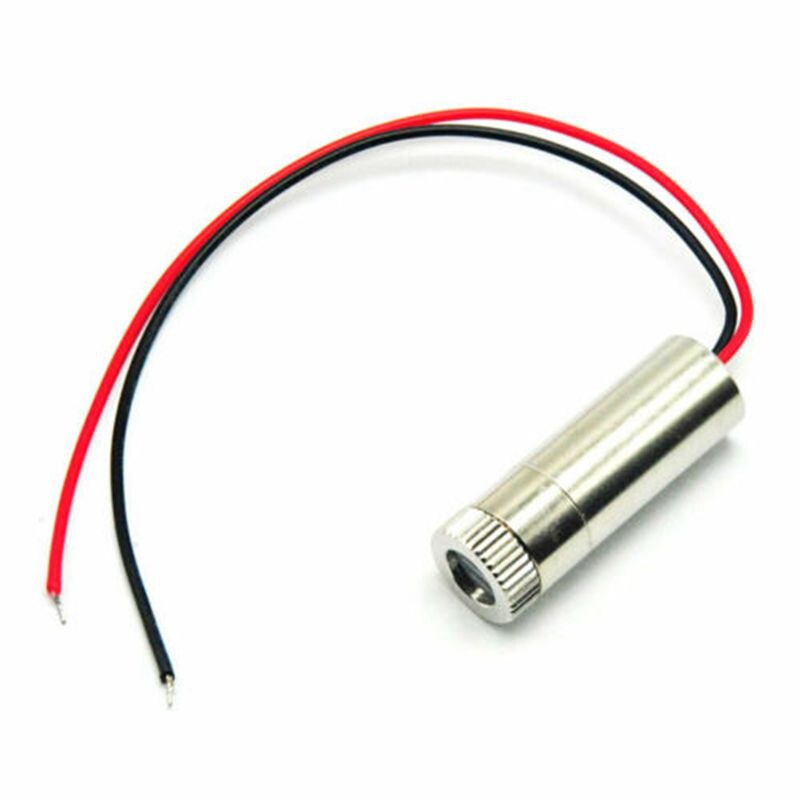

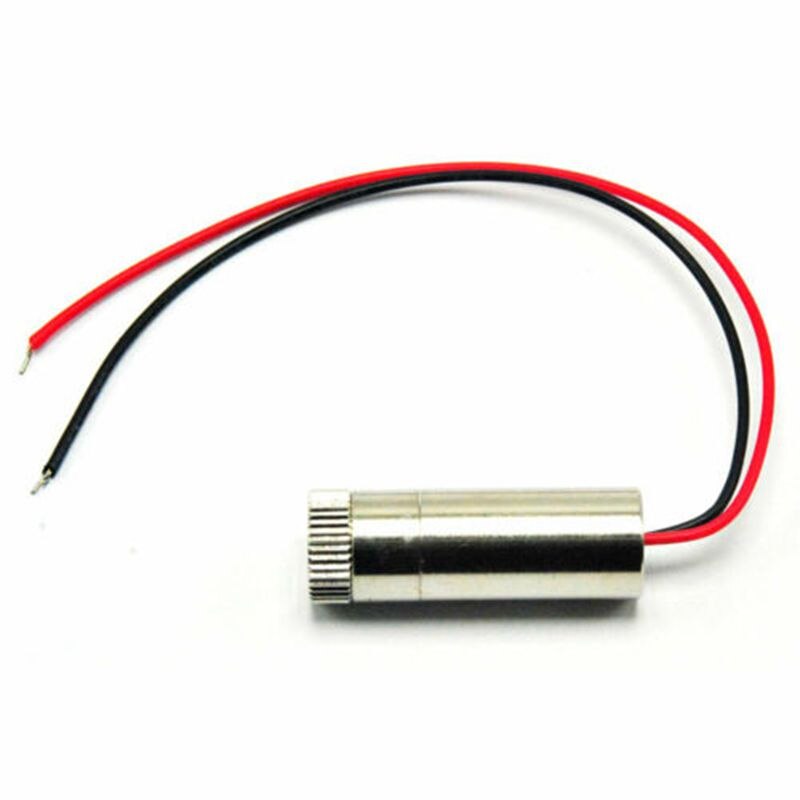

Focusable 810nm 25mW Near-Infrared IR Diode Module w 120 Degree Lens 12x35mm
Parameters
Wavelength:810nm
Output Power:25mW
Working Voltage:5V
Operating Current:I < 45mA
Working Temperature:＋15 ℃~＋35 ℃
Laser Shape:Dot/Line(120 degrees as default,or you can get a dot spot after taking off the line lens)
Focusable:Yes
Divergency:≤Φ2(mm) at 1m
Material:Metal
Dimensions:12x35mm
Wavelength:810nm
Output Power:25mW
Working Voltage:5V
Operating Current:I < 45mA
Working Temperature:＋15 ℃~＋35 ℃
Laser Shape:Dot/Line(120 degrees as default,or you can get a dot spot after taking off the line lens)
Focusable:Yes
Divergency:≤Φ2(mm) at 1m
Material:Metal
Dimensions:12x35mm
Features
This 810nm laser diode is an industrial electronic component and used for as Industrial testament, Lab, DIY.
It is precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
Please avoid eye contact and wear 810nm protection goggles when you work on it.Thanks
Package
Focusable 810nm 25mw Near-Infrared IR Diode Laser Line Module 12x35mm Lazers w Driver In
