Description

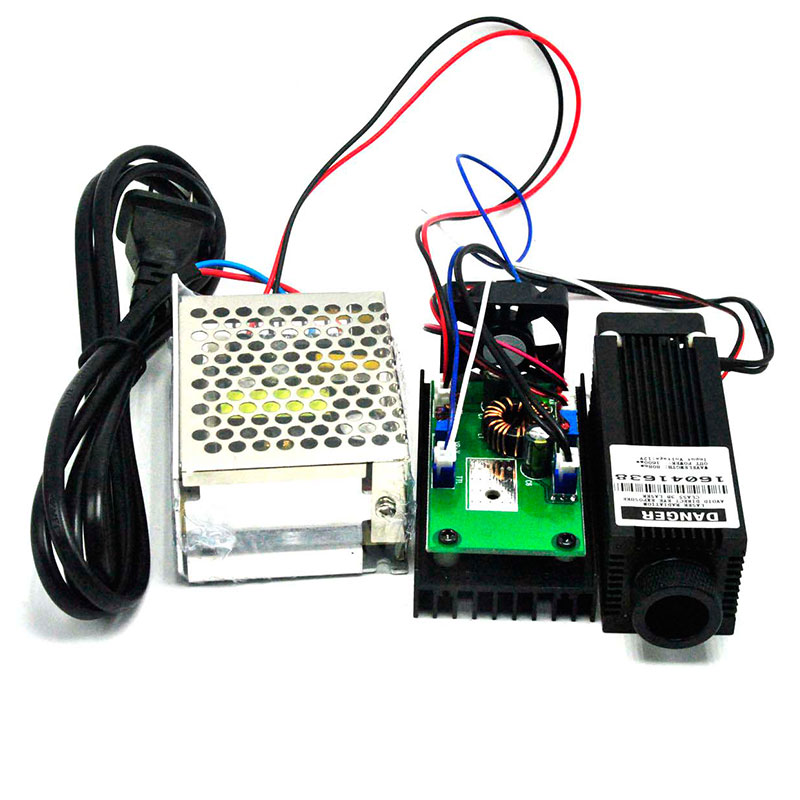

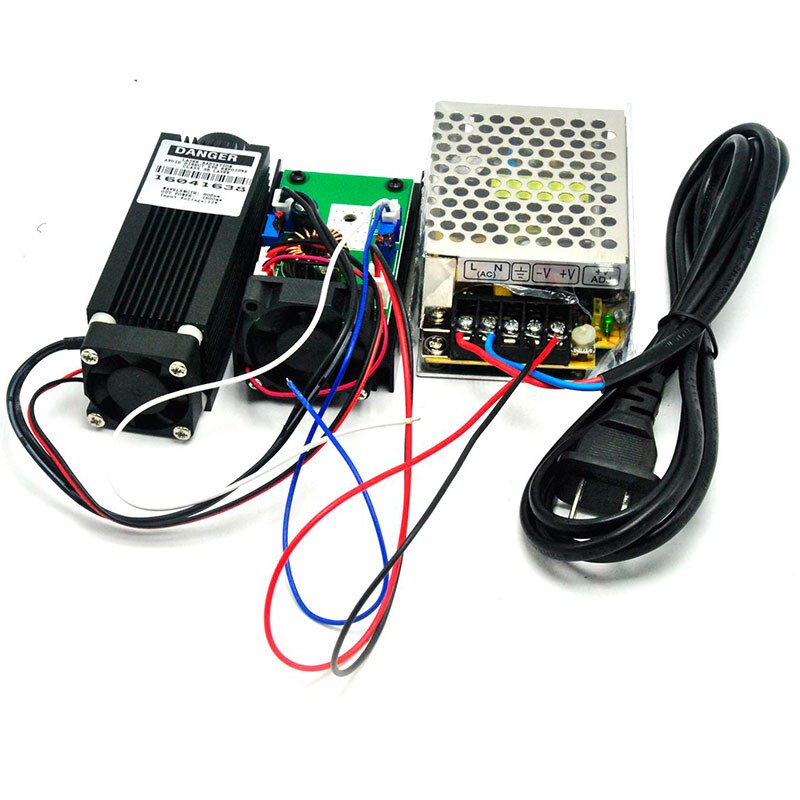

Focusable 800mW 980nm Infrared Focus Dot Laser Module w 2000mW Diode TTL & 12V Power Supply
Parameters
Wavelength 980nm
LD 980nm 1000MW
Working Voltage 12VDC
Working Current 1.35A +-15%
Working Temperature -10℃- 30℃
TTL >20KHz
Laser Shape:dot(The spot can be adjusted from rectangle to oval)
Divergence 5mrad
Focusable YES
Lens Glass
Dimensions 33*33*80mm
Working Life >5000 Hours
Features
1. This laser module can work for a long time with cooling fan.But please make sure to keep the laser working under 30℃.
2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 3-5V on, 0V off. If you don’t use TTL, please just leave the blue and white wire.
3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.
4. There is a potentiometer on the driver. You can turn it to adjust the power of the laser. Turn Clockwise to increase the laser power. Otherwise to decease the power. But the current can not surpass the current we have set up.
5. Please wear 980nm laser protection goggles to protect your eyes when working on this module.
