Description
Specifications:
Wavelength: 635nm
Power: 10mW
Lens: glass
Pattern: Dot /30° Line/Cross
Fixed focal length: 20-30cm
Working voltage: 5VDC
Working current: <40mA
Dimension: D = 10 mm L = 30 mm
Working temperature: -40 ~~ 75 degrees Celsius
Laser level: 3B (please note that the laser above 10mw should not be directly with the naked eye)

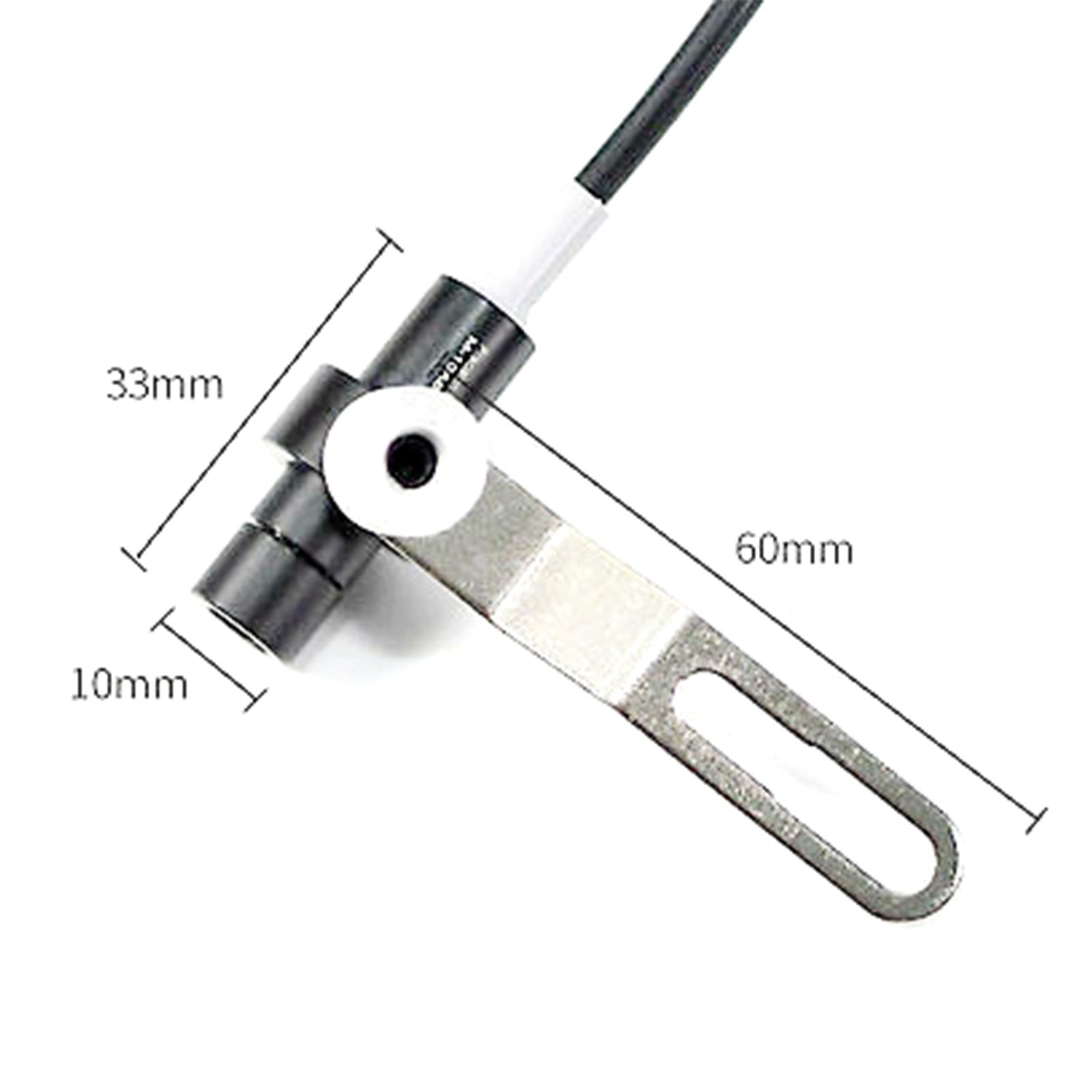

Size: 10 * 33 mm
Specifications:

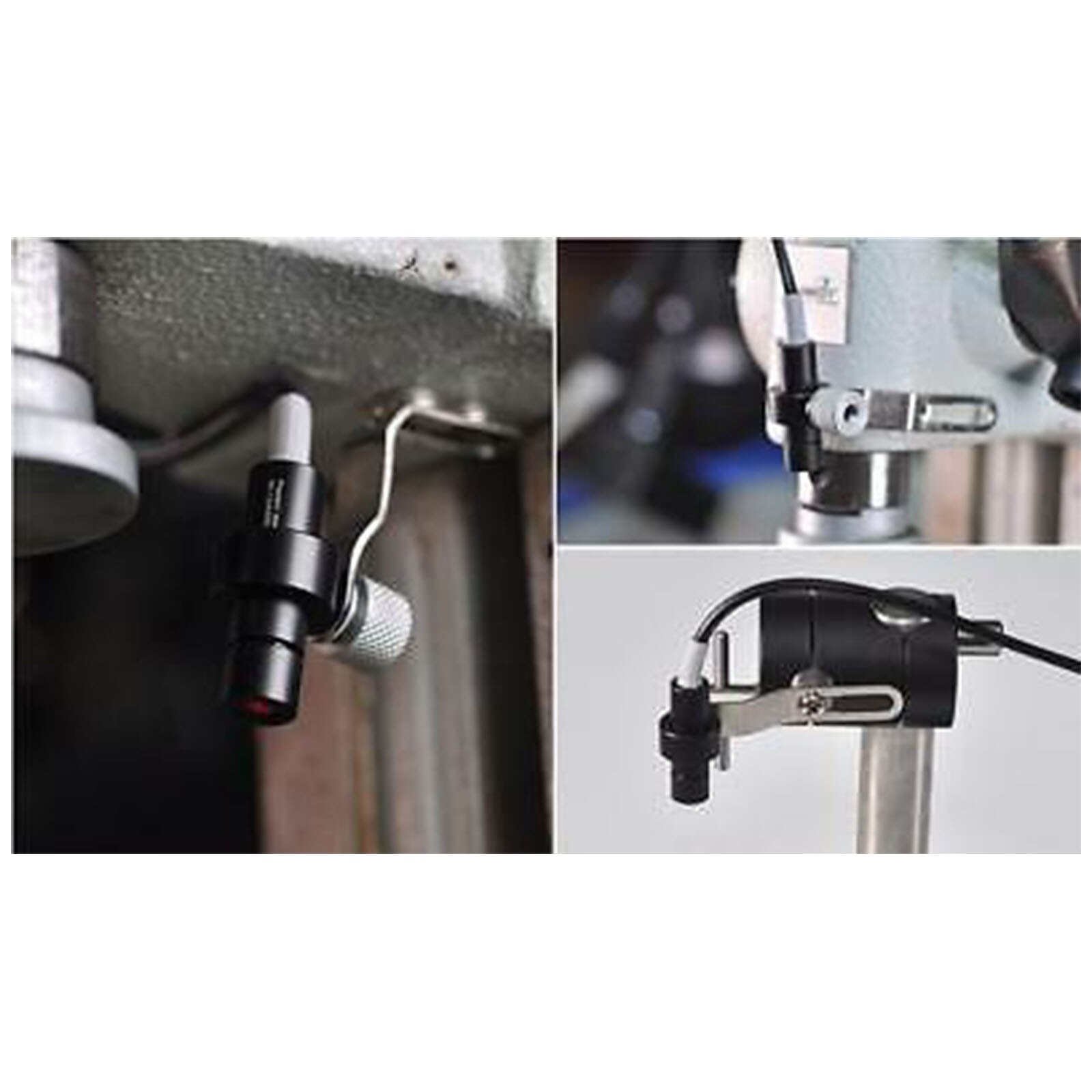

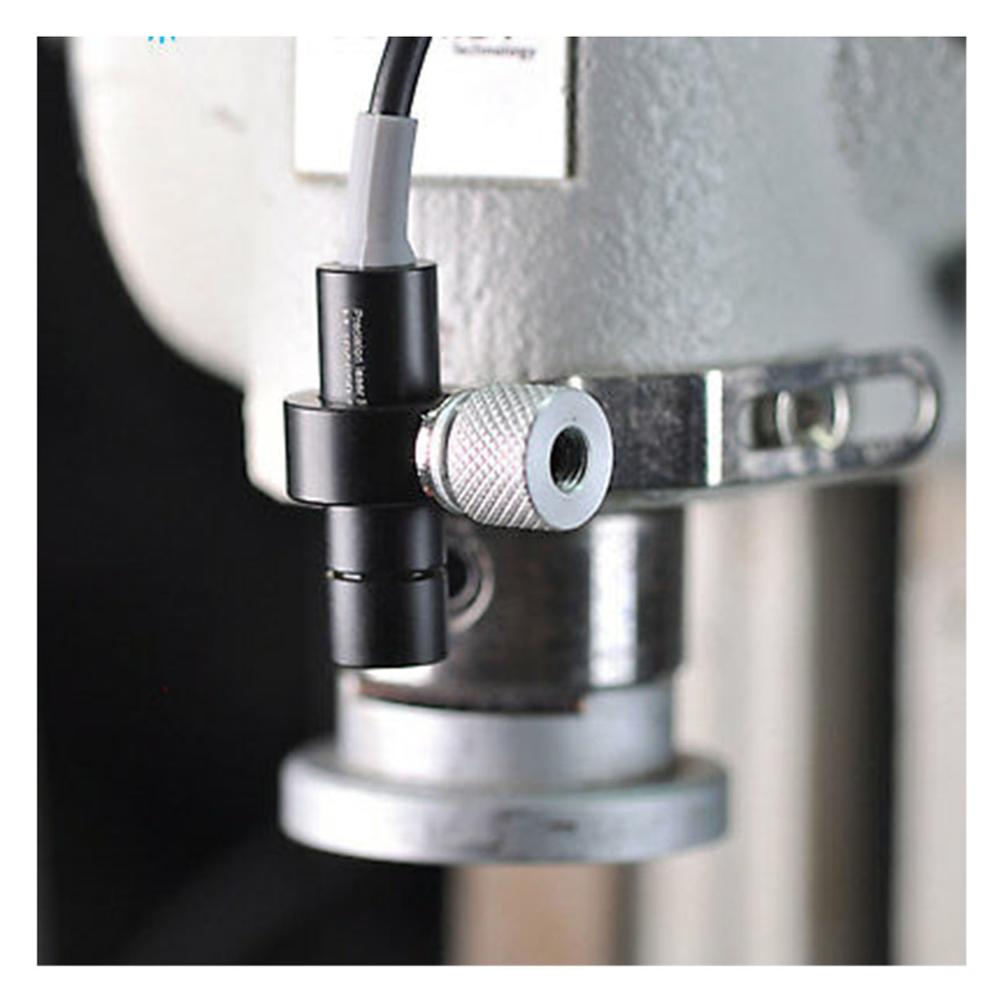

It is usually used to locate targets on punch presses and bench drills.
Wide working temperature, which can be used from -40 to 75 ° C.
Dustproof and shockproof.
A 60 mm long clip can fix the module to your machine.
The glass lens makes a clear and visible ellipse point on the target object.
Package:
1pcs 635nm 10mw red laser module
1pcs 5V adapter
