Description

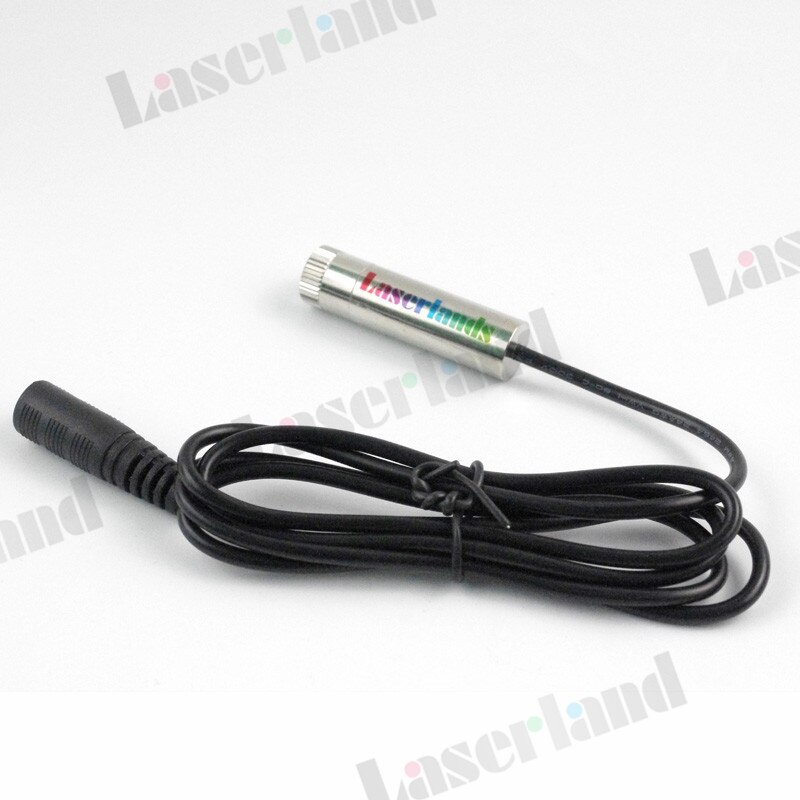

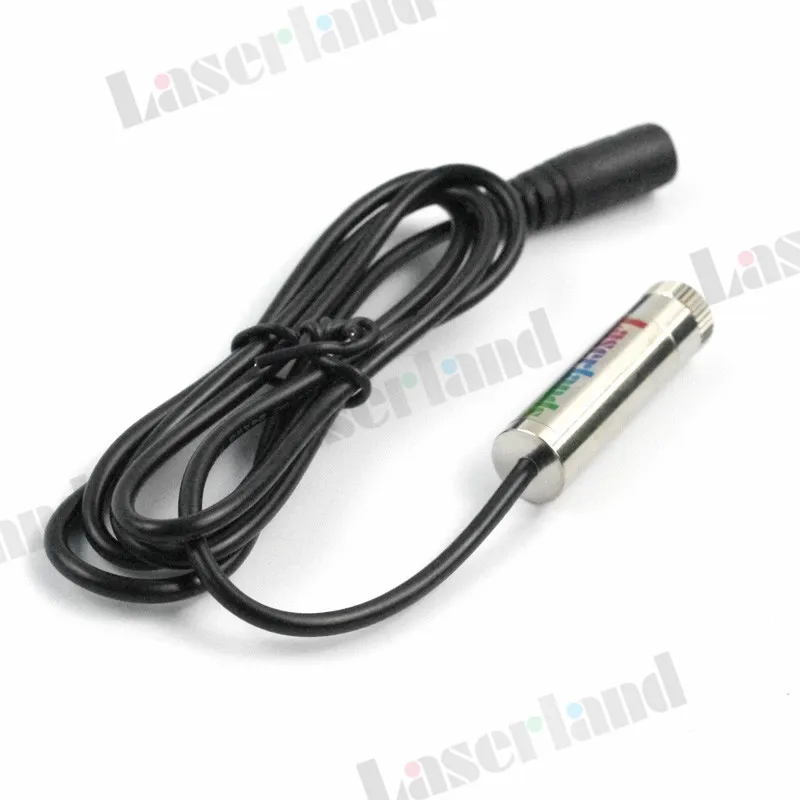

Focusable 20mW 405nm Blue Violet Laser Line Diode Module Blu-Ray with AC adapter

20mW 405nm Violet/Blue Focusable Adjustable Laser Line Module 120° with AC-DC adapter 100-240V
This laser module is an industrial electronic component and used for as Industrial test, Lab, DIY. Not a handheld laser.

Comparing with 532nm green or 650nm red lasers, 405nm violet/blue laser is hard to be seen by human since the wavelength is on the range of spectrum by human eye sensibility. Even though a 405nm laser is powerful enough to burn, it is not as bright as green or red lasers.
Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
405nm  Violet Blue Laser is on the range of human eye sensibility, so that it will NOT as bright as green and red ones.
Please find out the spectrum and human eye sensibility as reference.

Specification
Output Power  20mW
Working Voltage    5.0VDC
Wavelength   405nm
Working Temperature     15-35 centi-degree
Laser Shape     Line
Divergence    120°
Focusable     Yes

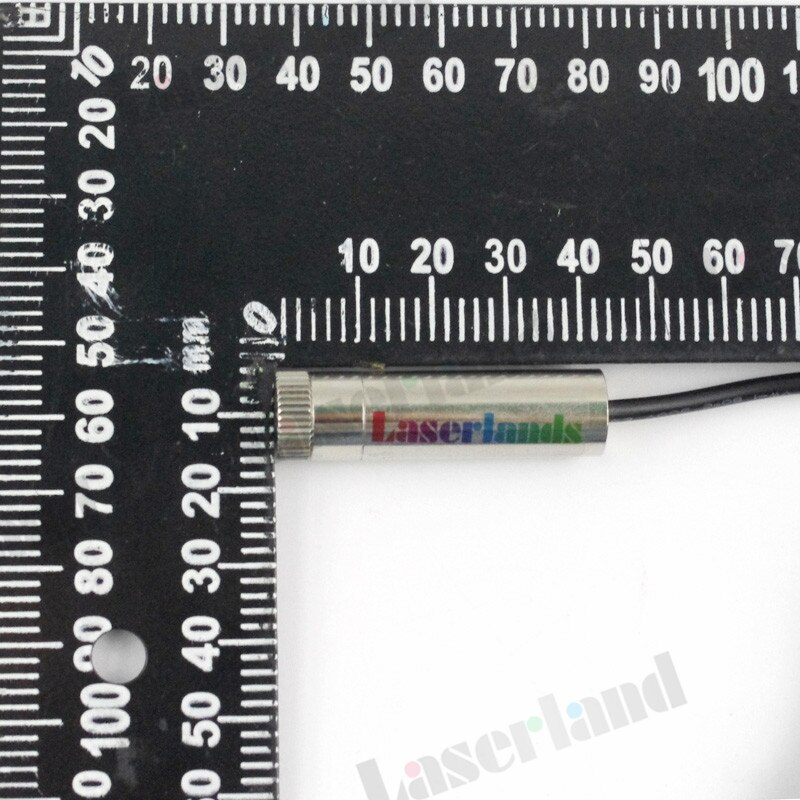

Dimensions     ø12mmX45mm
Electronica Pole    Red wire to “+” and BLK to “-”
Working Time(under normal operation)      >5000hours

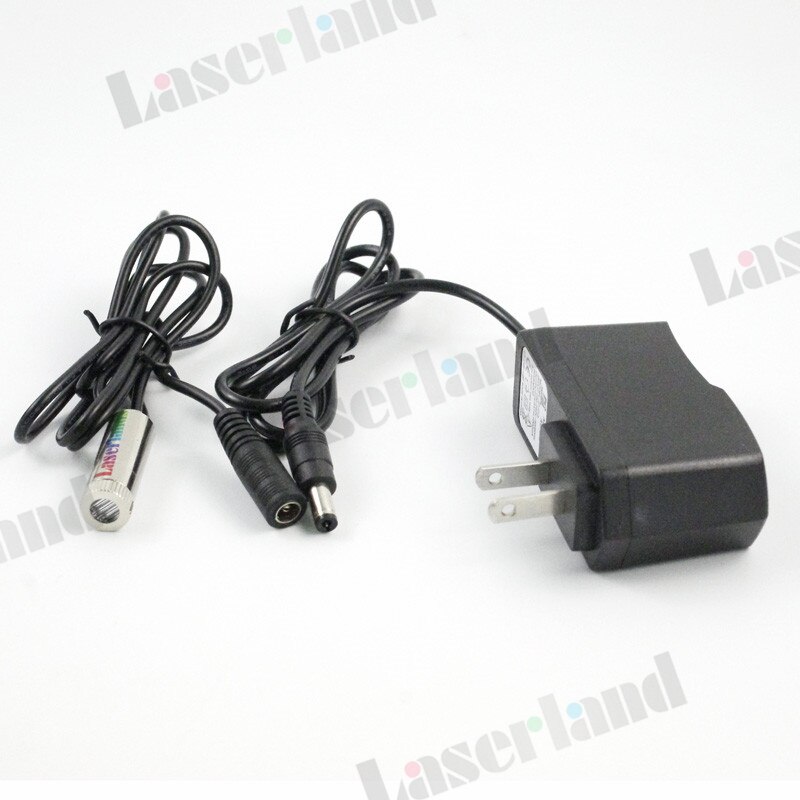

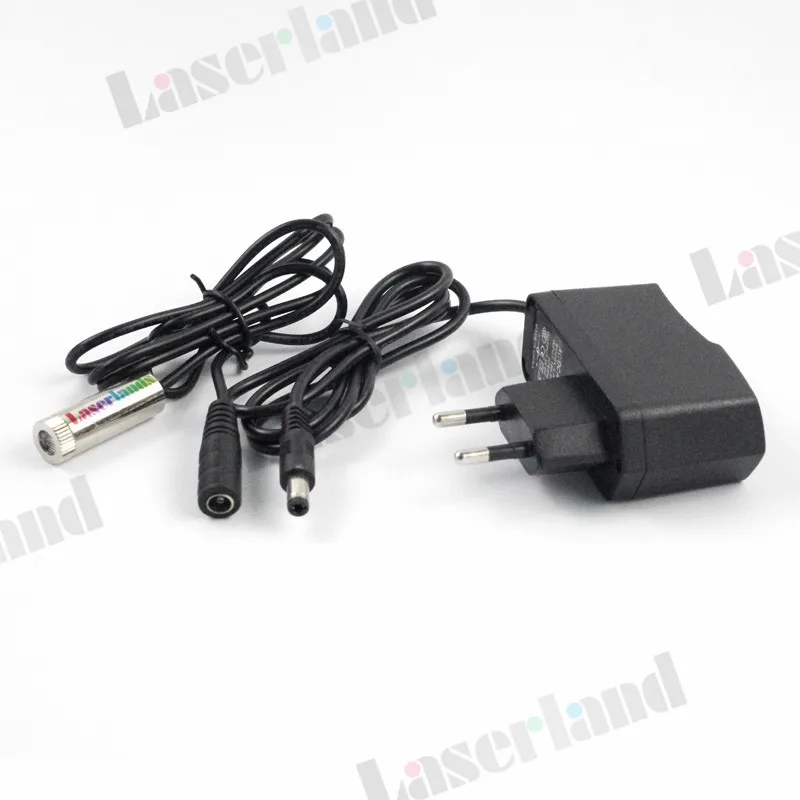

Package     405nm laser module with AC adapter
