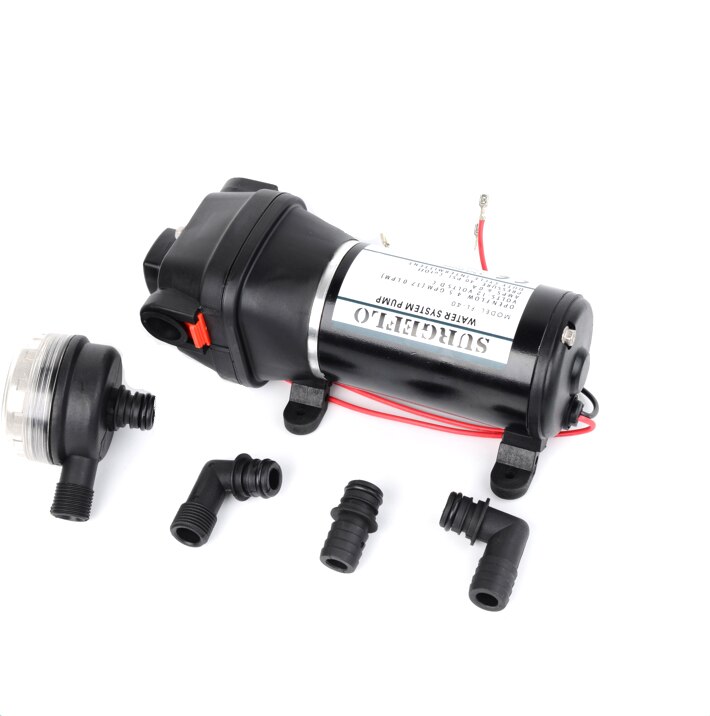

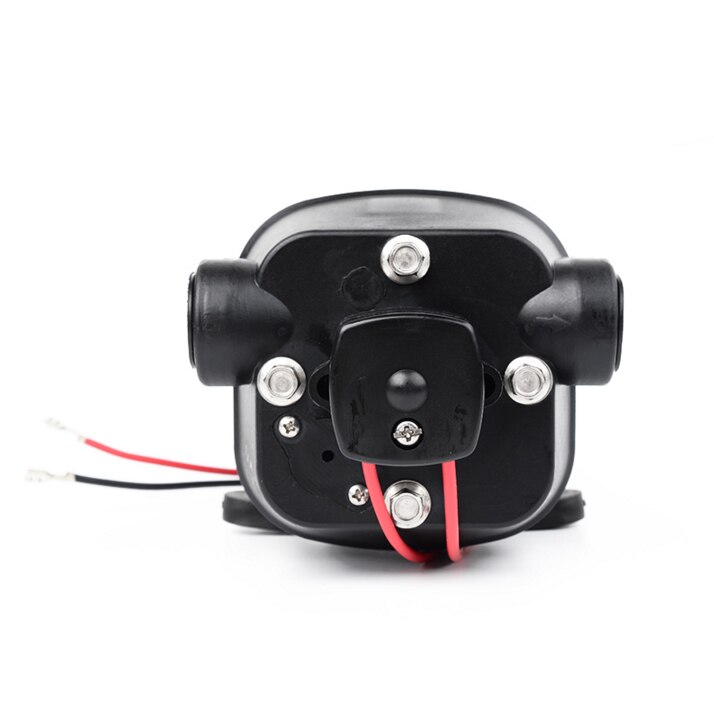

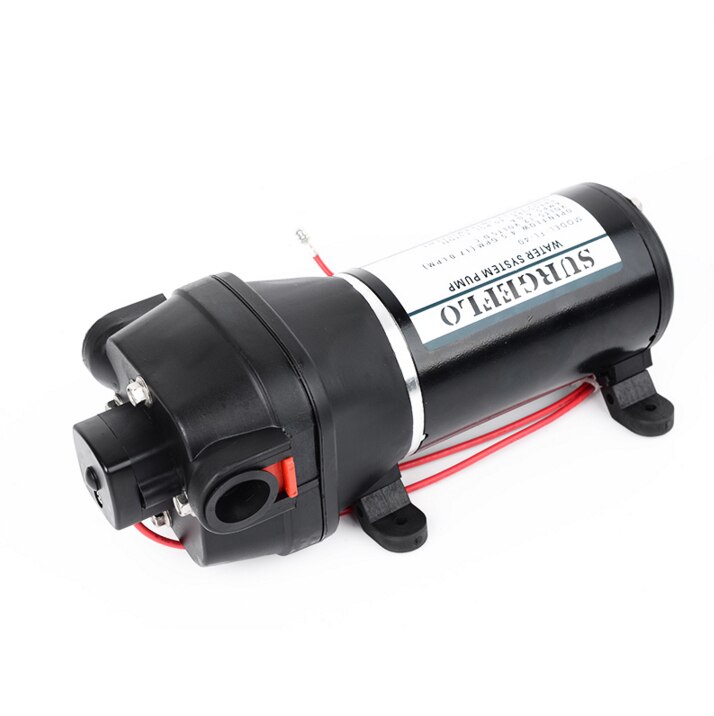

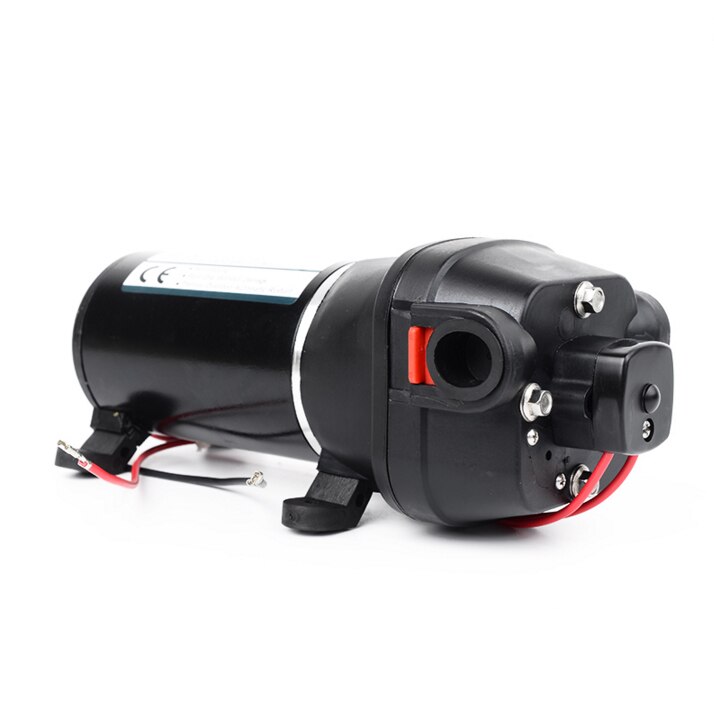

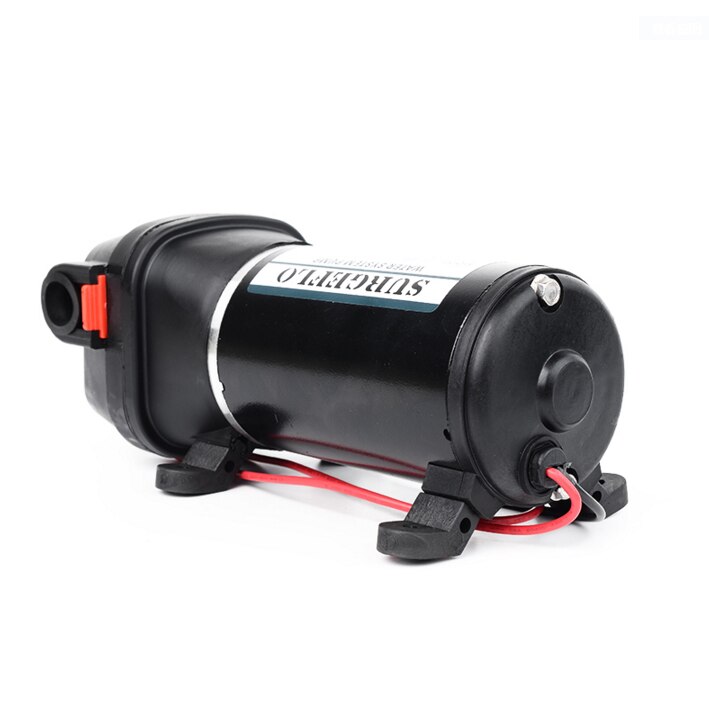

FL-40 Miniature Car Diaphragm Pump 12V24V DC Self-priming Booster Pump

Performance parameter
Pump type: diaphragm type
Maximum flow rate: 4.5 gallons per minute (17 liters / minute)
Pipe diameter: 20mm (interface diameter)
Maximum pressure: 40PSI (2.8Bar)
Diaphragm material: rubber elastic material
Valve material: EPDM
Voltage: 12V DC
Maximum liquid temperature: 60 degrees Celsius
Pump material: polyamide polyester 66
Head: 25m
Power: 180W

Product Features
1. Continuous magnetic and intermittent work
2. Built-in pressure switch can automatically start or stop the pump when the faucet is opened or closed.
3. Self-priming function can be satisfied that the pump is installed above the water tank
4. Do not keep idle for a long time
5. Built-in thermal protection device

Typical applications: marine, RV, water treatment, beverage/catering services, distillation equipment, agricultural spraying, general industry, automotive.
