Fiber to Fiber Coupler for High Power

Description

Fiber to Fiber Coupler for High Power

Features
 Easily coupled two fibers
 With high coupling efficiency

Housing Material
Brass , chrome-faced
Wavelength(1)
600 – 1000 nm
Input/Output Fiber Core Diameter(µm)
200/300,375/400
Coupling Efficiency(2)
> 92 %
Fiber Connector
FC SMA ST
Maximum Laser Power
15W(CW) 30 W (CW) 15 W (CW)

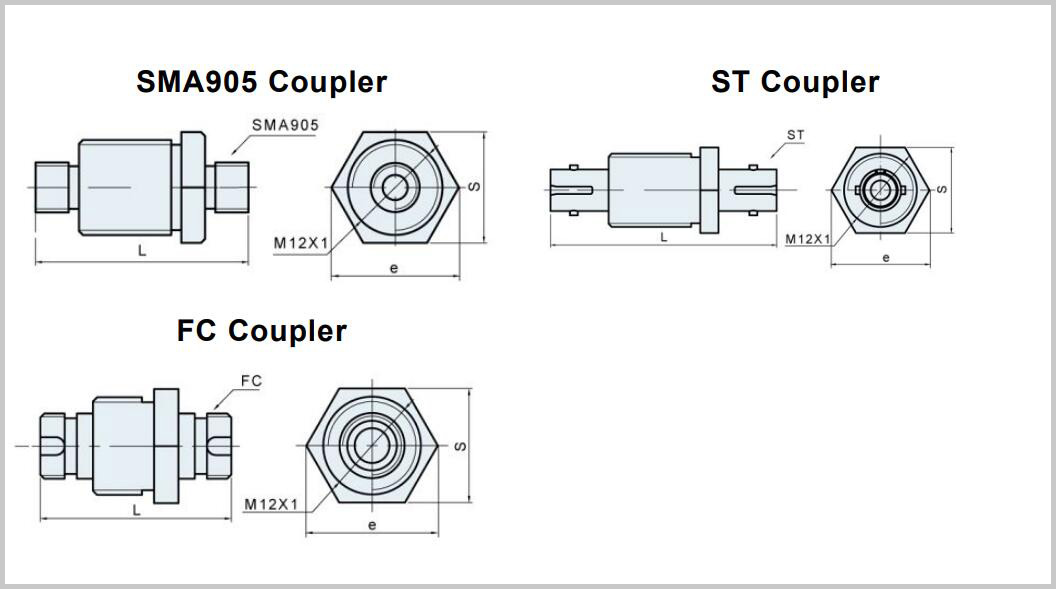

Diameter
emax=12±0.1mm, S=14±0.1mm
Length
L=23.5±0.1mm L=27±0.1mm L=37.3±0.1mm

Product parameters
