Description

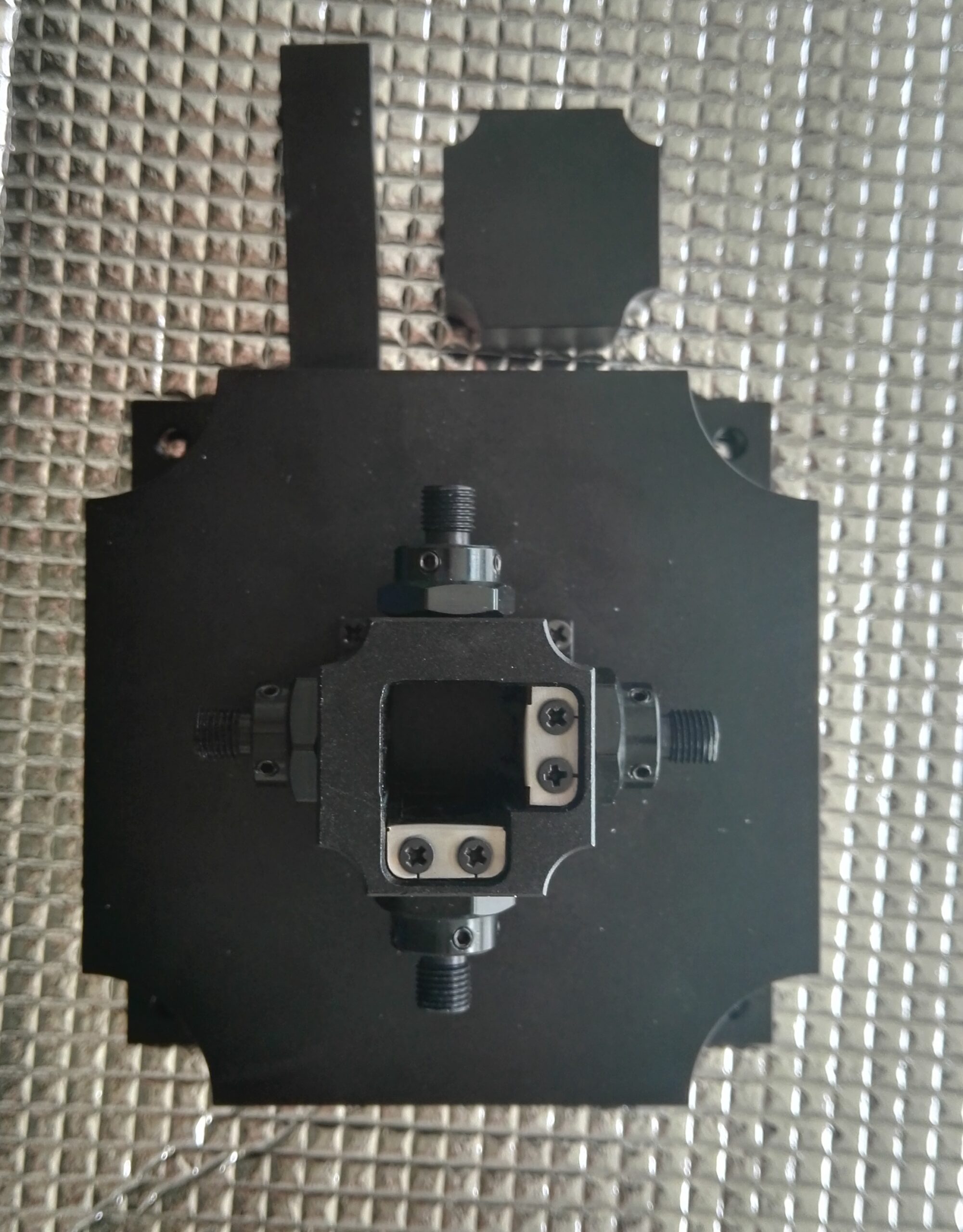

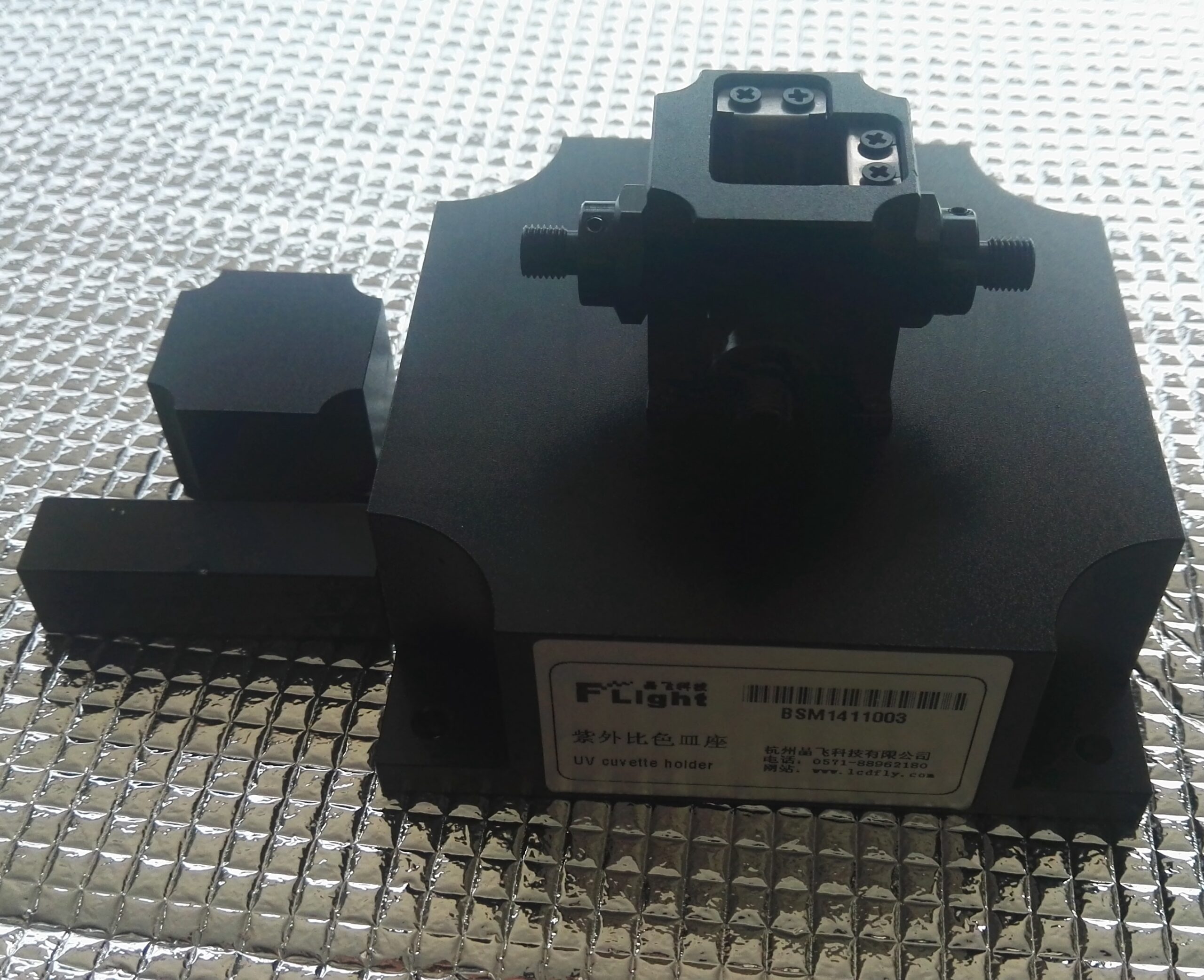

The cuvette holder can be used for 10mm optical path cuvettes.

Coupled optical fiber with SMA connector to the spectrometer and light source to make a miniaturized spectrophotometer system.

The spectrophotometer is for measuring the absolute absorbance of various aqueous solutions and gases.

Compact cuvette holder is optimized for UV-VIS-NIR (~200 nm-2 µm) applications.

Specifications:
Light path: 10 cm ,
Collimating lens (UV-VIS-NIR): Quartz lens; 5 mm diameter; f/2 ,
Collimating lens connector: SMA 905 ,
Filter slot: Aluminum ,
Recommended fiber: 400um line diameter deep ultraviolet silica fiber; 600um line diameter silica fiber.
