Description

 fiber coupled laser module high power 300w 500w CW DPSS  diode  for metal marking / welding / cutting / cleaning



All diode pump module is customized as per clients’ request, please contact us for more information.

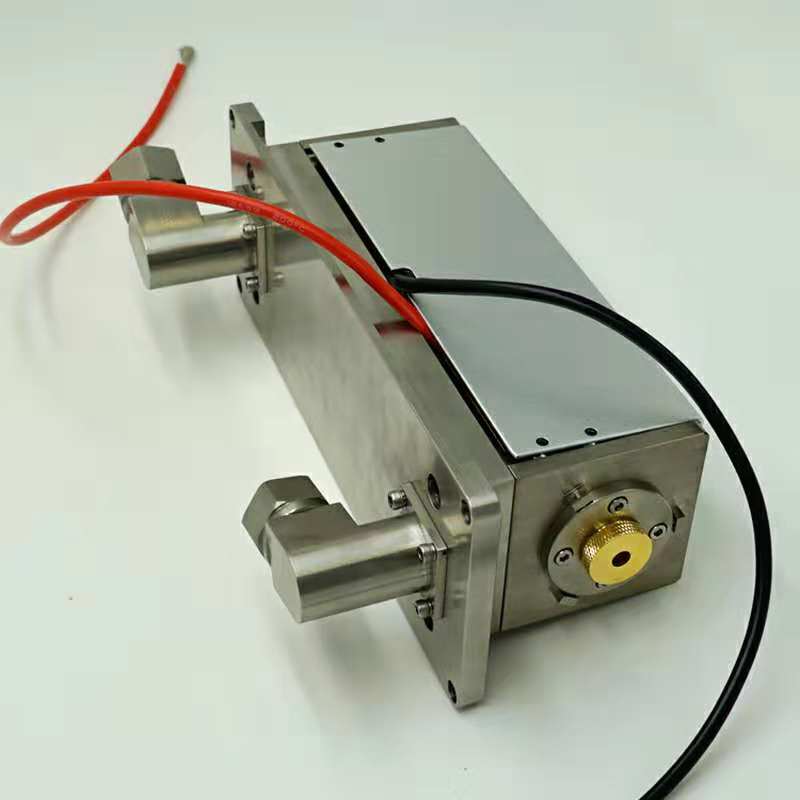

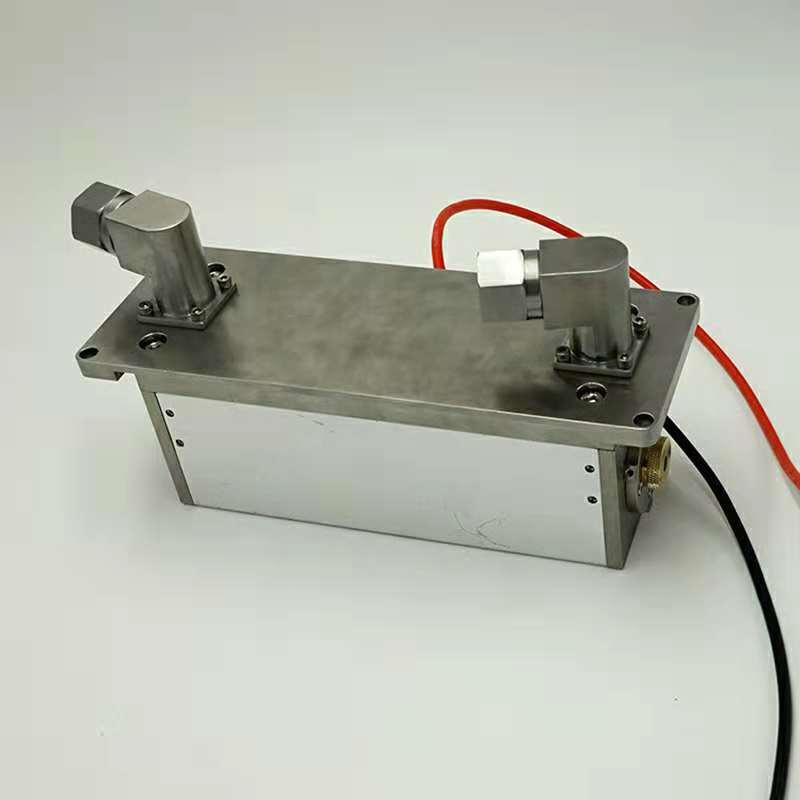

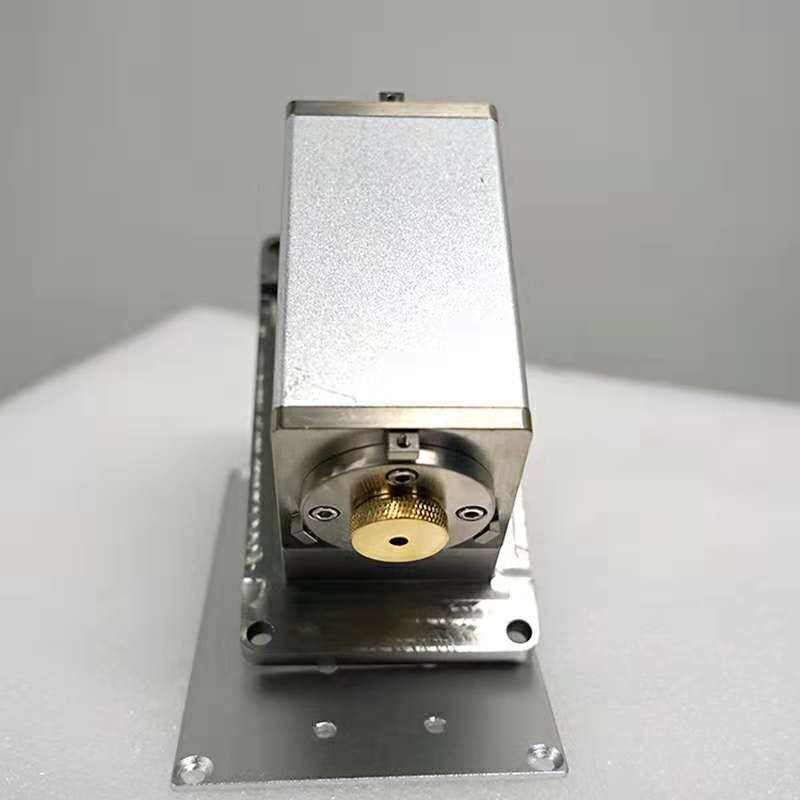

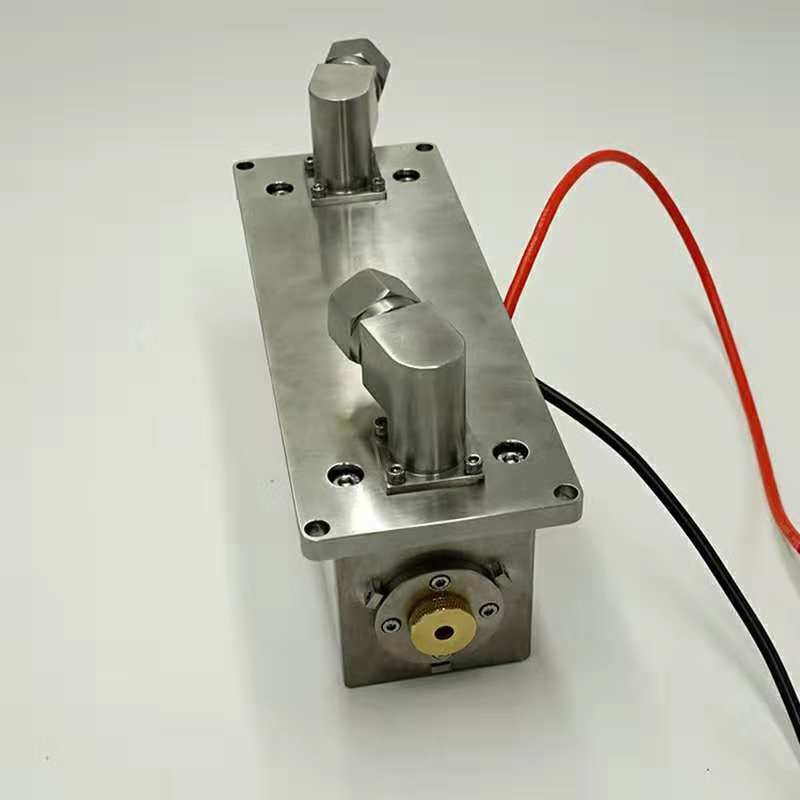

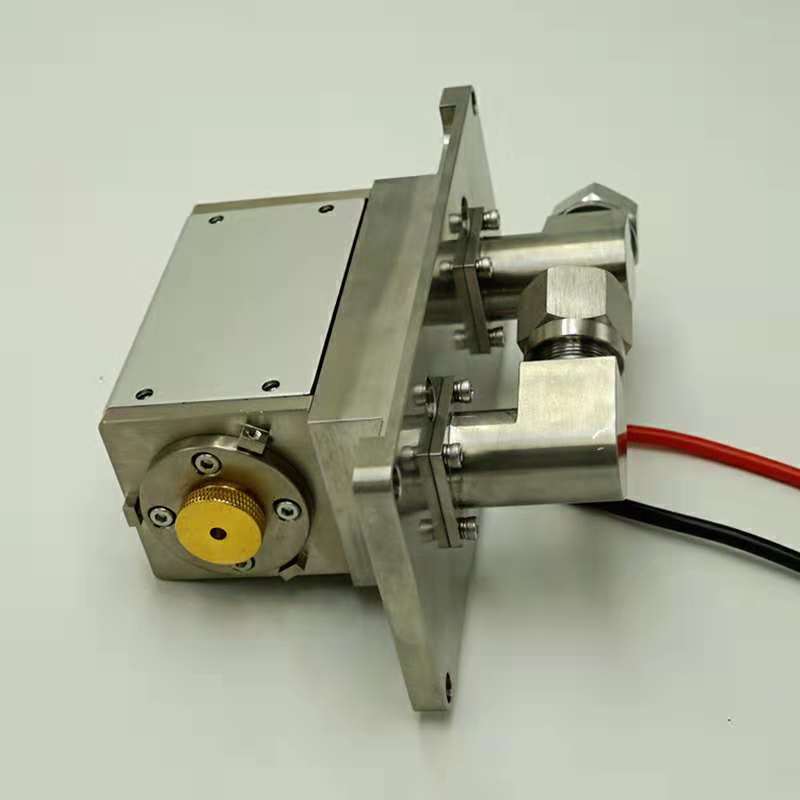

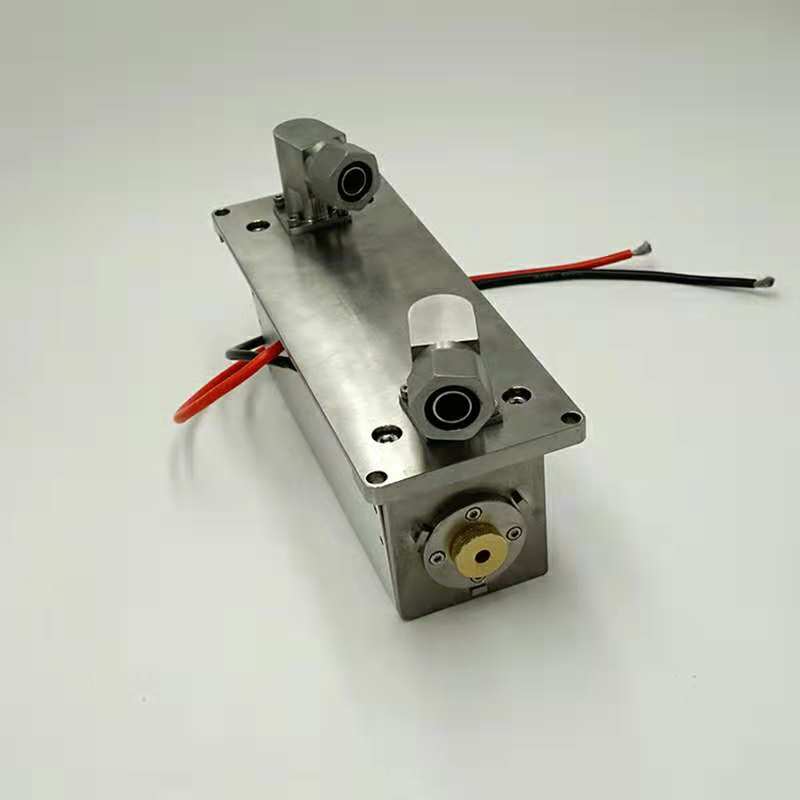

We have develped a full product line of Diode-Pumped Solid State laser modules for industry applications. This is the GN series water-cooled diode-pumped Nd:YAG modules. The output power is from 20W up to 500W (@1064nm). These modules can be used as laser oscillators or amplifiers, and have been widely used for industry metal processing, such as laser engraving / marking, welding, soldering, cutting or etc. Besides regular modules, oriental-laser can also customize various modules according to our client’s requirements.



 Application

1. Metal marking

2. Diamond cutting

3. Laser welding and cutting

4. Cleaning



Output Power: 20-500W (1064nm, CW)

Working Mode: CW

Wavelength: 1064nm

ND: YAG, Doping at 0.6%

Water-cooled

Expected life: 10000 hours

Warranty: 12 months

Diode Provider:  ( Germany) 40W bars.



 Advantage

1.Diode laser bar is from Germany

2.our high skilled and experienced technicians perform the assembly and test of laser moudle in our 10K-class and part of 100K-class big clean lab.
