Description
What’s the diference between FB03 Series and FB04 Series Laser Module When or why do i need
to have a FB04 Series Laser Module
– It depends on what the interface for laser module on your controller board is like.
– The controller board of EleksMaker Series Engraver is designed with a 3-Pin (12V/GND/PWM) interface
for laser module, so you need to buy a FB03 series module.
– If the controller board of some other no-name engravers is designed with 2*2-Pin (1 for DC voltage,
1 for PWM/TTL modulation) interfaces, then you need to buy a FB04 series module to fit it.
Specification:
| General Specification | |
| Model | FB04-2500 |
| Heatsink Material | Aircraft Aluminum |
| Luminous Color | Blue |
| Section Size | 33mm x 33mm |
| Mounting Hole | M5 (central), M3 (around) |
| Cooling Mode | Heat Sink Groove, Cooling Fan |
| Adapter Plug | US Plug |
| Adapter Input Voltage | AC 100-240V |
| Adapter Output Voltage | DC 12V 2.5A |
| Can Engrave |
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/ Plywood/Foam Paper/Anodized Aluminum |
| Can Not Engrave |
Metal/Glass/Stone/Ceramics/Stainless Steel/ Reflective Material/ Transparent Material |
| Technical Parameters | |
| Laser Power | 2500mW /2.5W |
| Wavelength | 445nm |
| Beam Shape | Dot (Focusable) |
| Working Voltage | DC 12V |
| TTL/PWM Modulation | YES |
| Power Input Interface | 2.54-2P |
| TTL Interface | 2.54-2P |
| Drive Mode | External ACC Constant Current Drive |
| Life Time | >10,000 hours |
Features:
1. The voltage for power port((VCC, GND 2 Pins Port) is DC 12V, the voltage for PWM port (PWM, GND 2 Pins Port) is DC 5V.
2. 445nm 2500mW focusable blue violet laser module, with TTL or PWM functions (TTL and PWM are
compatibe while TTL can control the switch and PWM can control the power).
3. Aircraft aluminum heatsink with cooling fan ensure long working time continuously.
4. Equipped with constant-current driver board ensure stable output optical power, low heat, no external
driver board needed,easy to use.
5. Suitable for industrial laser engraving machine equipment usage.
FAQ:
1. Where is the TTL port I can only see the PWM
For this item, TTL and PWM is compatible and you can only choose one of them. It means that you can
connect this module’s PWM port to the PWM (or TTL) port on the control board of your engraver.
But make sure the voltage supply of that port is DC 5V.
2. How can I connect this module to the my engraver, like EleksMaker A3
If you don’t need the PWM function, you can directly connect the power port to Motor Port (12V, GND)
on Eleksmaker board and leave the PWM port unconnected.
3. What does the white button on the driver board do
Press the button, the laser will switch to weak light mode and the LED light on the driver board keep shining.
At this state, the laser beam can be used for positioning but not for engraving. Press it again, the laser will
return to normal mode (for engraving).
Note :
1. Please wear laser goggles during usage, avoid to touching the laser directly to the eyes and skin!
Keep away from children and pets.
2. Note that the laser module works less than half an hour in one time, and please wait until it has cooled
down before continuing the work.
3. The warranty period of laser module is one month. If you have any quality problem(Except individual
situation like using the laser module more than 30 minute one time and casue the damage ), please feel
free to ask our customer service for a help. Thanks for your understanding.
Package Included:

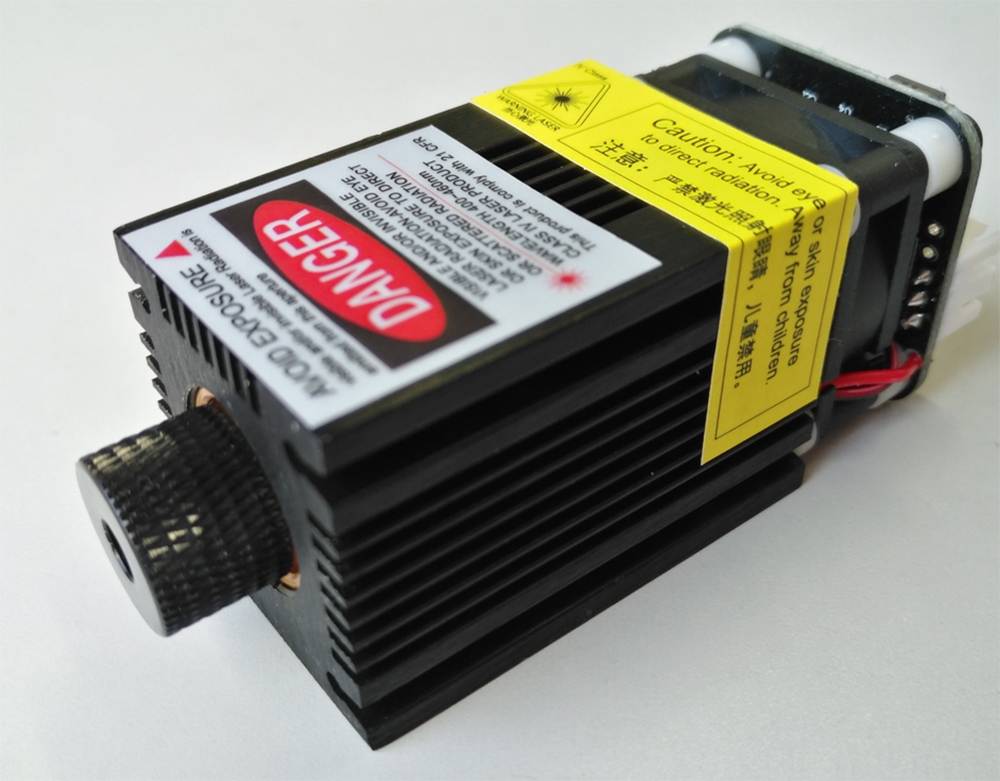

1 x 2500mW Focusable Blue Laser Module
1 x Power Adapter
?
